BeMatik - Distribution box of 12 modules 17.5 mm IP40 for metal flush SPN

• Metal distribution box with IP40 environmental protection.
• Made in robust mesuch beige.
• Compatible with the IEC60670-24 standard.
• Maximum intensity: 100A.
• Operating voltage: 240/415V.

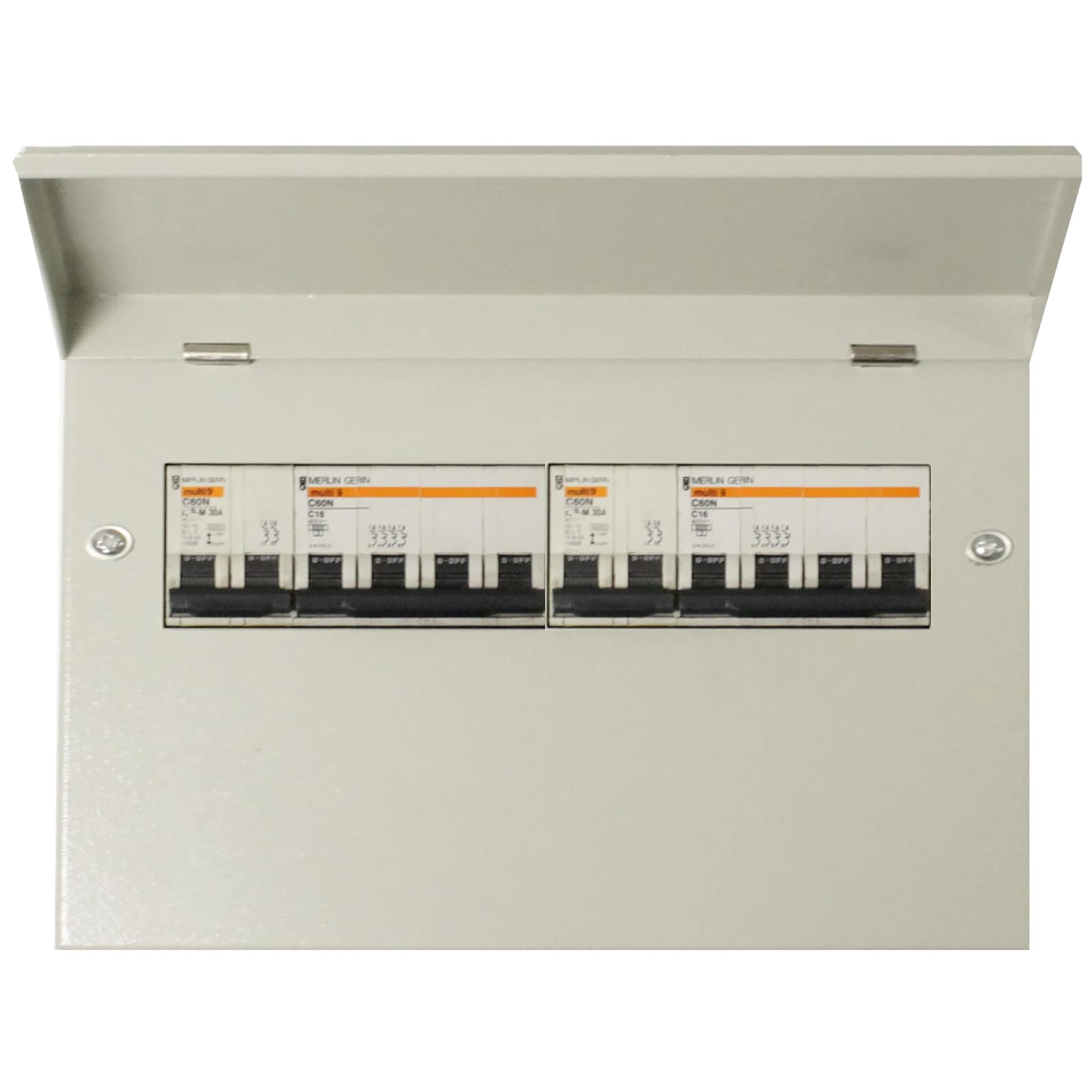

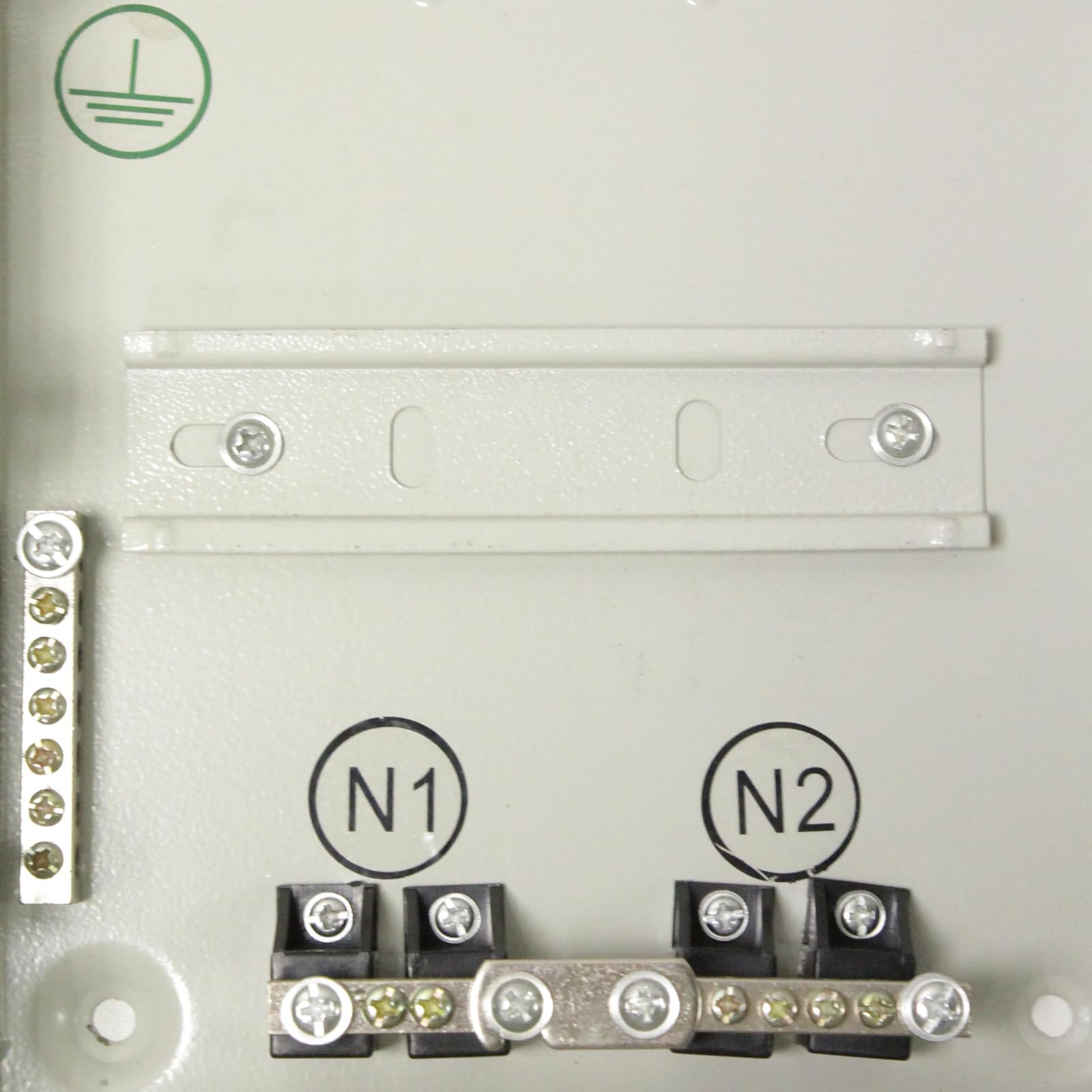

Distribution box for metal recessed IP40 with 12 modules in line. The distribution box allows the assembly of standard modules 18mm wide, on a DIN rail. Robust distribution box made of metal. Designed to be installed on the wall, in a rectangular hole. Specifications Metal distribution box with IP40 environmental protection. Made in robust mesuch beige. Compatible with the IEC60670-24 standard. Maximum intensity: 100A. Operating voltage: 240/415V. 35x7mm DIN rail for fixing the modules. Front door for protection of the modules. Front cover with fastening by screws. Terminals inside, for the connection of GND, N1 and N2. They allow the fixation of several cables in one misma line. Prepared for wall mounting, as the front plate is larger than the box embedded in the interior of the wall. Possibility of surface installation. Fixing to wall using screws (not included). Model for the installation of 12 standard 18mm wide modules. Size of the module window: 216 x 46 mm. Distribution box size (part empotrada): 318 x 227 x 65 mm. Front frame size: 330 x 243 mm. .
