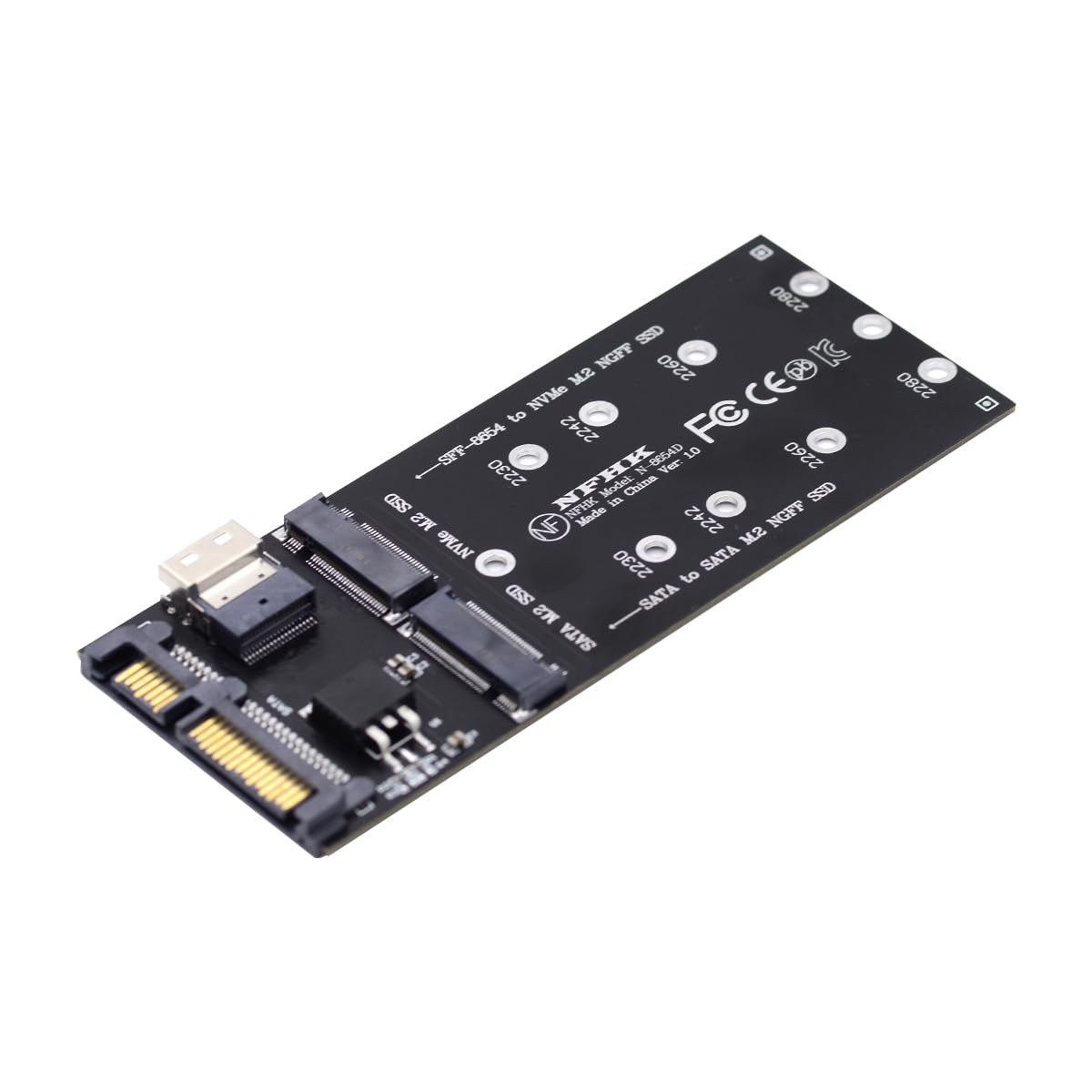

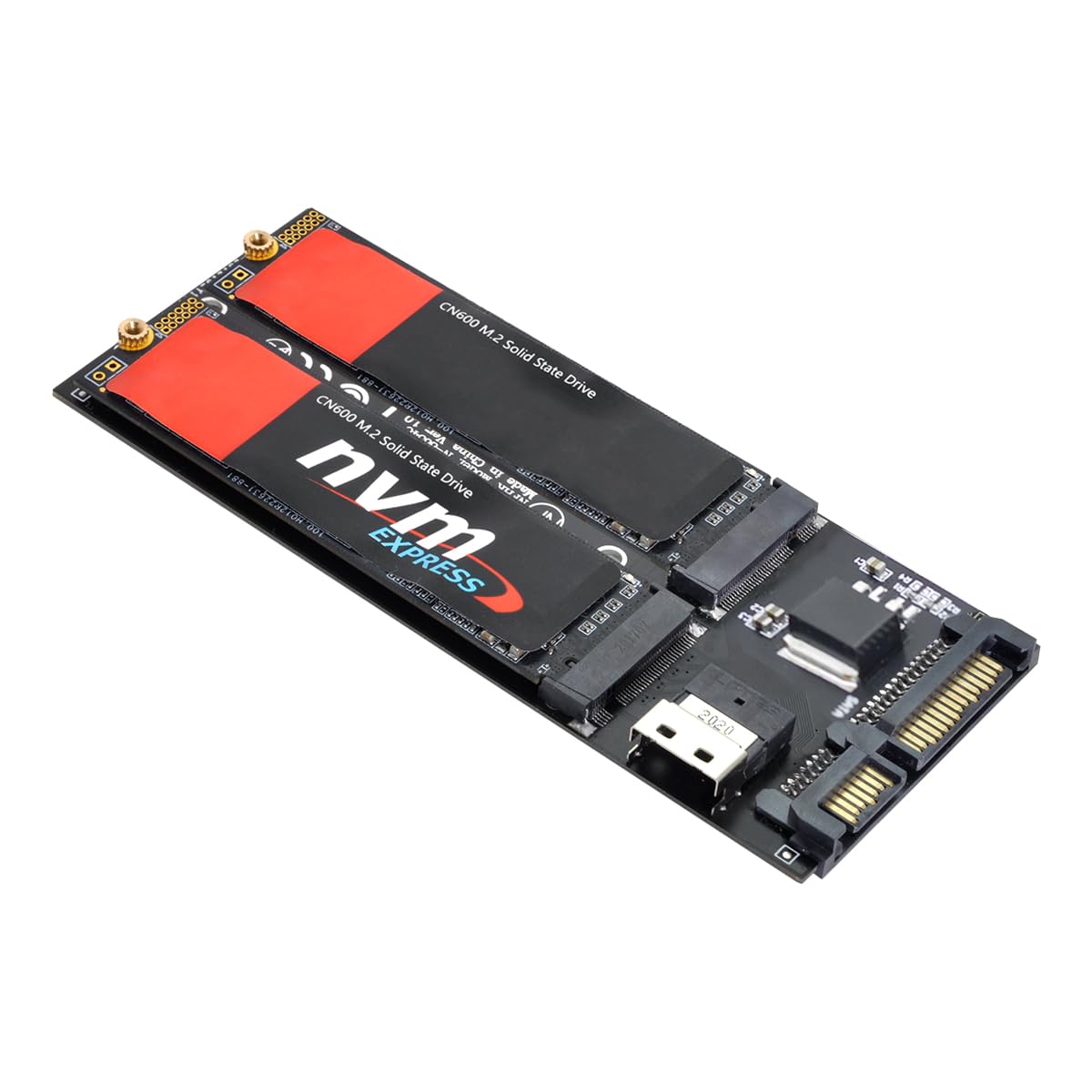

cablecc SFF-8654 to U2 Kit NGFF M-Key to Slimline SAS NVME PCIe SSD SATA Adapter for Mainboard

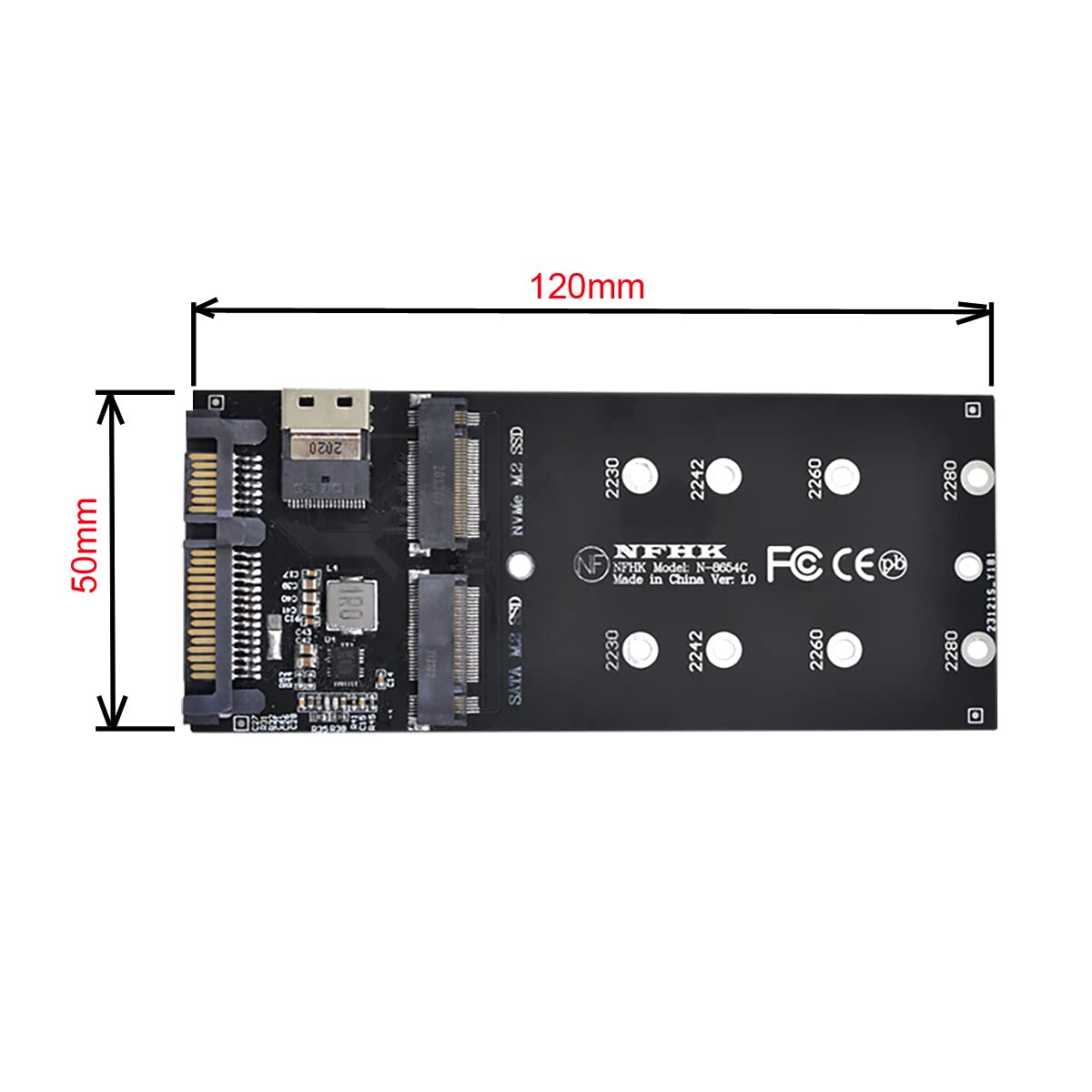

• Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key B or key B+M based on SATA or PCIe
• Hyper Kit Storage controller,Ultra PCI-E Card (PCIe 3.0 x4),The card only work for PCI-E SSD.(Not work for SAS or Slimeline SAS HD)

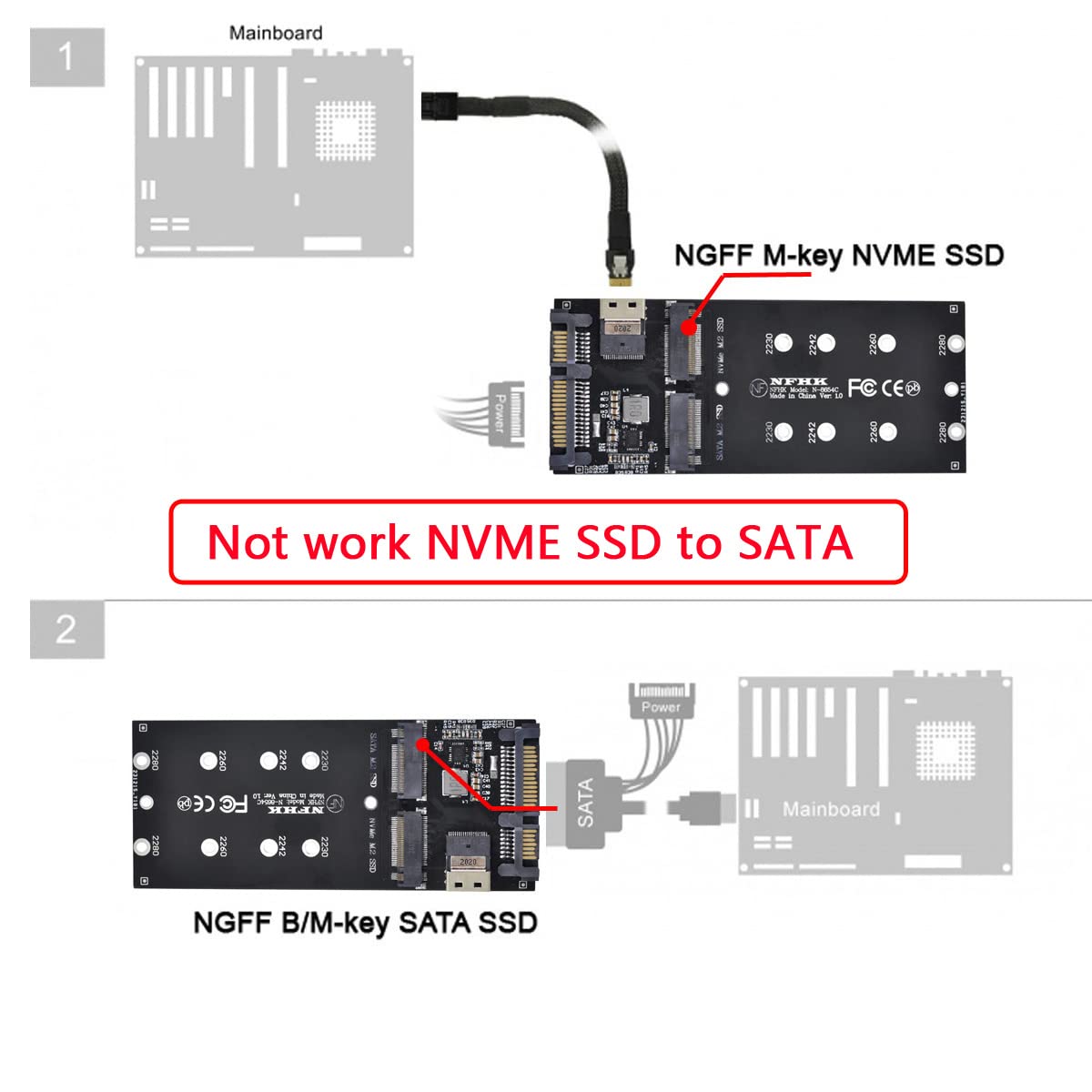

• This U.2 M.2 converter enables two different usage applications.

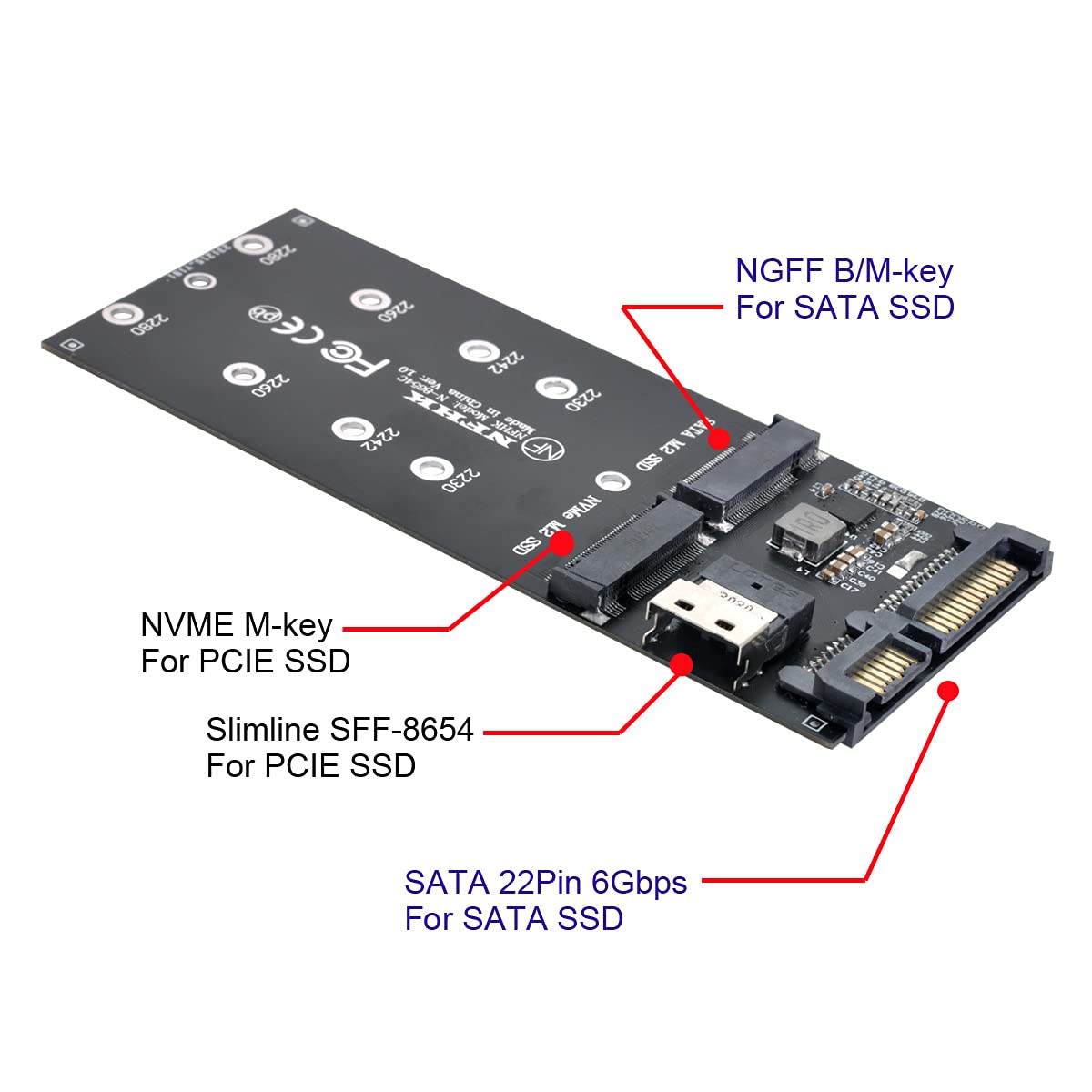

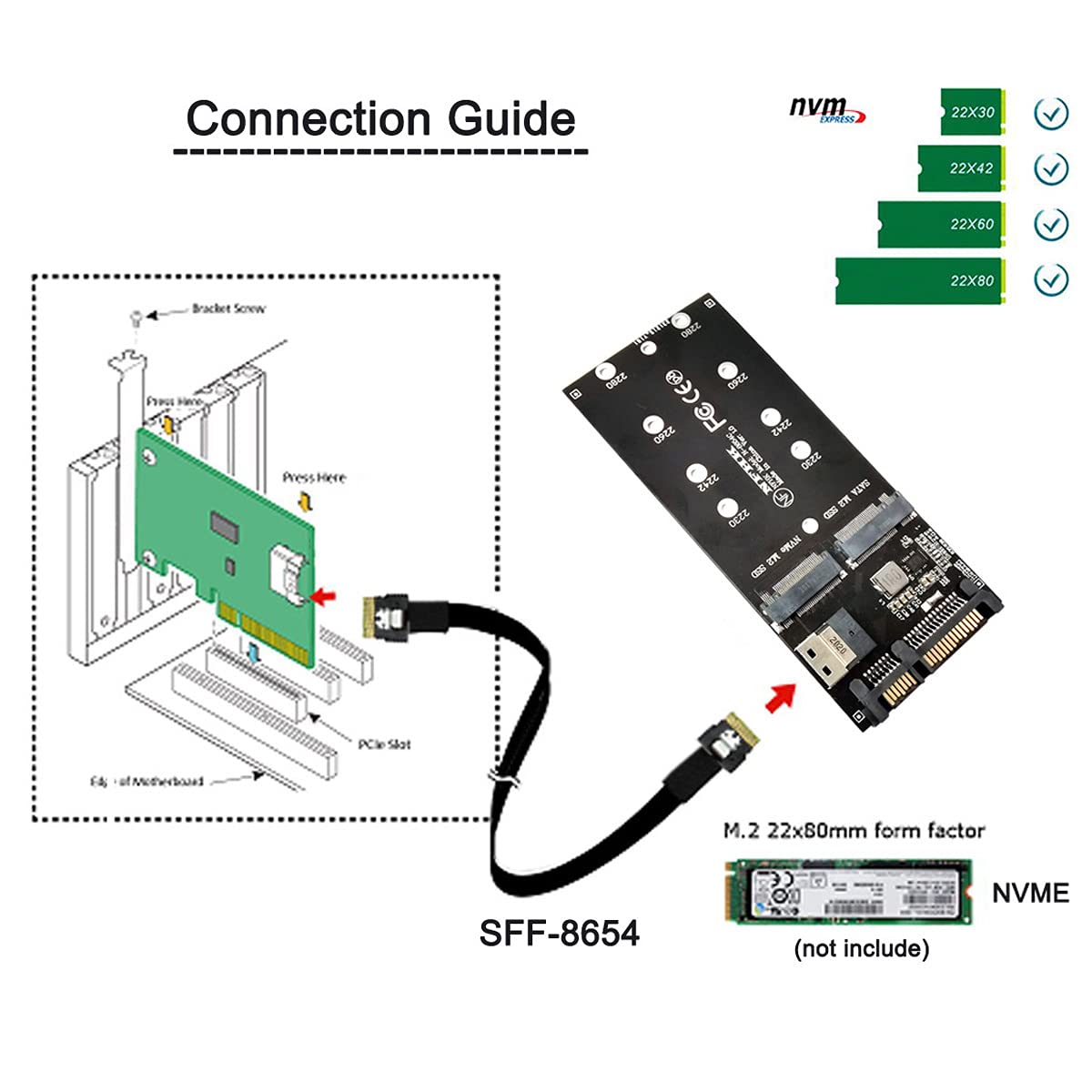

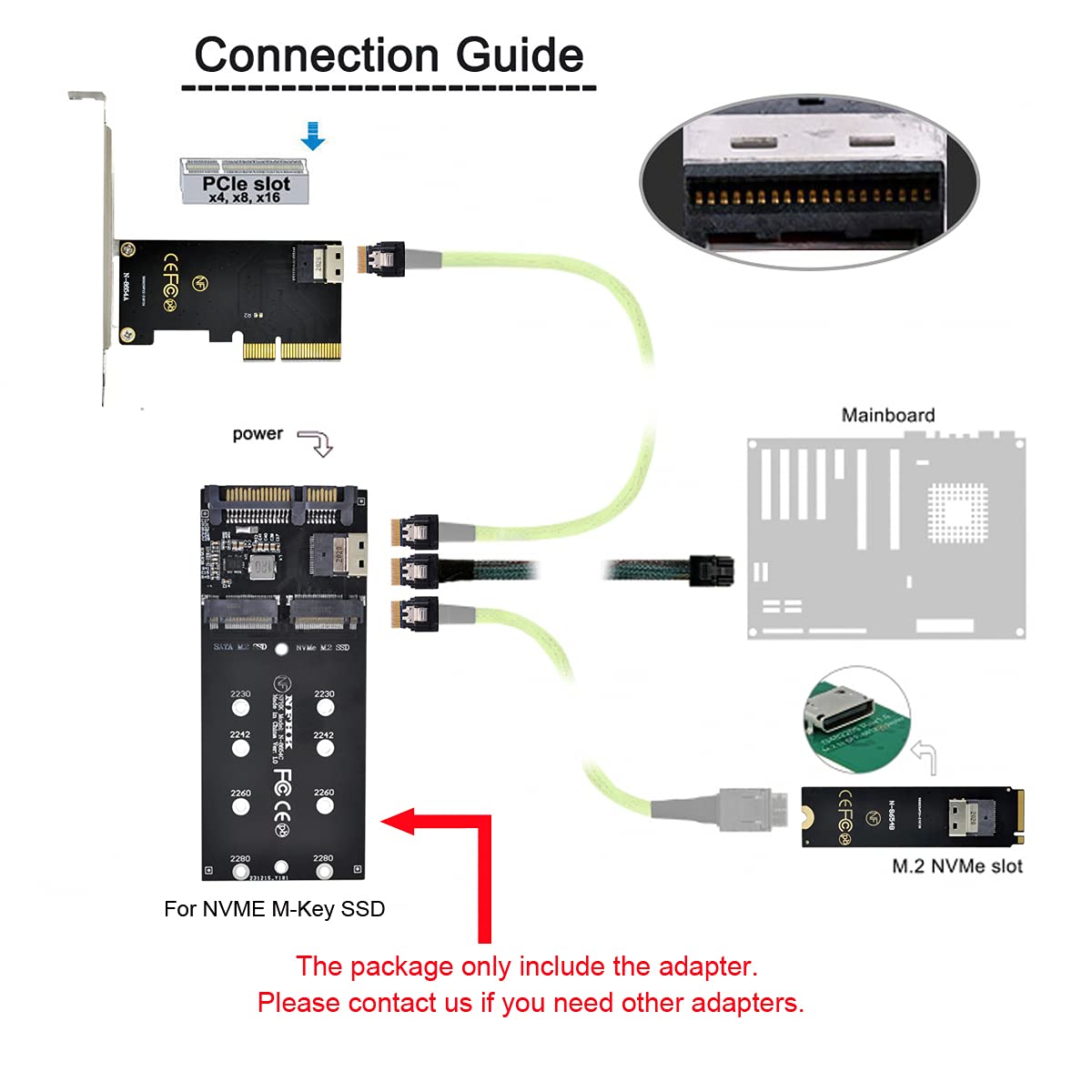

• One M.2 PCIe SSD in 2280, 2260, 2242 and 2230 format can be connected and used as a replacement for a 2.5″ HDD. The converter can be installed into the system internally through the SFF-8654 Slimeline interface.
• One M.2 SATA SSD in 2280, 2260, 2242 and 2230 format can be connected and used as a replacement for a 2.5″ HDD. The converter can be installed into the system internally through the SATA 22pin interface.

SFF-8654 to U2 Kit NGFF M-Key to Slimline SAS NVME PCIe SSD SATA Adapter for Mainboard Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key B or key B+M based on SATA or PCIe Hyper Kit Storage controller,Ultra PCI-E Card (PCIe 3.0 x4),The card only work for PCI-E SSD.(Not work for SAS or Slimeline SAS HD) This U.2 M.2 converter enables two different usage applications. 1. One M.2 PCIe SSD in 2280, 2260, 2242 and 2230 format can be connected and used as a replacement for a 2.5″ HDD. The converter can be installed into the system internally through the SFF-8654 Slimeline interface. 2. One M.2 SATA SSD in 2280, 2260, 2242 and 2230 format can be connected and used as a replacement for a 2.5″ HDD. The converter can be installed into the system internally through the SATA 22pin interface.
