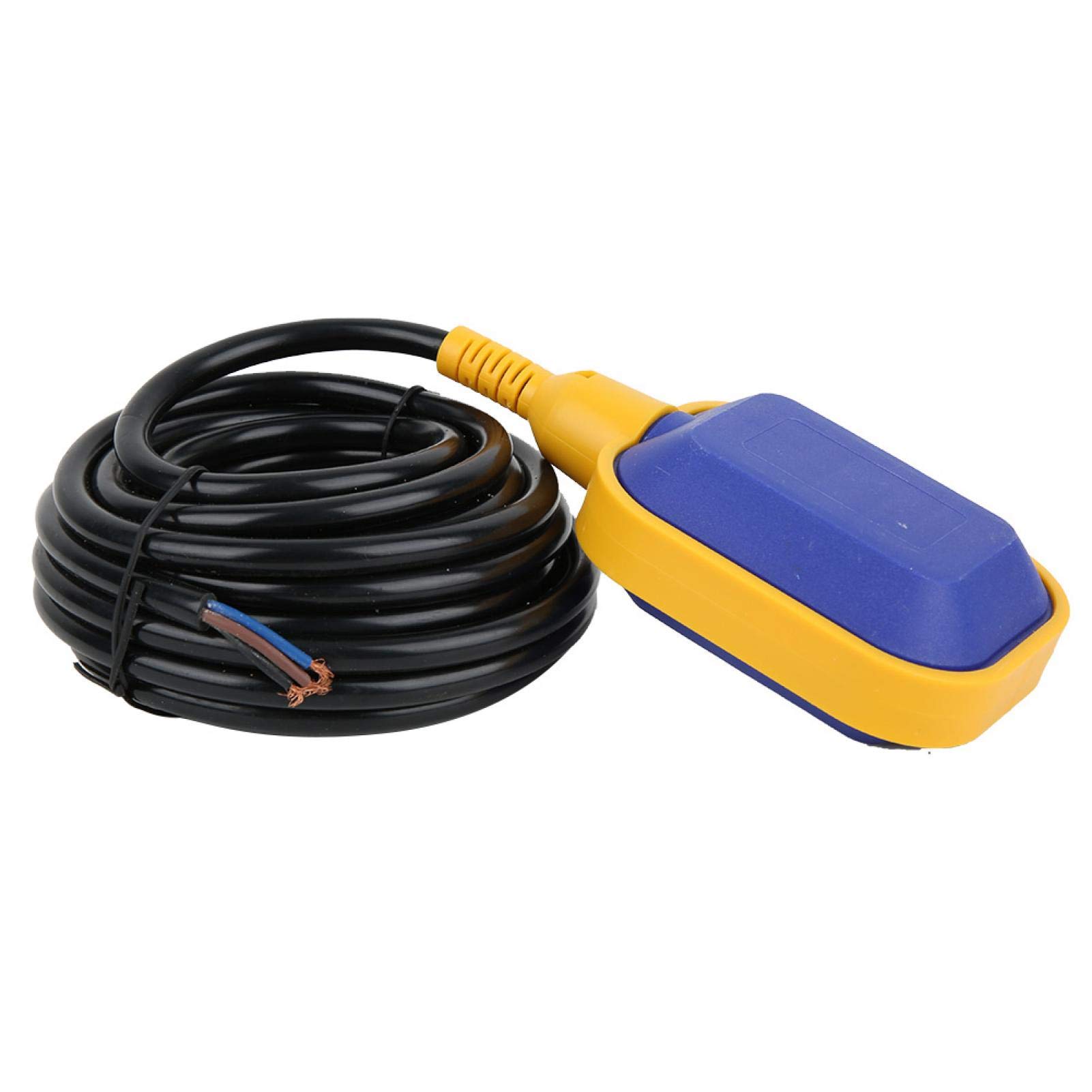

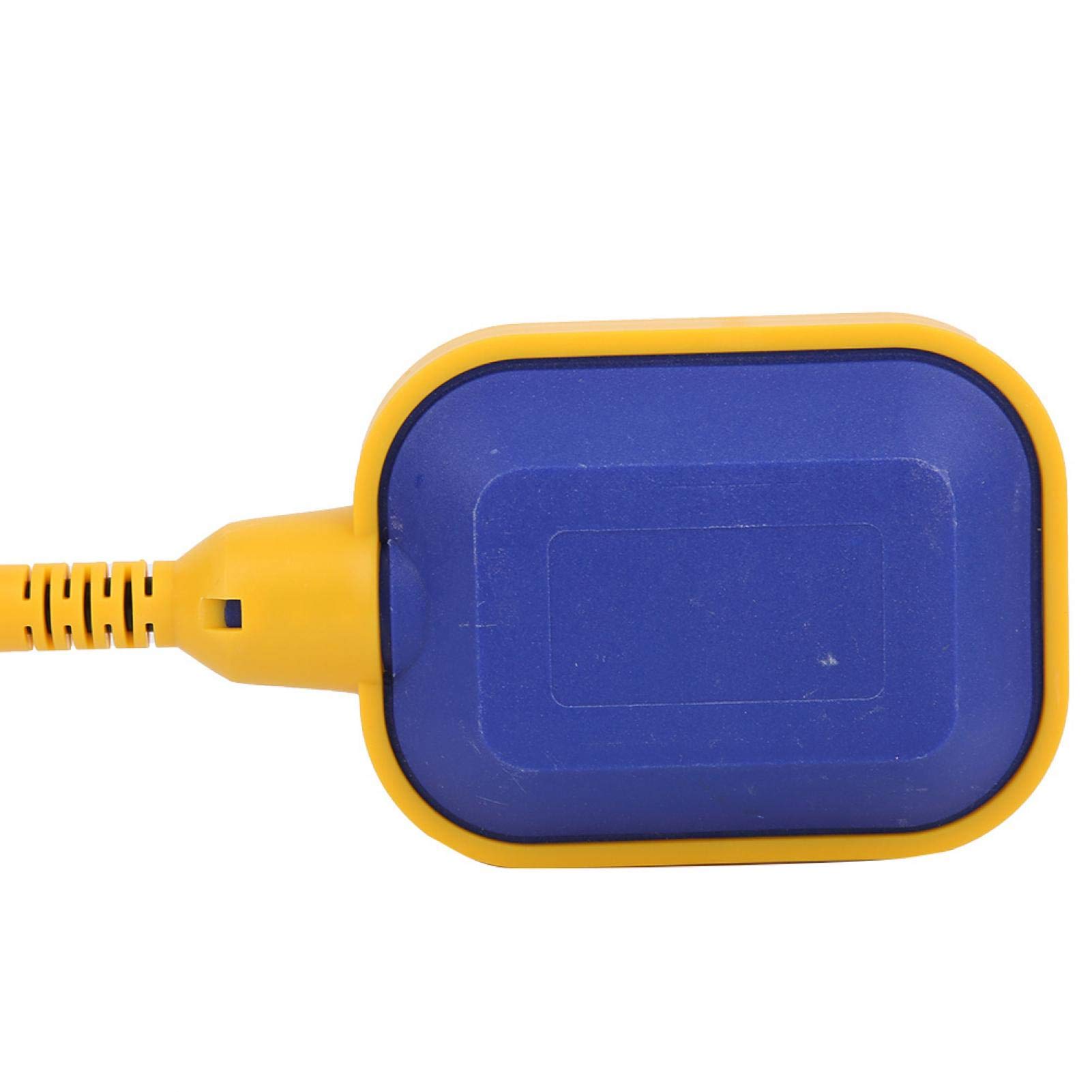

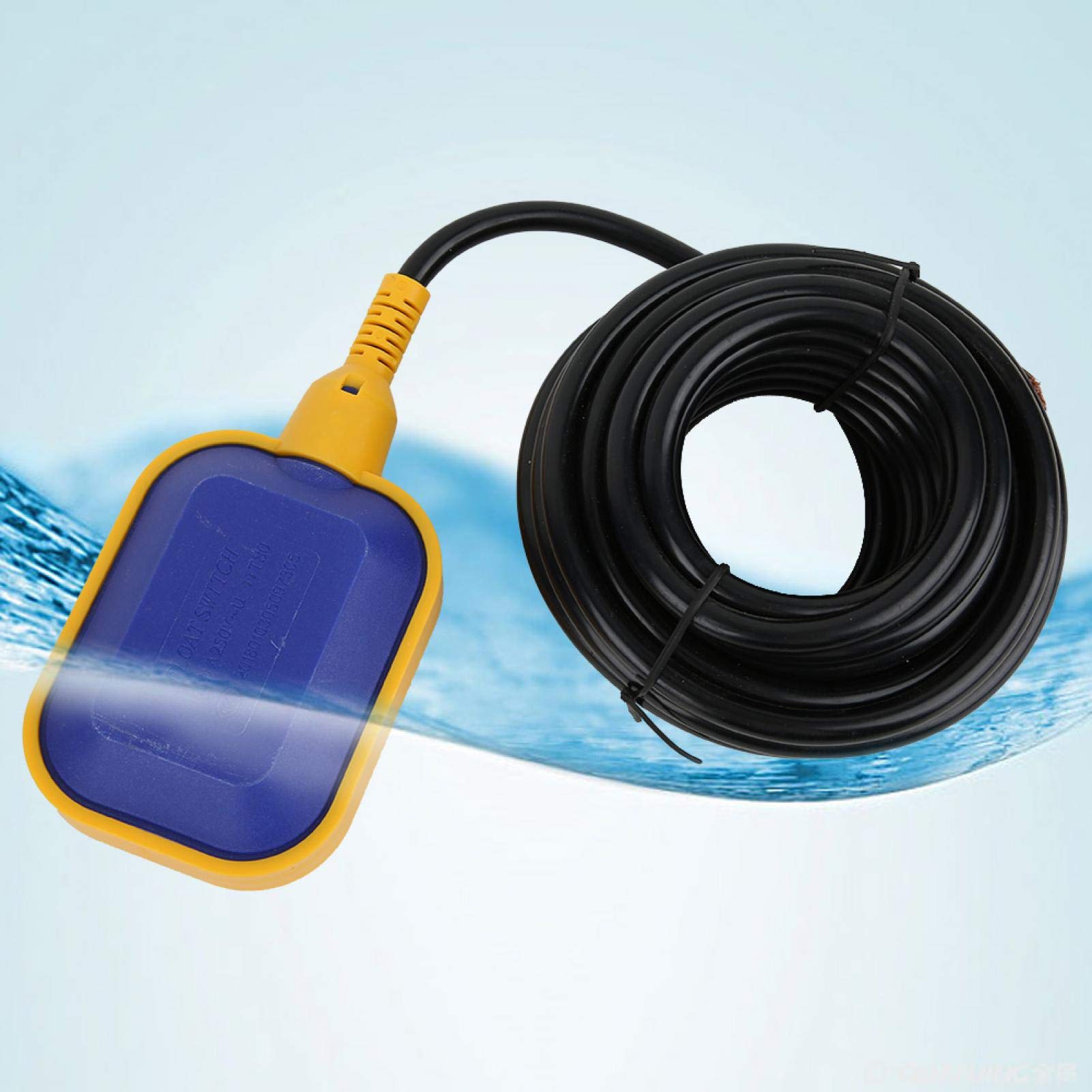

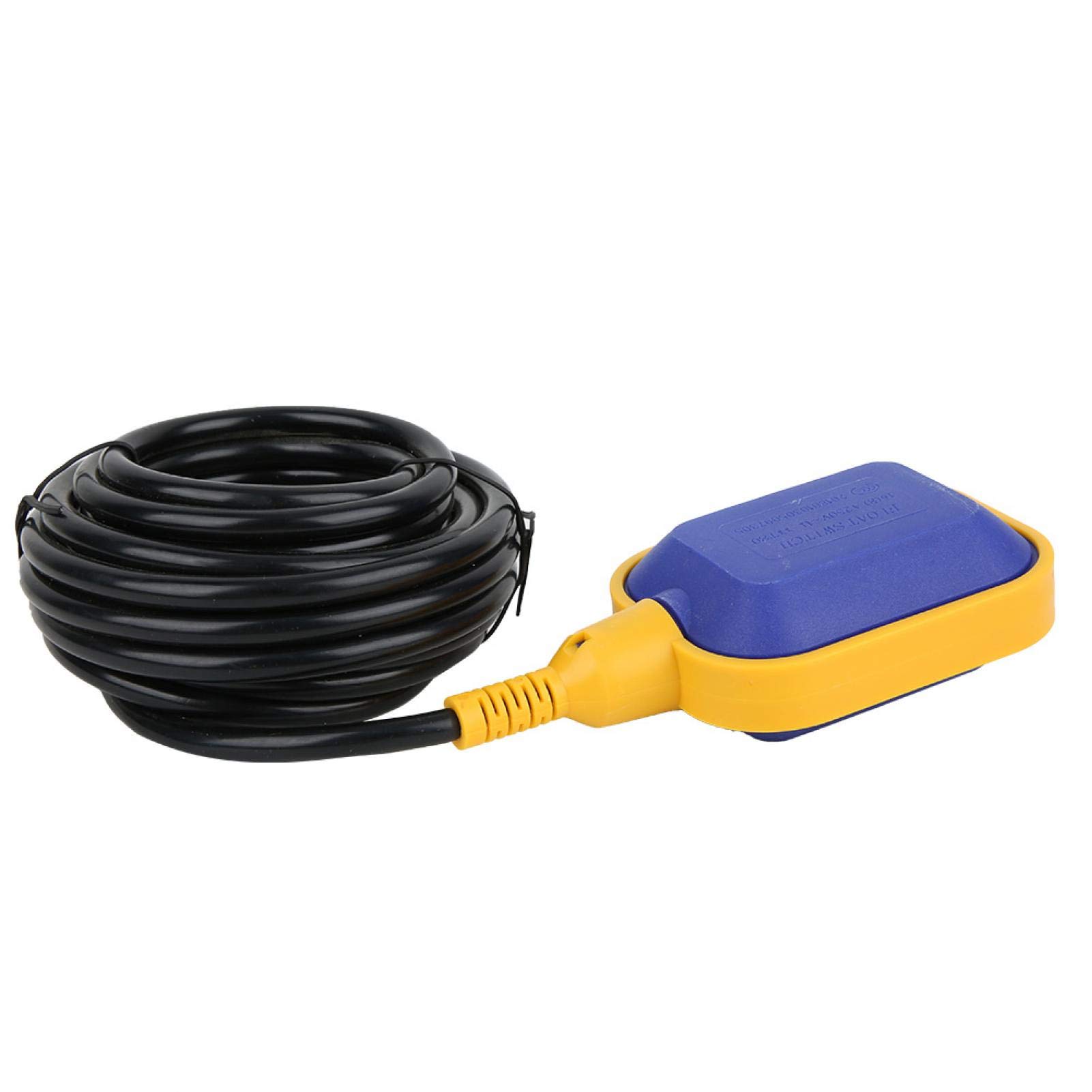

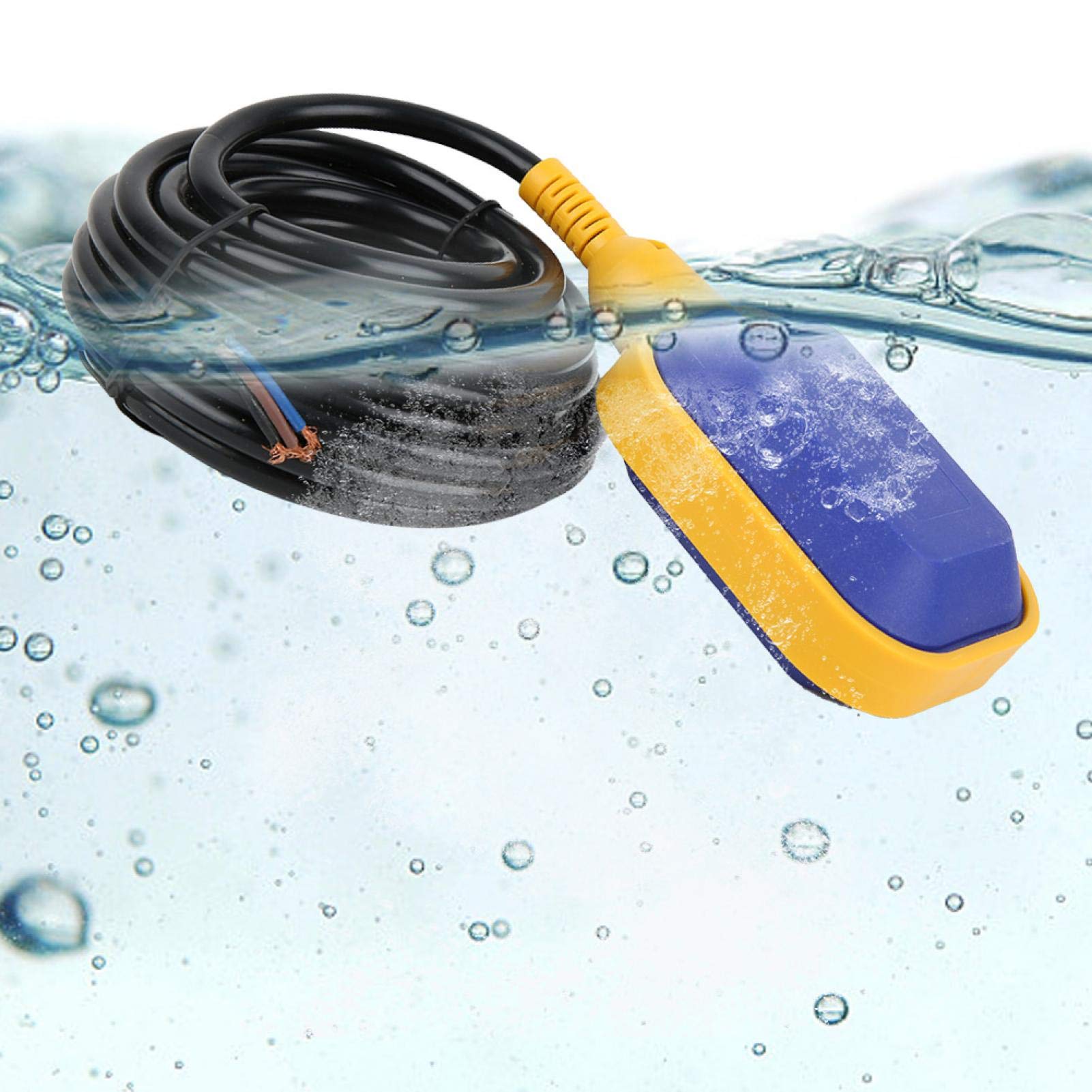

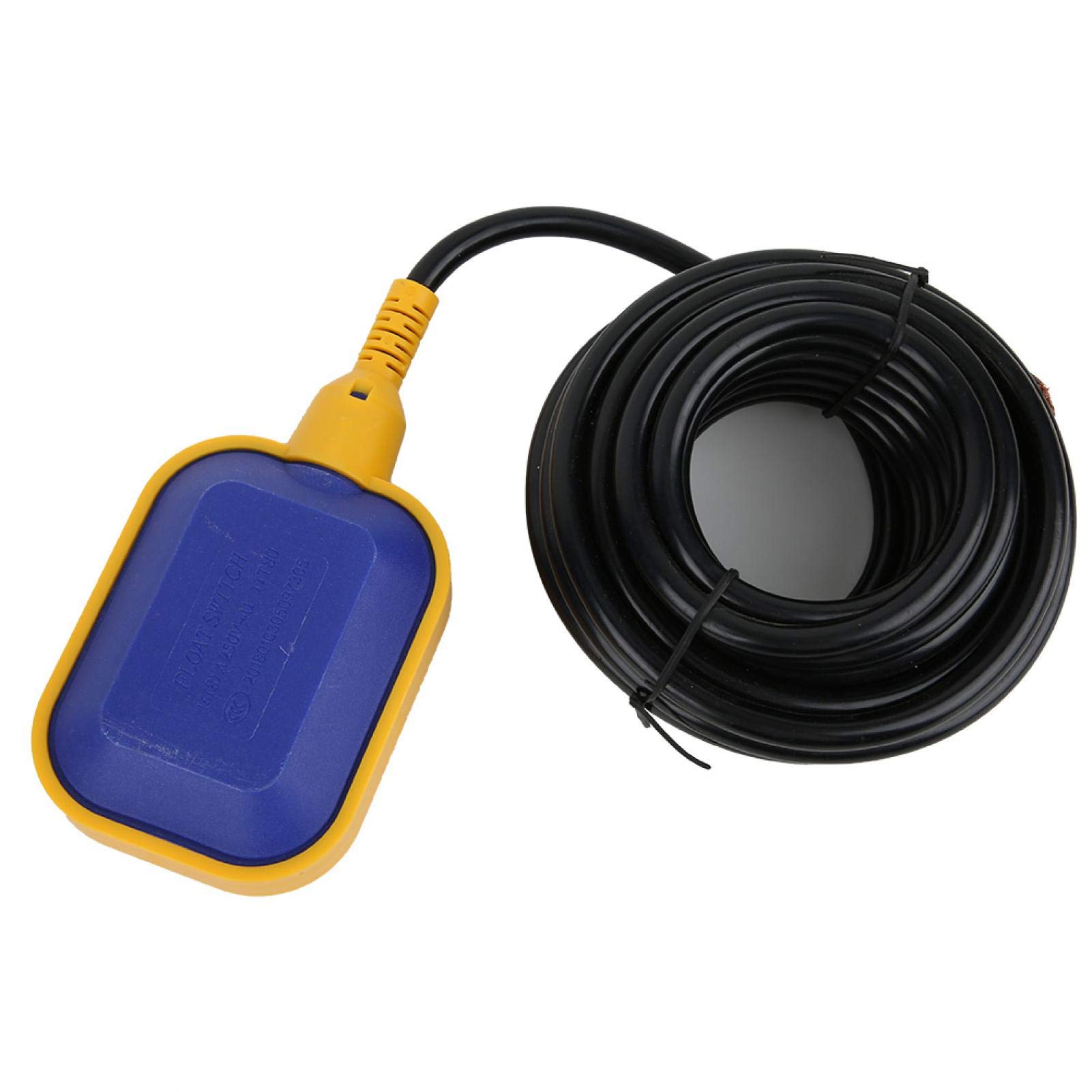

Cable Water Level Switch, Reliable Corrosion Resistant Durable Float Switch, Water Pool Water Tower for Septic Tank Water Tank

• The shell is made of environmental ABS material, non-toxic and corrosion resistant.
• The three wire leads adopts 0.75mm pure copper for superior electric conductivity.
• Stable and reliable performance, will not cause misoperation due to liquid level fluctuations.
• Widely used for water supply, drainage and liquid level automatic control of septic tank, water tower, water tank and water pool.
• Simple installation, low cost, long service life.

Specification: Item Type: Liquid Level Float Switch Model: KEY-6 Material: ABS Working Pressure: 1MPa Working Voltage: 0-250V Working Current: 8A Working Temperature: -10~+80°C Maximum Temperature Resistance: 80°C Media Specific 0.7 Cable Length: 6m Contact Capacity: 10A AC220V (Resistive) Contact Form: 1NO, 1NC Installation Instructions: Water Supply System Use black wire and blue wire: When the float ball is in the lower water level, the contact is on state. When the float ball is in the upper water level, the contact is off state. Drainage System Use black wire and brown wire: When the float ball is in the upper water level, the contact is on state. When the float ball is in the lower water level, the contact is off state. Package List: 1 x Float Ball 1 x Liquid Level Sensor
