[Bluetooth Accelerometer+Inclinometer] BWT61 MPU6050 High-Performance 6-axis Gyroscope+Angle(XY 0.05° Accuracy)+Acceleration with Kalman Filter, 100Hz High-Stability 6DOF Data Logger for PC/Arduino

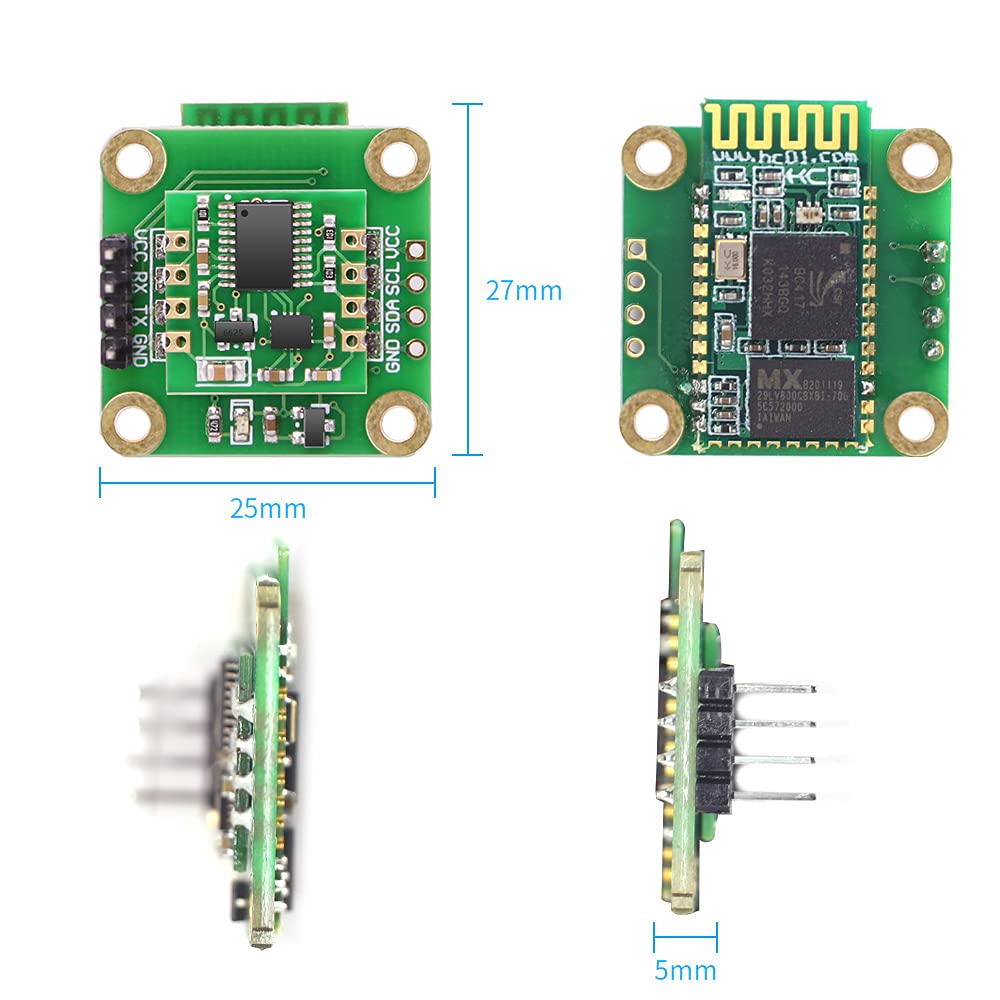

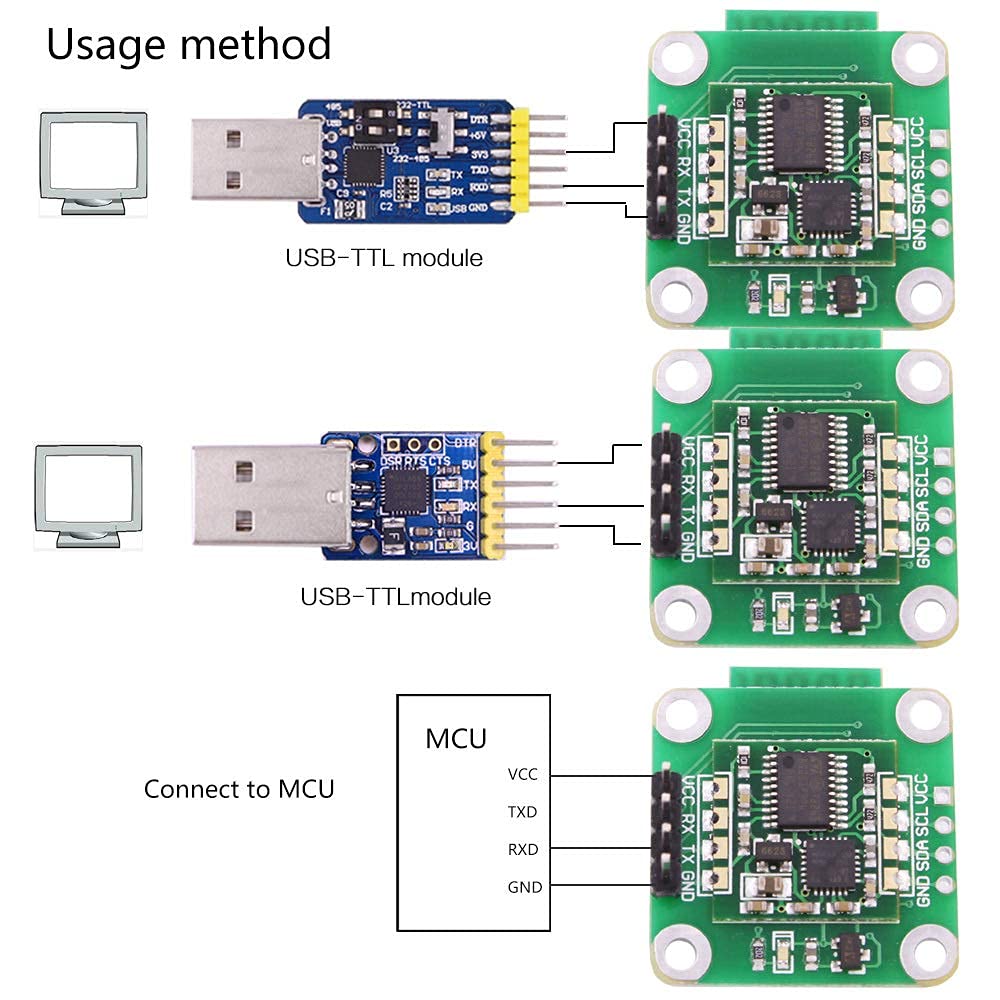

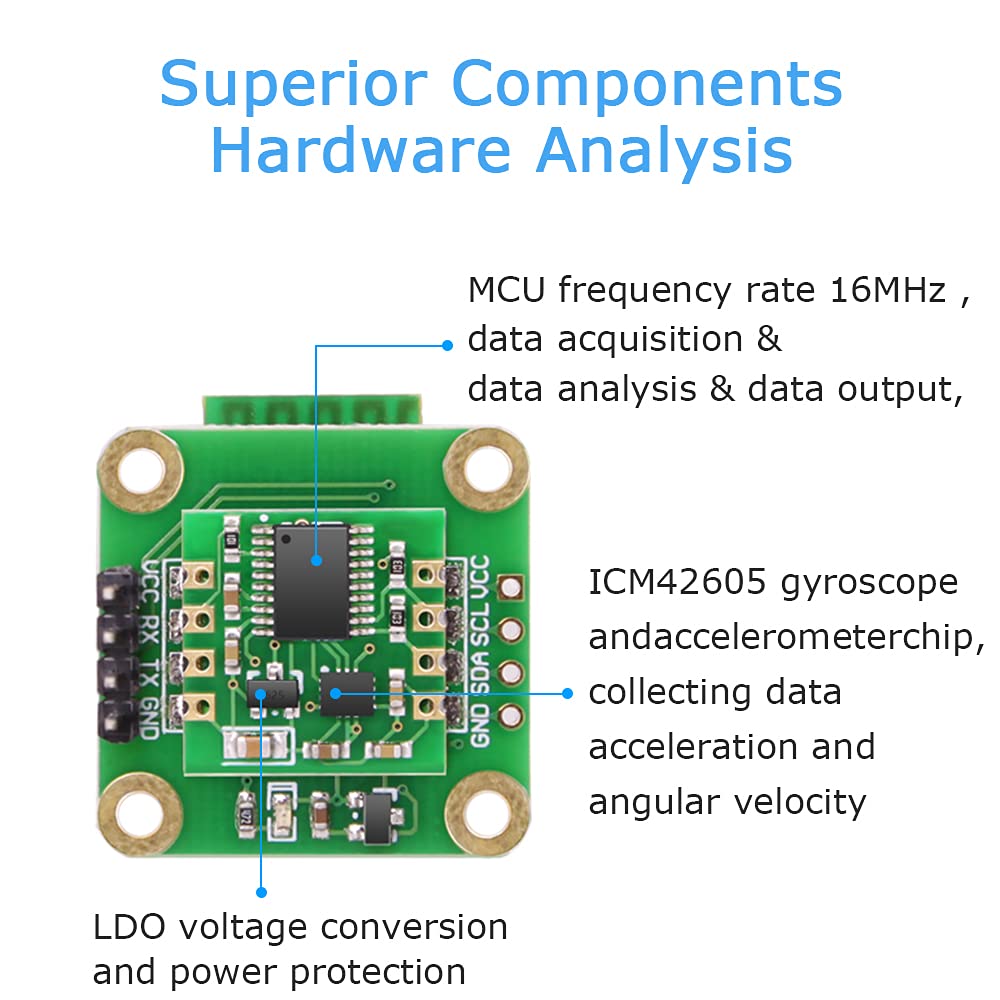

<b>Product Description: </b> <br>. Using stamps holes gold plating, quality assurance, can be embedded in the user's PCB board <br>. 2.Integrated high precision Kalman Filtering attitude fusion algorithm <br>3.Platform leveling and stabilization,Leveling instruments, Construction levels.<br> <br> <b>Main Feature:</b> <br>a.Input voltage: 3.3V-5V <br>b.Consumption current: typical 10mA <br>c.Volume: 15.24 X 15.24 X 2mm <br>d.Measuring: 2-axis Angle 3-axis XYZ Acceleration, Gyro <br>e.Range: Acceleration:±16g, angular velocity:±2000°/ s <br>f.The data output frequency 100Hz (baud rate 115200) <br>g. Data Interface: Serial (TTL level) <br>h.Baud rate 115200kps <br>i.Design : Built-in MPU6050<br>j.Bluetooth Version : Bluetooth 2.0<br>k.Output Frequency : 0.1Hz to 100Hz(Baud Rate 115200 Default) <br>Note:Angle of Z axis will have accumulated error, because there is no magnetic field correction <br> <br> <b>Packing list</b> <br>1x BWT61 inclinometer <br> <br>Recommended serial cable : <br>https://www.amazon.co.uk/dp/B01LY97ZM5?ref=myi_title
