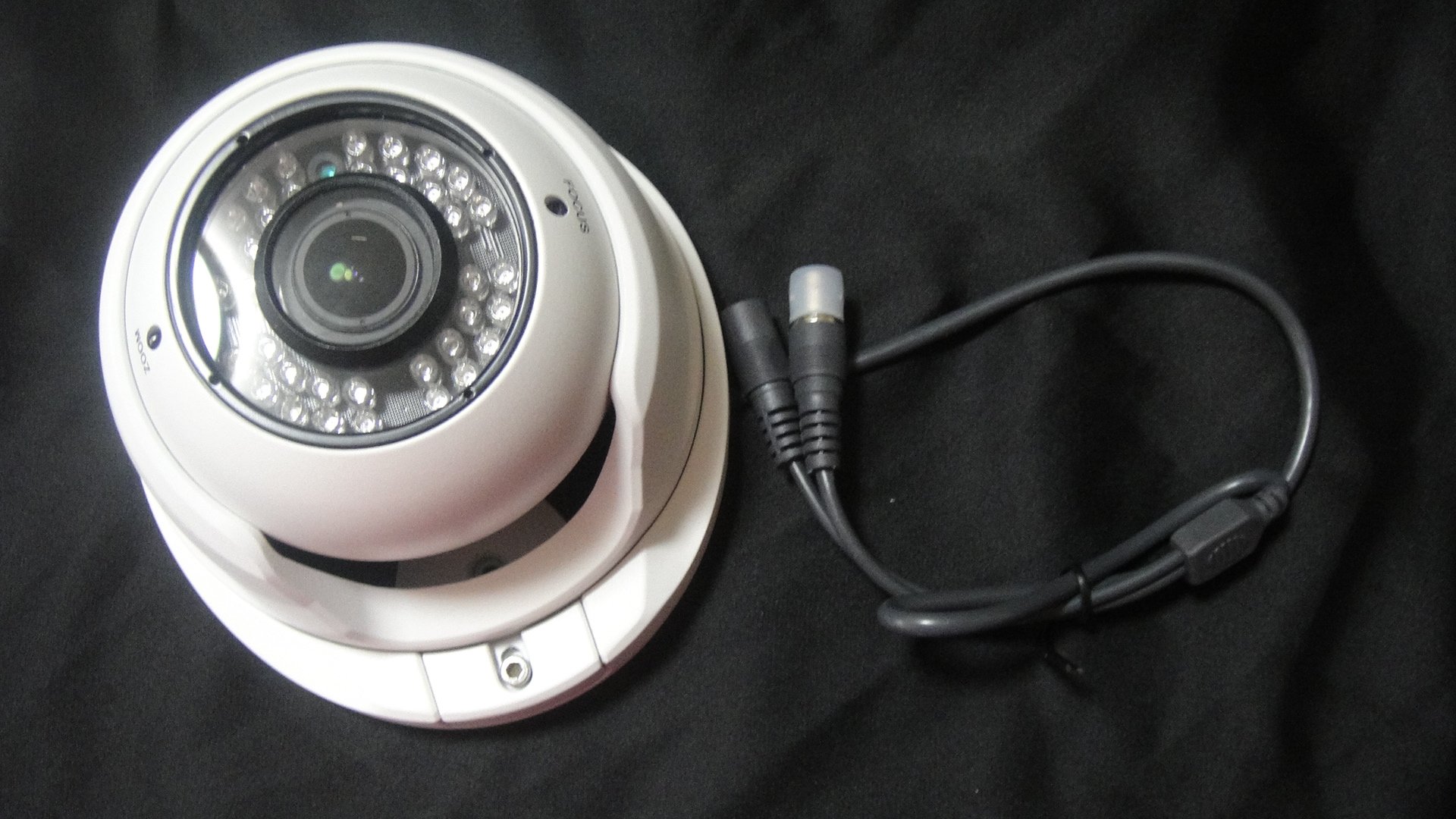

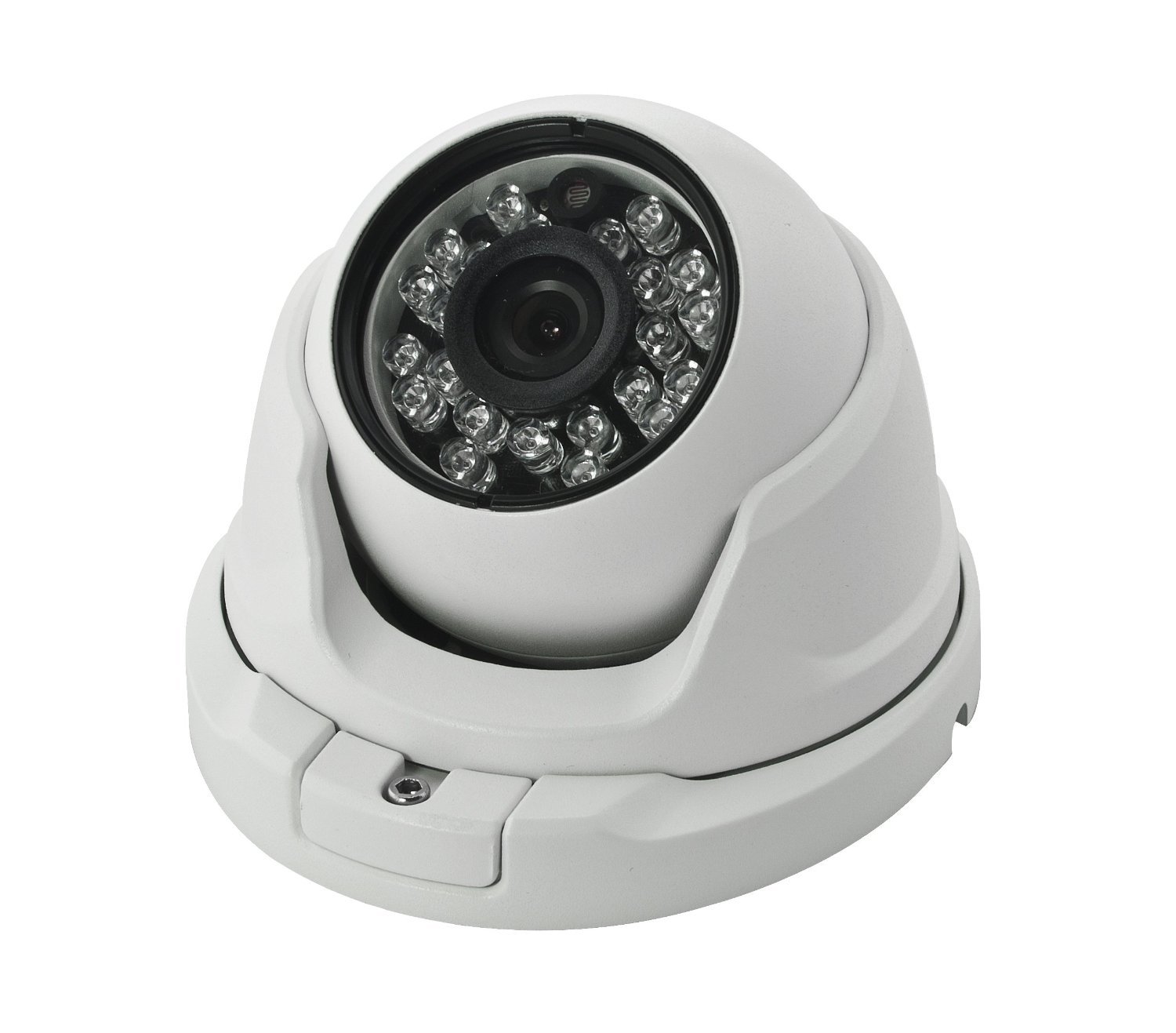

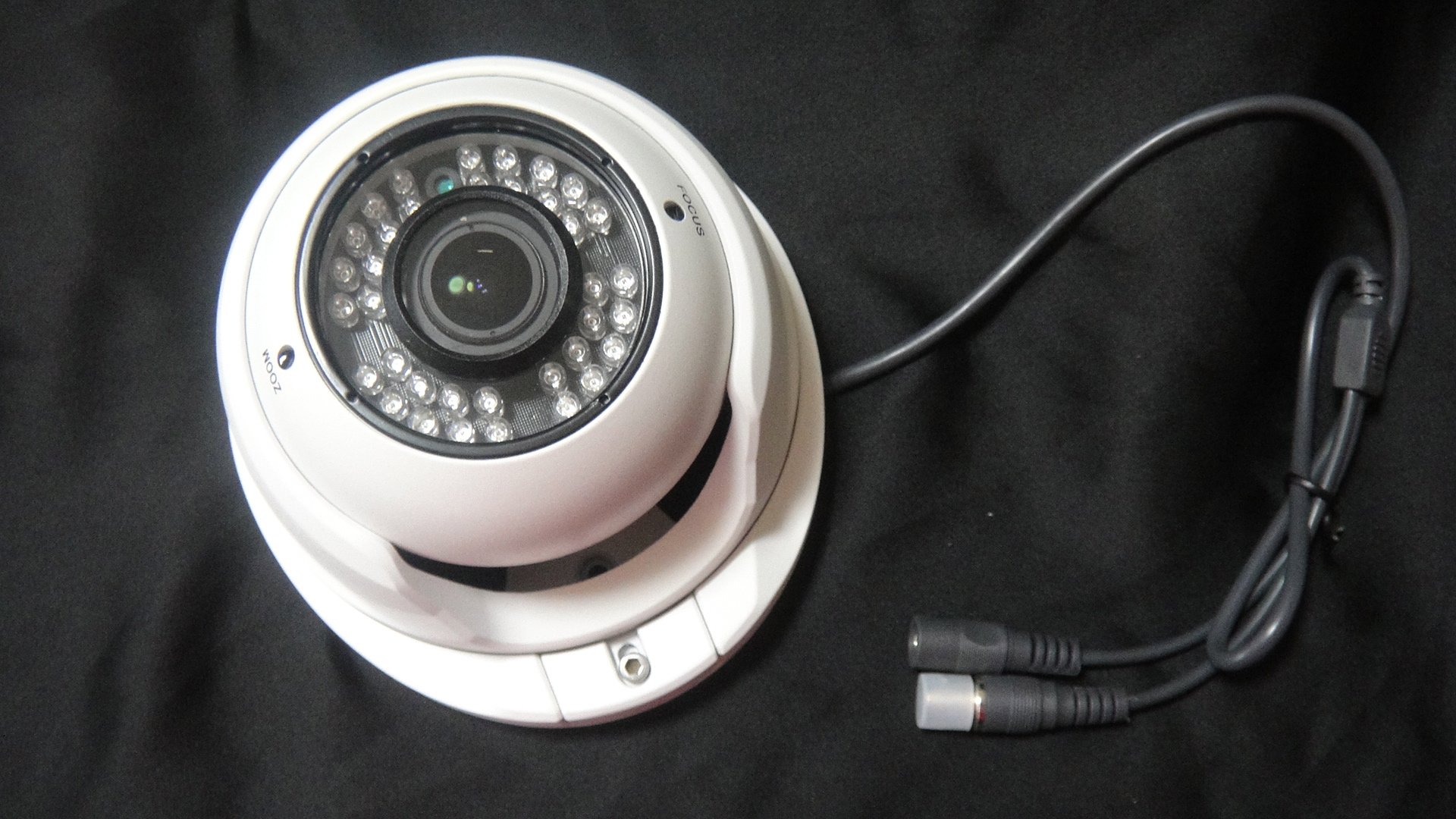

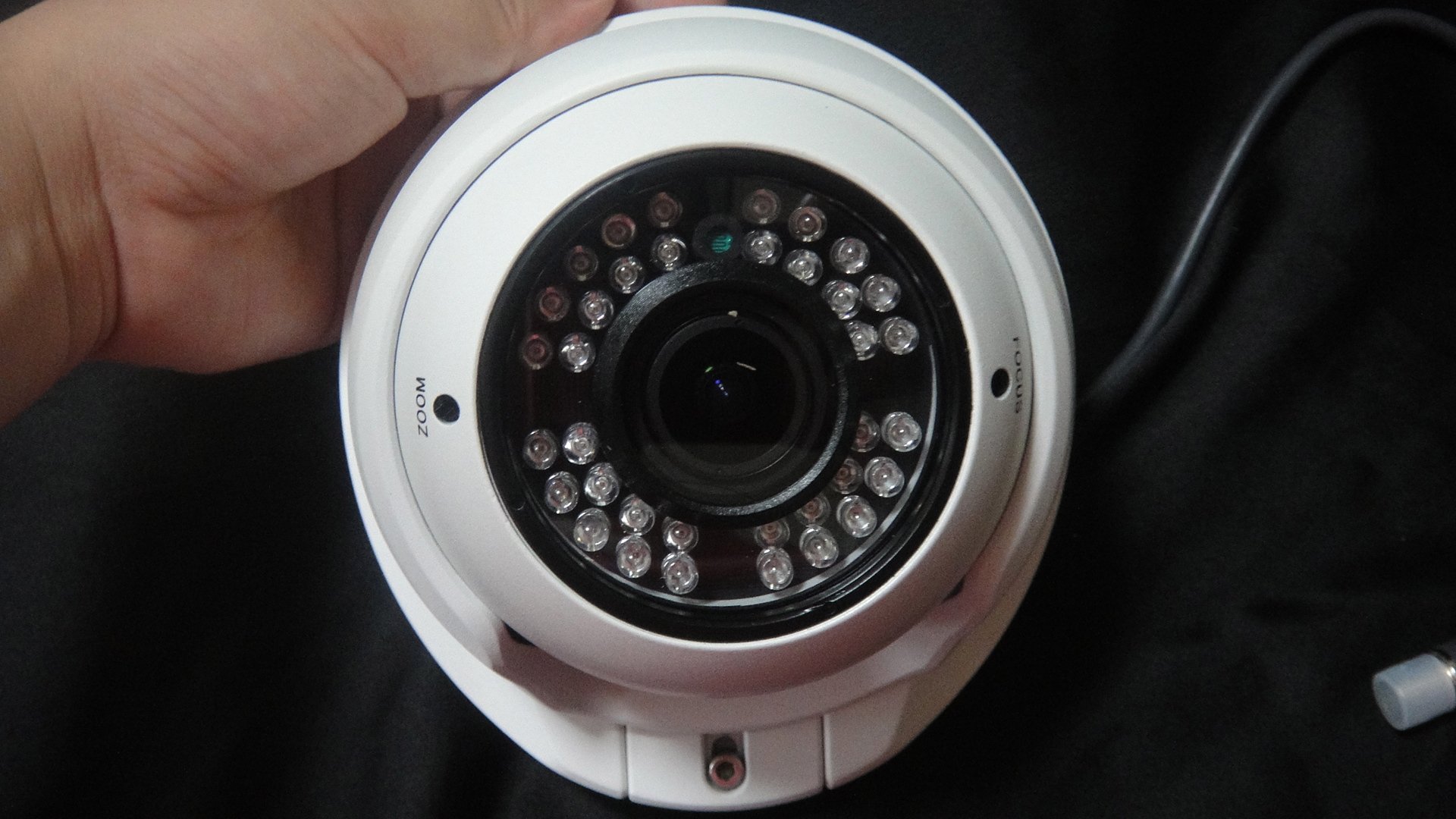

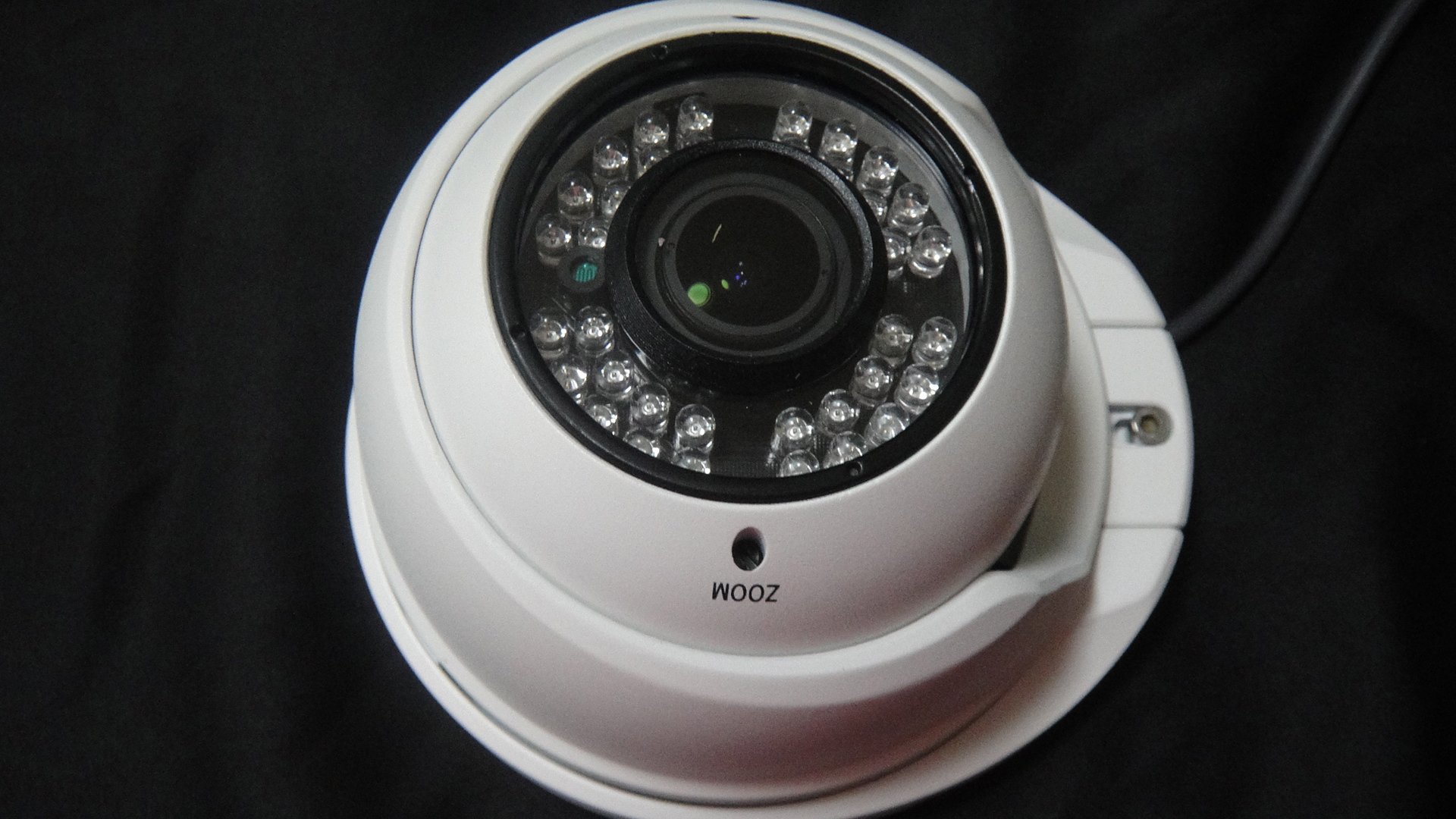

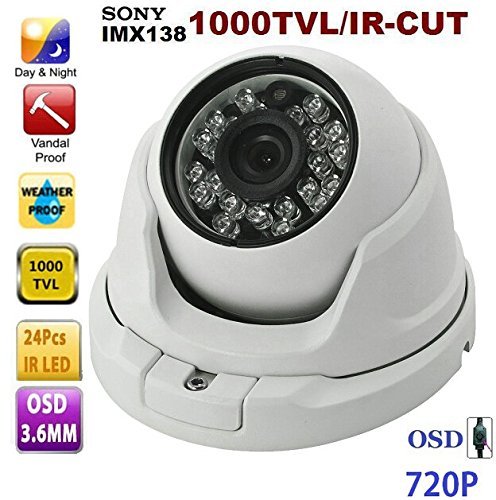

BW BWNRH CCTV Security Camera- innovative SONY IMX138 1000TVL HD Day and Night 3.6mm lens Weatherproof Dome Camera With OSD With IR-CUT function Outdoor or Indoor Use-White

• 600 TVL Sony CCD
• Lens:3.6mm
• Innovative metal dome camera housing
• IR Distance:10-15m Night vision.

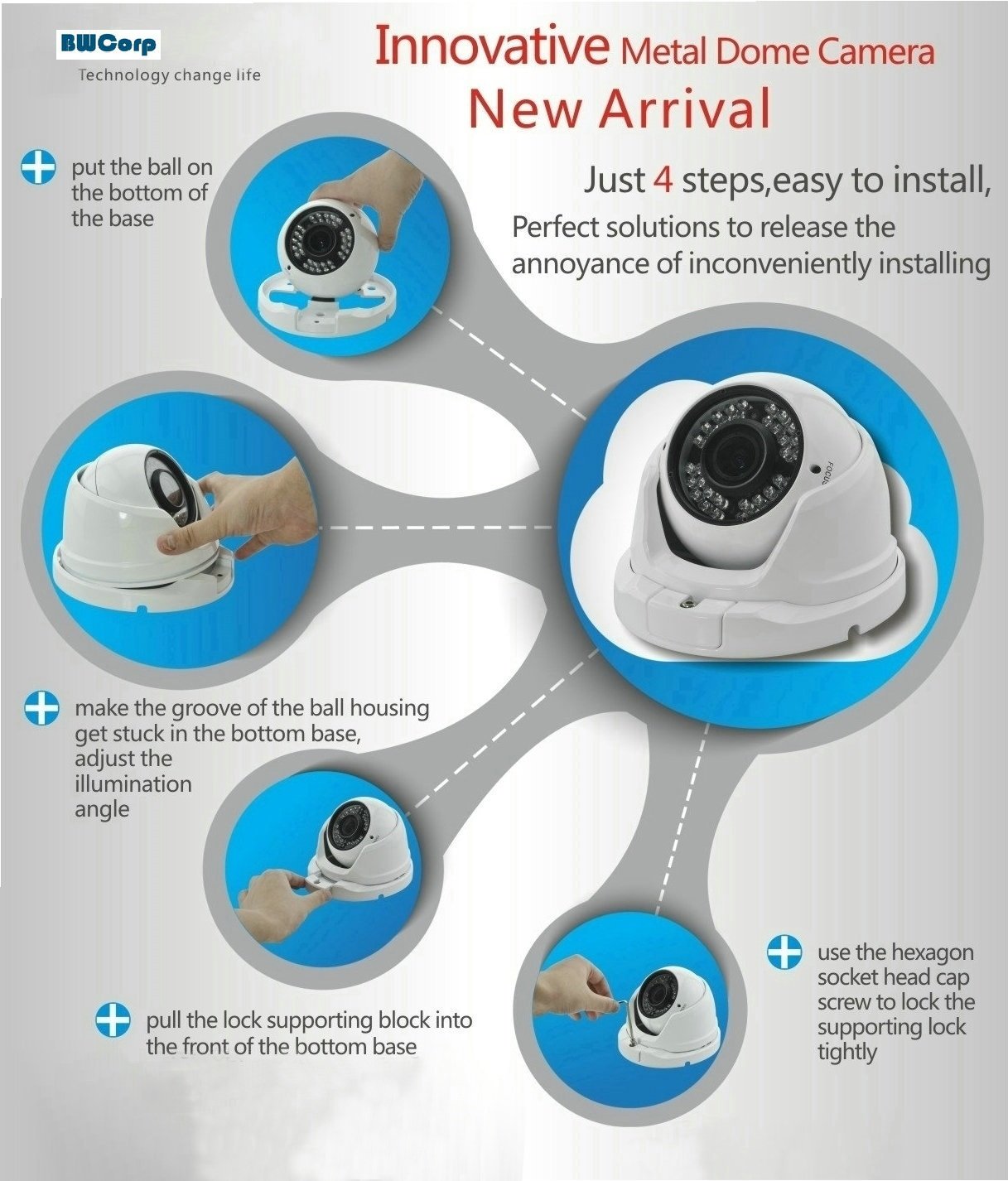

• Just 4 steps, easy to install, and it is a perfect solution to release the annoyance of inconveniently installing

Image Sensor:1/3" Sony Effio-E solution CCD; Resolution:600TVL; Lens:3.6mm Board Lens; LED:24PCS; IR Distance:20m Other:2.5" Metal IR Dome Camera. Power supply: DC 12V/1A (No power included) Dimensions: 100* 100*90mm Sepecifications: Horizontal Resolution: 600TVL Pick-up Device:1/3'' SONY CCD Scanning system: PAL:625 Lines, 50 Field/Sec;NTSC:525 Lines, 60 Field/Sec Picture Element: PAL:752(H)×582(V),NTSC:768(H)×494(V) TV System: PAL Minimum Illumination:IR ON 0 lux S/N Ratio:More than 48dB Auto Electronic Shutter:PAL:1/50s-1/100.000s Gamma Characteristic:0.45 Auto Gain Control:Auto Auto White Balance:Auto Back Light Compensation:Auto Synchronous System:Internal Synchronization Lens Mount:Standard 3.6mm Video Output:1.0vp-p.75Ω,BNG Connector IR Distance:20 Meters Current Consumption:90mA(IR ON MAX 470mA) Temperatur:-30 ~ +50 C Material:Metal Note: You can use the TV set , computer monitors or professional CCTV monitors to display the pictures . But , it is better to use a professional CCTV monitors than the TV set or computer monitors .It will give you the best color , HD visions. Special design, just 4 steps, easy to install, please see the steps 1. Put the ball on the bottom of the base. 2. Make the groove of the ball housing get stuck in the bottom base, adjust the illumination angle. 3. Pull the lock supporting block into the front of the bottom base. 4. Use the hexagon socket head cap screw to lock the supporting lock tightly.
