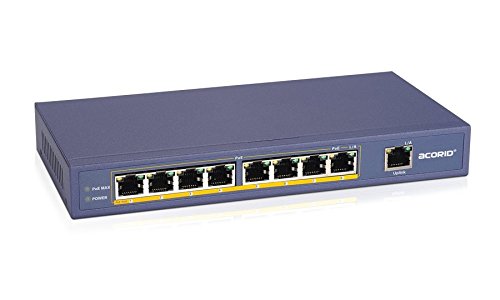

BW 8-Port Desktop 10/100M Network PoE Switch(15.4W/port)(IP Camera Power Solution)

• Fully IEE802.3af standard compliant
• Support PoE power up to 15.4W for each PoE ports
• It integrates 100Mbps Fast Ethernet and 10Mbps Ethernet network capabilities,For cost saving and flexible using of PoE power provision, this series provides PoE power injector function which is able to drive 8 IEEE 802.3af compliant powered devices
• Plug and play,no configuration required;8-ports 10/100M Desktop PoE Switch provides the seamless network connection;

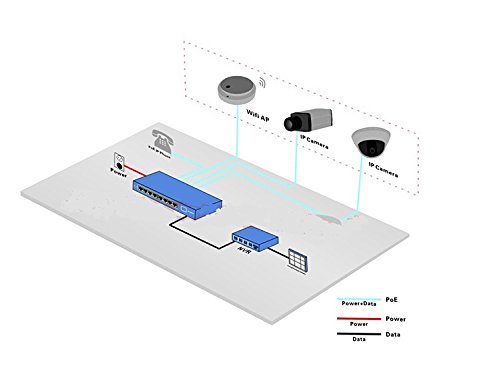

• With data and power over Ethernet from one unit, it shall reduce cables and eliminates the need for dedicated electrical outlets on the wall, ceiling or any unreachable place.

Specifications: Technology Network Standards : IEEE802.3i 10BASE-T; IEEE802.3u 100BASE-TX IEEE802.3x Flow Control PoE power: 15.4W per port(IEEE802.3af);25.5W per port(IEEE802.3at) Wiring:Data & power provided over pairs1/2and 3/6 or 4/5(+)and 7/8(-);Cable:UPT cat.5 or higher Processing types: Store-and-forward Half-duplex back pressure and IEEE802.3x full- duplex flow control Backplane Bandwidth: 1.8Gbps Buffer memory: 96Kb embedded memory per unit MAC Address: 2K Network latency ; Less than 20us for 64-byte frames in Store-and- forward mode Power Input: AC90-260V input PoE power consumption :15.4W /port Power budget: 96W/120W Optional Mechanical: Casing Metal case Dimension: 300x215x160mm(LxWxH) Weight: 1.2KG LED Indicators: System:Power,PoE Maximum power Per port:Link,Activity,Speed PoE active,PoE error Installation Desk Top Environment specifications Operating Temperature :-10~45℃ Storage Temperature: -10~70℃ Operating Humidity: 90% max relative humidity, on-condensing Storage Humidity :90% max relative humidity, on-condensing
