BW® 7" TFT LCD Key Touch Car Rearview Mirror Monitor + Parking Waterproof Night Vision Wireless Backup Camera System

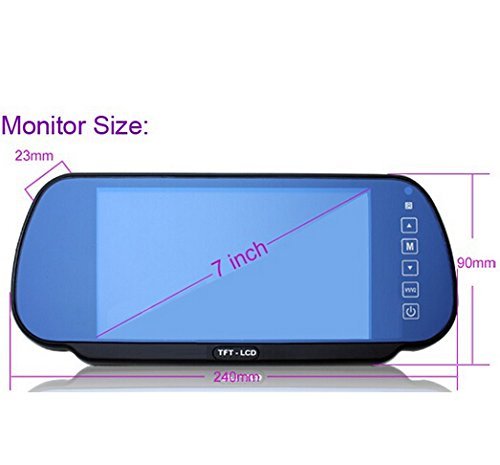

• 7" LED Backlight Color TFT LCD monitor.

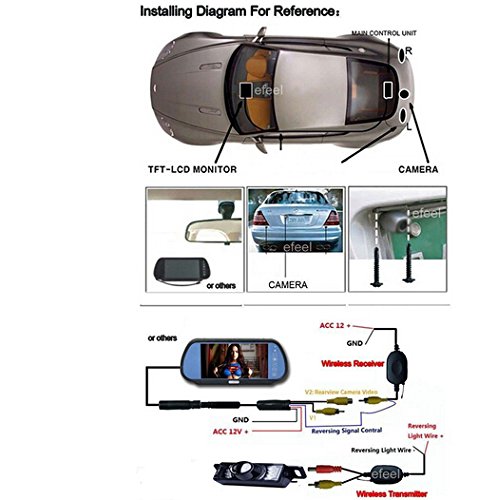

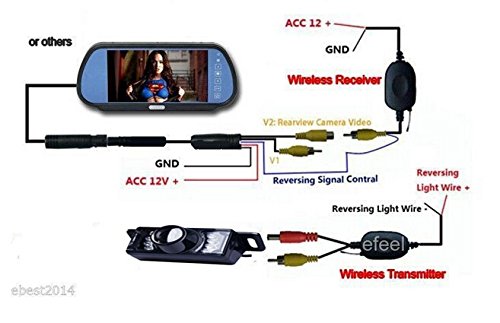

• With 2 video input: White video cable connects to car rearview camera, yellow one to other video

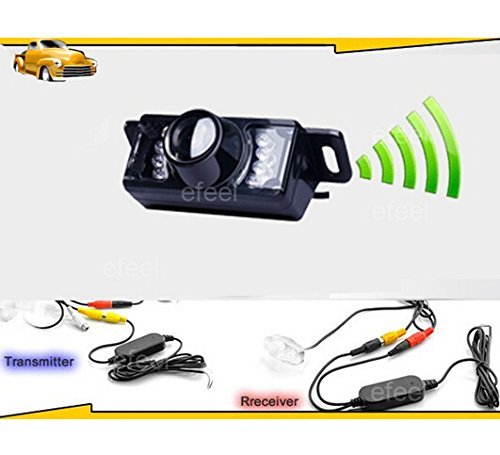

• Camera Features Image sensor: 1 /3
• Horizontal resolution: 420 TV Lines , Power Supply: DC 9-12V

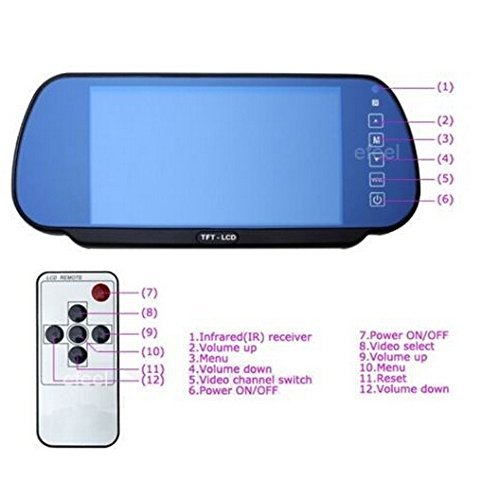

Descriptions Monitor Features: 7" LED Backlight Color TFT LCD monitor. High-resolution picture. Full color LED backlight display. With 2 video input: White video cable connects to car rearview camera, yellow one to other video Supports Car DVD, VCD, camera, STB, satellite receiver, and other video equipment. Screen rotatable. With menu buttons, Brightness/contrast/hue/saturation/language (Chinese/English/Spanish) adjustable. No Audio input or output. 2-channel video input:V1/V2(Auto switching) Video Frequency: PAL/NTSC With menu buttons, you can adjust brightness, saturation, contrast, hue, etc Low power consumption Language: English Easy to install Display blue screen on no signal Camera Features Image sensor: 1 /3" CCD IR Night Vision Waterproof Horizontal resolution: 420 TV Lines Power Supply: DC 9-12V Current: 120mA max Lens Angle: 120 degree Signal system: PAL/NTSC Effective Pixels: 512 x 582 pixels (PAL) /512 x 492 pixels (NTSC) Operating temperature: -20~70 degree Celsius, RH 95% max Storage temperature: -40~80 degree Celsius, RH 97% max Horizontal Sync Frequency: 15.625 KHz/ 15.734KHz Vertical Sync Frequency: 50Hz / 60Hz Video output: 1.0vp-p, 75Ohm Minimum Illumination: 0.8 Lux/F 1.2lux with IR S/N Ratio: Better than 49dB Shutter speed: 1/60(NTSC), 1/50(PAL)-1/15,000 seconds Scanning system: 2:2 interlace Gamma Consumption: 0.45 Pin Lens:"F=2.8mm" What's in the box 1x 7" TFT LCD Car Monitor 1x Power Cable 1x Remote Control (Without Battery) 1x Rear View Camera 1x tranmitter 1x receiver 1x Installing Diagram Instruction
