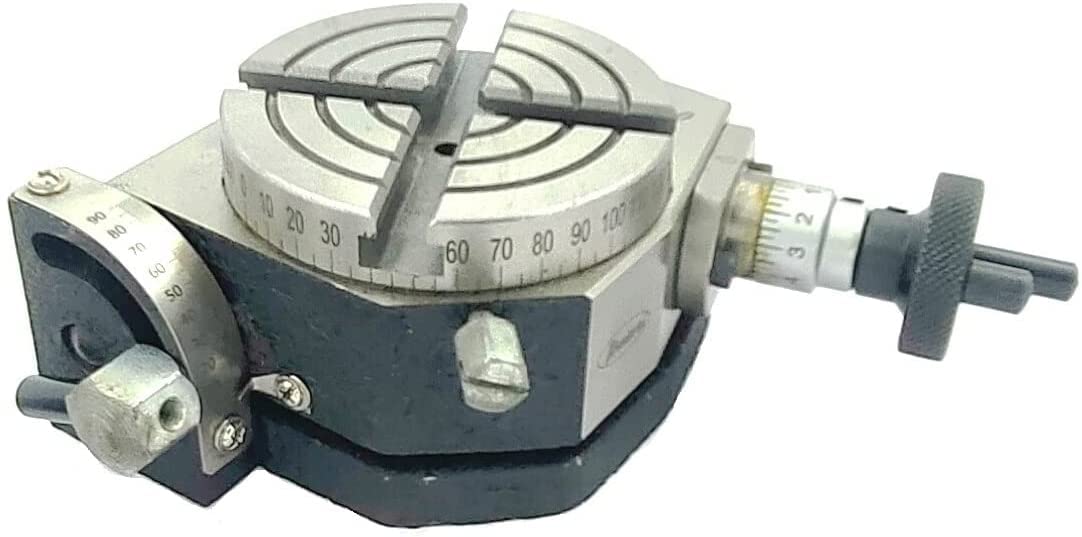

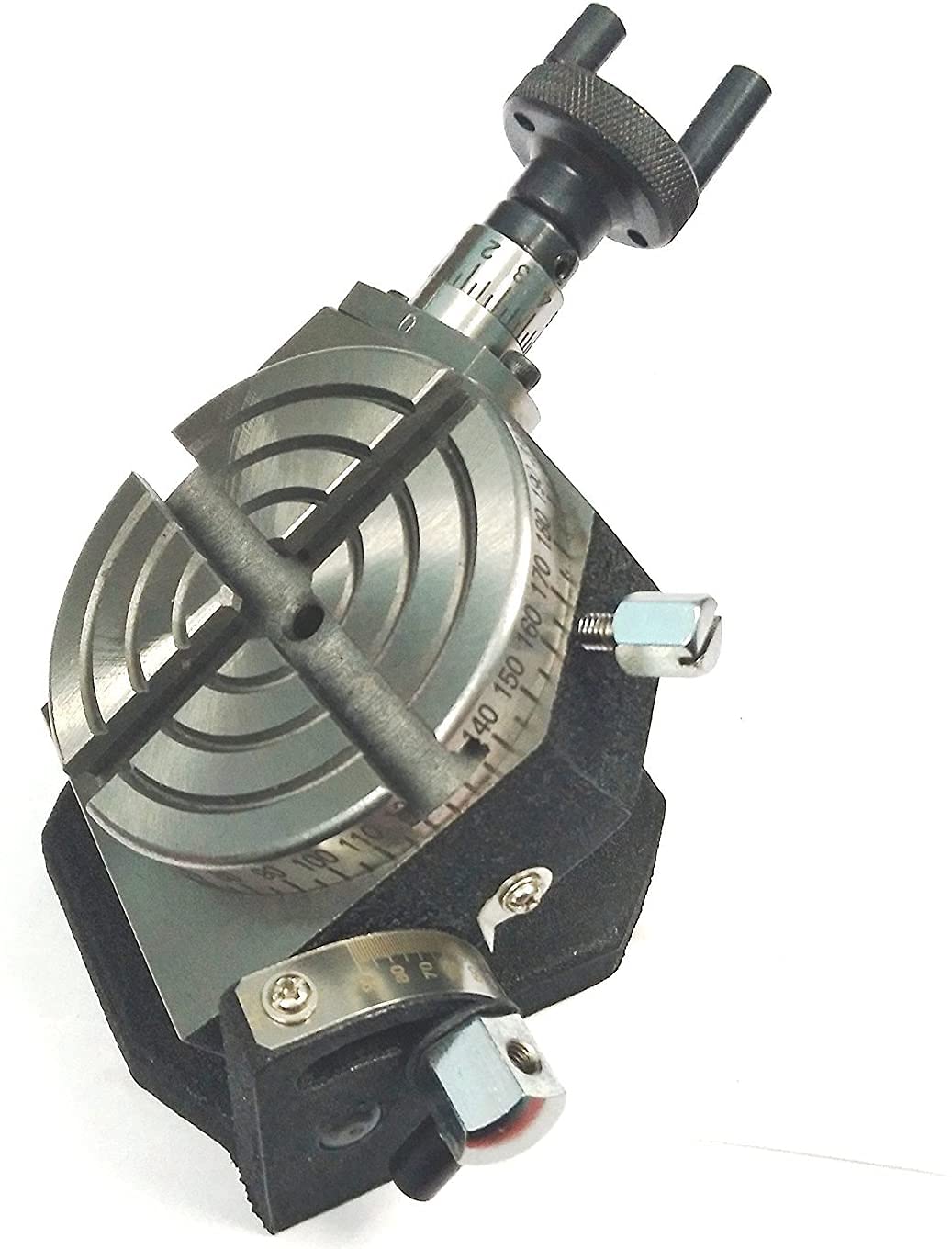

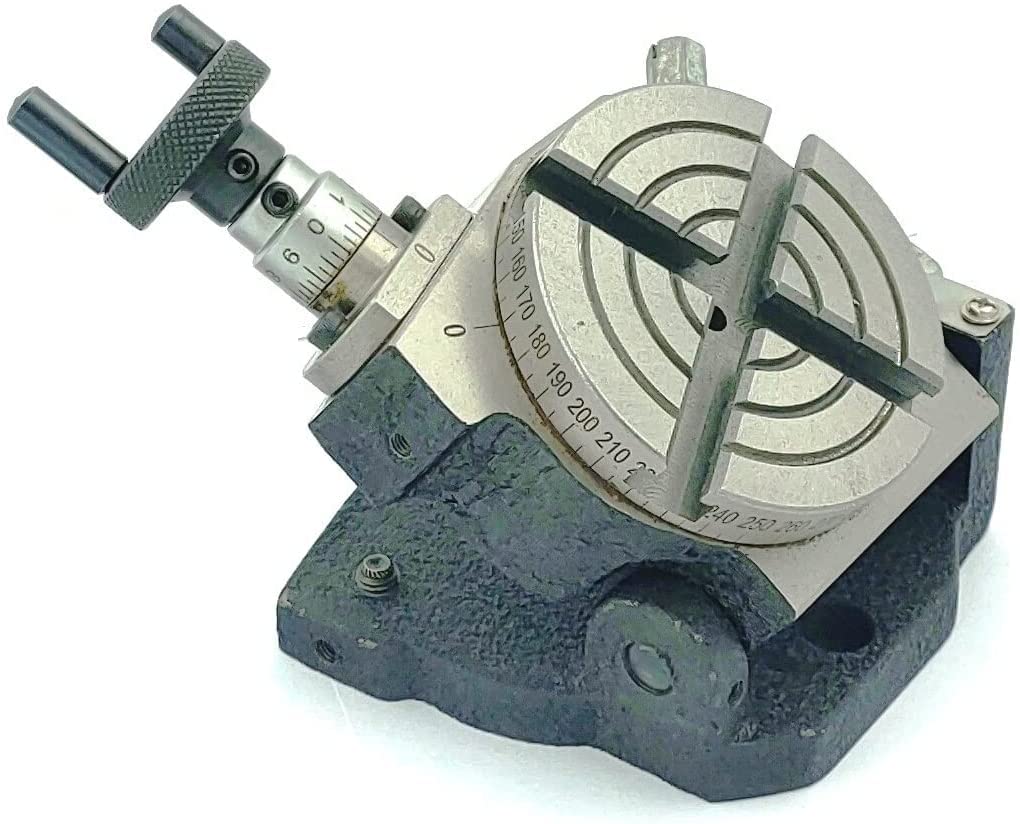

Buyohlic 3" (80 mm) Milling Indexing HV Rotary Table with Round Vice- Metal Working (Tilting Rotary Table With 80 mm Round Vice)

• Use of product- A rotary table is a precision work positioning device used in metalworking. It enables the operator to drill or cut work at exact intervals around a fixed (usually horizontal or vertical) axis.
• Compact & Low-Profile Design: Table Diameter: The rotary table features a 3-inch (80 mm) diameter, making it perfect for small-scale milling operations where space and precision are critical. Vertical Height: With a vertical height of just 1-5/8 inches, this rotary table maintains a low profile, enabling it to fit seamlessly into your existing setup while maximizing available workspace.
• Precision Engineering: Gear Ratio: The rotary table boasts a 36:1 gear ratio, ensuring precise control over the rotation. One full rotation of the handle results in a 10-degree rotation of the table, allowing for meticulous adjustments during milling tasks. Scale Calibration: The table scale is finely calibrated in 5-degree increments, providing clear and accurate angle measurements. This feature is particularly useful for tasks requiring high precision and consistency.
• Versatile Positioning:- Horizontal & Vertical Use- This rotary table is designed for maximum versatility, capable of operating in both horizontal and vertical positions. This dual functionality allows for a wide range of applications, from simple flat milling to more complex angular cuts.
• Robust Construction: Base Dimensions: The base of the rotary table measures 4-1/8" x 3-1/4", providing a stable and secure platform for your work. The compact dimensions ensure that the table remains sturdy during use, minimizing vibrations and enhancing accuracy. T-Slots: The base is equipped with four 5/16" T-slots, allowing for secure clamping of workpieces. These slots are designed to accommodate various clamping setups, ensuring your workpiece remains firmly in place throughout the milling process.
• 3" (80 mm) Round Vice:- Made form Quality close grain Caste Iron -Designed to fit our 3" (75 mm) & 4"(100 mm) Rotary Tables Diameter of Base : 80 mm - Jaw Width , 54 mm - Jaw Depth, 20 mm - Jaw Opening , 32 mm - Height. These vices are counter- drilled in a manner that these can fit to a 3 as well 4 slot table. The moving jaw has V-grooves to hold Round objects. Precisely Ground on Base,Top, Jaws & Base. Rest Body is painted for a long rust free life.
• Versatile Compatibility: Compatible with a wide range of machining tasks, including milling, drilling, cutting threads, and more, making it a versatile addition to your workshop.

Use of product- A rotary table is a precision work positioning device used in metalworking. It enables the operator to drill or cut work at exact intervals around a fixed (usually horizontal or vertical) axis. A round vise is used for securely holding round or cylindrical workpieces during machining, drilling, grinding, or inspection processes. Its design allows for stable and precise positioning, facilitating accurate and consistent operations on the workpiece. Key Features: 3" (80 mm) Rotary Table Compact & Low-Profile Design: Table Diameter: The rotary table features a 3-inch (80 mm) diameter, making it perfect for small-scale milling operations where space and precision are critical. Vertical Height: With a vertical height of just 1-5/8 inches, this rotary table maintains a low profile, enabling it to fit seamlessly into your existing setup while maximizing available workspace. Precision Engineering: Gear Ratio: The rotary table boasts a 36:1 gear ratio, ensuring precise control over the rotation. One full rotation of the handle results in a 10-degree rotation of the table, allowing for meticulous adjustments during milling tasks. Scale Calibration: The table scale is finely calibrated in 5-degree increments, providing clear and accurate angle measurements. This feature is particularly useful for tasks requiring high precision and consistency. Versatile Positioning: Horizontal & Vertical Use: This rotary table is designed for maximum versatility, capable of operating in both horizontal and vertical positions. This dual functionality allows for a wide range of applications, from simple flat milling to more complex angular cuts. Robust Construction: Base Dimensions: The base of the rotary table measures 4-1/8" x 3-1/4", providing a stable and secure platform for your work. The compact dimensions ensure that the table remains sturdy during use, minimizing vibrations and enhancing accuracy. T-Slots: The base is equipped with four 5/16" T-slots, allowing for secure clamping of workpieces. These slots are designed to accommodate various clamping setups, ensuring your workpiece remains firmly in place throughout the milling process. 3" (80 mm) Round Vice Made form Quality close grain Caste Iron -Designed to fit our 3" (75 mm) & 4"(100 mm) Rotary Tables Diameter of Base : 80 mm * Jaw Width : 54 mm * Jaw Depth: 20 mm * Jaw Opening : 32 mm * Height : 29 mm These vices are counter- drilled in a manner that these can fit to a 3 as well 4 slot table. The moving jaw has V-grooves to hold Round objects. Precisely Ground on Base,Top, Jaws & Base. Rest Body is painted for a long rust free life.
