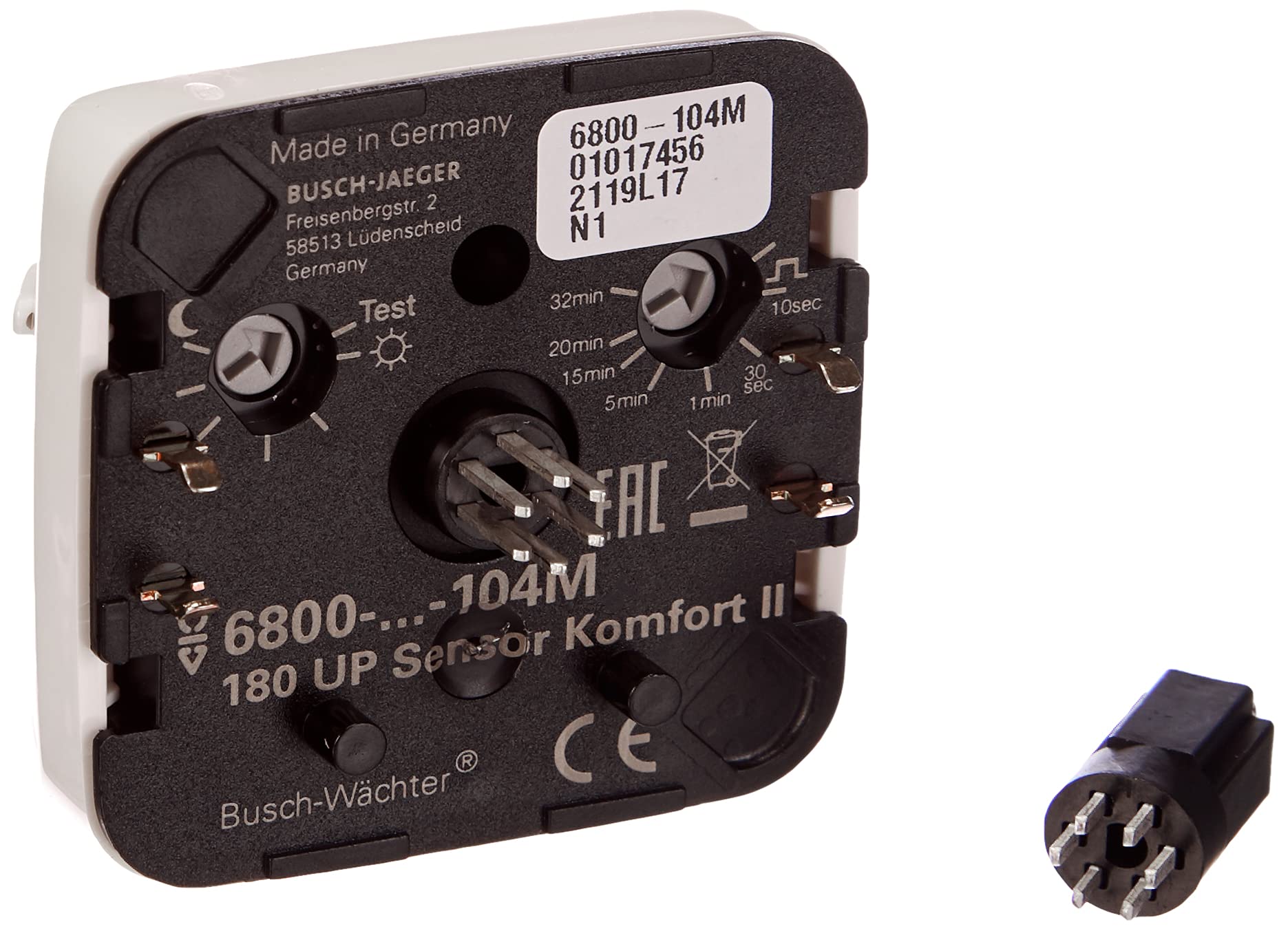

Busch-Jaeger 6800-214-104M Bewegungsmelder Busch-Wächter 180UP Sensor Komfort II mit Multilinse, alp

• Format motion sensor
• Mounting Type flush-mounted
• Can be networked Yes
• Unterk bring protection/Rear field monitoring No
• Mounted height 1.1?m

Description Busch-Jaeger Reflex SI 6800-214-104M Busch-Wächter® Sensors FI-SCHUKO® Socket Insert Busch-Wächter® 180 UP Sensor Comfort II with Multi-Lens for automatic switching of consumers depending on movement and brightness. For detection up to the ground. For relay insert 6401 U-102, 6402 U and 6812 U-101. For MOS grease insert 6804 U-101. For dimmer insert 6593 U. For extension use 6805 U. With integrated switch for off automatic on (lockable). Soft spout: In combination with the 6593 U (operating mode: soft off), the lighting is dimmed and switched off within 60 seconds. Monitoring density: 28 sectors with 112 switching segments. Shutdown delay: 10s - 30min or short-term pulse 1s adjustable. Protection class: IP 20. Device temperature range: 0 °C - 35 °C. Detection range: front: 15 m, side: 5 m. Brightness limit: 5 lux - 250 lux. Day operation. Opening angle: 180°. Mounting height: 0.8 m - 1.2 m, alternative: 2.5 m. Fitting Position:Top Slide Switch Please order the appropriate flush-mounted insert separately. Colour: alpine white.
