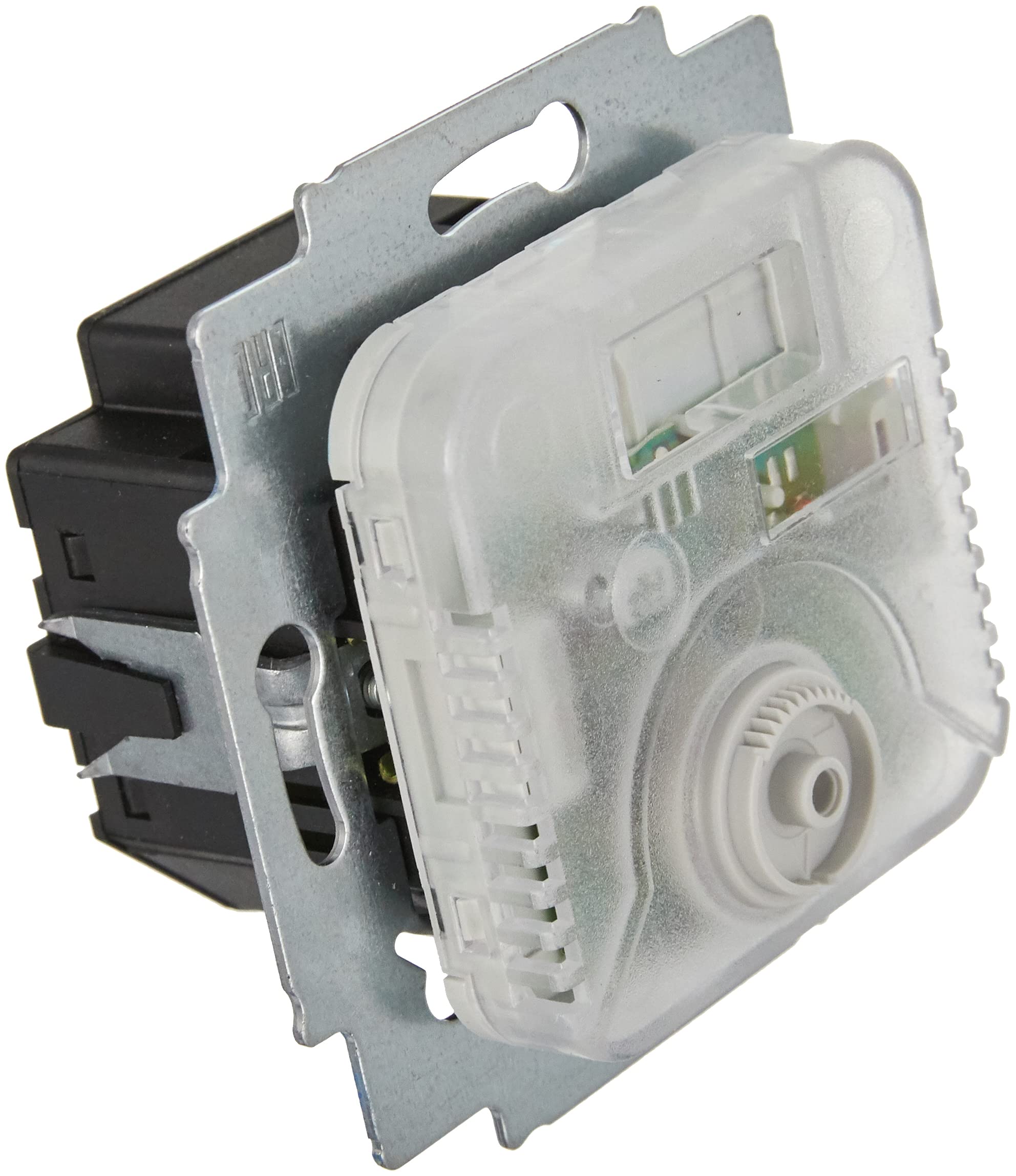

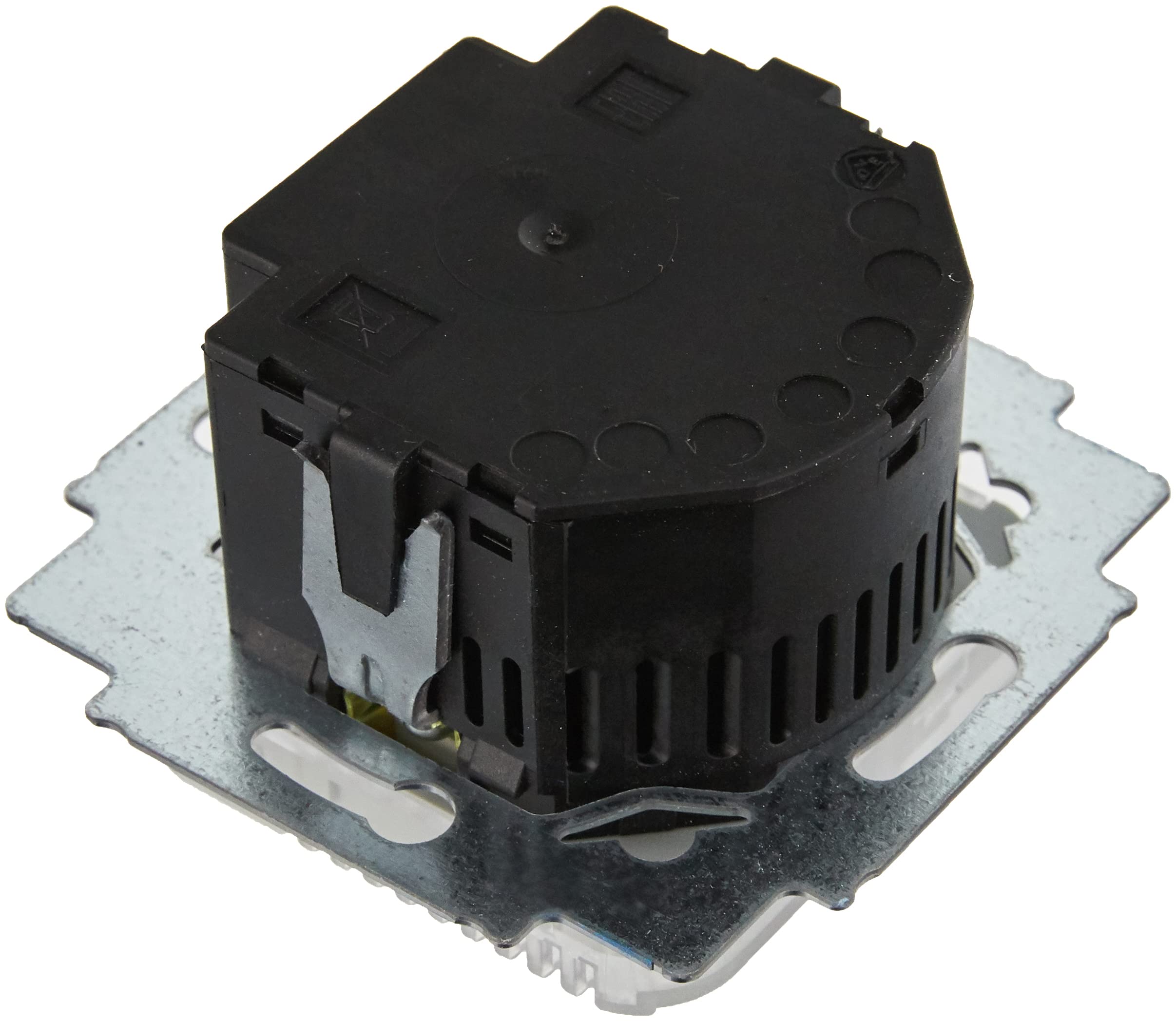

Busch-Jaeger 1094U Thermostat One with Electronic Öffnerkontakt. 1094 U

• Electronic room temperature control insert
• with expanding fixation.
• Flush-mounted.
• Base: 1094U.
• Item number: 1032-0-0483.

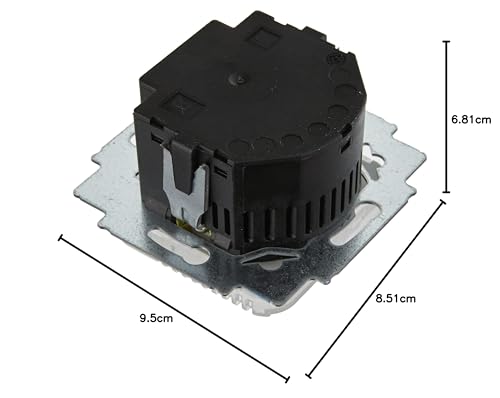

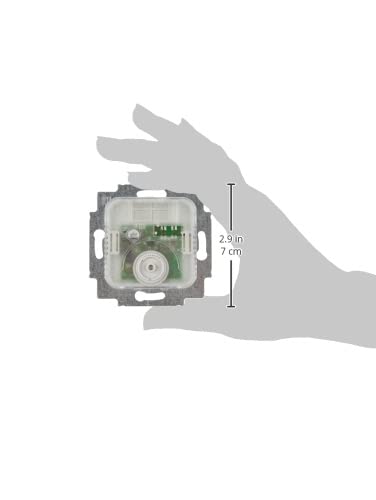

Temperature regulator with break contact, electronic room temperature control insert, opens switching contact, when the set temperature is reached. With expanding fixation. With separate connection for time-controlled night mode (4 K). Rated current: 10 A. Temperature range: 5°C to 30°C. With EN60730-2-9, British Standard EN 60669-2-1, version: room temperature controller. Nominal voltage: 250 V. Installation type: flush-mounted. Control output: 2,300 VA. Reaction sensitivity: 0.5 K. Electronic control: yes. With thermal feedback: yes. Switch for additional heating: no. Temperature reduction: yes. Sensor type: universal sensor. Temperature range: 5 to 30°C. Colour: cream white, electrowhite. Protection class: IP20. Height: 12 mm. Width: 52 mm. Depth: 32 mm. Contact type: 1 opener. Rated current: 10 A. Composition: base element, opener, 250 V, 10 A, Busch-Jaeger room temperature control insert opener 250 V, 10 A, base: 1094U, item number: 4011395044117.
