BTMETER Digital Multimeter, Handheld TRMS 6000 Multi Meter Auto Range Voltmeter Ammeter Measure AC DC Volt Amp Ohm Continuity Capacitance Frequency Diode hFE Transistor Temp 770HC-APP

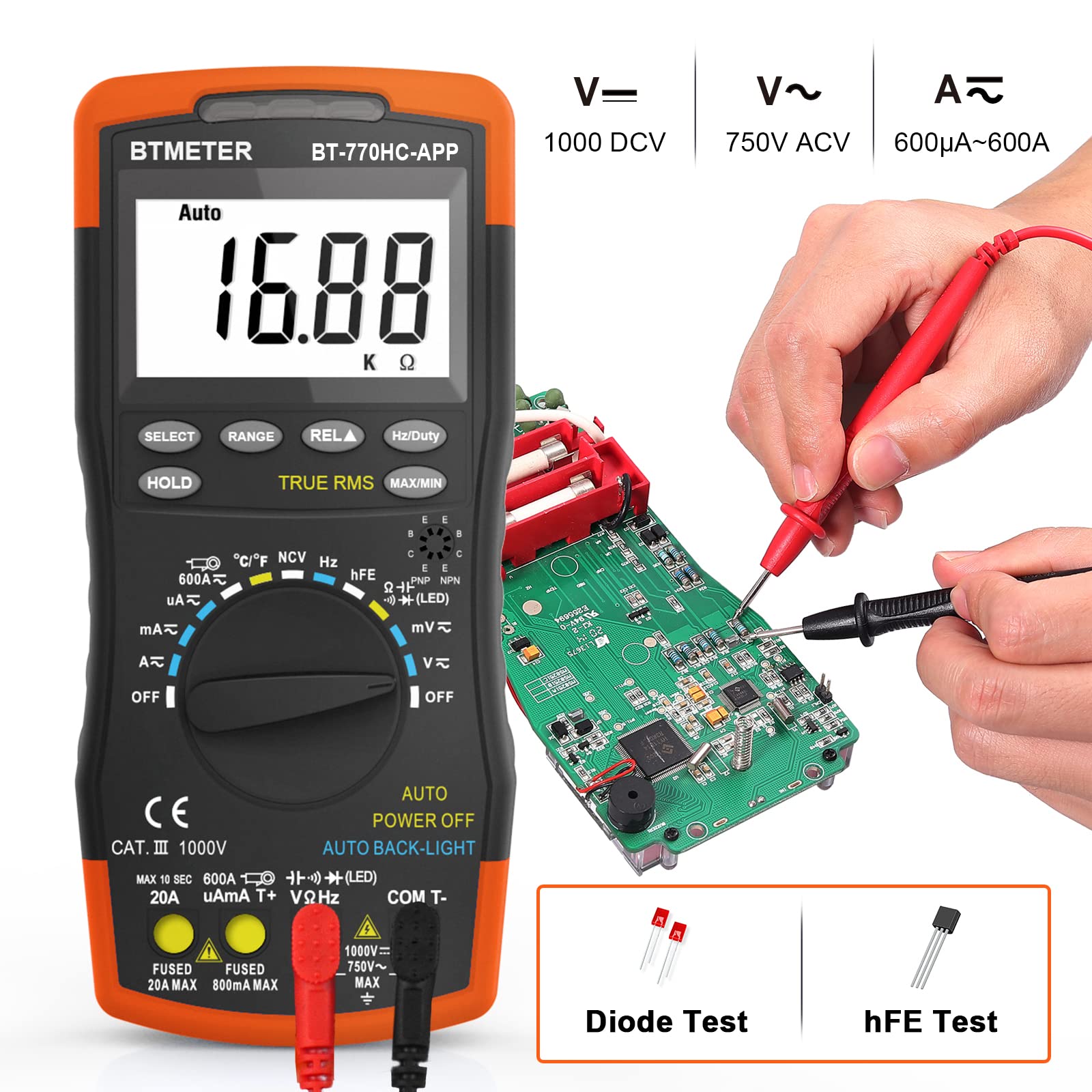

• 🌟【Multifunctional DMM】6000 counts electrical multi tester BT-770HC-APP can accurately measure DC voltage 0.01mV~1000V,AC volt (True RMS) 0.01mV ~ 750V, AC/DC Current 600μA ~ 600A, resistance 600Ω ~60MΩ, Capacitance 6nF ~ 60mF, Frequency 9.999Hz ~ 9.999MHz, Duty cycle 0.1%～99.9%, Transistor hFE test 0-1000(Ib=10μA, Vce=1.8V ), Temperature -4°F ~ 1832°F.

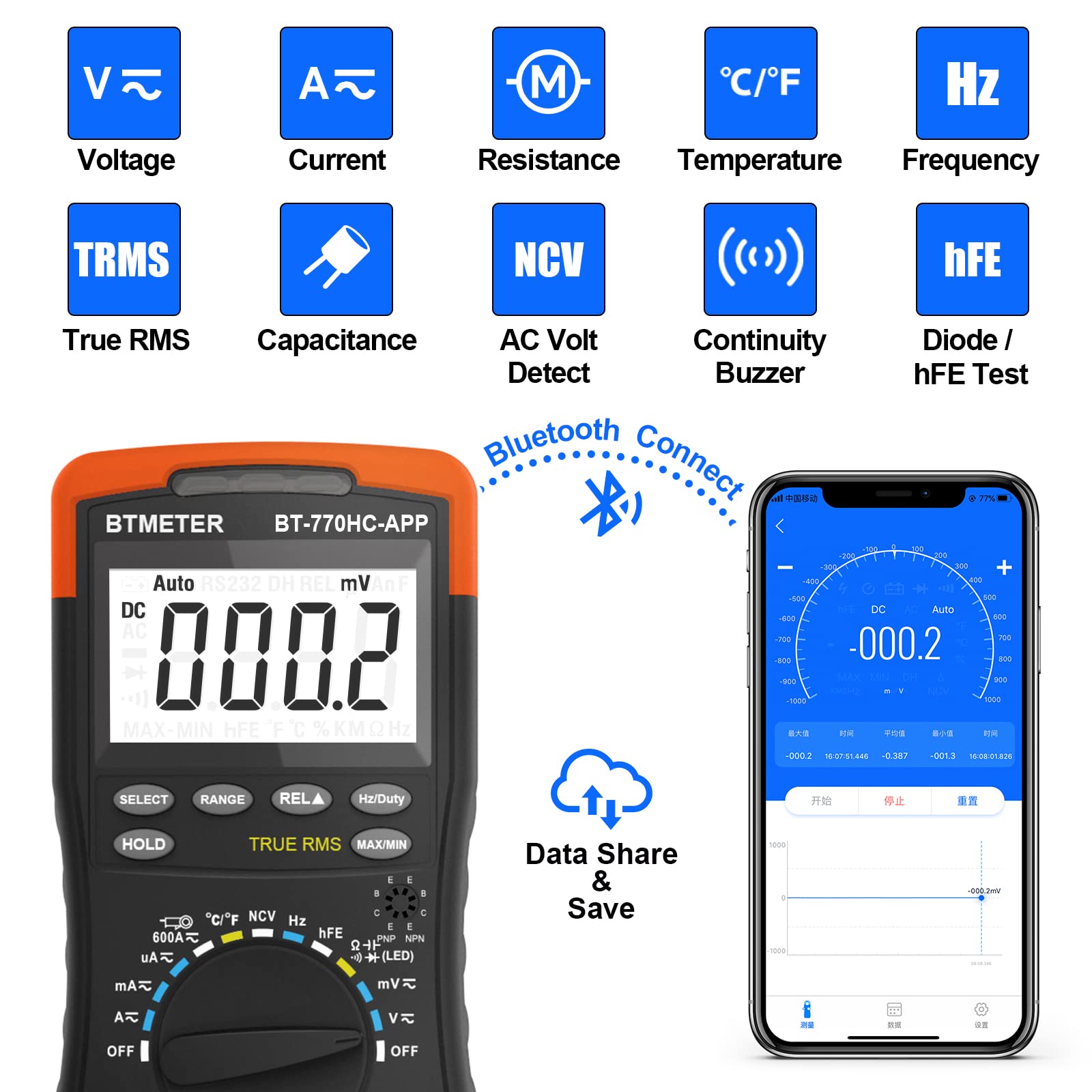

• 🌟【Digital Multitester】Portable multi tester supports smartphone connect and monitor & download electrical measurement data 15m away. Helpful electric multimetro in automotive car maintenance, HVAC installation and household electric appliances checking etc. 【Note: Customized multimetre software can be installed in iphone 4S iOS 7.0 or android 4.30 system above】

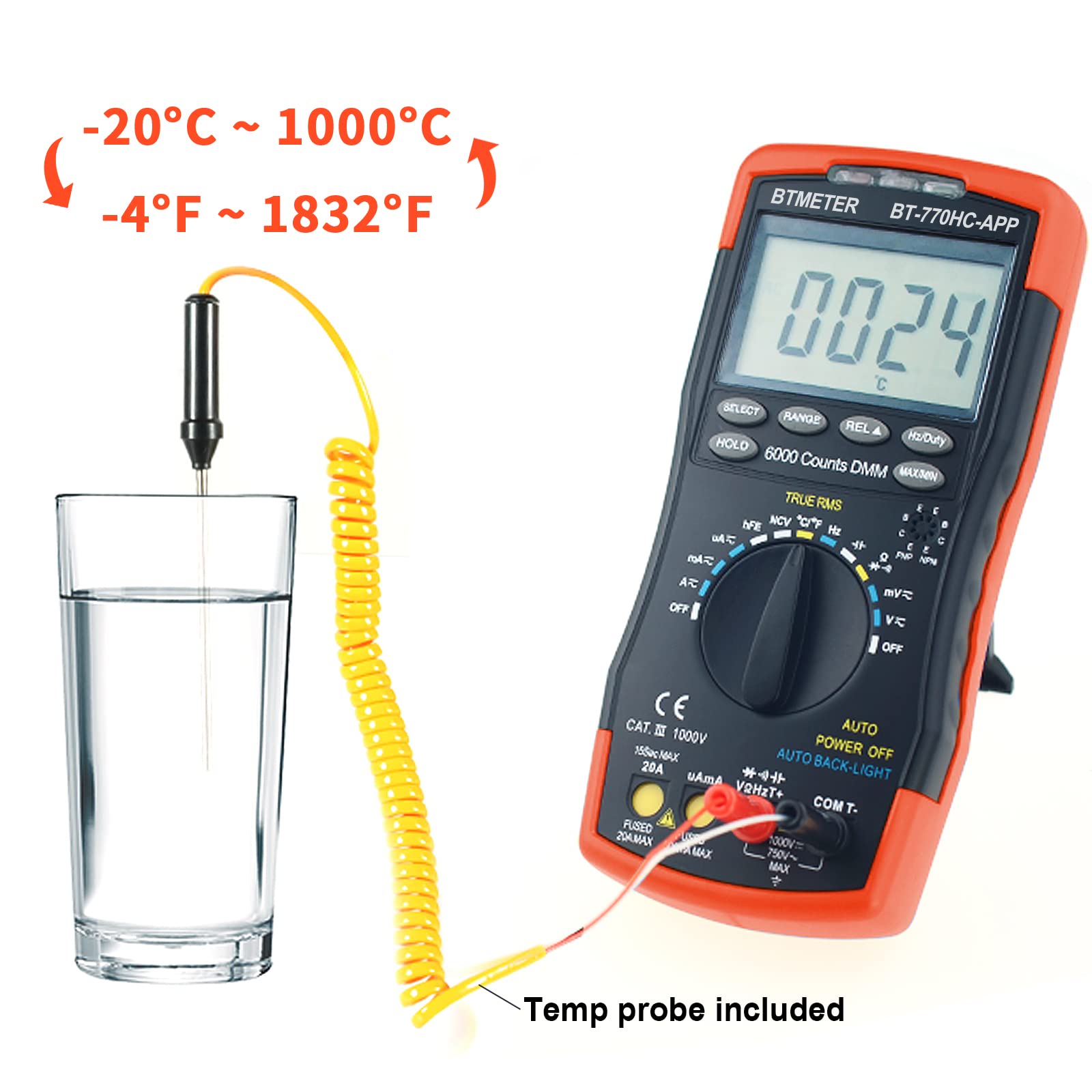

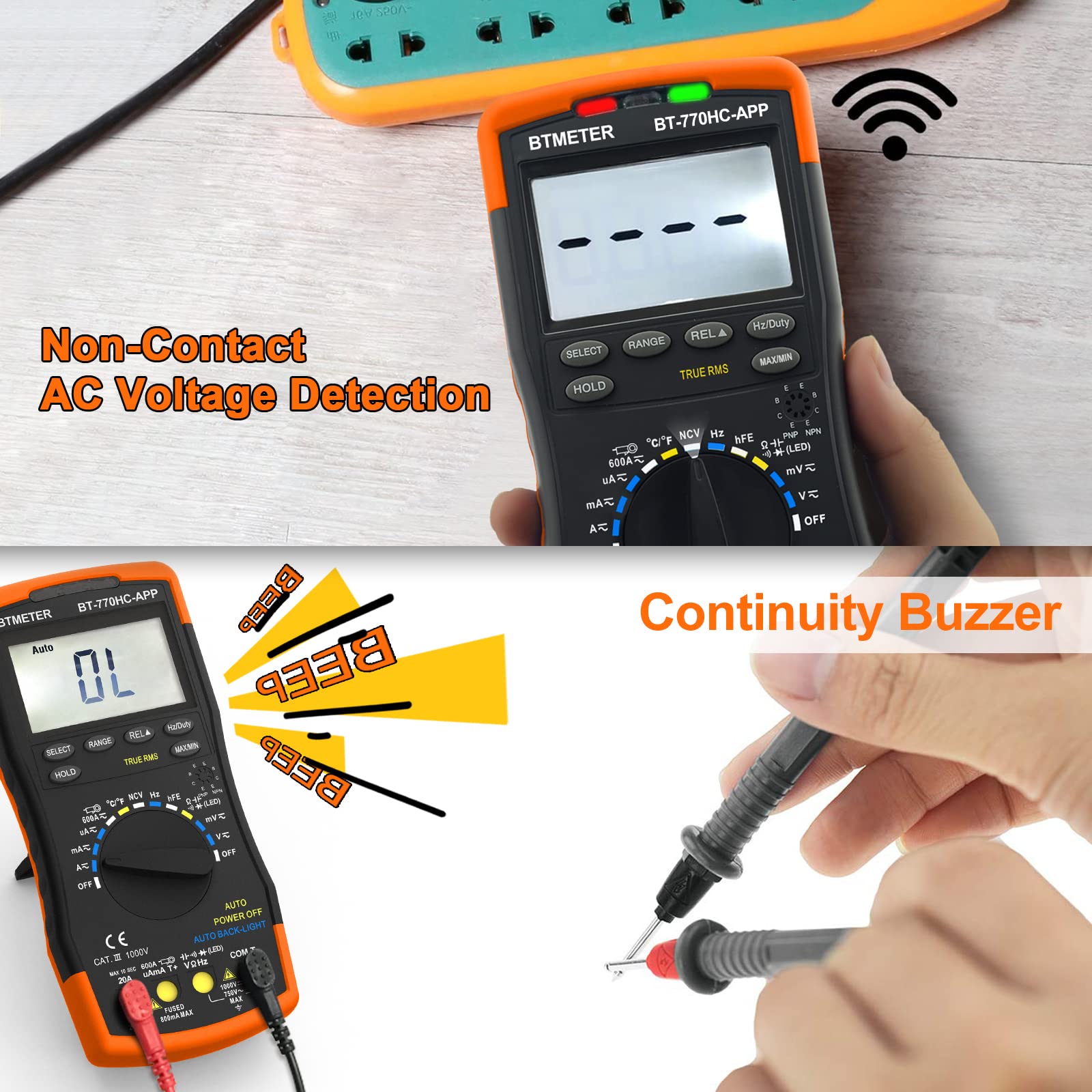

• 🌟【Continuity Tester】Not just a Ohmeter Volt meter, but also a continuity tester with buzzer to help you check electrical circuit complete path quickly, a non contact voltage detector to detect conductor/ outlet AC voltage without touching/breaking electrical wires safety, a temperature measurement device to test liquid temp from -4°F ~ 1832°F(Temp probe included).

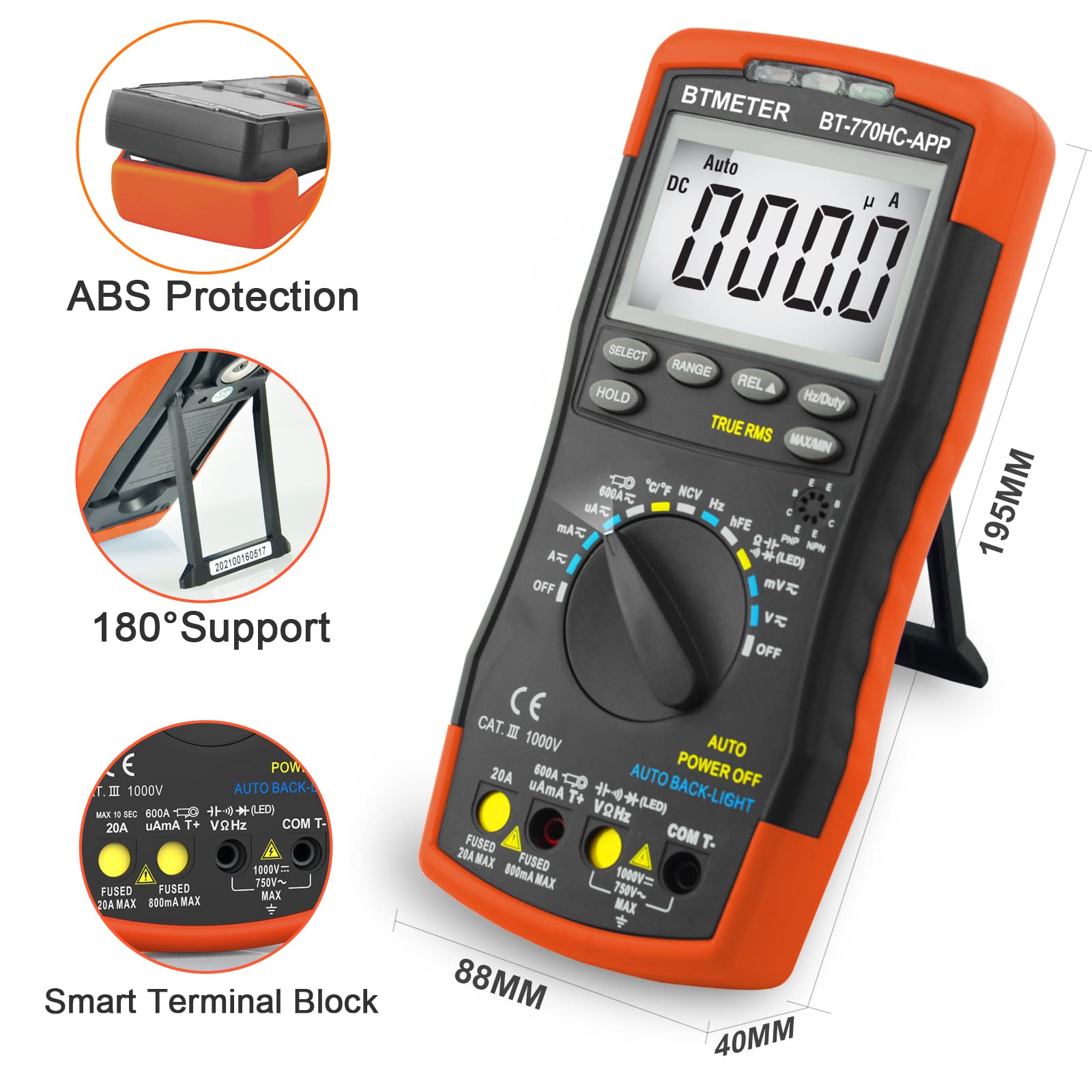

• 🌟【Practical Design】 When troubleshoot electric short circuit in dark/dim environment, auto backlit LCD display will turn on automatically, rotary switch indicator lamp will indicate which measurement mode, mechanical terminal lock to assist you insert the test leads properly. Smart designs to protect you and amperage meter from unnecessary mis-operation damage.
• 🌟【Safety & Quality】Pro multimeter VOM BT-770HC-APP is qualified with IEC-1010 concerning electronic measuring instruments with an over-voltage category 1000V (CAT ) . Safety electrical testing meter with overload and dual fuse protection to ensure its product lifespan. Quality multimeter comes with 365 days warranty and lifetime technical supports.

BTMETER Digital Multimeter 6000 counts TRMS electrical measuring device widely used by HVAC / electrician tech in checking AC DC voltage current ampere ohm capacitance frequency duty cycle, diode hFE capacitor transistor and continuity etc. More Features: True RMS, Auto Range, 6000 Counts, Continuity Buzzer, Dual Fuse Protection, Non-contact AC Voltage Detect(NCV), Data Hold, Overload Protection, Diode hFE Transistor Test, Mechanical Terminal Lock, Auto Backlight LCD Display, Rotary Switch, Indicator Light. Specifications DC Voltage: 60mV±(0.8% of reading+ 2 digits), 600mV/6V/60V/600V ±(0.5% of reading+2 digits), 1000V±(0.8% of reading+ 2 digits) AC Volt(True RMS): 60mV±(1.5% of reading+ 3 digits), 600mV/6V/60V/600V ±(1.0% of reading+3 digits), 750V±(1.5% of reading+ 3 digits) DC Current: 600μA/6000μA/60mA/600mA ±(1.2% of reading +2 digits); 6A/20A ±(2.0% of reading +3 digits); 600A±(2.5% of reading +5 digits) AC Amp (TRMS): 600μA/6000μA/60mA/600mA ±(1.5% of reading +3 digits); 6A/20A ±(2.5% of reading +5 digits); 600A±(3.0% of reading +5 digits) Resistance: 600Ω±(1.0% of reading+ 3 digits); 6KΩ/ 60KΩ/600KΩ/6MΩ ±(1.0% of reading+ 2 digits); 60MΩ±(1.5% of reading+ 3digits) Capacitance: 6nF/ 60nF/600nF/6μF/60μF/600μF/6mF/60mF Frequency: 9.999Hz ~ 9.999MHz± (0.1% of reading+ 5 digits) Duty cycle: 0.1% ~ 99.9% ± ( 2.0% of reading+ 2 digits ) Temperature: -4 ~ 1832°F Packing List 1 x User Manual 1 x 1.5v Batteries 1 x Test Leads (Pair) 1 x Temp Thermocouple 1 x Portable Multimetre Carrying Case 1 x BTMETER BT-770HC-APP Multimeter
