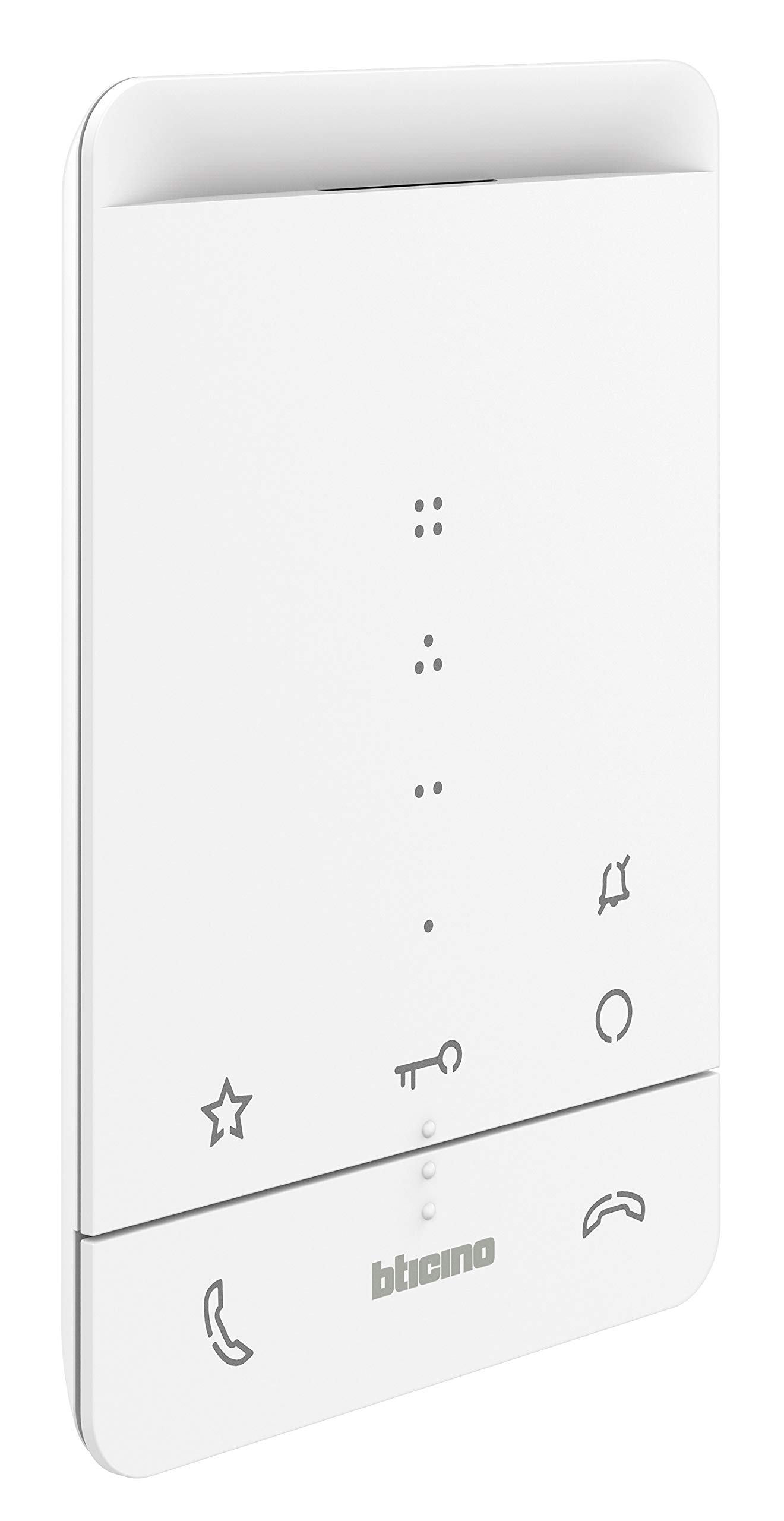

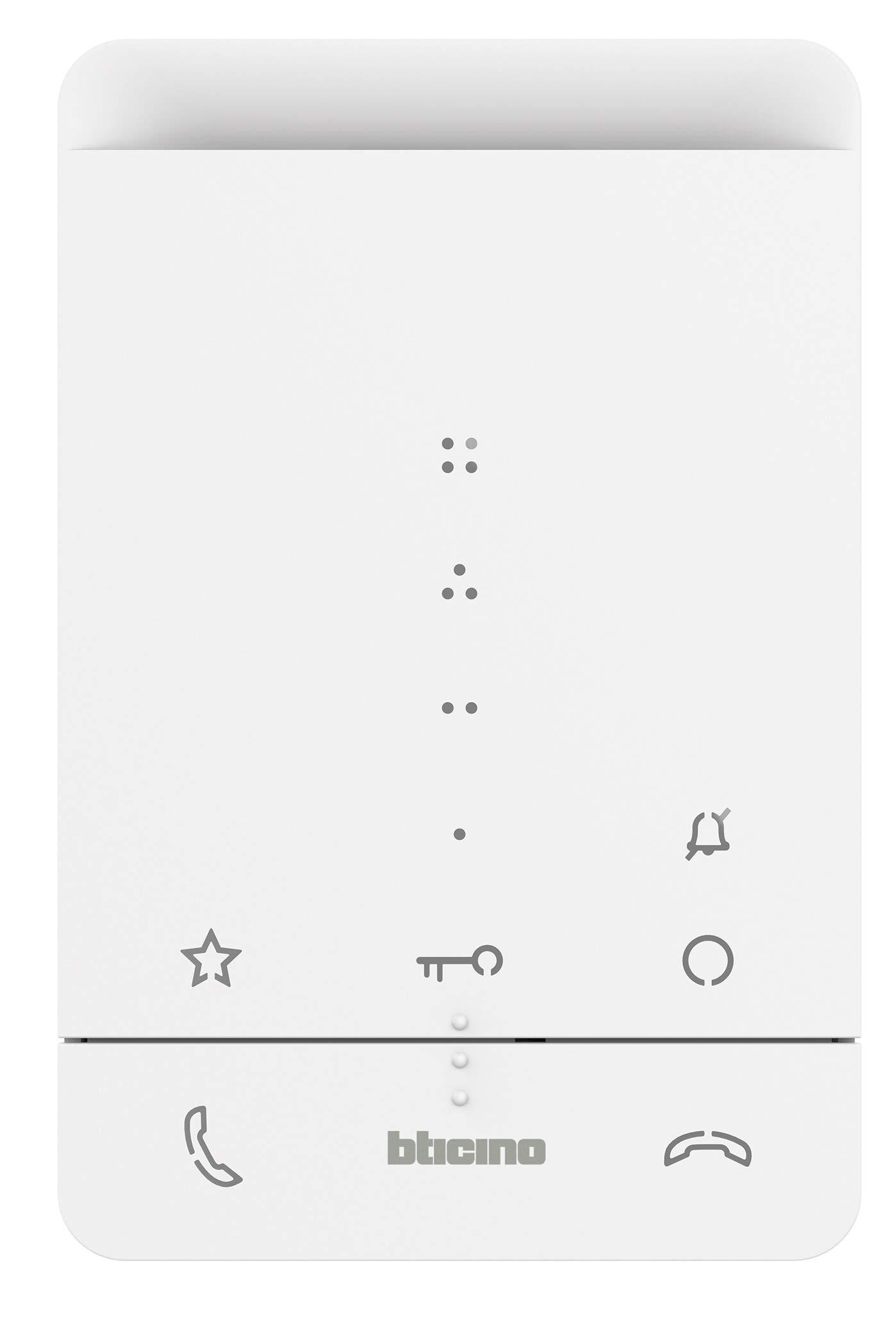

Bticino Class 100 A16E hands-free system

• Audio/indoor home station with headphones for 2-wire technology, suitable for wall or desk mounting, table accessories sold separately
• In addition to the 3 sensor keys, the cabin has a door sensor, call reception, stair lighting and an ignition/switching station
• Door automation (medical activation) This function opens the door after the call from the door station has been interrupted. Class 100 a16e rings and the door opener is automatically activated
• Choose between 16 melodic sounds; it allows you to differentiate between door calls and piano calls with 2 different melodies. Adjust the volume using the control knob
• Disassemble the old BTici 2-wire video intercom system. Install the newly connected CLASSE 100 without the need for additional devices and/or cables. The 2-wire video intercom systems BTicino are equipped with removable SCS bus standard terminals for maximum simplicity.
• Bus connection, reference to plans and additional explanation. Before you proceed with the purchase, check the compatibility of the device with the devices that are already installed in your home
• The volume of the ringtone is adjusted by means of a side control. LED indicator for ring off, door opener and connection status Surface mounting using the included wall bracket.
• Dimensions W × H × D 102 × 155 × 18.5 mm

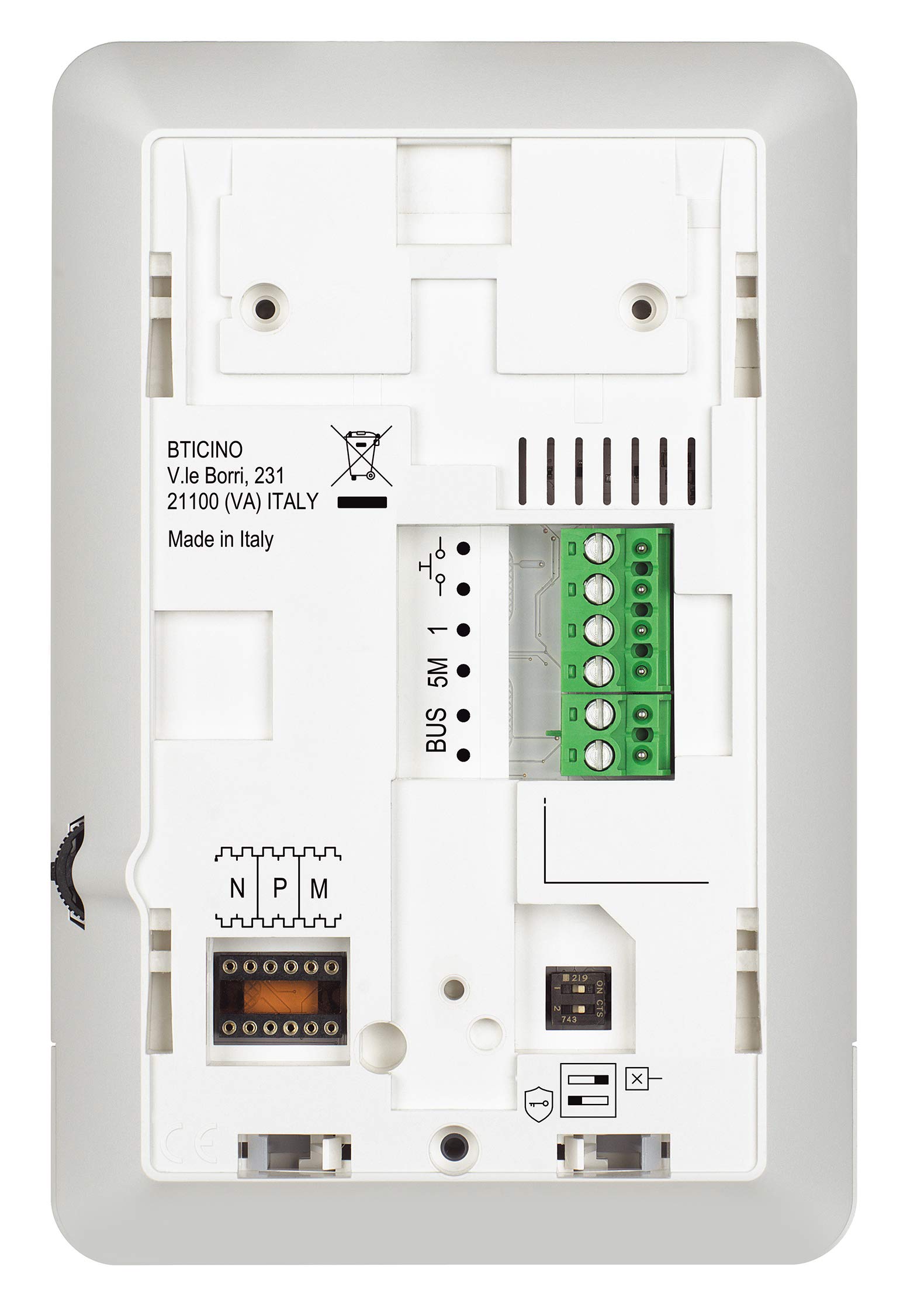

Description Handset-free Audio Home Station/Intercome, CLASSE 100 A16E. 2-wire BUS system, free intercom, and in addition to the two physical conversation buttons (answer or end conversation), it has 3 sensor buttons for: Opening the door, turning on the staircase light (activator is required and sold separately) and for turning on or switching the door station. There are also 4 freely configurable additional buttons (for e.g. Internal intercom system, additional door opener, etc.). 16 melodic call tones. Incl. Doctor's switch/ door opening function. Different doorbells available for front doorbell and flat doorbell. Volume of the call tone is set by means of a side control. LED indicator for: Call tone shutdown, door opening and connection status. Surface-mounted using the supplied wall bracket. Table accessories sold separately. Connection for BUS, front door bell, and additional bell mechanism. Dimensions W × H × D: 102 x 155 x 18.5 mm. Door opening function (doctor's switch) This function is mainly used for offices and doctor's practices to ensure free access during business or office hours. When a call is placed by the door station, the house station rings and the door opener is automatically activated. Pressing the door opener button is not necessary. This function can be activated/deactivated at any time at the house station.
