HY100 HAM Automatic Antenna Tuner, 1.8-50MHz, 100W, 10-15VDC, Aluminum Alloy with Metal Housing

• 【HIGH PERFORMANCE】One‑piece molding without burrs, convenient to install and with good performance. Frequency range is 1.8-30Mhz (actually can get 1.8-50Mhz)
• 【PRODUCT PARAMETER】The maximum current consumption is 400 mA, the maximum operating power is 100W and the maximum possible measured power is 150W.
• 【LARGE HEAT DISSIPATION AREA】The product has a large heat dissipation area, which can better maintain long-term operation. With metal housing, stable and reliable performance,
• 【DURABLE & PRACTICAL】Coated with anti‑corrosion paint, smoothly surface and greatly improve service life. With great workmanship, made of aluminum alloy is strong and durable.
• 【100% QUALITY ASSURANCE】We are very confident in the quality of this automatic antenna tuner, and provide warranty or refund for it. Please feel free to reach us if you have any questions about your purchase.

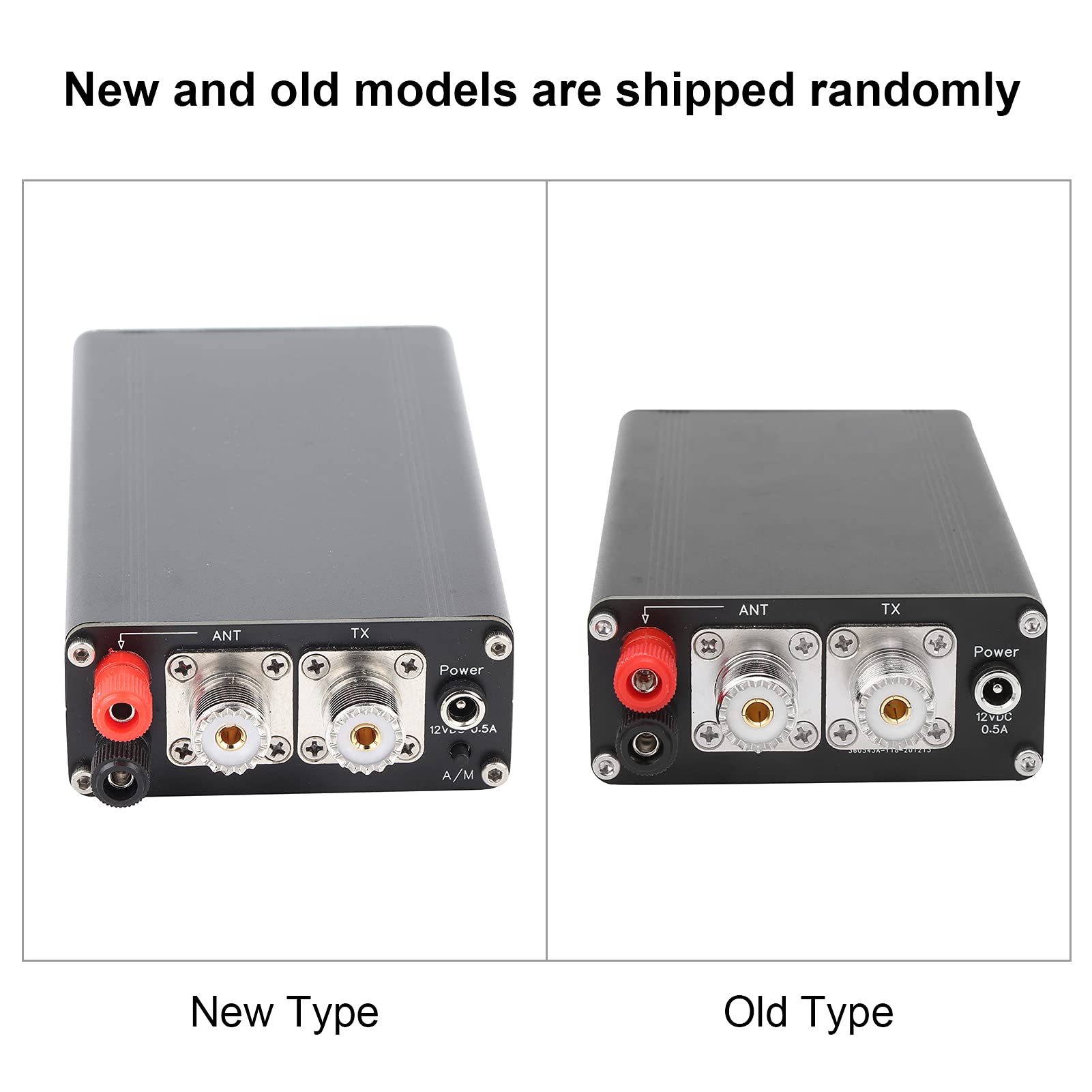

Specification: Item Type: Automatic Antenna Tuner Material: Aluminum alloy Model: HY100 Allowable Supply Voltage Range: 10-15VDC Maximum Current Consumption: 400 mA Maximum Working Power: 100W Maximum Possible Measurement Power: 150W Minimum Power Required to Start Tuning: 5W The Smallest Possible Measurement Power: 0.1W Measurement Resolution for 10 Wh Power: 0.1W Measurement Resolution for Power Greater Than 10 Watts: 1W Power Measurement Accuracy Error: ±10% Maximum Installation Inductance: 8.53μH Minimum Installation Step of Inductance: 0.05μH Maximum Installed Capacity: 1869 pF Minimum Capacitance Installation Steps: 10 pF Typical Consumption: 100-200 mA Frequency Range: 1.8-30Mhz (actually can get 1.8-50Mhz) Package List: 1 x Tester 1 x Connection Line Note: Hex screws and power switch colors are shipped randomly.
