BT Bracket 32 x 1 & Dropwire Clamp Curly Wurly Pigtail No.10A x 1

• BT Bracket 32 x 1 & Dropwire Clamp Curly Wurly Pigtail No.10A x 1

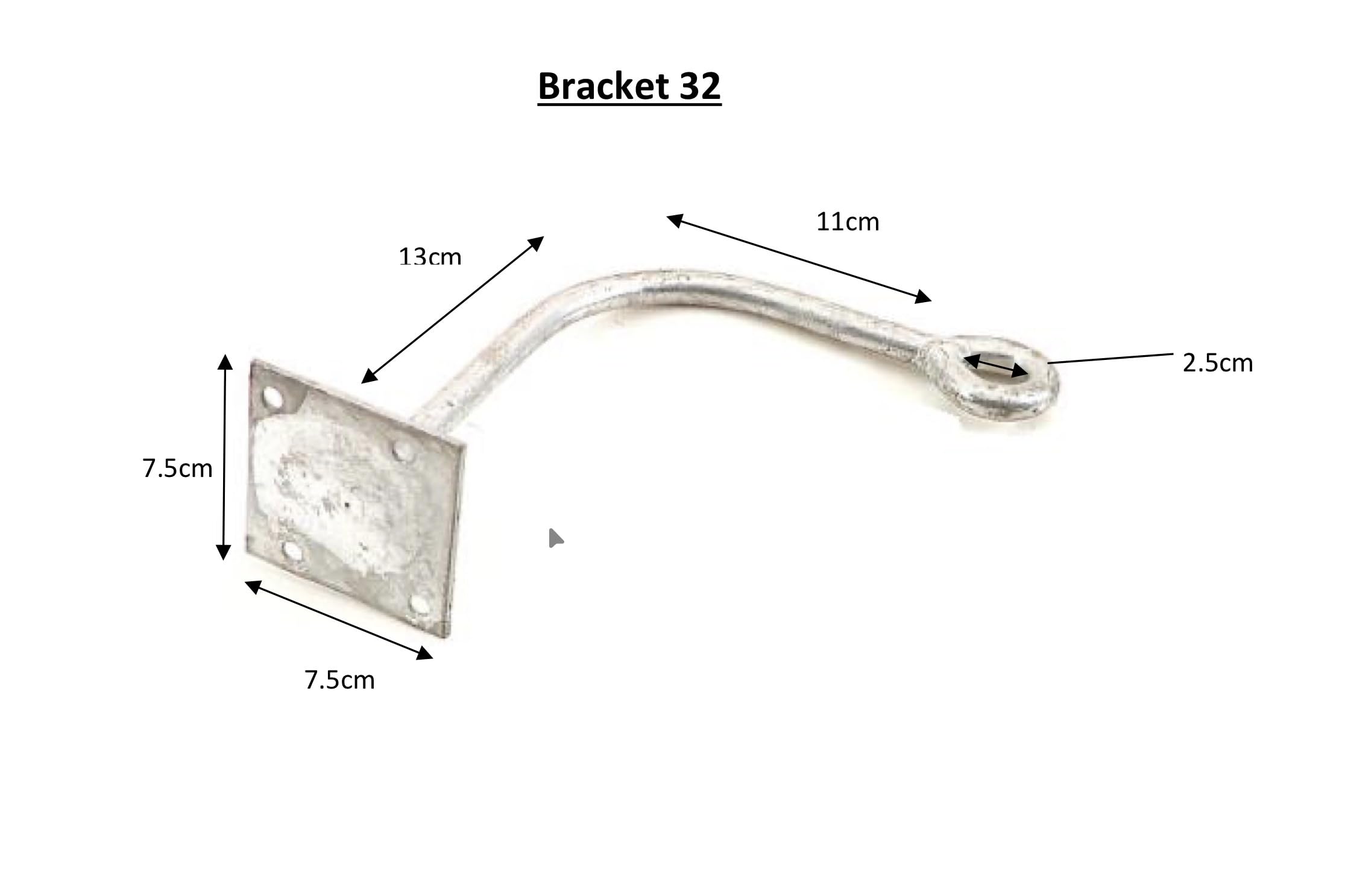

BT Bracket 32 x 1 & Dropwire Clamp Curly Wurly Pigtail No.10A x 1 A dropwire fixing consisting of a galvanised steel “J” shaped Bracket with a welded loop and a plate with four holes at the other end. Designed to attach a dropwire clamp to timber or brickwork at end users' premises where additional height clearance is required e.g. a Bungalow. Note: Dropwire span limit for this Bracket is 40 metres. On timber this Bracket is designed to be secured with 4 No 12 x 1 Zinc plated screws. On brickwork (without rendering or cladding) this Bracket is designed to be secured with 2 x Stud Expanding 1A and 2 No 12 x 1½” Zinc plated CSK screws and Plugs Screw Fixing 1A. A coated metallic spiral clamp used to attach either a dropwire 10B or 12. Designed to be wrapped around the dropwire, not the wire around the clamp.
