BSIDE Voltage Tester Rechargeable Non Contact Electrical Tester Pen with Triple Display VFD Capacitance Diode Tester Live Detector Multimeter Auto Range for AC DC Current/Voltage Ohm Hz Continuity

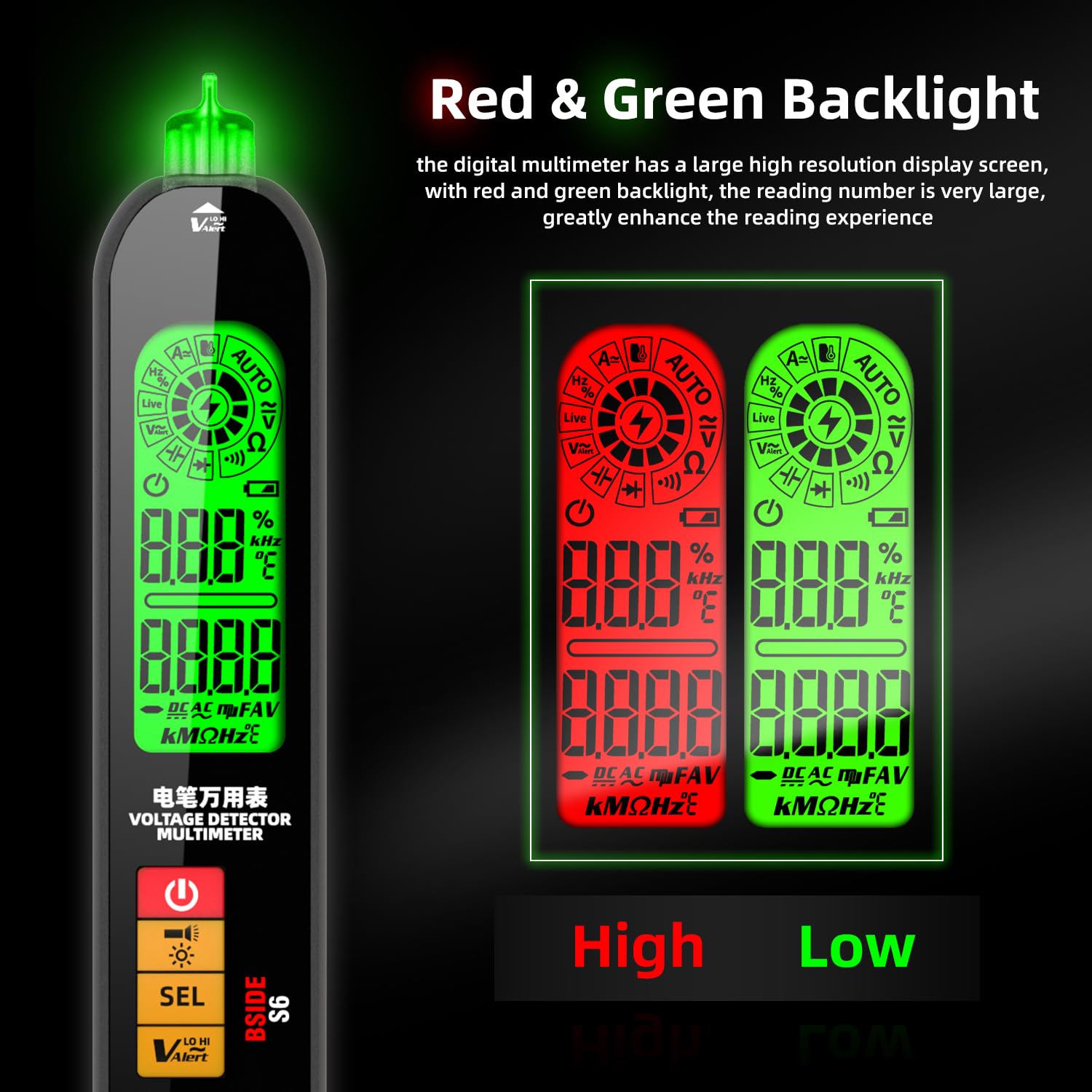

• [Super Large LCD Display]: Despite being an voltage tester pen, it features a remarkably large screen with large digits, three-line display and ID pointer design, giving you a more intuitive and better assessment of real-time conditions and risks when working around electricity. The backlight can be switched on and off.

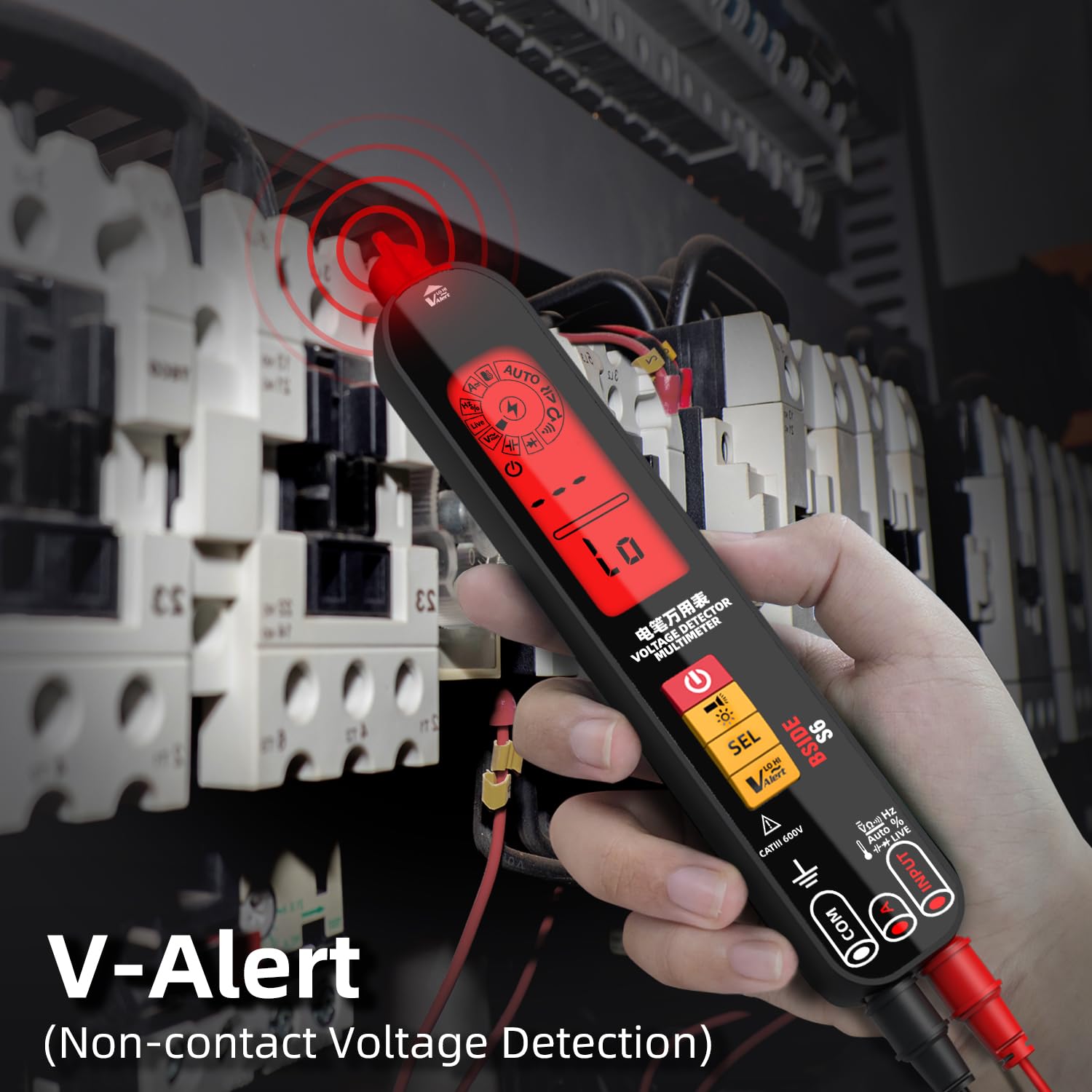

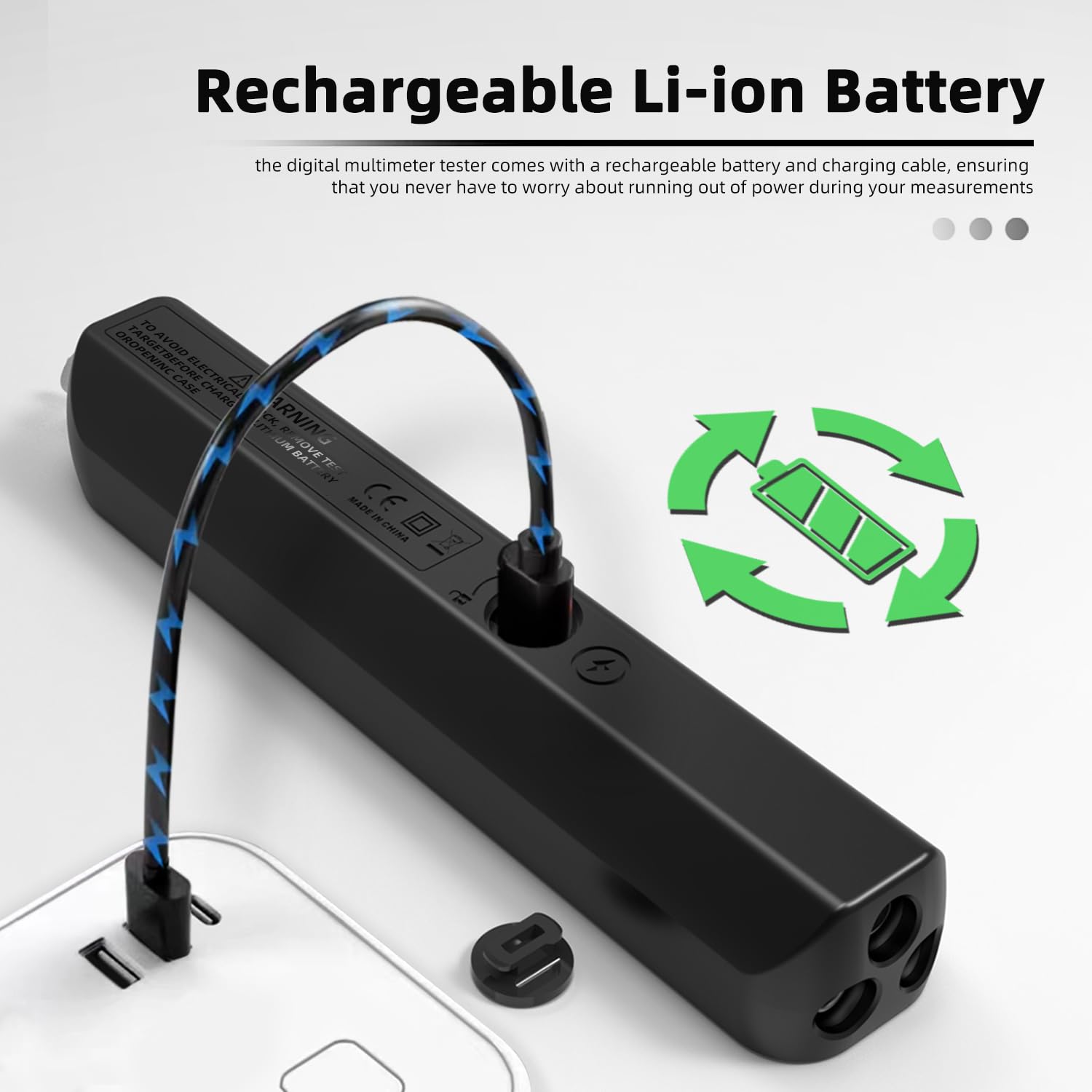

• [Rechargeable Voltage Detector] : Powered by a built-in rechargeable battery, this electric current tester pen works right out of the box. Simply press the V-Alert button for non-contact voltage detection. High and low sensitivity can be adjusted for different wiring scenarios, such as accurately locating firewire in a clump of wires, or finding live wires in wall.

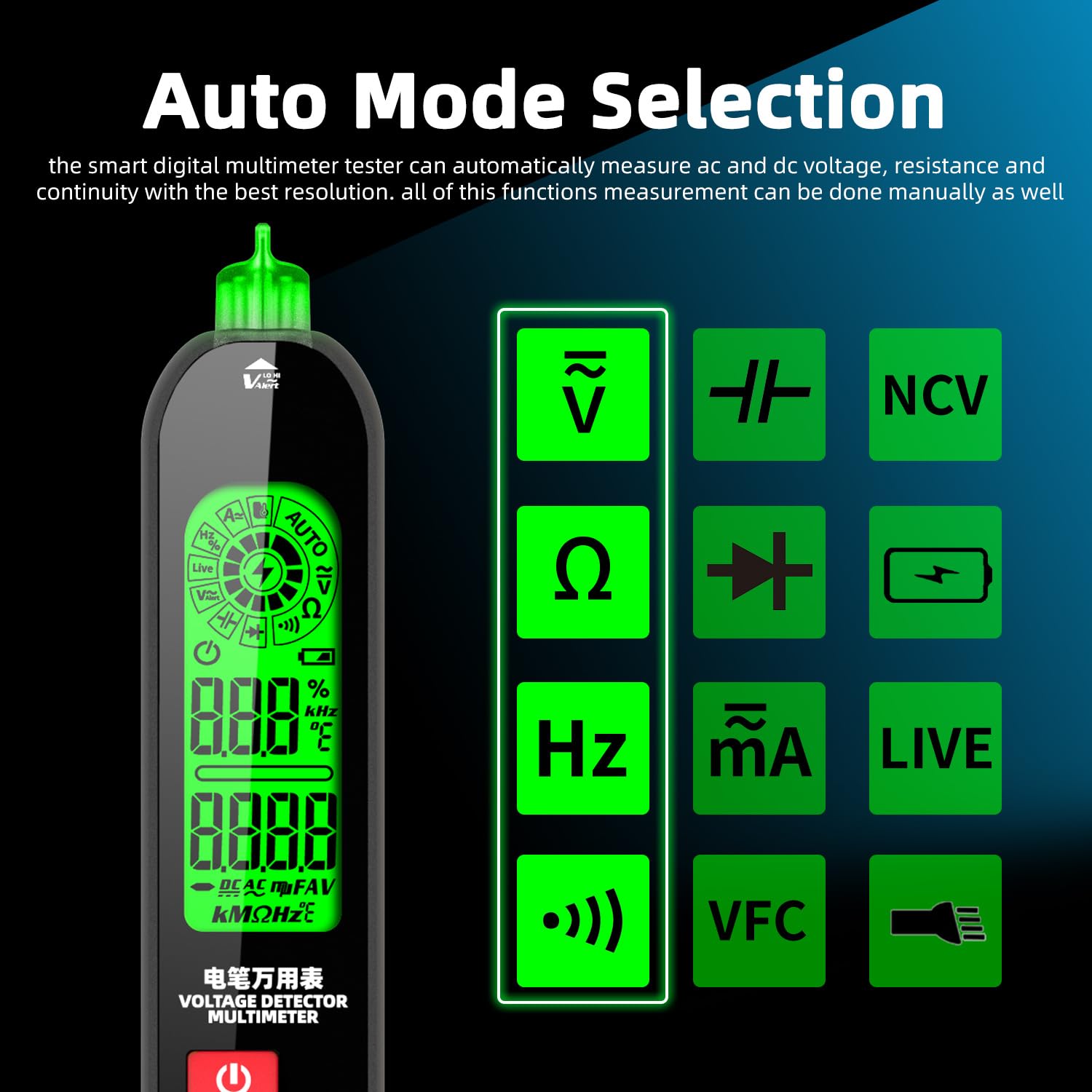

• [Electric Multi-Function Tester] : The smart multimeter pen automatically measures not only AC DC voltage, resistance, continuity and frequency, but also AC DC current, without adjusting the range or switching functions. Manual mode is also available. It can also test capacitance, diode, temperature and duty cycle etc.

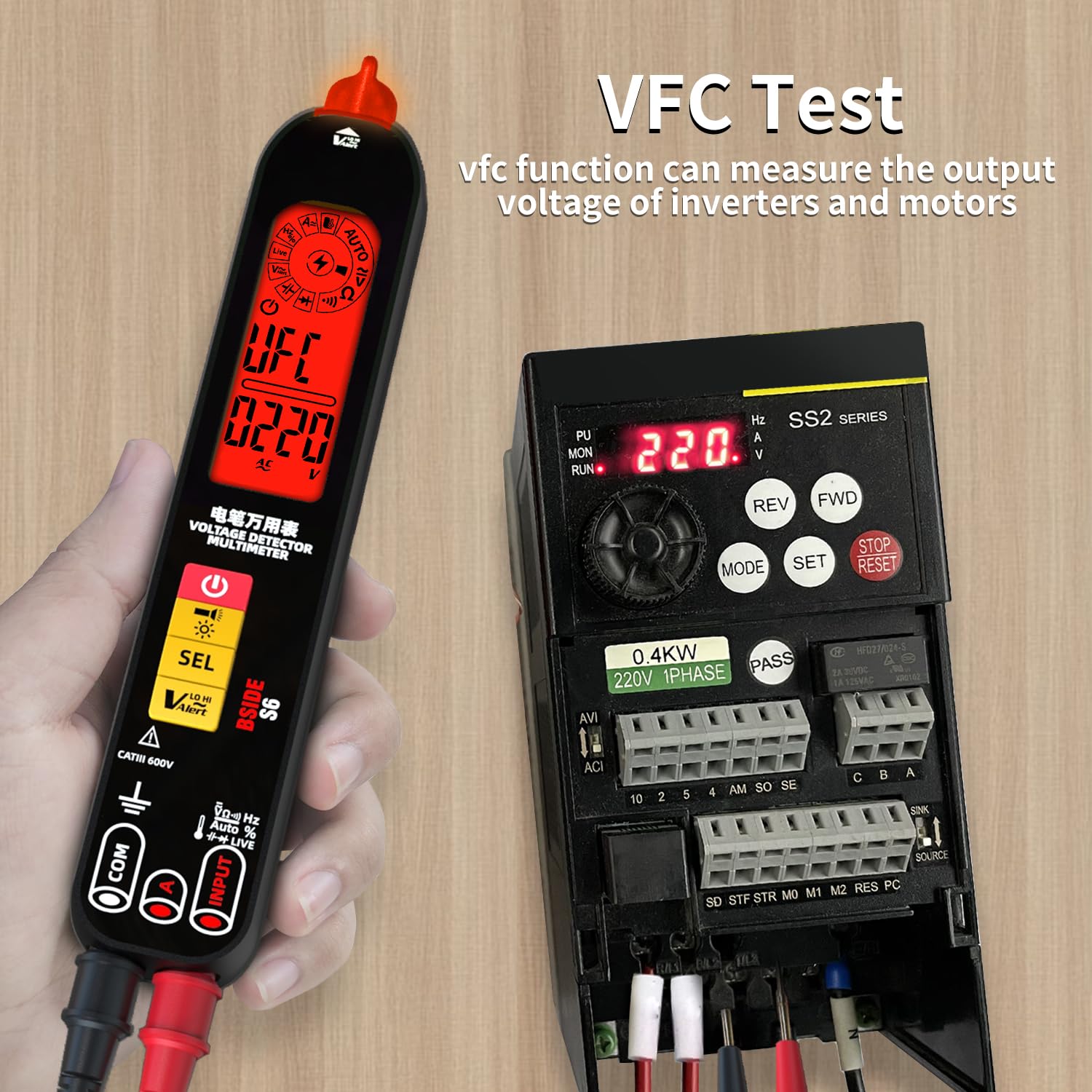

• [Inverter Voltage Test]: With this electrician's pen, you can also measure the output voltage of inverters. It helps you to better estimate the voltage of pumps, lifts, air conditioners, compressors, etc. and to better plan operating speeds.
• [Keep Away from Danger] : The voltmeter ammeter complies with CE standards and CATIII 600V safety regulations, has double insulation and anti-burn protection for a safer use. Once the test leads are inserted to activate the current function, the buttons are locked to prevent burnout and danger caused by misuse.

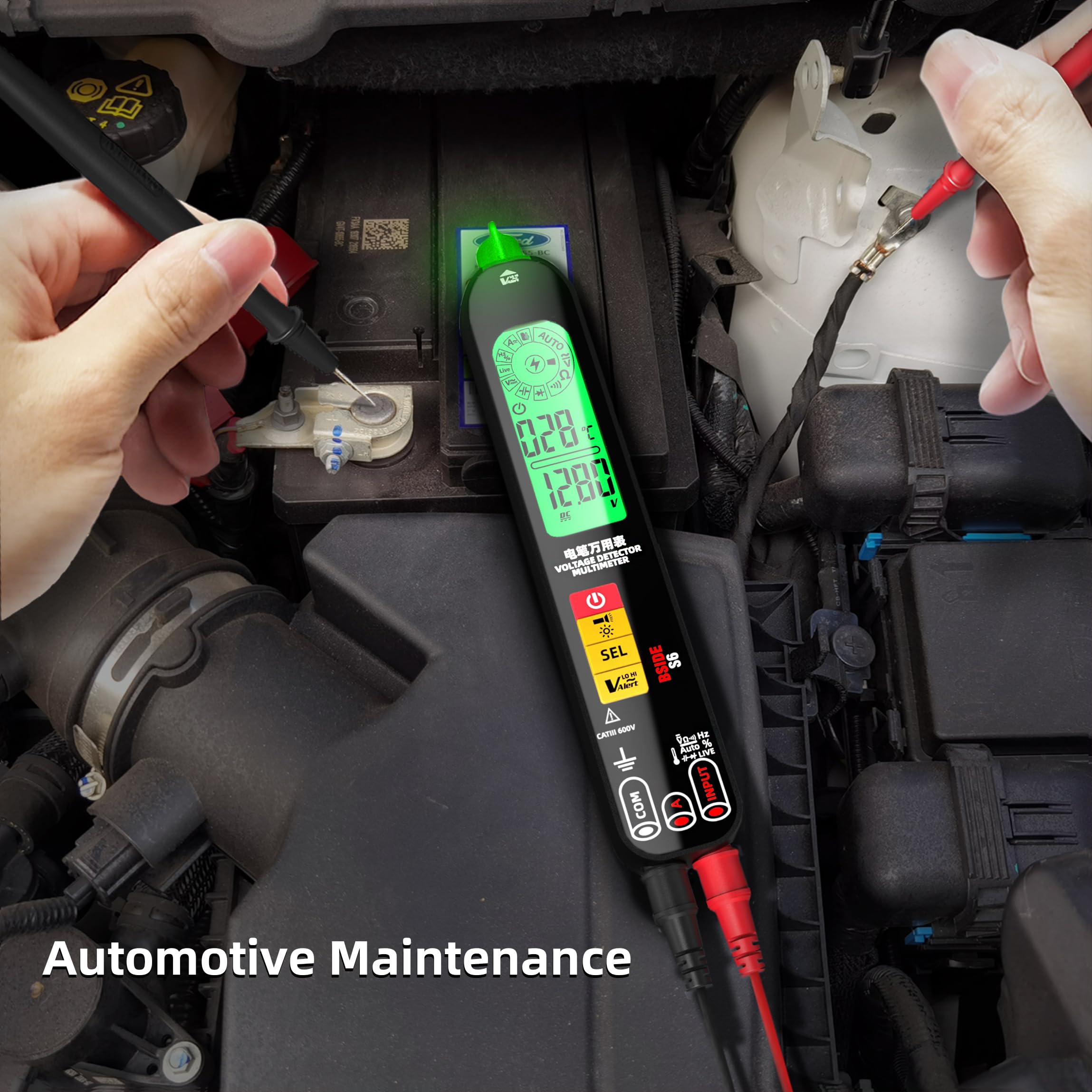

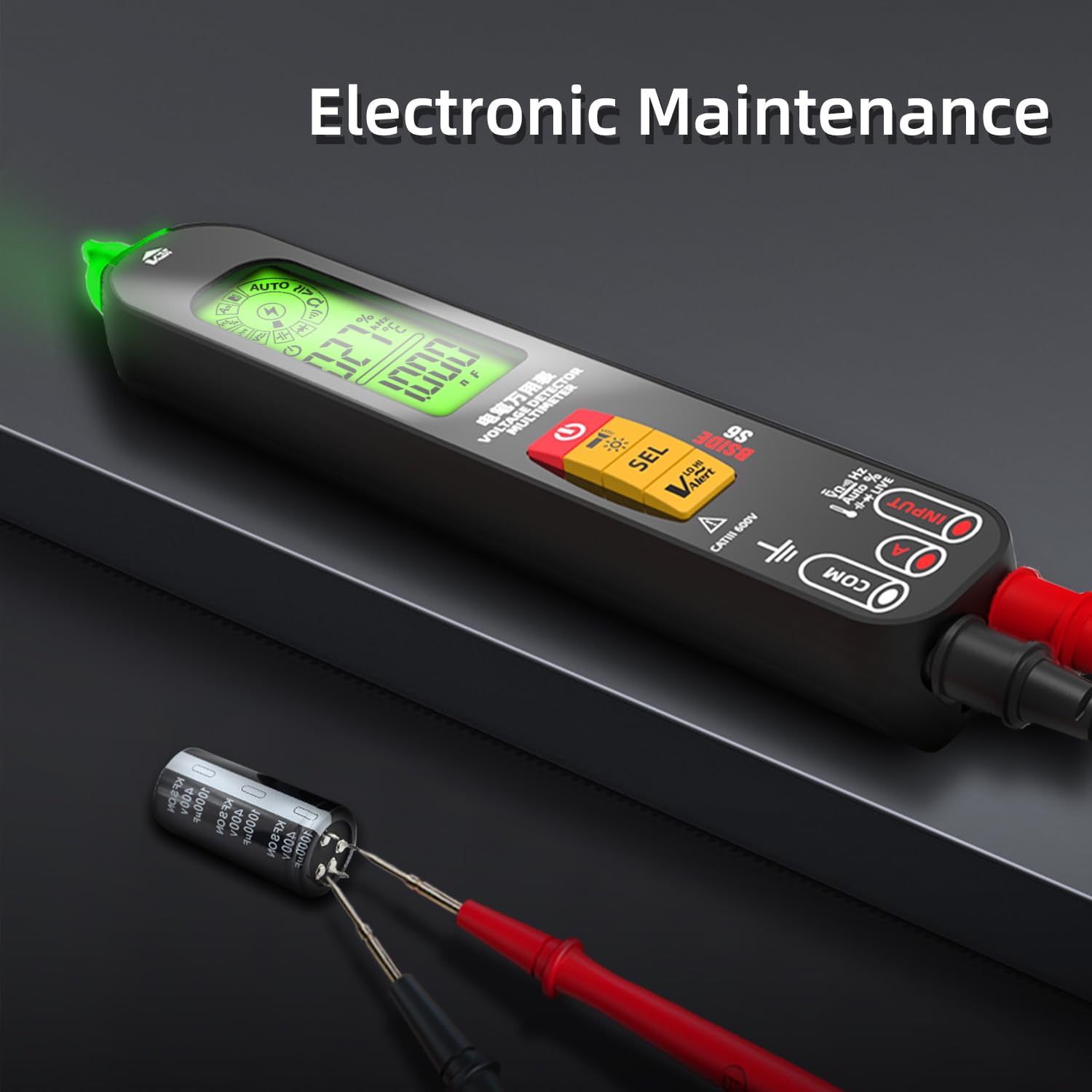

Looking for a powerful pen type multimeter? It is by far the most versatile of BSIDE electric pen testers, a must have for electricians, handymen and DIYers in a wide range of electronic, electrical, home circuit, lighting and automotive applications. Features: Rechargeable digital multimeter NCV detection with adjustable sensitivity, buzzer and visual alarm Low sensitivity for accurate identification of complex lines High sensitivity for easy detection of electrical wires in wall Automatic test for AC DC voltage/current, resistance continuity, frequency Capacitance, diode temperature, duty cycle measurement, VFC function Metal-to-metal live wire check with single probe Super large LCD with: - Red and green backlight - New designed ID pointer - Large digits for better reading - Ambient temperature display - Auto switch-off symbol - Low battery indication Flashlight for rewiring in dark Specifications: Display: 6000 counts Red backlight lights up when >90V, same as below. DC Voltage: 0-620V 0.001V ±(0.8%+3) AC Voltage: 0-620V 0.001V ±(1.2%+5), 10-620V (VFC Mode) 1V ±(4%+3) DC Current: 1-610mA 0.1mA ±(1.5%+3) AC Current: 1-610mA (40-100Hz) 0.1mA ±(1.5%+3) Resistance: 0-60MΩ 0.1Ω ±(1.2%+3) Capacitance: 1nF-60 mF 0.01nF ±(3.5%+8) Frequency: 1-9.999MHz 0.001Hz ±(1.2%+3) V-Alert (NCV): Yes Live Wire Search: Yes Diode: Measures diodes less than 3V Continuity: If the resistance is less than 50Ω, the beeper sounds Ambient Temperature: 0-50℃ ±2℃ Power: 3.7V battery (built-in, rechargeable) Size: 181.5 x 32.6 x 25 mm Weight: 86.2g Package Includes: Smart Digital Multimeter Test Leads Carrying Case English User Manual
