BSIDE Smart Digital Multimeter with IR Thermometer 12:1 High Voltage Diode Tester 9999 Counts Dual Powered Electrical Tester Multifunction Voltage Capacitance Meter for HVAC LED Automotive Electronic

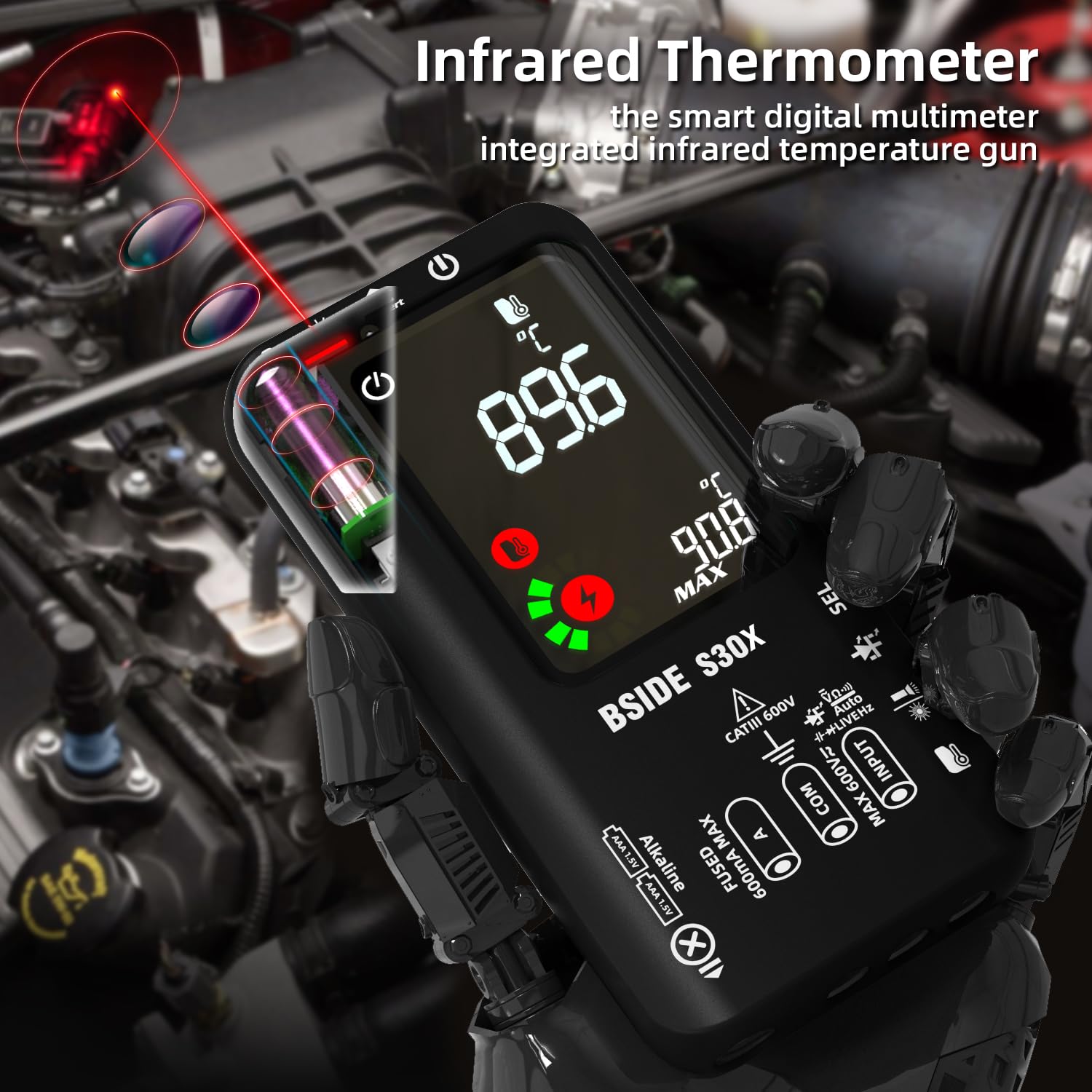

• [Upgraded Infrared Thermometer] : This upgraded BSIDE S30 multimeter is newly equipped with a silicon lens, the objective distance ratio has been raised to 12:1. It can be used entirely as an infrared temperature gun(-20-400 °C), which allows you to judge overheating of circuits, check oven temperatures from a greater distance, faster, and more accurately.

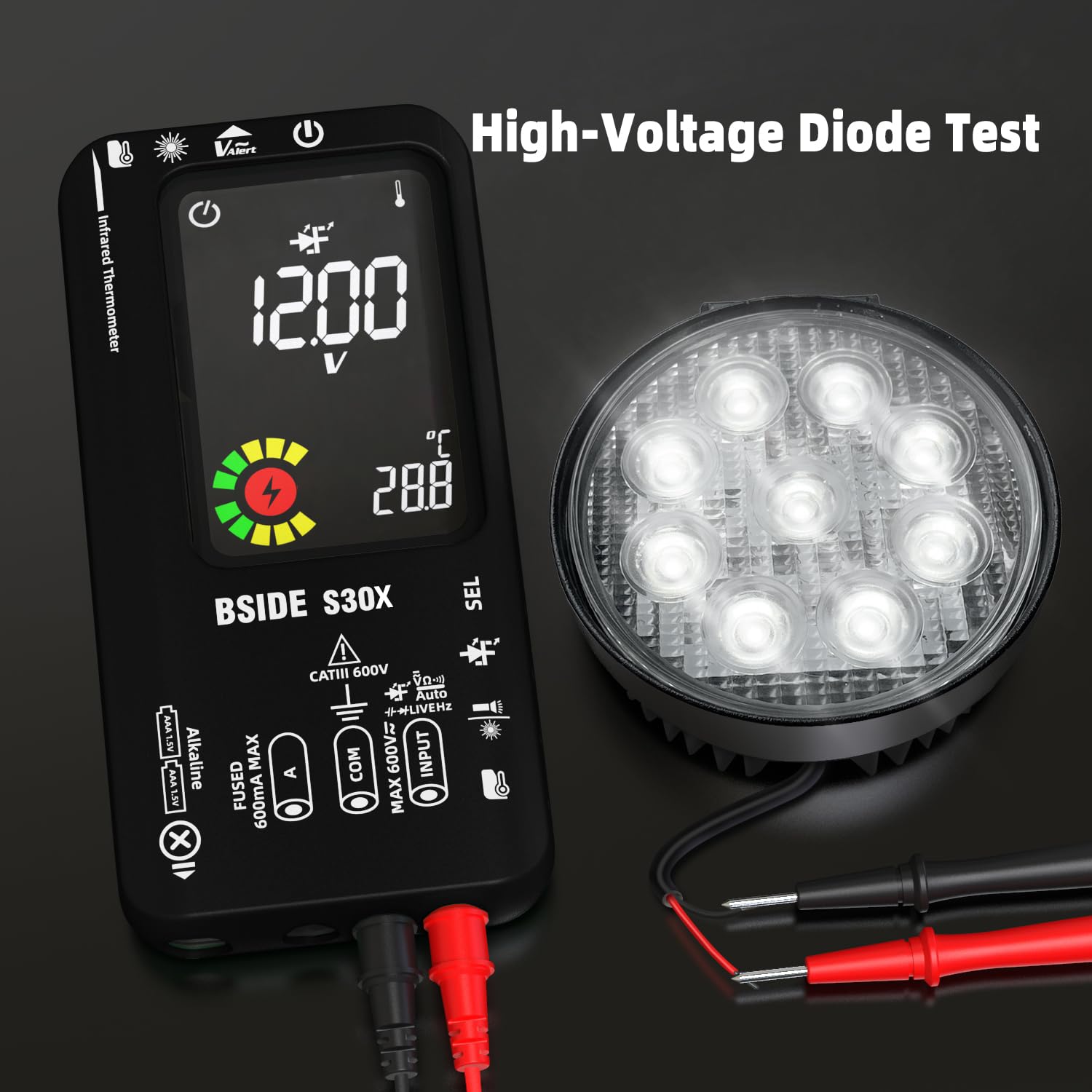

• [Up to 15V Diode LED Testing] : This digital multimeter can test not only low voltage diodes, but also high voltage diodes up to 15V, like rectifier diodes, voltage regulator diodes etc. It can light up your car's LED lights and check supply voltage, operating current, radiator temperature and more.

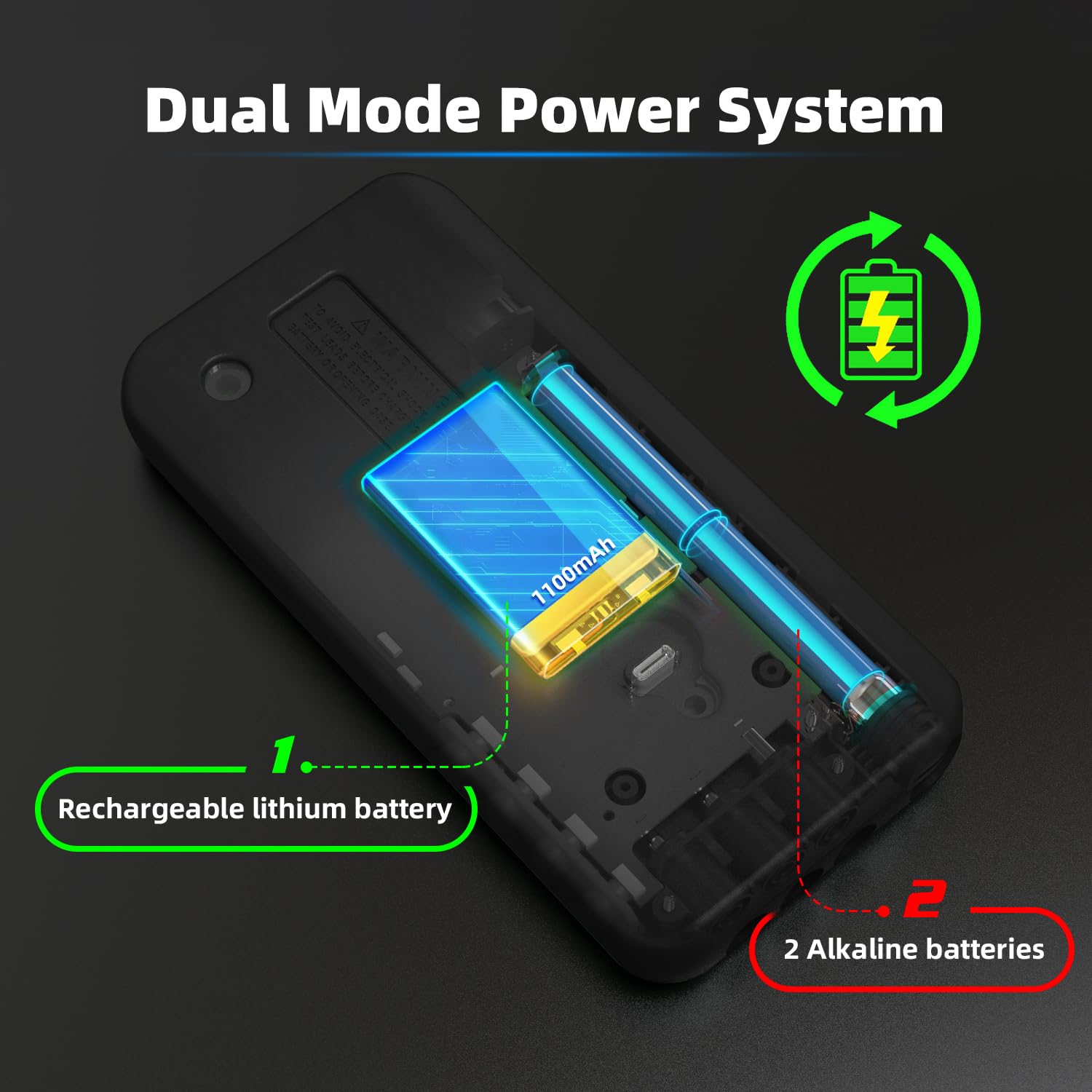

• [Dual Powered Multimeter] : This rechargeable digital multimeter is powered by a built-in 1200m battery, and can automatically switch to AAA battery power mode in the event of insufficient power, making it ideal for emergency repairs and long hours of outdoor work.

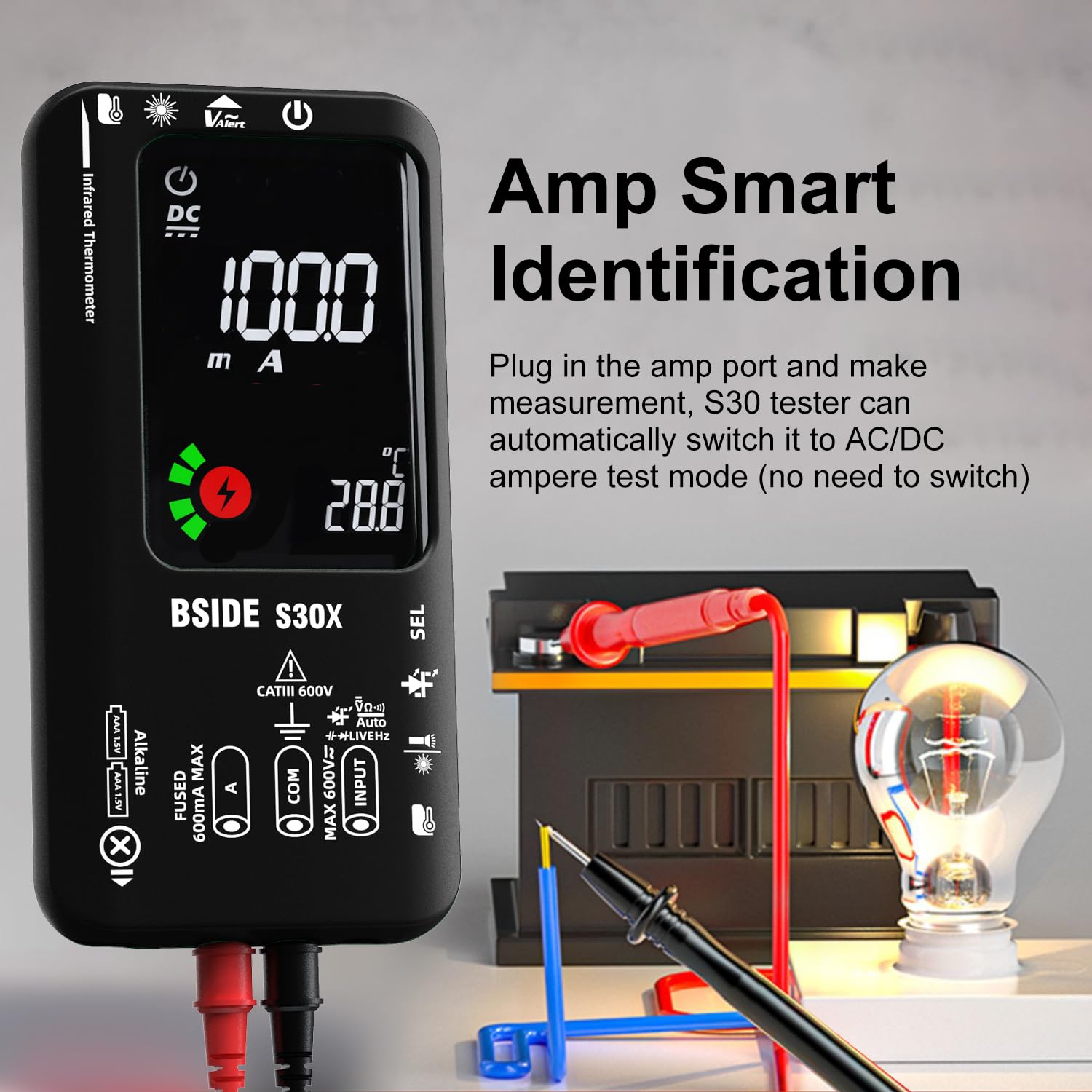

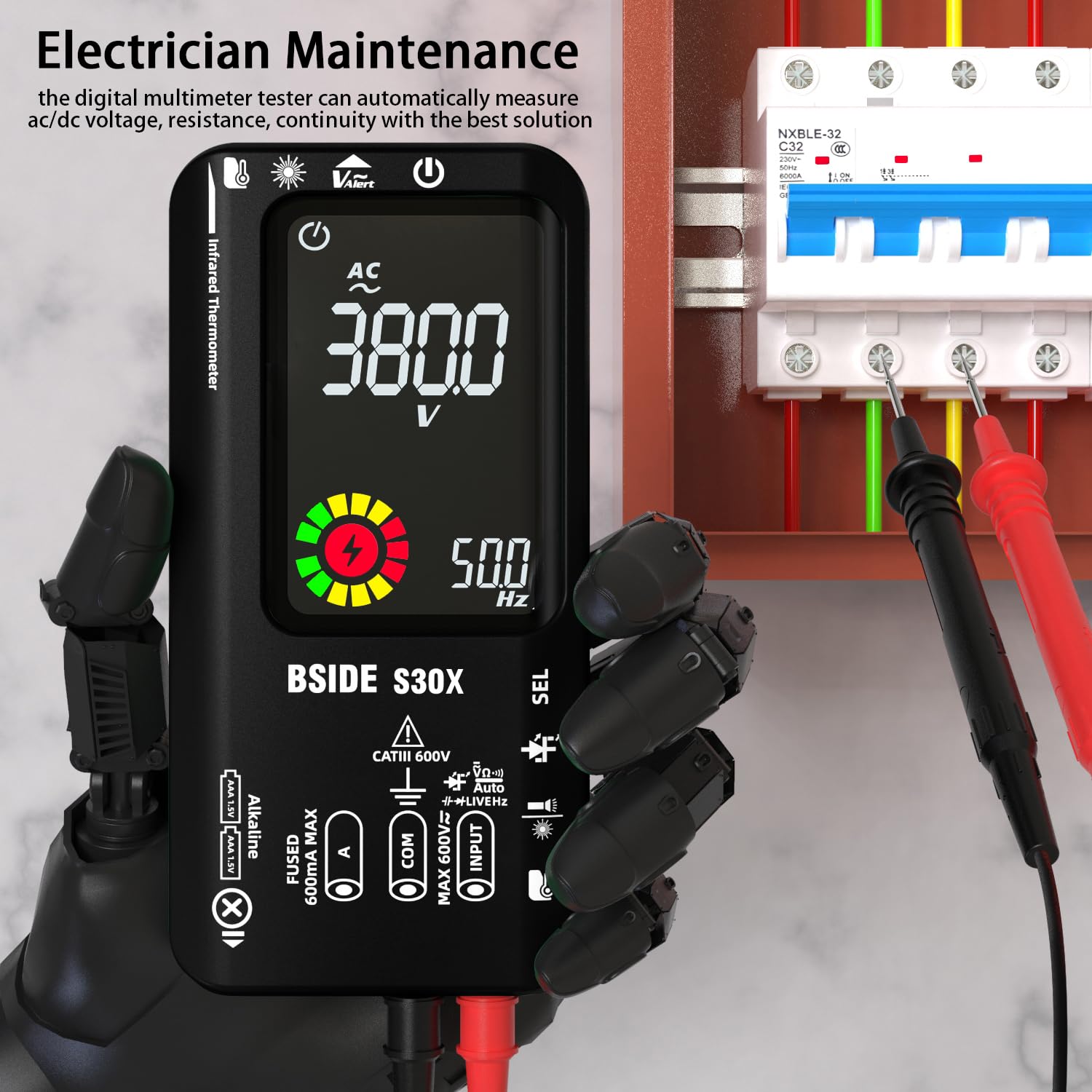

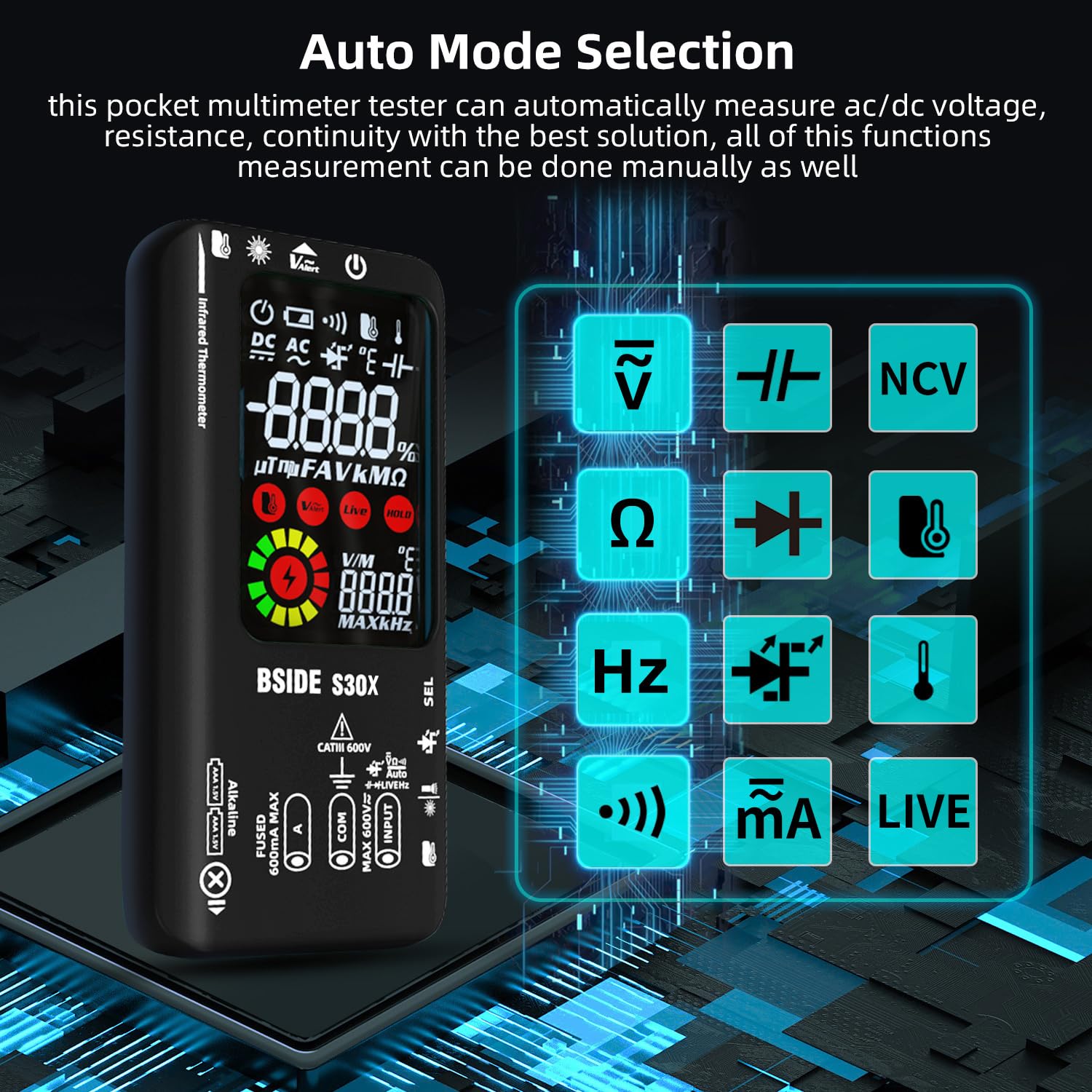

• [Smart and High Speed] : This multimeter tester electrical measures automatically AC DC current, AC DC voltage, resistance, frequency and continuity. Manual mode is also available. Integrated high-speed chip makes testing faster, even when measuring capacitance.

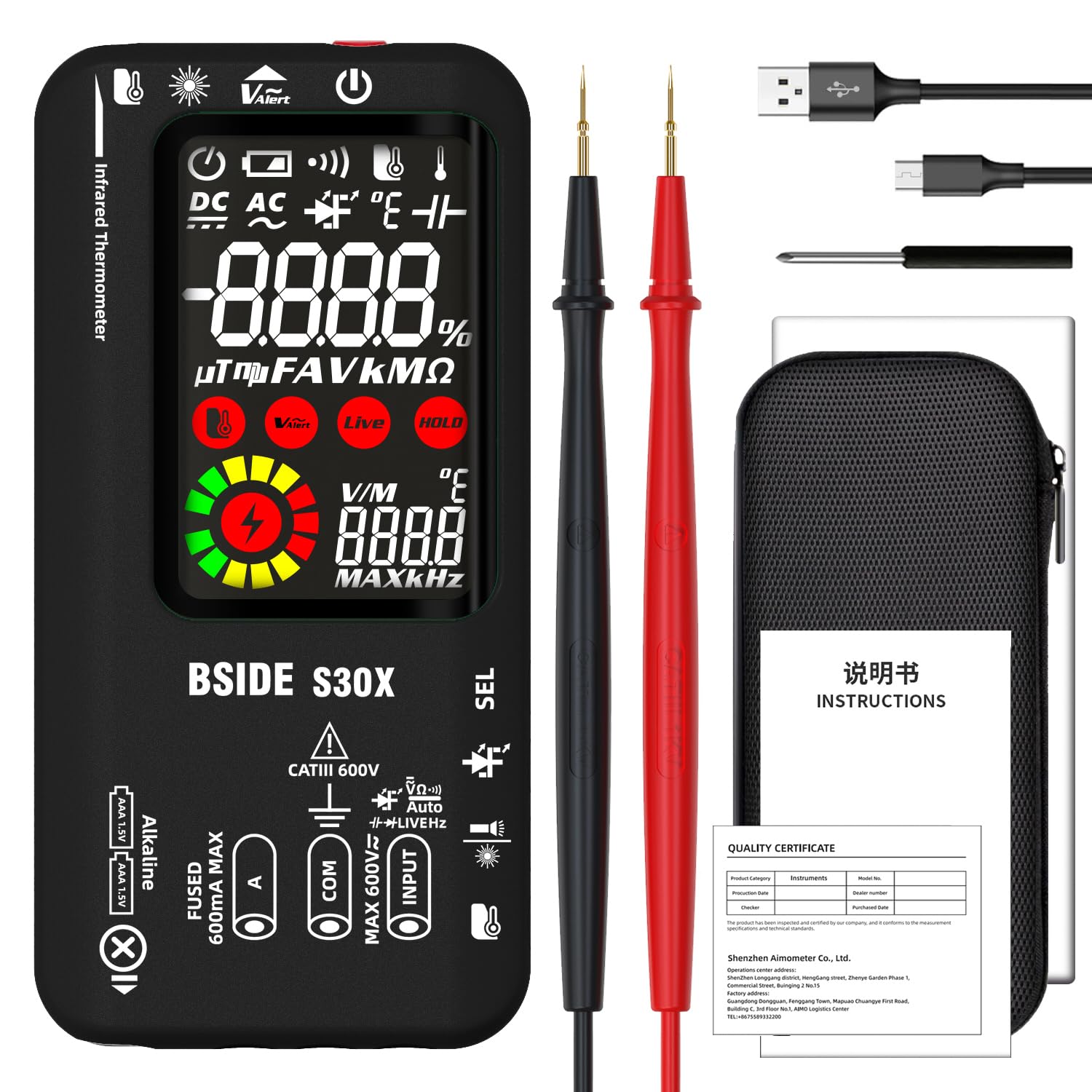

• [More Advantages] : This electric multi function tester comes with a built in ceramic fuse, laser pointer, a large colour LCD with accurate readings, a flashlight for rewiring in dark, a removable silicone leather cover and a robust case, a pair of sharp test leads, and a reliable friend for automotive, electrical, electronic applications and led lighting industry.

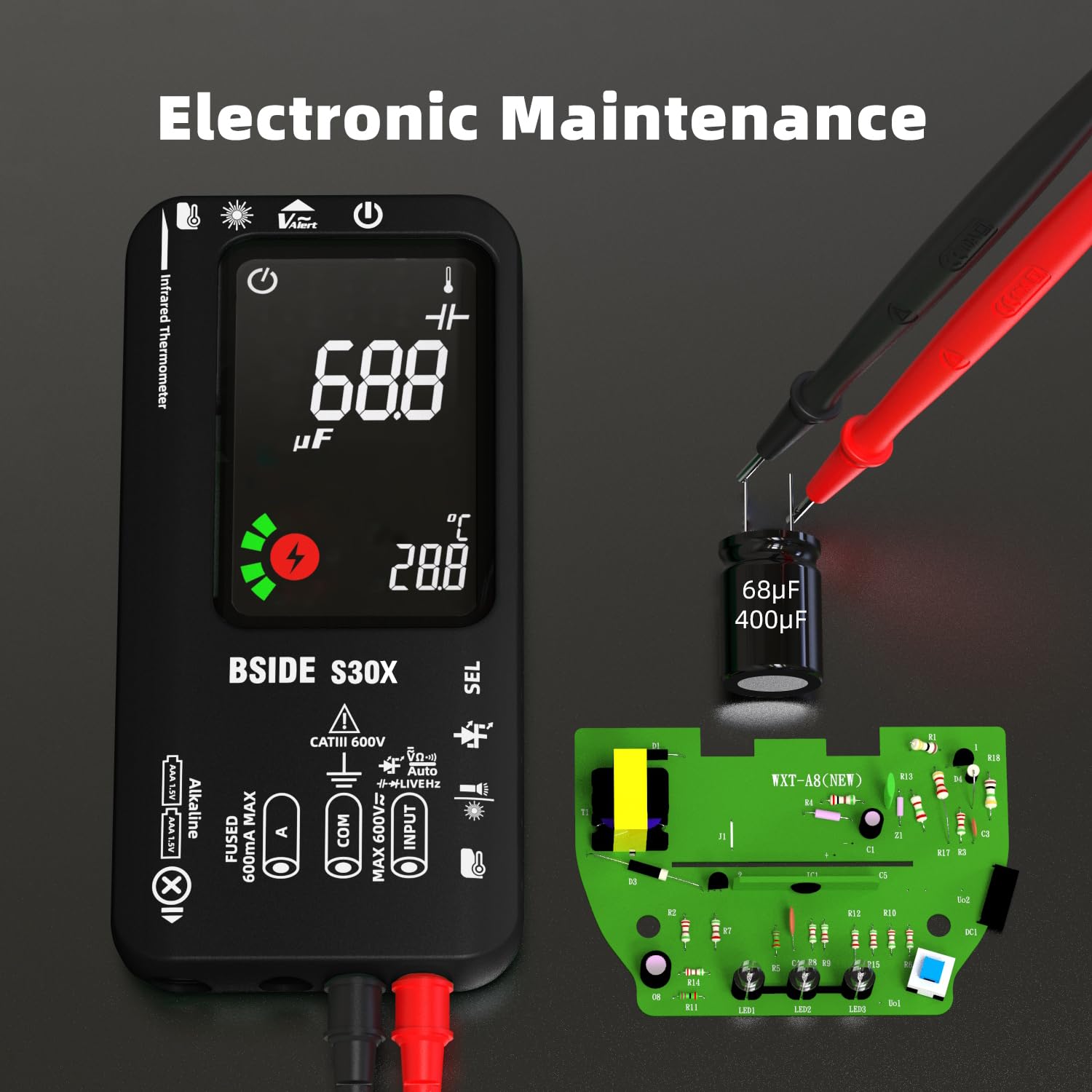

Why BSIDE S30X Smart Multimeter? Our new generation multimeter offers wide applications for home electricity, automotive electrical repairs, electronic component testing, LED lighting testing, workshop tasks, temperature measurement and so on. It Measures: - AC DC voltage, resistance, frequency and continuity in auto or manual mode. - AC DC current automatically. - High voltage diodes and low voltage diodes. - Capacitance without delay. It can be a non-contact temperature gun with laser pointer, And diplay of both real-time and max temperature. Also can be a voltage detector pen with buzzer(NCV mode). Live wire search with single probe. Multi tester with laser pointer, flashlight. Dual power supply with rechargeable battery or AAA battery. Large colour LCD with 3 testing results: test value, analogue bar and hertz. Auto range, auto switch-off, low battery indication Anti burned ceramic fuse. Removable silicone leather cover and case Specifications: Display: 9999 counts DC Voltage: 0-620V, 0.001V ±(1.0%+3) AC Voltage: 0-620V, 0.001V ±(1.0%+3) DC Current: 1-610mA 0.1mA ±(1.5%+3) AC Current: 1-610mA (40-200Hz) 0.1mA ±(2.0%+3) Resistance: 0-9.999MΩ 0.1Ω ±(1.2%+3) Infrared Thermometer: -20℃-400℃ 0.1℃ ±(3.0%+2℃), Object distance ratio: 12:1 Capacitance: 0.5μF-9999μF 0.1μF ±(3.5%+8) Frequency: 10-1000Hz 0.1Hz ±(1.0%+5) V-Alert (NCV): Yes Live Wire Check: Yes Continuity: Less than 30Ω, the beeper sounds Diode: 1) Low Voltage Mode: Measure diodes within 2V 2) High Voltage Mode: up to 15V Open circuit voltage, 1mA Environment Temperature: 0-50℃ 0.1℃ ±2.0℃ Power: 3.7V (built-in, rechargeable) Size: 161*78*22mm Weight: 245g Package Includes: Smart Multimeter S30X Test Leads Charging Cable Carrying Case User Manual
