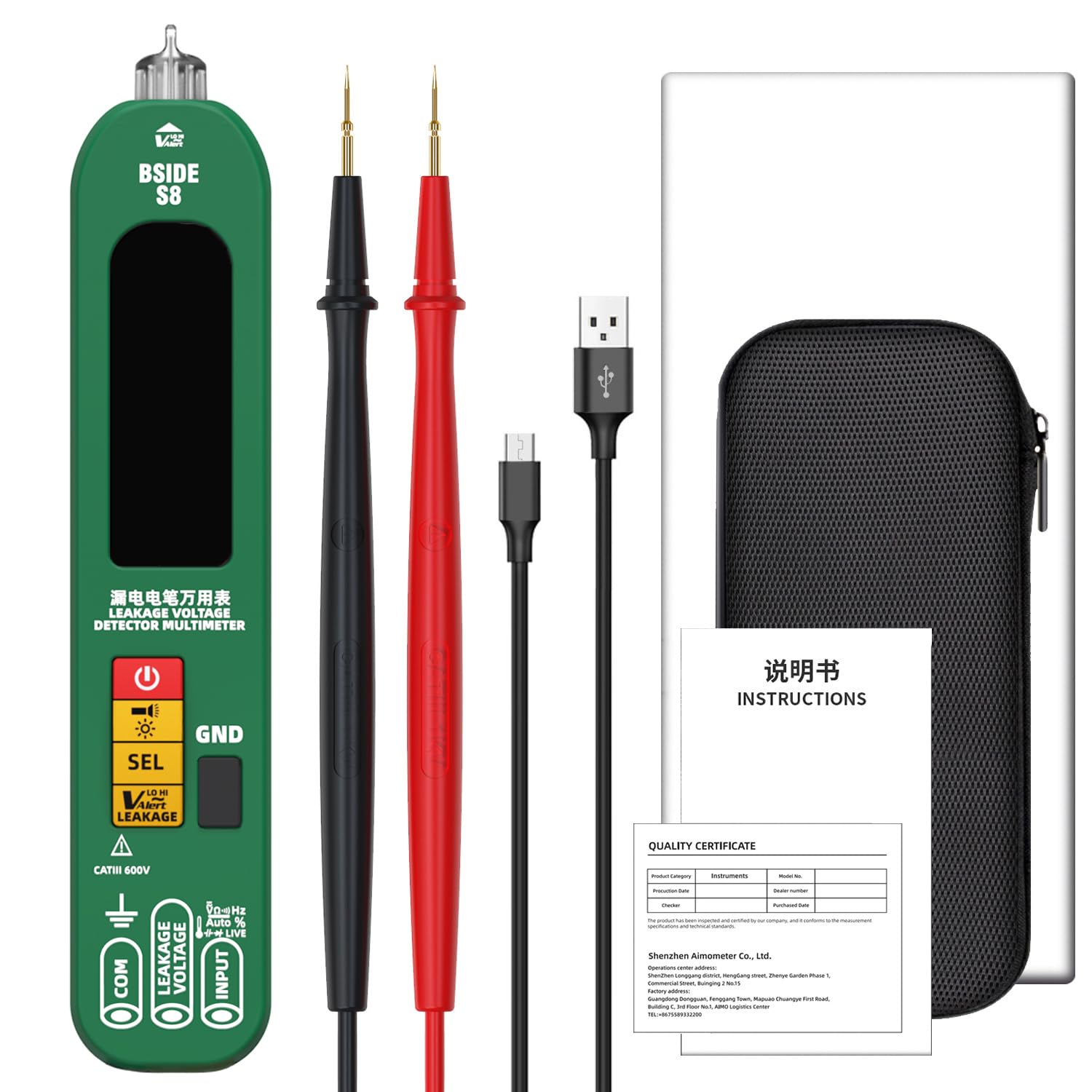

BSIDE S8 Smart Multimeter Digital AC Voltage Detector Electrical Leakage Tester 3 in 1 Large Colour Display Electric Circuit Tester Pen Rechargeable Capacitance VFD Ohm Hz Live Wire Continuity Tester

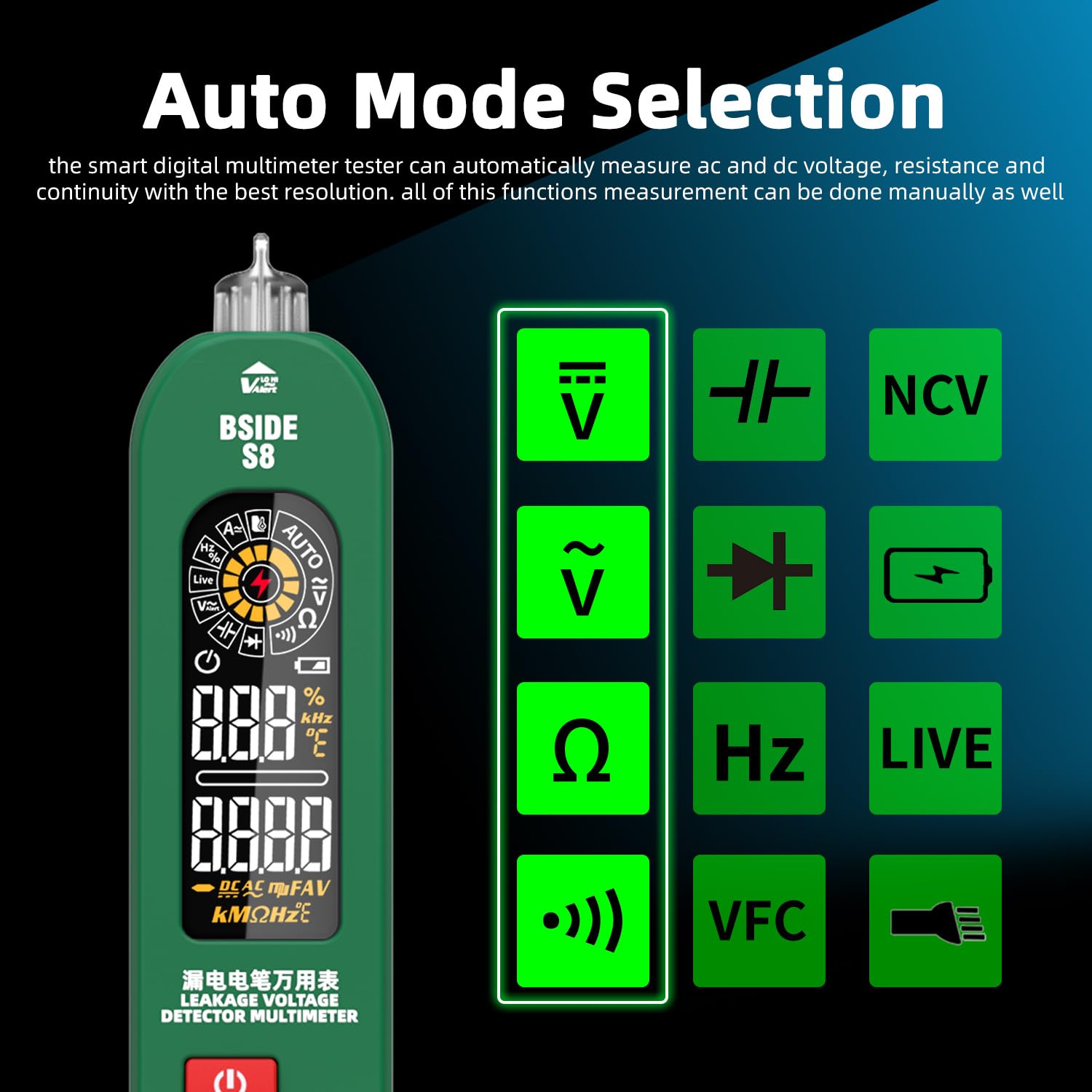

• [Easy to Use] : This smart multimeter pen automatically measures AC DC voltage, resistance, continuity when switching on, without adjusting the range or switching functions. Manual mode is also available. It can also test capacitance, diode, frequency, duty cycle etc.

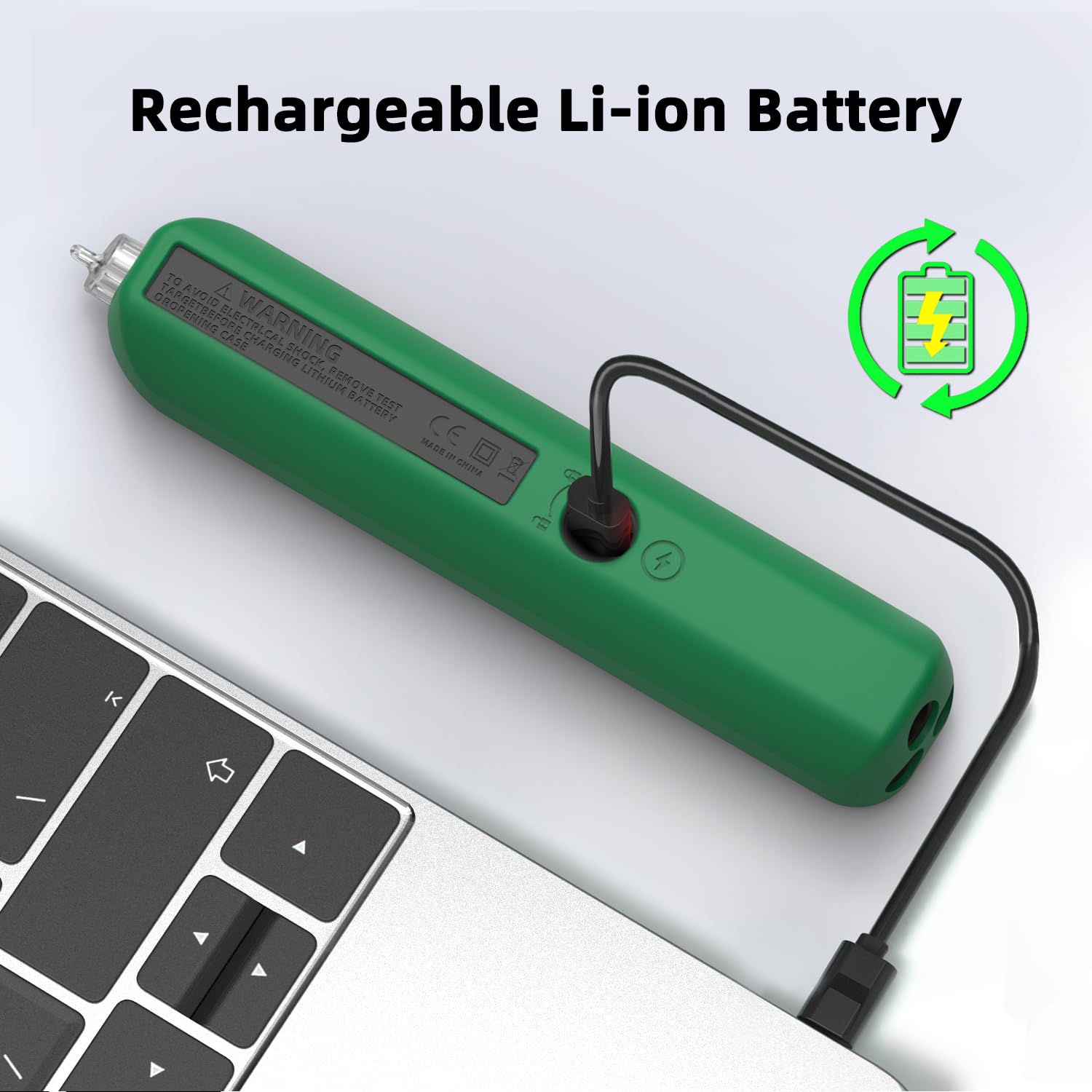

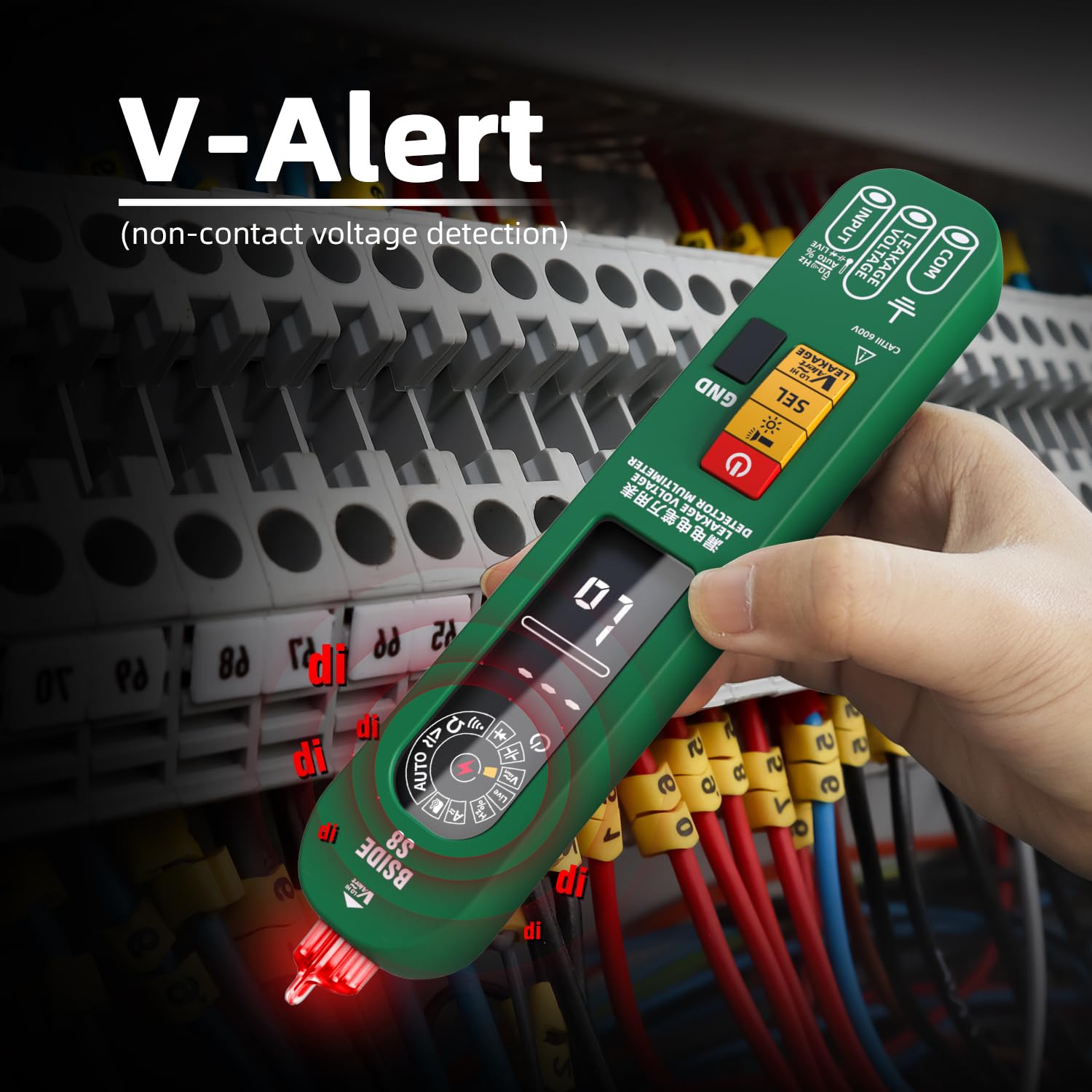

• [Rechargeable Voltage Detector] : Powered by a built-in rechargeable battery, this electric tester pen works right out of the box. Simply press the V-Alert button for non-contact voltage detection. Low and High sensitivity can be adjusted for different wiring scenarios(90V-1000V/12V-1000V), such as accurately locating firewire in a clump of wires, or finding live wires in wall.

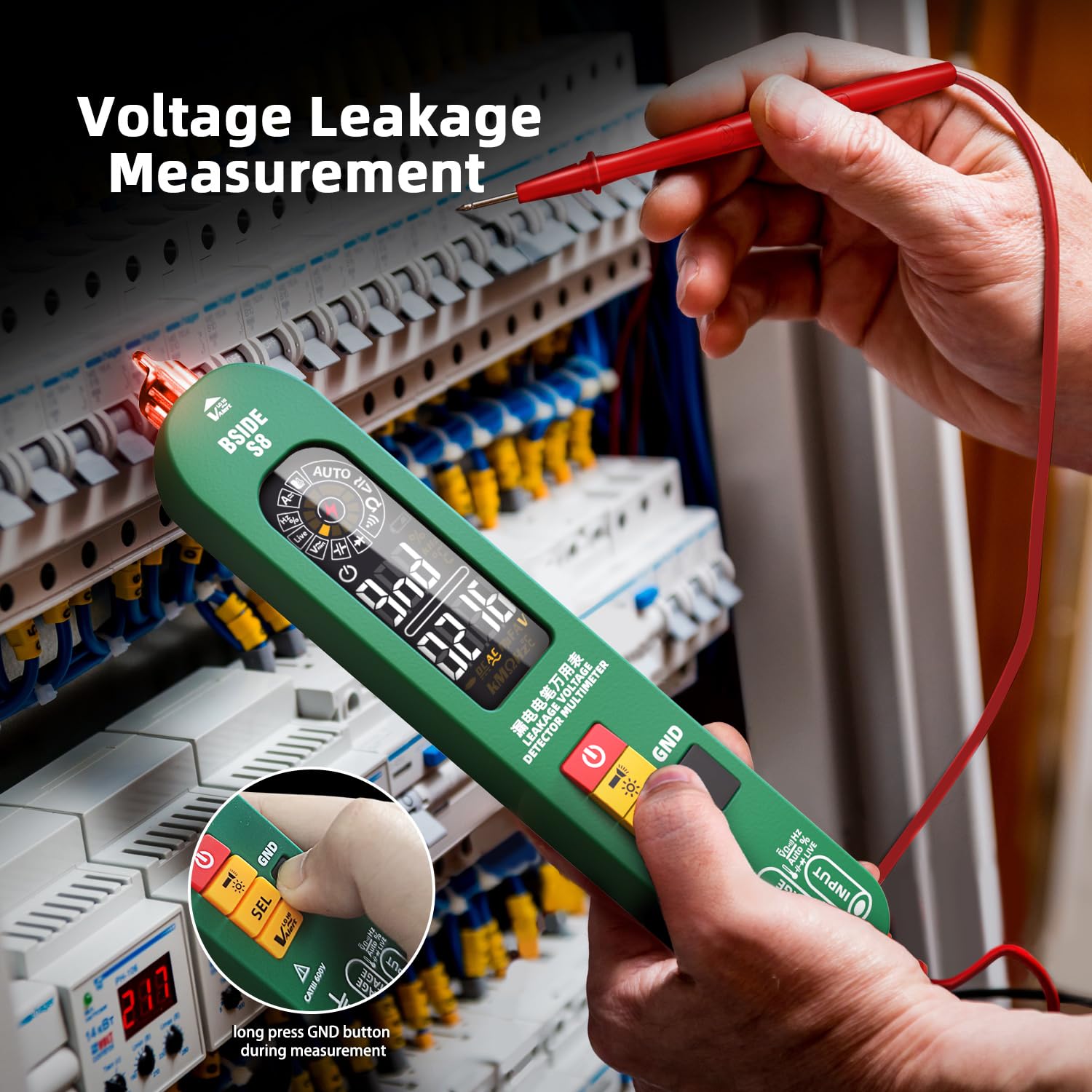

• [Voltage Leakage Testing] : With this electricity tester pen, you can check whether there is any electricity leaking from the metal casing of household appliances. Long press the V-Alert button to enter this mode to measure 12V-300V AC voltage.
• [Variable Frequency Voltage Test]: With this electrician's pen, you can also measure the output voltage of inverters. It helps you to better estimate the voltage of pumps, lifts, air conditioners, compressors, etc. and to better plan operating speeds.
• [Super Large Colour LCD]: Despite being a pocket voltage tester pen, it features a remarkably large screen with large digits, three-line colour display and ID pointer design, giving you a more intuitive and better assessment of real-time conditions and risks when working around electricity.

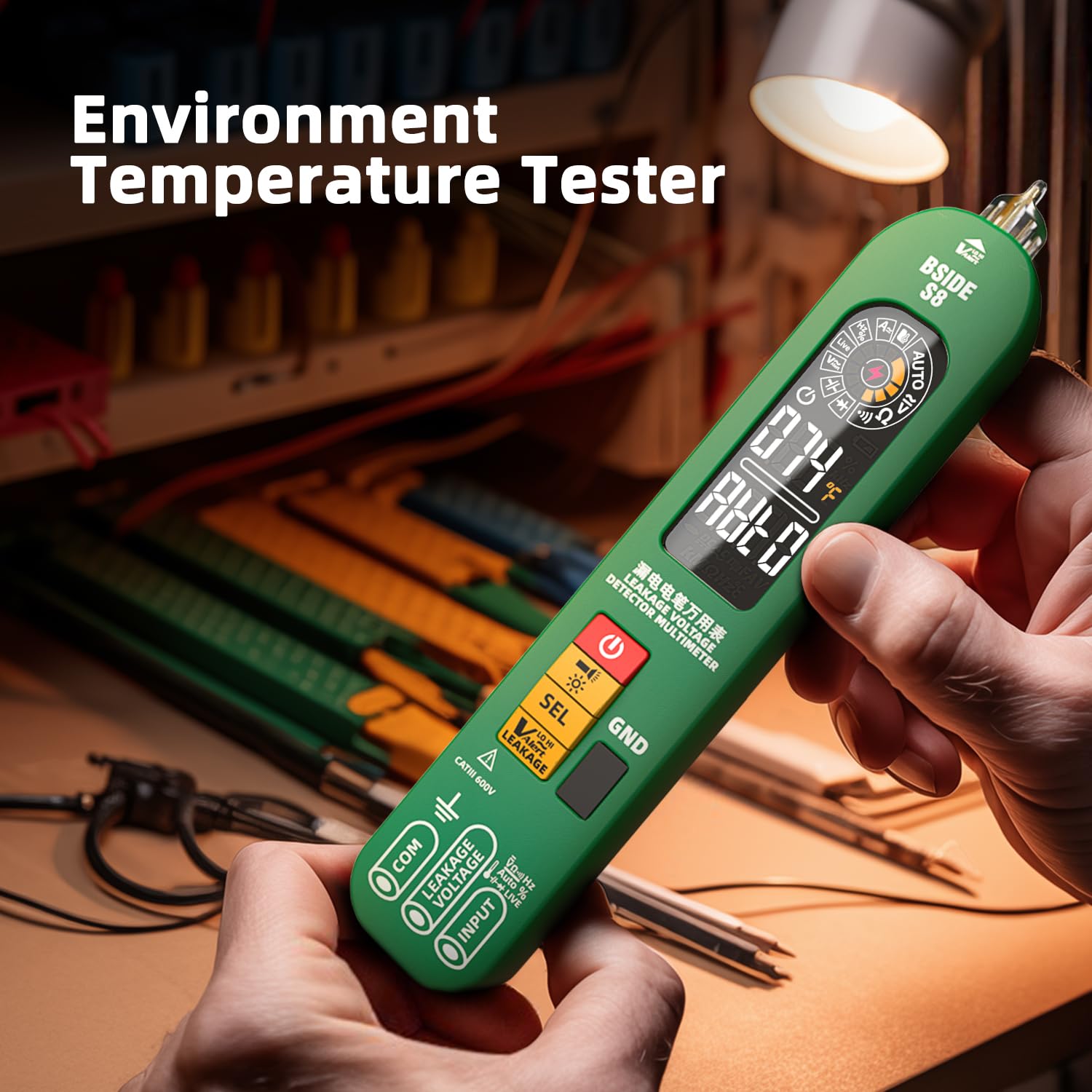

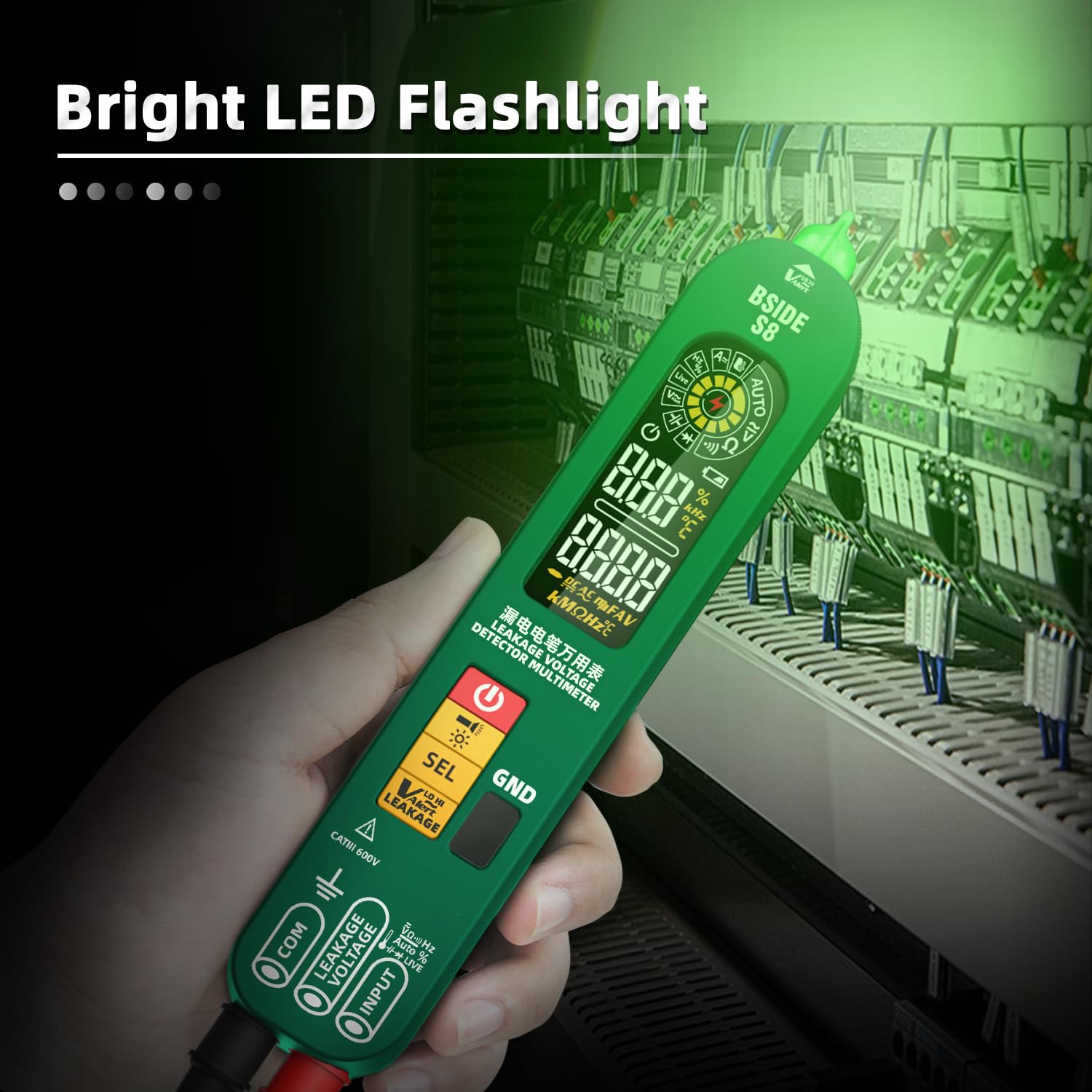

Features: Rechargeable pen type digital multimeter Smart mode by defaut and manual mode supported Automatic test for AC DC voltage, resistance and continuity Capacitance, diode, temperature, frequency, and duty cycle measurement, VFC function Assessing the risk of electrical leakage in leakage test mode. NCV Tester, live wire checker with adjustable sensitivity and buzzer Accurately differentiate between fire and zero wires in a jumble of wires High sensitivity for easy easy finding the fire wire and break point in wall Metal-to-metal live wire check with single probe Super large colour LCD with: - New designed ID pointer - Large digits for better reading - Ambient temperature display - Auto switch-off symbol - Low battery indication Flashlight LED flashes with different colours depending on the voltage level Specifications: Display: 6000 counts DC Voltage: 0-620V 0.001V ±(0.8%+3) AC Voltage: 0-620V 0.001V ±(1.2%+5), 10-620V (VFC Mode) 1V ±(4%+3) Leakge voltage: 12-300V 1V ±5% Resistance: 0-60MΩ 0.1Ω ±(1.2%+3) Capacitance: 1nF-60 mF 0.01nF ±(3.5%+8) Frequency: 1-9.999MHz 0.001Hz ±(1.2%+3) V-Alert (NCV): AC Voltage 12V-1000V Live Wire Search: Yes Diode: Less than 3V Continuity: If the resistance is less than 50Ω, the beeper sounds Ambient Temperature: 0-50℃ ±2℃ Power: 3.7V battery rechargeable Size: 181.5 x 32.6 x 25 mm Weight: 86.2g Package Includes: Smart Multimeter Pen S8 Test Leads Carrying Case English User Manual
