BSIDE ESR02 PRO Digital Transistor SMD Components Tester Diode Triode Capacitance Inductance Multimeter ESR Meter

• WIDELY APPLICATION It is very simple: just plug it in for testing. It can also be used for testing different types of triodes, thyristors, MOSFETs. Allows analysis of the device type, polarity of the pin, output HFE, valve voltage and barrier layer capacity of the FET.
• Automatic Identification Intelligent transistor tester automatically detects NPN and PNP transistors, N and P channel MOSFETs, diodes, thyristors, resistors, capacitors or other devices.

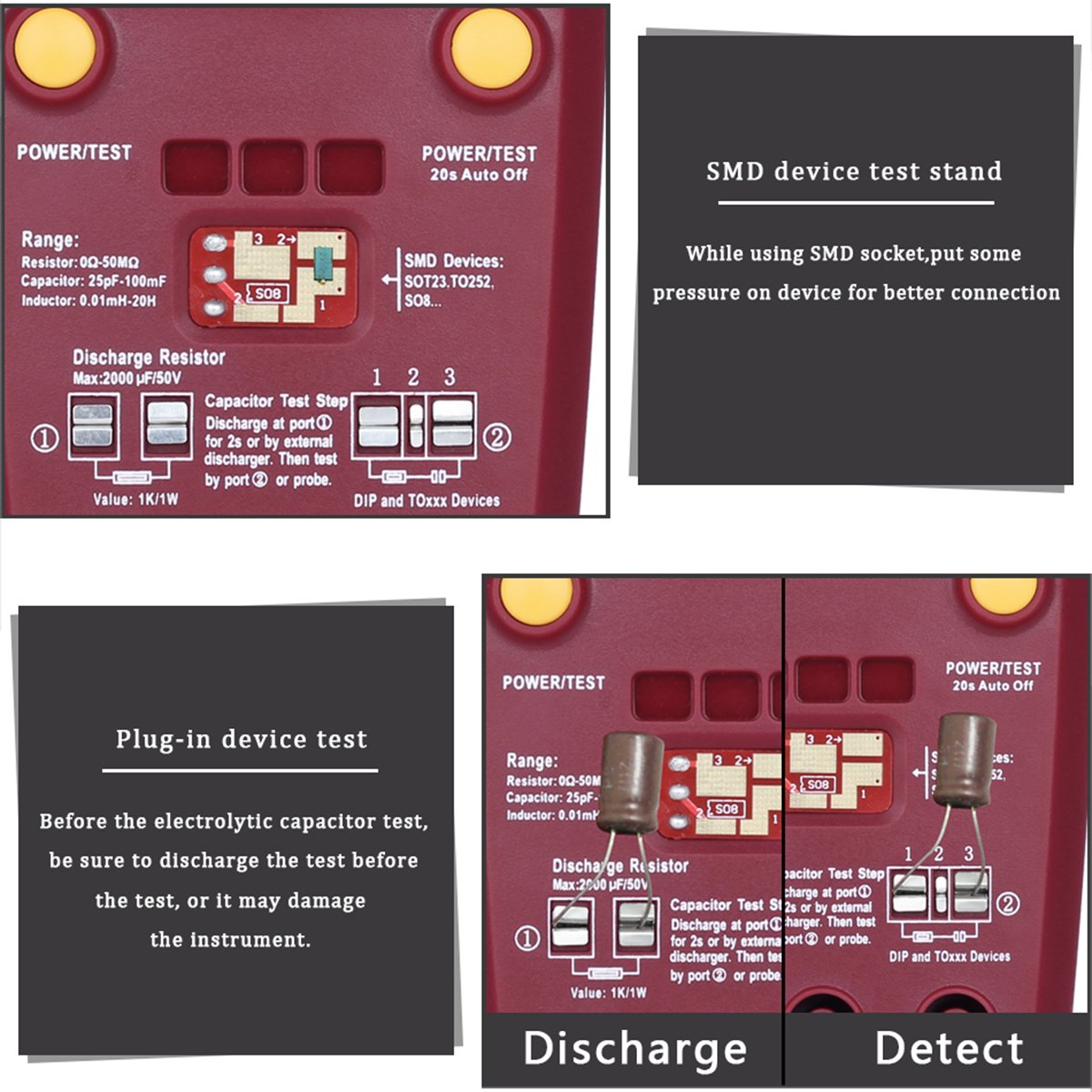

• TYPICAL ESR VALUE TABLE There is a table "Typical ESR value of electrolytic capacitor" on the back, which gives clear clues so you can understand and use it quickly.
• 2 Power/Test Buttons: POWER/TEST button on both sides, you can operate it with your left or right hand, choose it according to your habits.

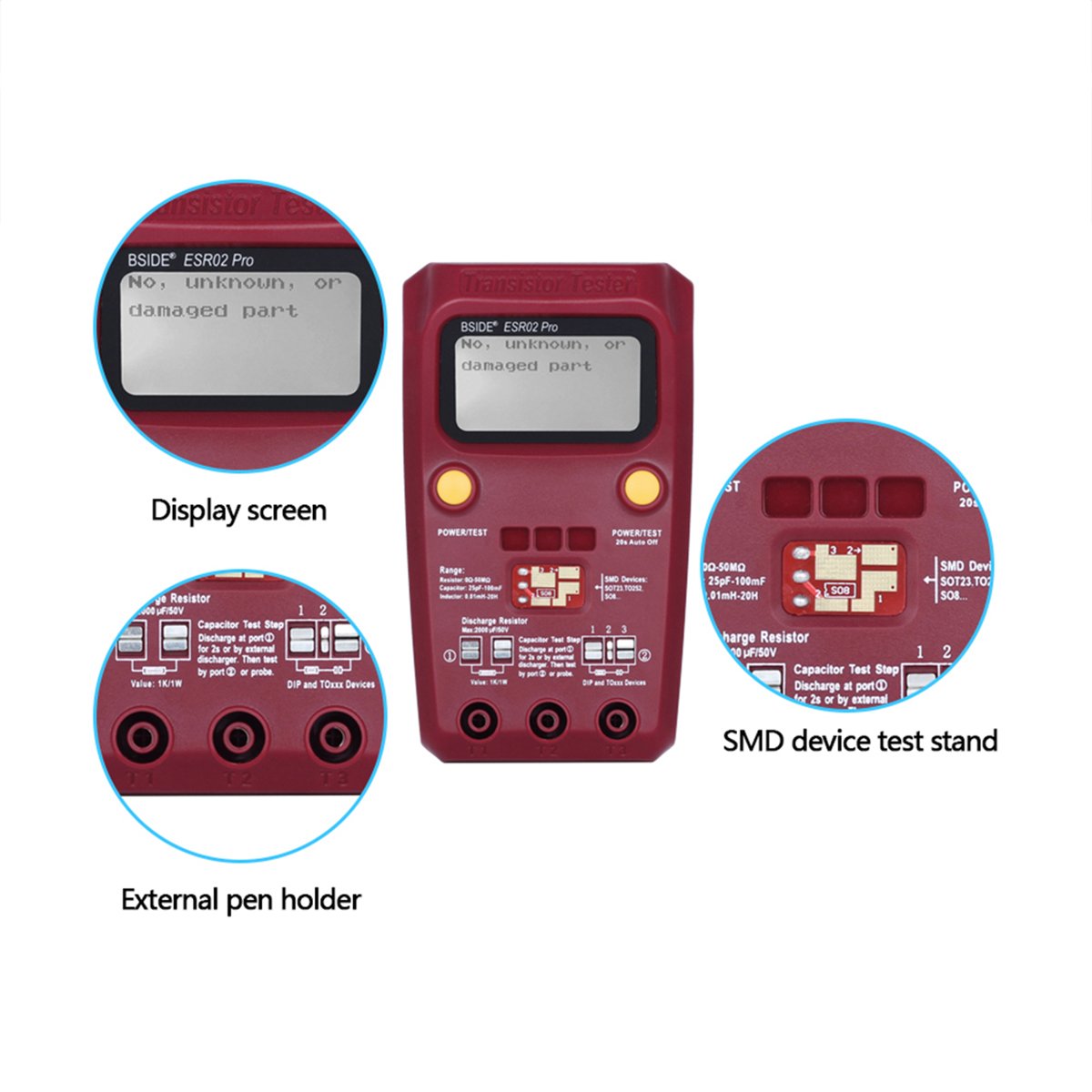

• Easy to Use Our advanced transistor tester will automatically turn off to save energy when not in operation for 10 seconds. Large LCD display with backlight for easy reading.

Features: - One button operation, boot test, easy access button. - Automatically test pin elements and display pin elements on LCD display. - Automatic detection of NPN, PNP bipolar transistors, N and P channel MOS field effect transistors, junction layer FETs, diodes, diodes, thyristors, unidirectional and bidirectional low-power thyristors. - Automatic detection of pin assignment. - Bipolar transistor current gain factor and base emitter threshold voltage measurement. - Identify the LCD transistor by base emitter threshold voltage and high current gain factor. - Gate MOSFET threshold voltage and gate capacitance measurement. - Two resistors and resistance symbols can be measured simultaneously. A decimal value of 4 is displayed on the right. Both sides of the resistance symbol show the number of pins. - Can measure the capacity of the breakdown voltage of a diode. When the bipolar transistor is connected to the collector and emitter of the base and pin, the blocking capacity of the collector or emitter junction can be measured. Specifications: - Resistance: 0-50MΩ; Resolution: 0.01Ω - Capacitor: 25 pF - 100 mF; Resolution: 1 pF. - Inductor: 0.01mH - 20H; Resolution: 0.01mH - Capacitor ESR: 2uF - 50mF; Resolution: 0.01Ω Package includes: 1 x ESR02 PRO Digital Transistor Tester 1 x English User Manual Notes: - Before testing the capacitor, make sure it is discharged, otherwise it may damage the internal circuit. - When using DC power supply, please choose a DC 9V-12V adapter (including 9V and 12V). - Powered by 1 x 9V 6LR61 battery (not included), if the battery power is below 6V, please replace it with a new one.
