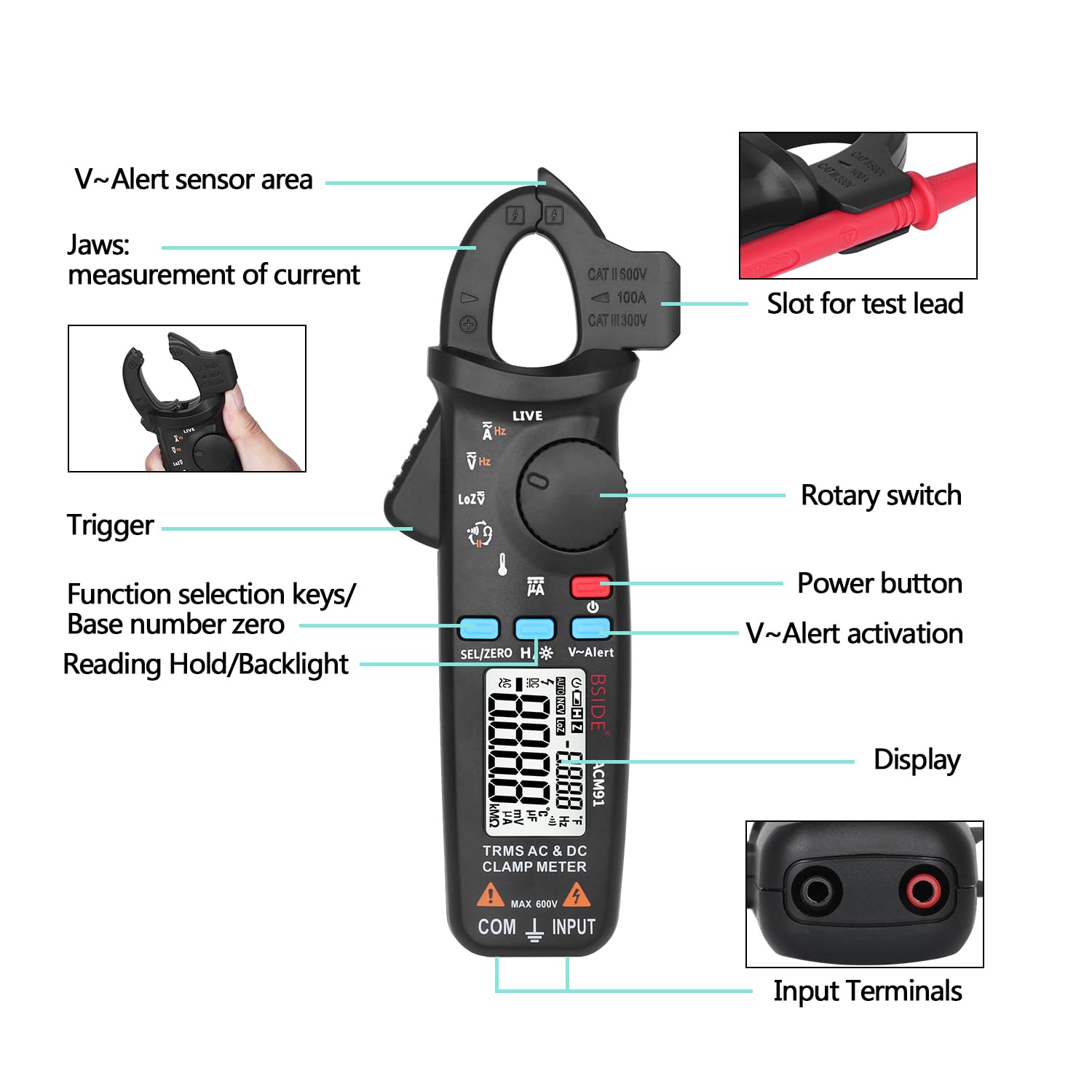

BSIDE ACM91 Digital Clamp Meter 1mA AC DC Current Earth Leakage Tester True RMS Auto-Ranging 6000 Counts Temperature Capacitance Low Impedance Voltage Tester Milliamp Clamp Meter for Car Automotive

• 1mA RESOLUTION: Read AC/DC low current with 1mA sensitivity and up to 6000 counts on the backlight screen, this clamp meter is ideal to check earth leakage on badly configured devices. Micro-ampere μA current can also be tested via the test leads.
• AC DC CURRENT TESTER: This amp clamp device measures DC current as well as AC. Small current drain can be tested via the clamp, e.g. to measure a battery drain on a car, without having to disconnect any wires.
• LOW INPUT IMPEDANCE AND NCV: Low impedance function can prevent false readings due to ghost voltage or residual voltage. The NCV function can be activated from any function by pressing the V-Alert button.
• TRUE RMS MULTIMETER: This true rms auto-ranging clamp meter can measure temperature, capacitance, frequency, resistance, continuity, millivolt, AC/DC voltage, AC/DC current and check live wire. Test values can be held via the data hold button.
• MINI CLAMP METER WITH CASE: Mini size design with back clip, easy to hang on your belt or pocket. The side probe holder is great for live wire testing with one hand free. This amp meter tester comes with a carrying case and two batteries AAA, always ready for quick fault finding on electrical systems, automotive and home applications.

Features: Measure microamps μA by test leads(minumum 0.1μA) Measure AC Current (1mA by jaw) Measure frequency, resistance and continuity Measure AC/DC voltage, DC millivolts Low impedance voltage measurement NCV detection, live-wire check Clamp on frequency function Zero function for small DC current Data hold function Backlight LCD, 2 line display Visual alert when exceeds 30V Auto power off, data hold, low battery indication Conform to the IEC-61010-1, IEC-61010-2-030, IEC-61010-2-032, IEC-61010-2-033 standards Specifications: Display: 6000 counts DC current: 6A/60A/100A 0.001A/0.01A/0.1A ±(2.5%+5) DC current μA: 0-200μA 0.1μA ±(0.8%+5) AC current: 6A/60A/100A 0.001A/0.01A/0.1A ±(2.5%+5) DC voltage: 6V/60V/600V 0.001V/0.01V/0.1V ±(1.0%+3 ) AC voltage: 6V/60V/600V 0.001V/0.01V/0.1V ±(1.0%+3 ) Low impedance LOZ: Max 600V Resolution 0.1V Resistance: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ 0.1Ω/0.001KΩ/0.01KΩ/0.1KΩ/0.001MΩ ±(1.0%+3) Capacitance: 600μF/6000μF, 0.1μF/1μF, ±(4%+3) Frequency: 45Hz ~ 1000Hz, 60Hz/1000Hz 0.1Hz/1Hz ±(1.0%+5) Frequency(by jaws): 60Hz/1000Hz 0.1Hz/1Hz ±(1.0%+5) Temperature: -20℃~500℃/-4-932℉ 1℃/2℉ ±(2%+2) V-Alert(NCV): LCD Backlight flashes and buzzer sounds Continuity: If the resistance is less than 30Ω, the continuity beeper sounds Jaw Opening: 20mm Power: 1.5V (AAA) x 2, included Size: 179 x 67 x 36 mm Weight: 137g Package Includes: 1 x Automotive Clamp Meter 1 x Test Leads 1 x Carrying Case 1 x Screwdriver 2 x AAA battery 1 x User Manual Please note: The clamp meter is designed on the basis of the Hall effect. To obtain a more accurate value, please perform the following steps: 1, Before testing, zero the jumped values on the screen due to signals from the earth's electromagnetic field. If it does not work, zero several times. 2, Do not rotate the clamp meter, keep the orientation the same. 3, Perform the test within 5 seconds, otherwise the clamp meter would detect signals from the earth's electromagnetic field again.
