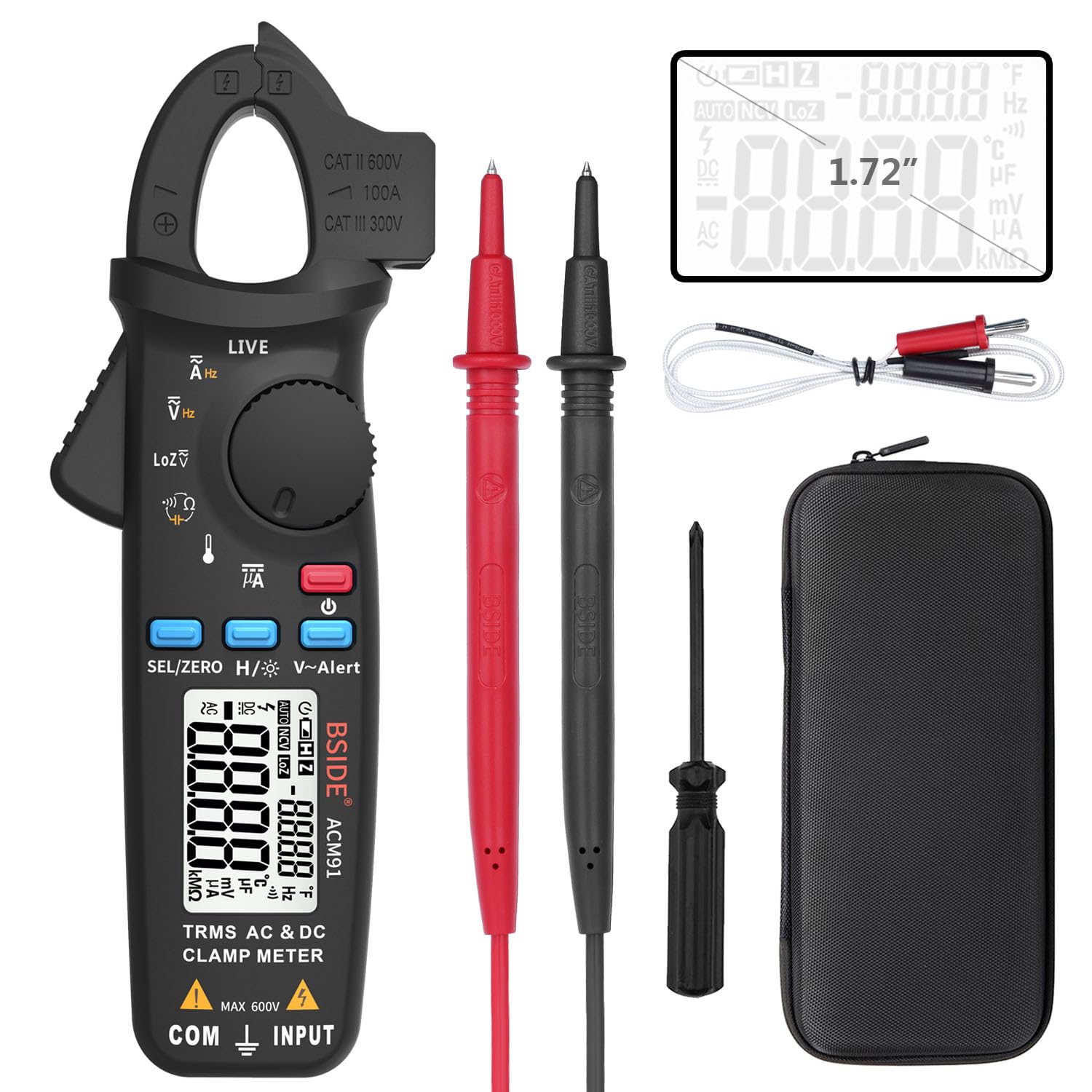

BSIDE ACM91 1mA Clamp Meter AC/DC Current TRMS Auto-Ranging 6000 Counts Multimeter Capacitance Live Check V-Alert Tester with Pocket Clip

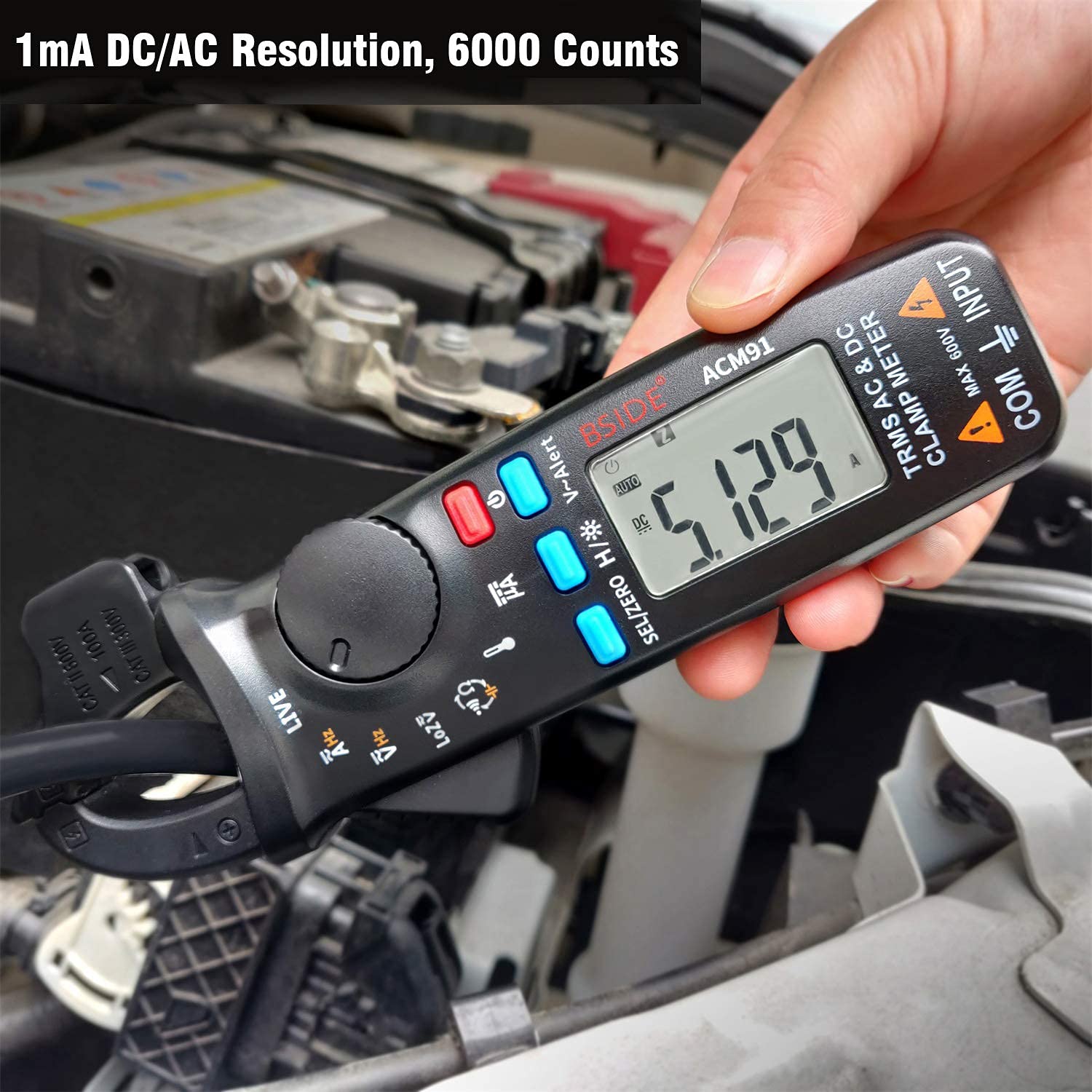

• This Mini True RMS 6000 Counts clamp meter measures DC and AC current by jaw from 1mA to 100A, DC and AC voltage to 600V
• Dual line display can show both ACV and Hz on the screen

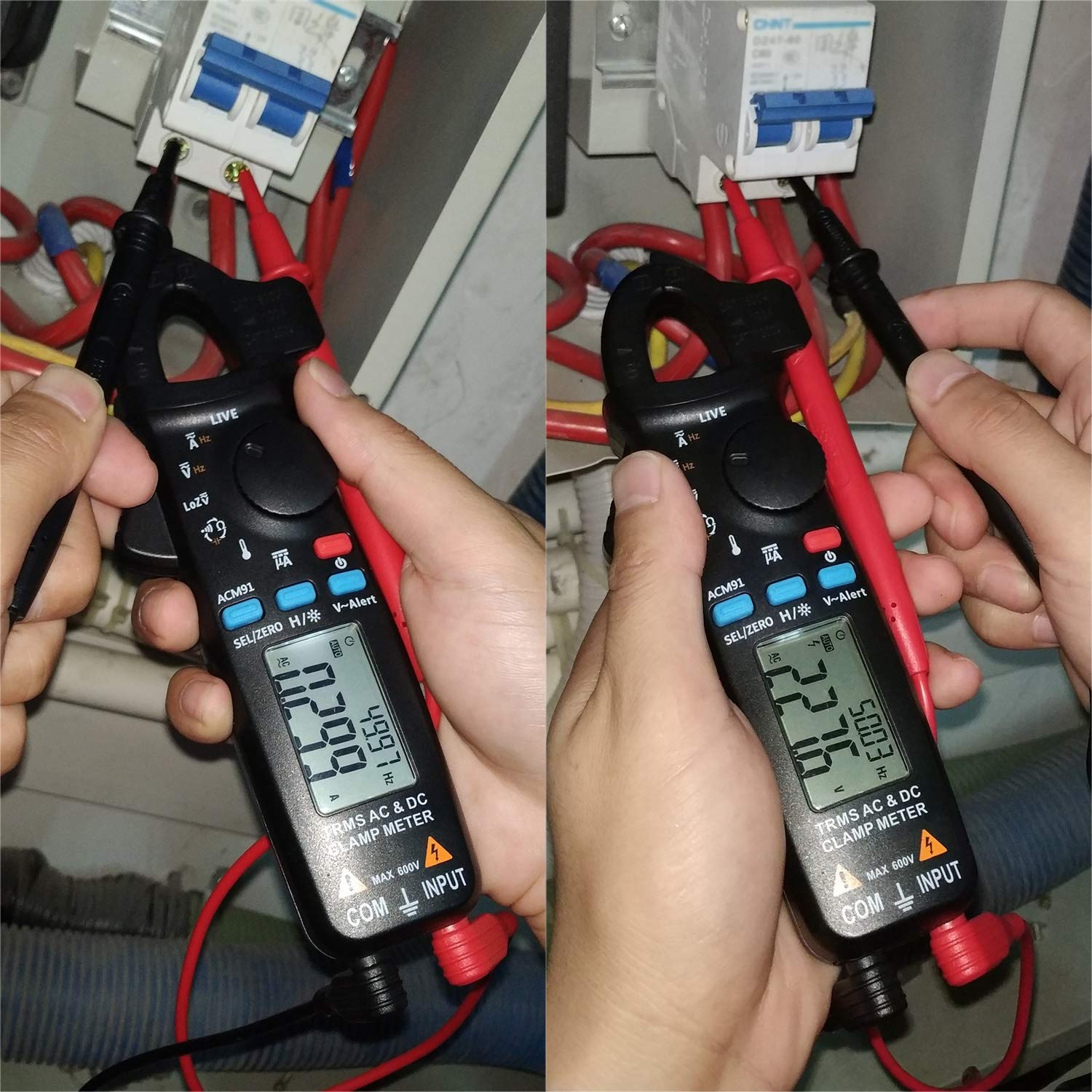

• Live wire check, V-Alert measurement, Temperature measurement

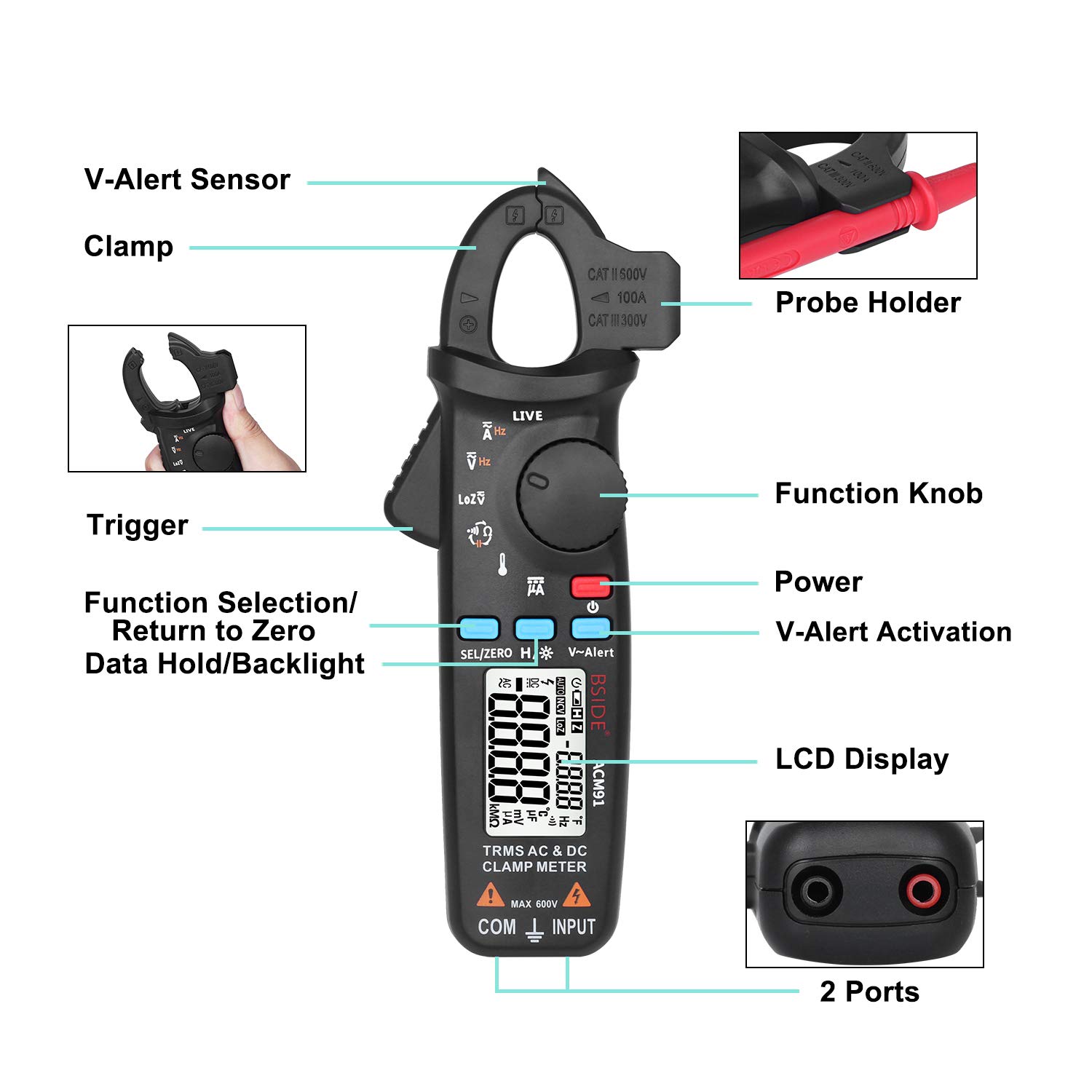

• Slot for test leads design make single-hand measurement simple and easy

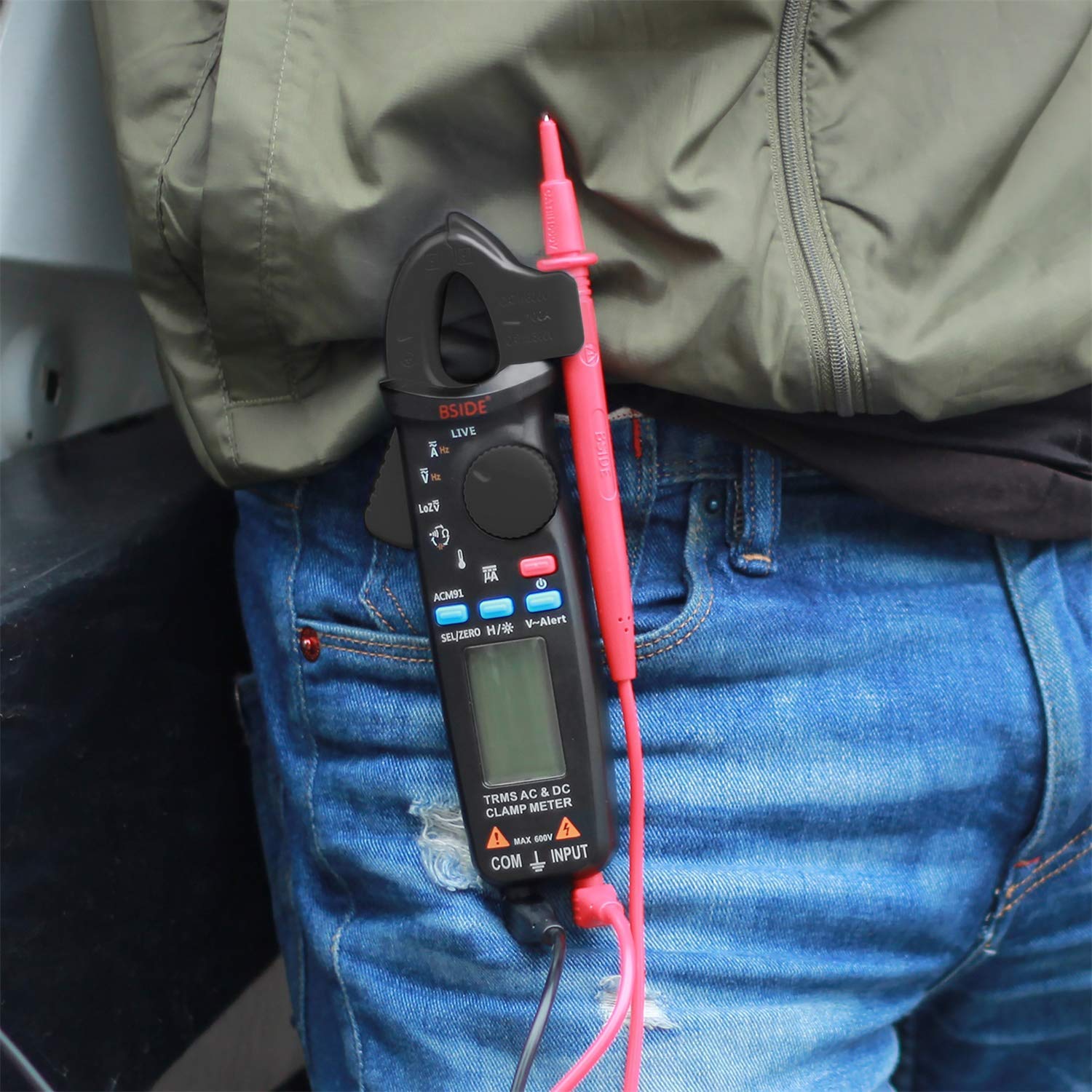

• The back clip design make it more portable

Why choose our clamp meter? With a wide range of test functions and features, it is a true clamp multimeter. Not limited to vehicles also applicable homes. 1mA sensitivity when measures AC/DC current by clamp Features: Measure both DC current and AC current (minimum 1mA by jaws) Measure microamps μA (minumum 0.1μA by terminals) Measure AC and DC voltage Measure frequency Low impedance voltage measurement Measure resistance, continuity and capacitance Measure temperature Live check function V-alert measurement Clamp on frequency function Auto range Data hold Auto power off Back light Conform to the IEC-61010-1, IEC-61010-2-030, IEC-61010-2-032, IEC-61010-2-033 standards Over-voltage protection class CAT III 300V, CAT II 600V, pollution degree II Specifications: Display: 6000 counts DC current: 6A/60A/100A 0.001A/0.01A/0.1A ±(3.0%+5counts) DC current(μA): 0-200μA 0.1μA ±(0.8%+5counts) AC current: 6A/60A/100A 0.001A/0.01A/0.1A ±(2.5%+5counts) DC voltage: 6V/60V/600V 0.001V/0.01V/0.1V ±(1.0%+3counts) AC voltage: 6V/60V/600V 0.001V/0.01V/0.1V ±(1.0%+3counts) Low impedance LOZ: Max 600V Resolution 0.1V Resistance: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ 0.1Ω/0.001KΩ/0.01KΩ/0.1KΩ/0.001MΩ ±(1.0%+3counts) 60MΩ 0.01MΩ ±(1.2%+20counts) Capacitance: 600µF/6000µF 0.1µF/1µF ±(4.0%+3counts) Frequency: 60Hz/1000Hz 0.1Hz/1Hz ±(1.0%+5counts) Frequency(by jaws): 60Hz/1000Hz 0.1Hz/1Hz ±(1.0%+5counts) Buzzer: If the resistance is less than 30Ω, the continuity beeper sounds. Temperature: -20°C~500°C 1°C/2°F (2.0%+2counts) Jaw Capacity: 20mm Power: 1.5V (AAA) x 2 (not included) Size: 179mm x 67mm x 36 mm Weight: 137g Package Includes: 1 x Digital Clamp Meter 1 x Test Leads 1 x Thermocouple 1 x User Manual 1 x Carrying Case
