Brushless Motor Controller, 5V-36V 350W DC Brushless Motor Board Safe Motor Controller BLDC PWM Driver Board with Cable Control Board Modulebldc motor controller

• 【Practical & Safe Controller】-- This motor controller designed with over-current protection, which can greatly enhance the security.
• 【Convenient Use】-- This BLDC PWM Driver Board can be used directly, wide voltage 5-36V, high power 350W, designed with heat sink, lead wire, control switch, convenient to use.
• 【Widely Applications】-- This brush less motor controller features wide voltage high power 350W, three-phase high speed brushless non-inductive(no need Hall) controller, PWM input, suitable for both small motor and large motor.

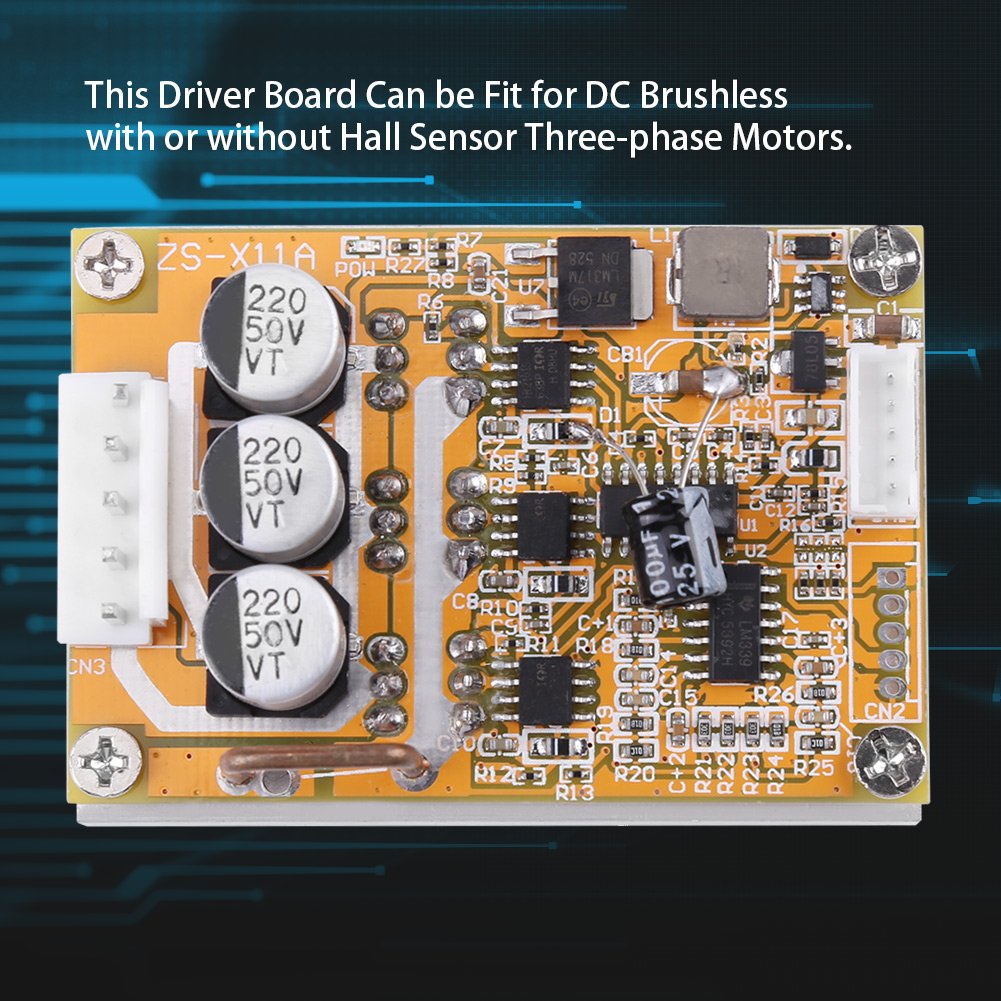

• 【Fit for DC Brushless Motor】-- This PWM driver board can be fit for DC brushless without hall sensor three-phase motors. High performance, Working voltage: 5-36V; Maximum current: 16A.Maximum power: 350W; Over current yes.

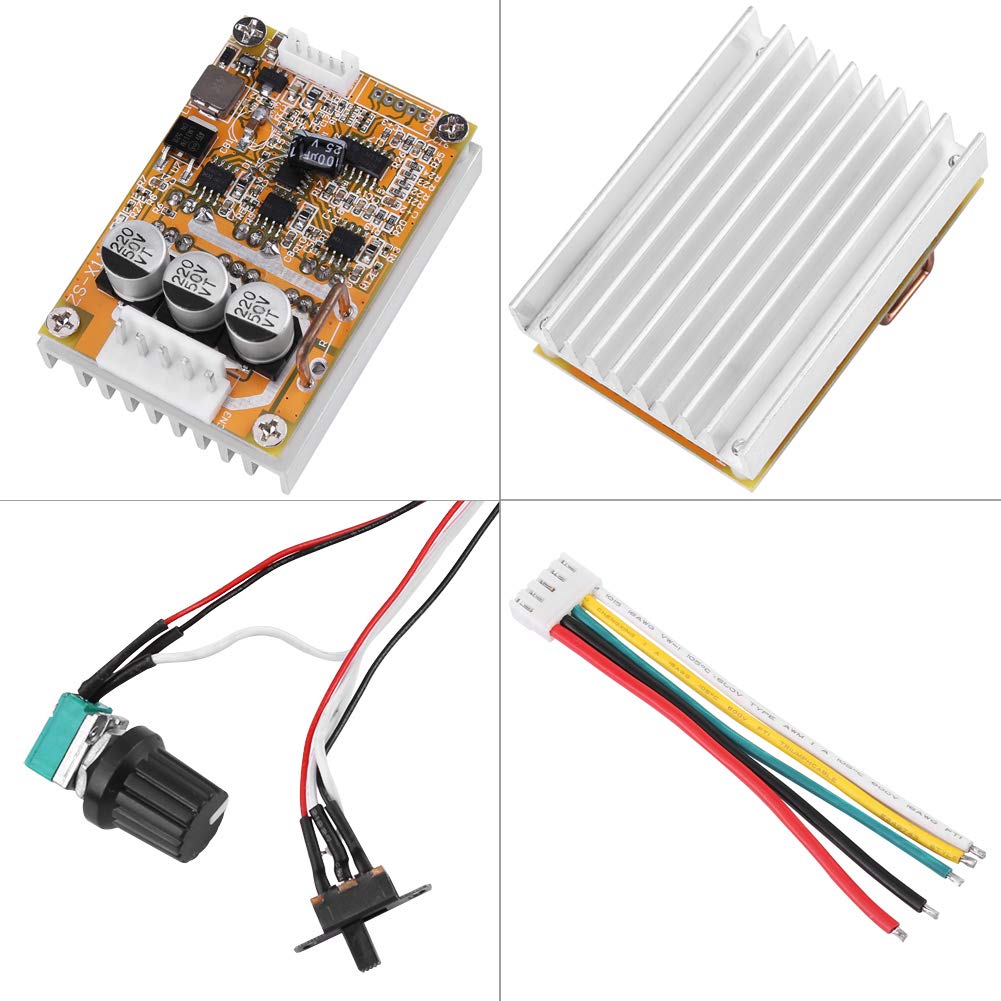

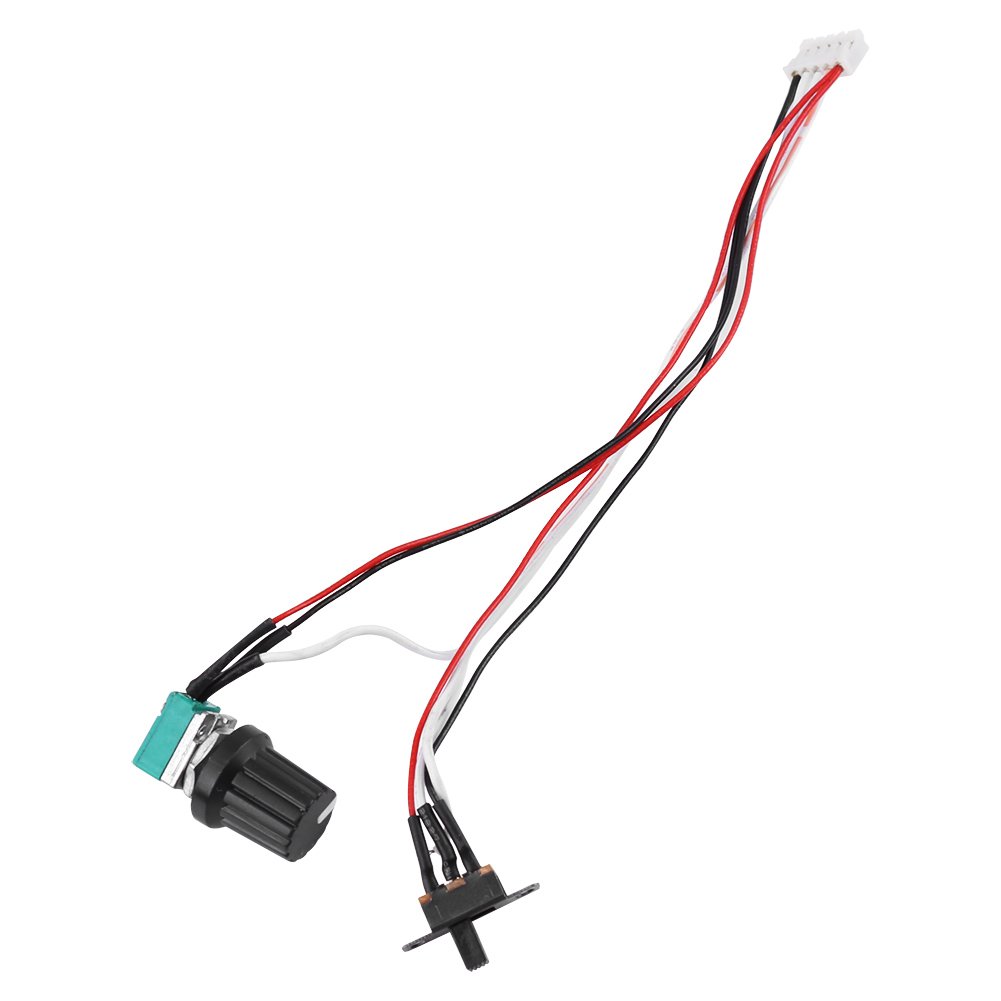

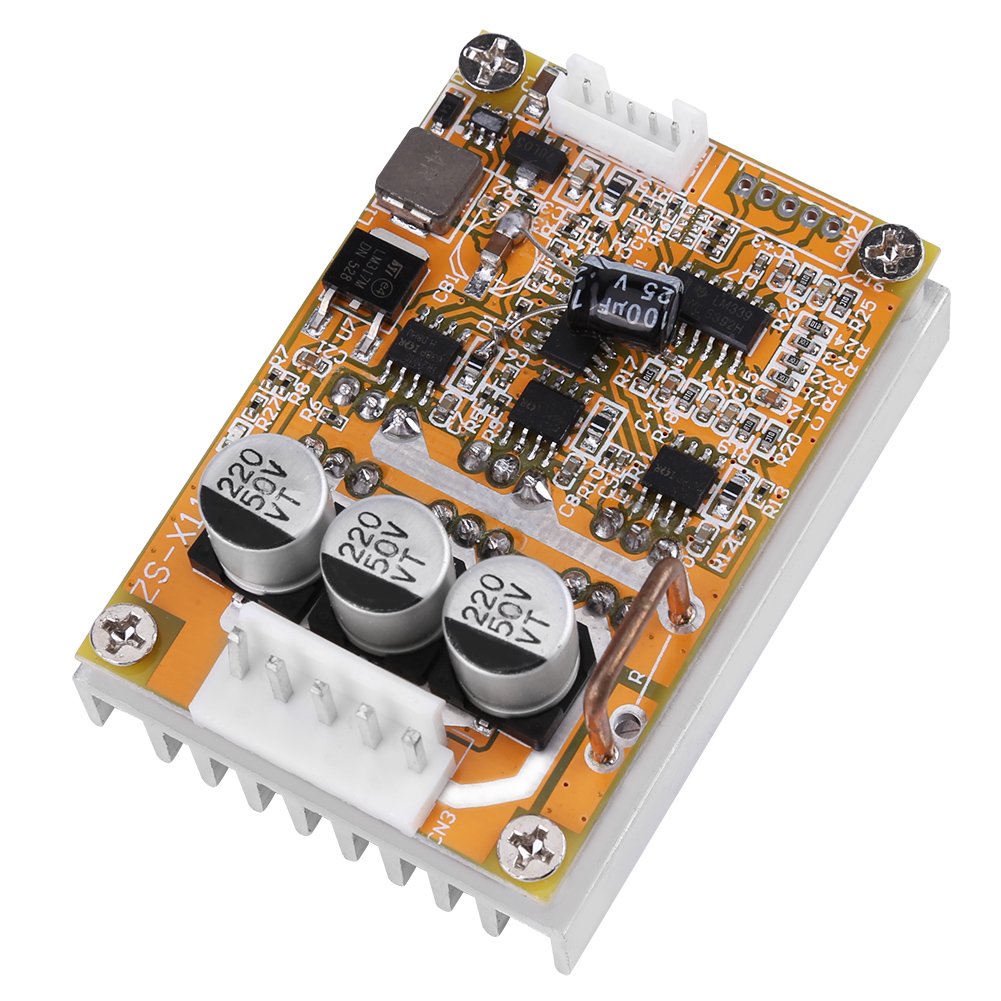

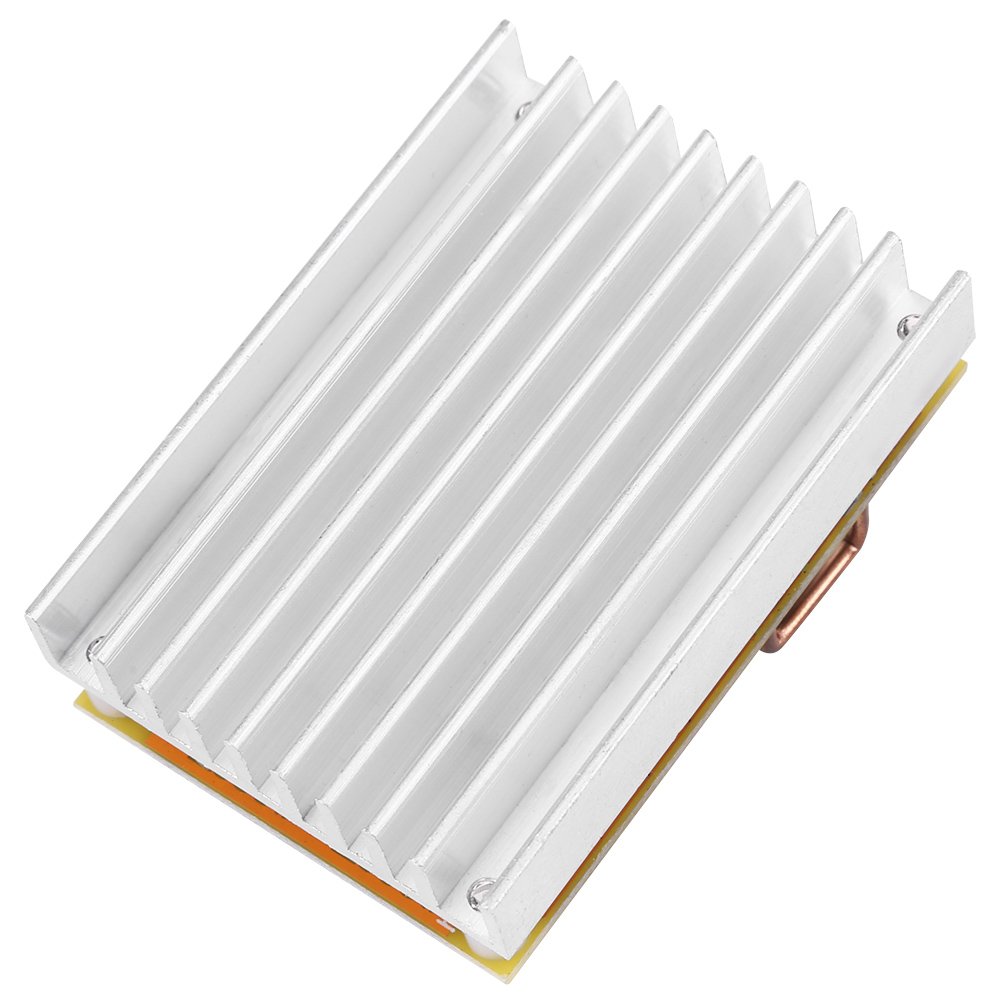

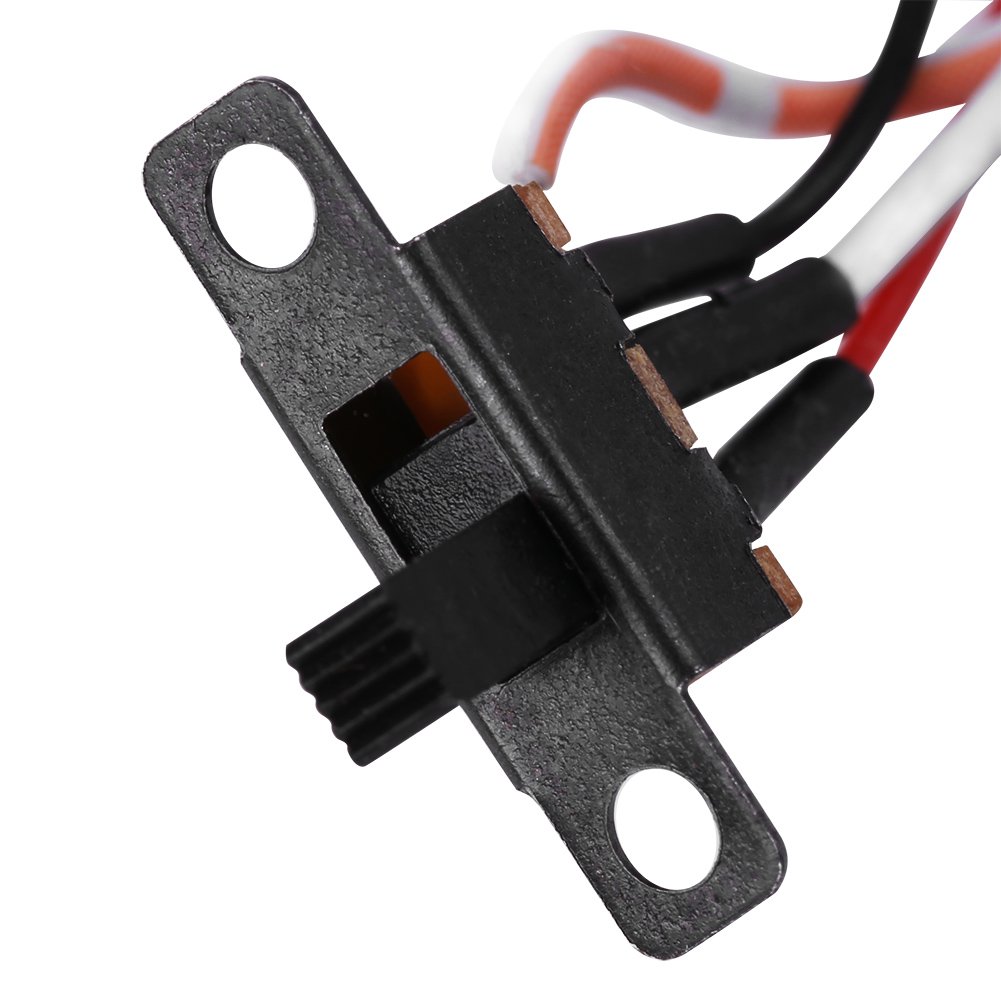

• 【With Radiator】-- This brushless motor driver board comes with a radiator, speed controller and forward and reverse switch cables, a complete configuration can bring a better experience.

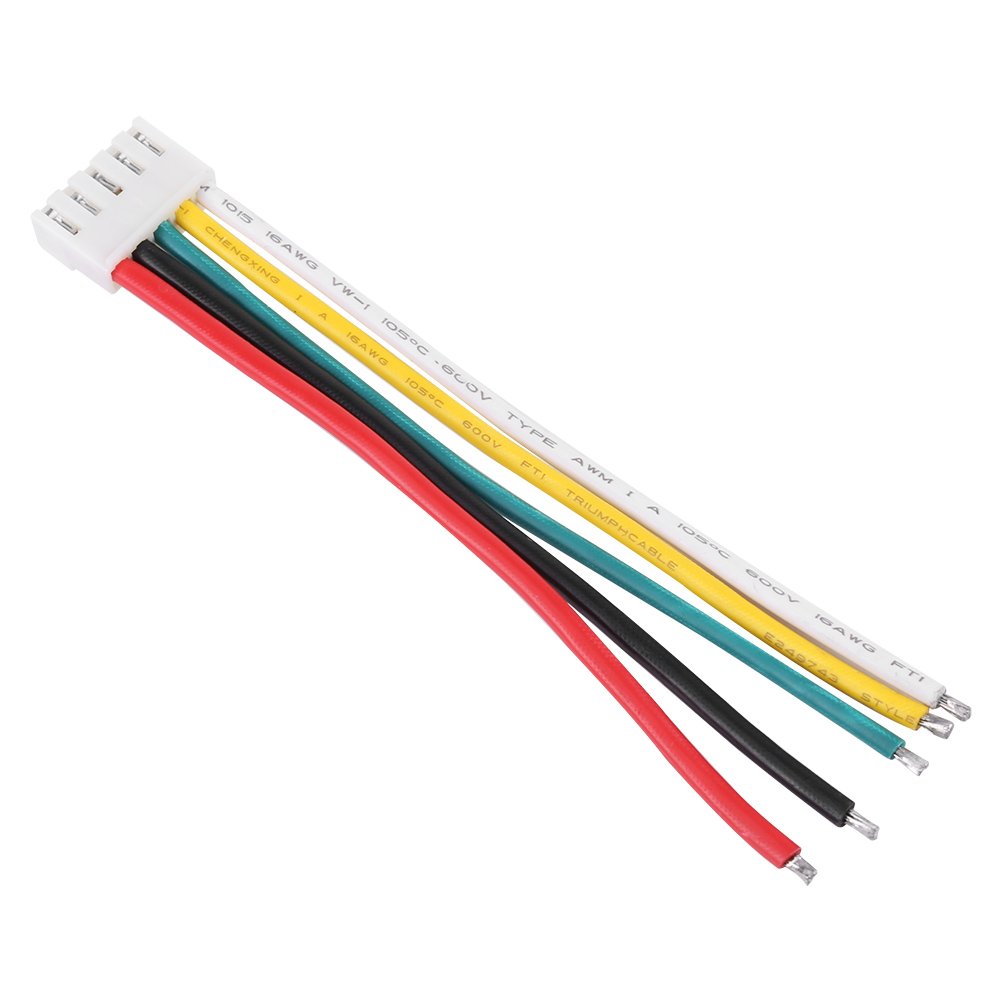

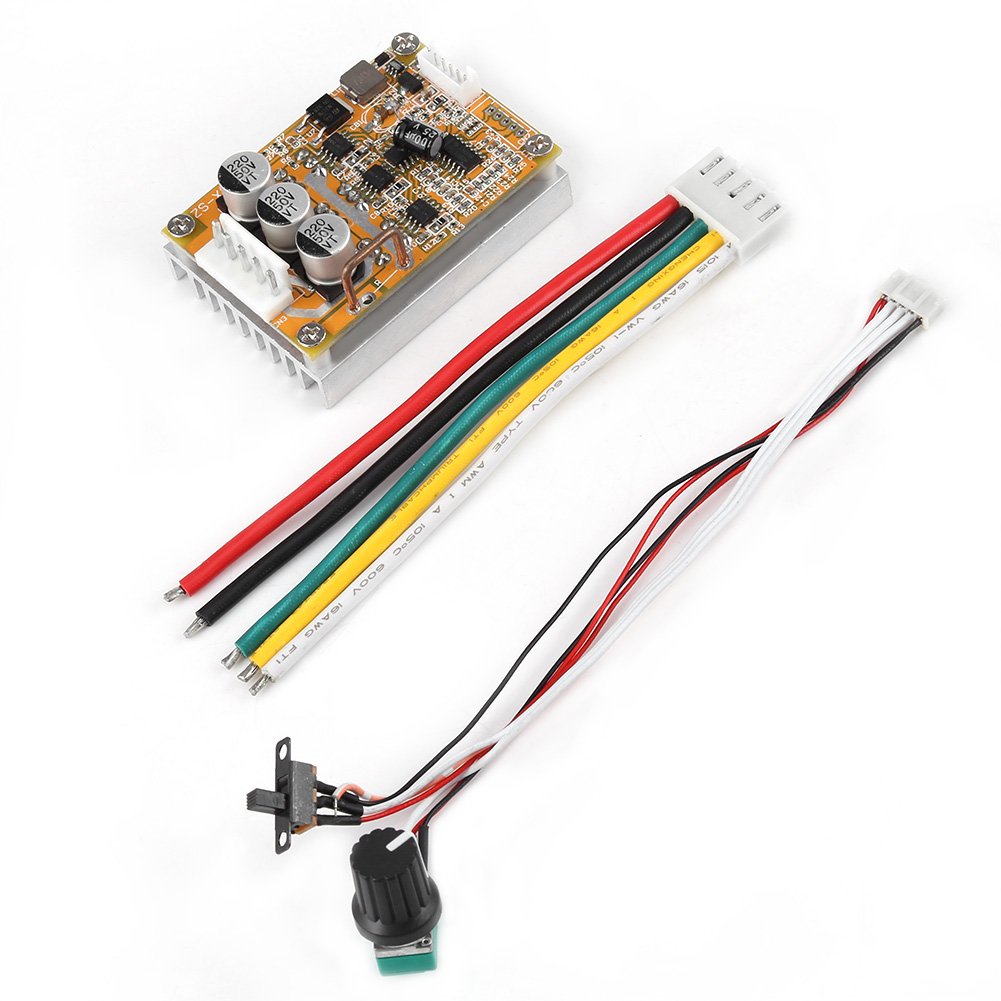

5V-36V Brushless Motor Controller 350W DC BLDC PWM Driver Board with Cable Please make sure the connection with power supply is correct, or the speed controller will be broken. Interface instruction: 1.MA MB MC: phase line output connection motor 2 5V GND: motherboard comes with original 3.VCC GND: external DC power supply line 4.SC :pulse signal output 5.Z/F: positive inversion control line 5V or GND to achieve positive and negative inversion 6.VR: speed signal input, the general external 100K tripod middle pin potentiometer VR, the remaining two feet 5V and GND main board. Specifications: Working voltage: 5-36V Maximum current: 16A Maximum power: 350W Over current protection: yes Size: length 63 x 45 x 27mm/2.48 x 1.77x 1.06inch Weight: 100g Package included: 1x brush less motor controller 1x speed controller & forward-reverse switch cable 1x power cable
