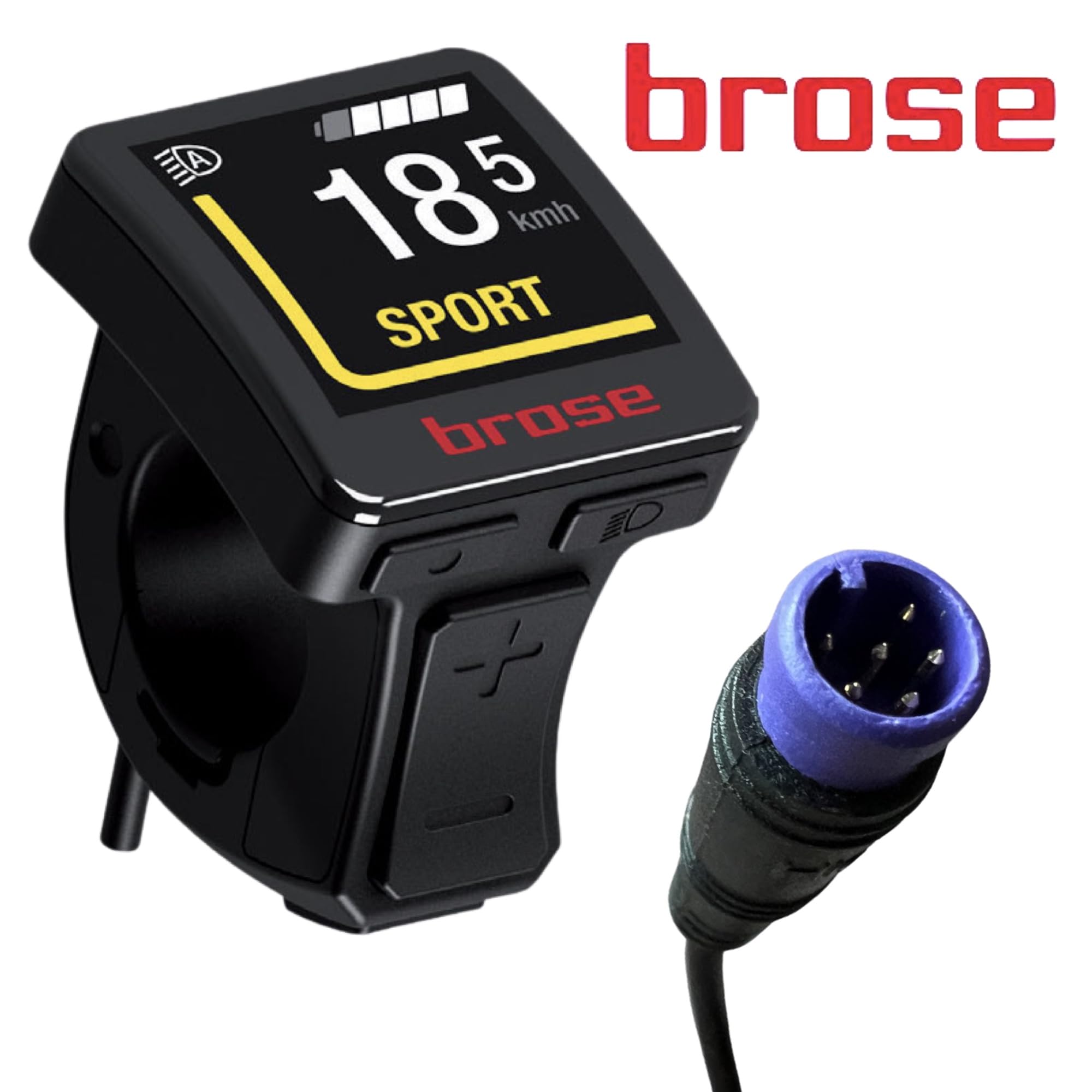

Brose Counter - display unit control all-round

• The Brose display all-round impresses not only with its crisp design, but also with its performance and good readability. The most important functions can be easily operated with the thumb. 14 functions are available. The display fits almost any e-bike type. Enjoy the modern, simple and timeless display of Brose.
• The 1.5 inch colour display is very easy to read, tidy and corresponds to the design of the time. The display can be installed on the right or left and is therefore the stylish all-in-one solution par excellence. The slight curvature prevents extreme reflection and can therefore be easily read at any time and in any weather.
• With its 6 buttons, the all-rounder offers an excellent and clear feel. No need to remove the driver's hand from the handle for ease of use. With the thumb you can control the most important functions. On the 1.5 inch TFT colour screen, information such as: battery charge status, support level, speed, range, odometer, trip information, light, time, sliding aid
• 14 functions Protection class: IPX/ (HMI) dust-proof and splash-proof Weight with cable: 50g ABS housing 5 support levels: OFF | ECO | Tour | Sport | Boost/Boost FX sliding aid, front and rear light can be controlled via the display. Note: For quick maintenance and repair by certified dealers, the display has a direct connection to the digital Brose service tool.
• displayed. With the slightly curved surface, the display can be easily read from almost any position. Thus, the all-rounder can be mounted either on the left or right whether handlebars. Thanks to the backlight, the information can be easily read even in the dark or in sunlight. The backlight can be adjusted manually or you activate the automatic function and the display automatically regulates the brightness of the display. To protect the small all-rounder well, Brose uses an impact-resistant ABS housing.
• Certification: CE, ROHS, range, Bluetooth Bluetooth: 5.0 (optionally ANT+), control button: on/off, level (+/ -), assistant, menu, light on/off

The Brose Display Allround is the perfect combination of functionality, modern design and intuitive operation for your e-bike. With part number E41230-100, this display offers a comprehensive all-in-one solution that integrates seamlessly with any Brose drive system. Compact, robust design The 1.5-inch TFT colour display (240 x 240 pixels) impresses with its excellent readability, clear and tidy display and a slight curvature that minimises glare. This means that the display remains easy to read even in changing light and weather conditions. The impact-resistant ABS housing and IPX7 protection class ensure dust and splash protection - ideal for everyday use in all weather conditions. Flexible assembly and easy to use thanks to the compact design (44 x 37 x 50 mm, weight approx. 50 g with cable), the display can be mounted on both the right and left of the handlebars. The operation is comfortable via six ergonomically arranged buttons, so that all important functions are accessible with the thumb - without having to remove your hand from the handlebar. Extensive features The Brose Display Allround offers 14 customizable functions, including: display of speed, battery level, support level, range, odometer, trip information, time and light control Sliding aid (Walk Assist) Automatic or manual brightness control of the display Bluetooth 5.0 connectivity (optional ANT+) for advanced connectivity and updates.
