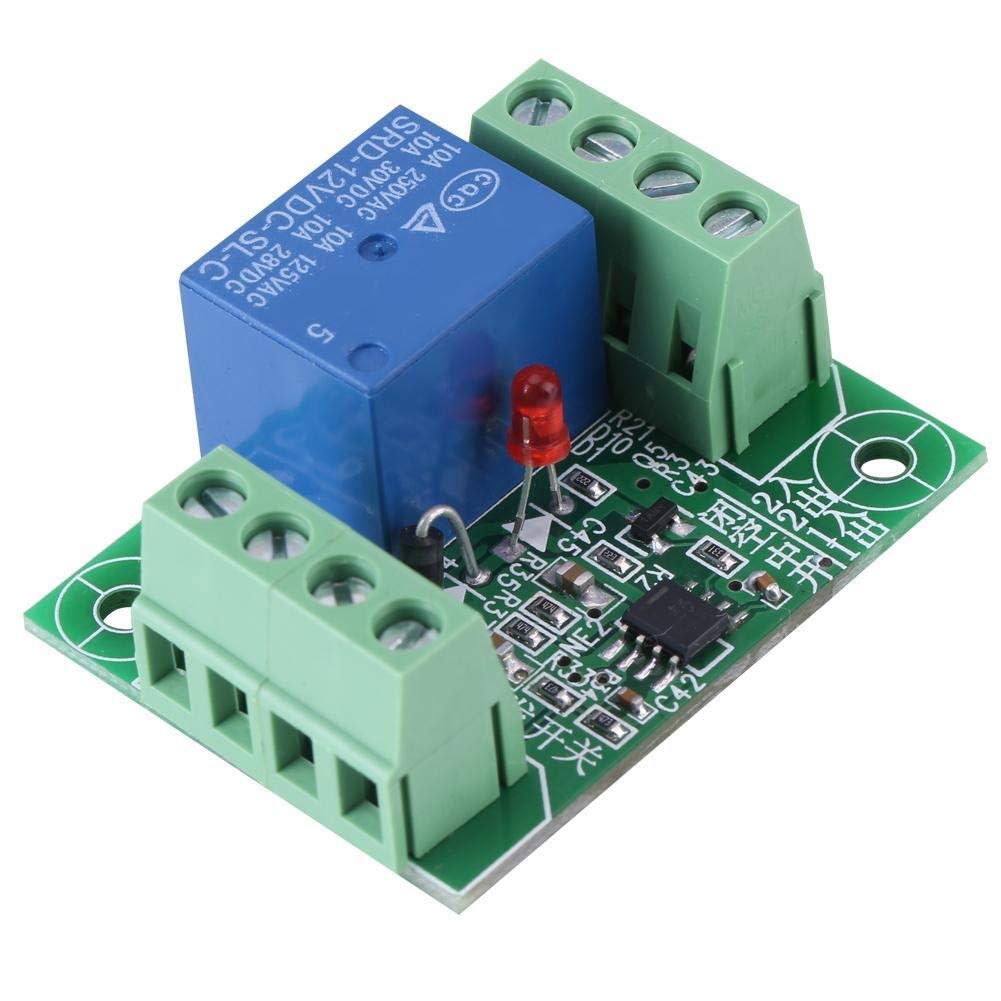

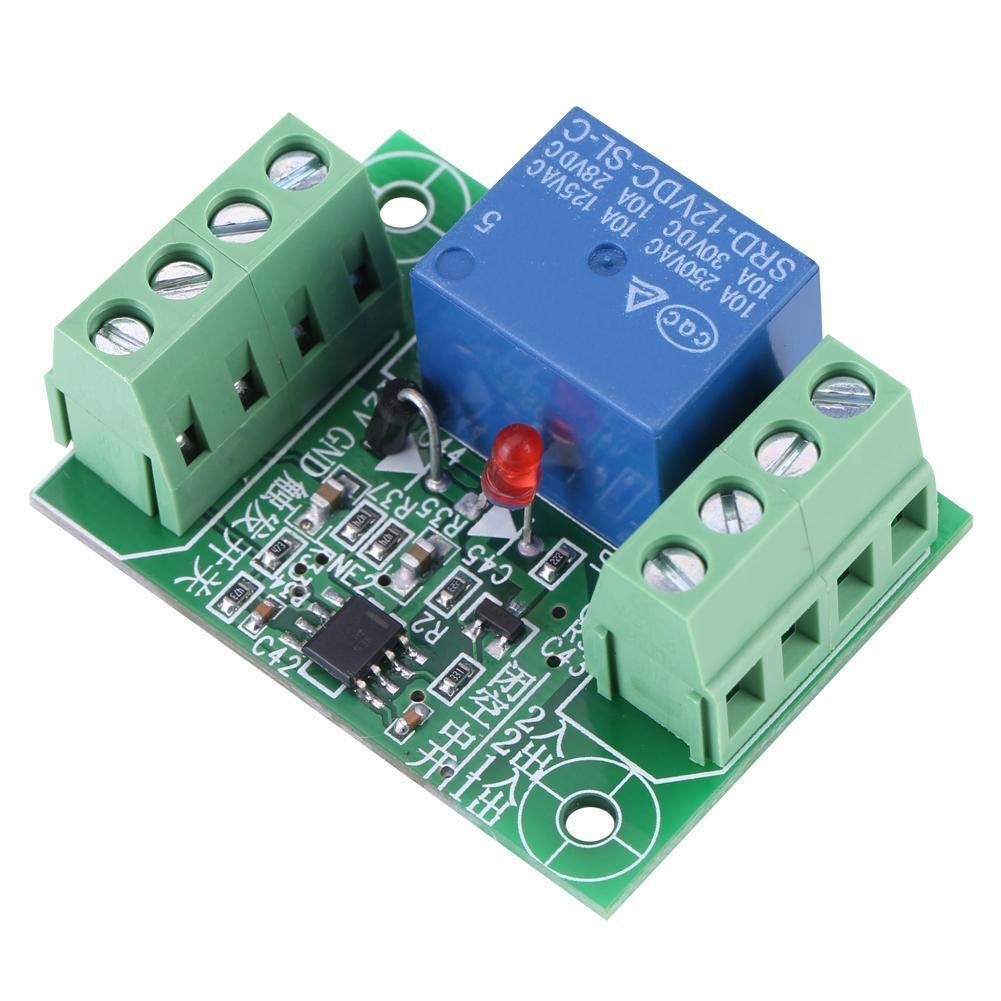

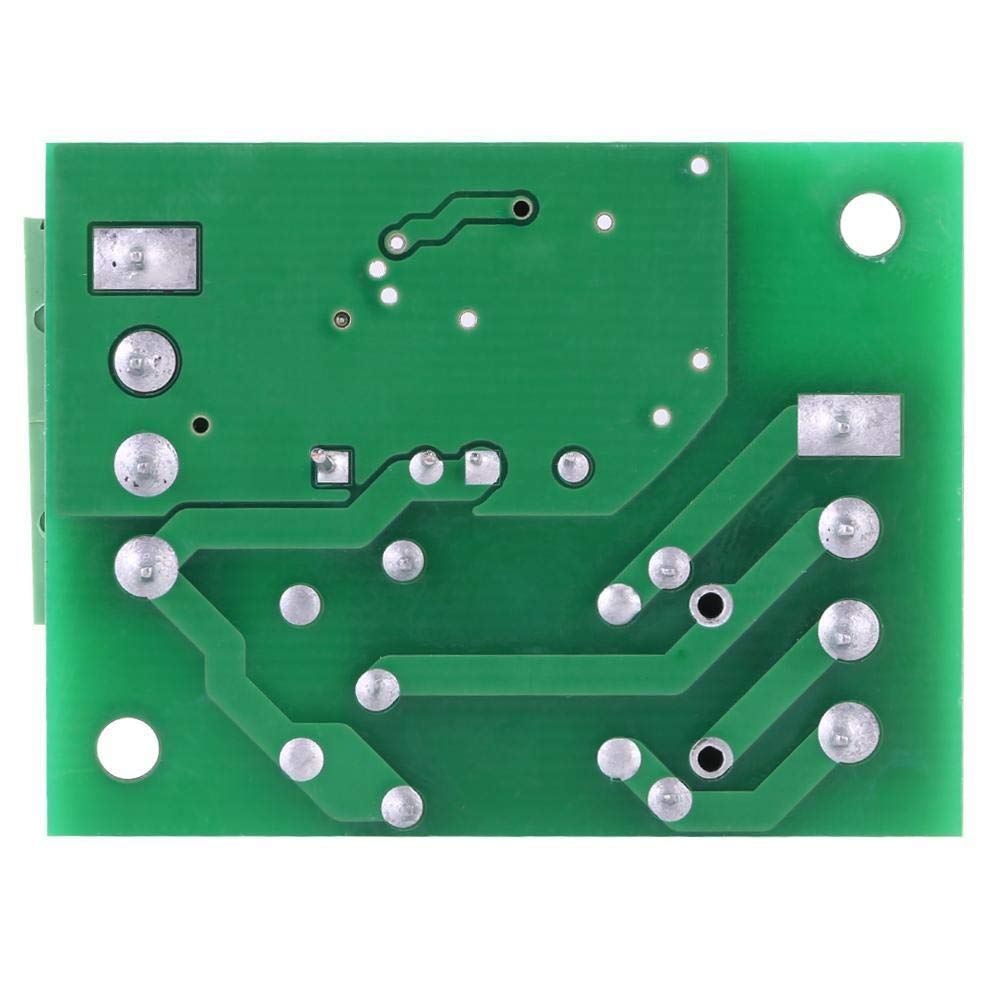

Broco Relay Module DC, 12V Single Channel Bistable Circuit Trigger Switch Relay Control Module

• 🚗【 Bistable】This is a typical bistable circuit board, press trigger switch to energize relay and press again to dis-energize relay.
• 🚗【 Scope of Application】The power supply should be DC12V, but cannot be used for cars because instant voltage of cars may exceed 12V.

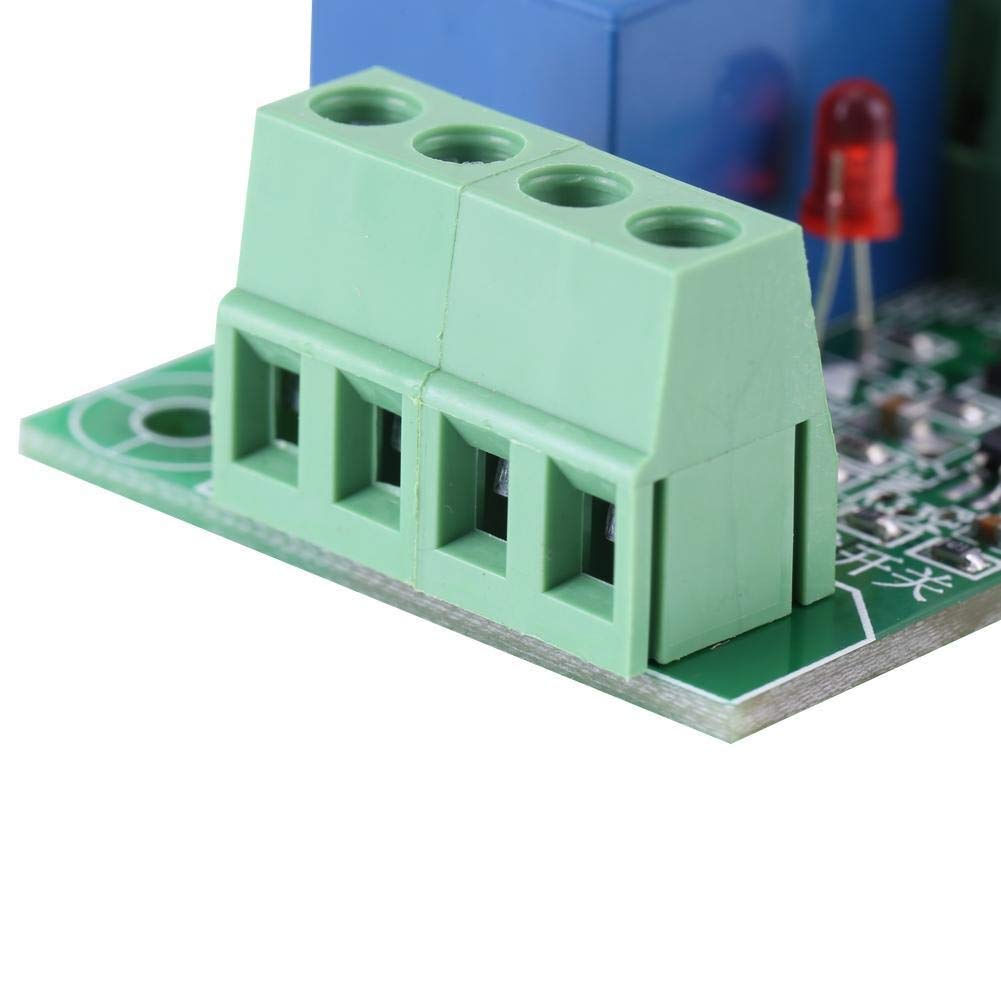

• 🚗【Easy to Use】Designed with screw terminals, easy to wire and easy to use. If used for conditions of strong interface, it is suggested to connect a diode to input terminal in series, and connect a 470UF capacitor to GND in parallel.

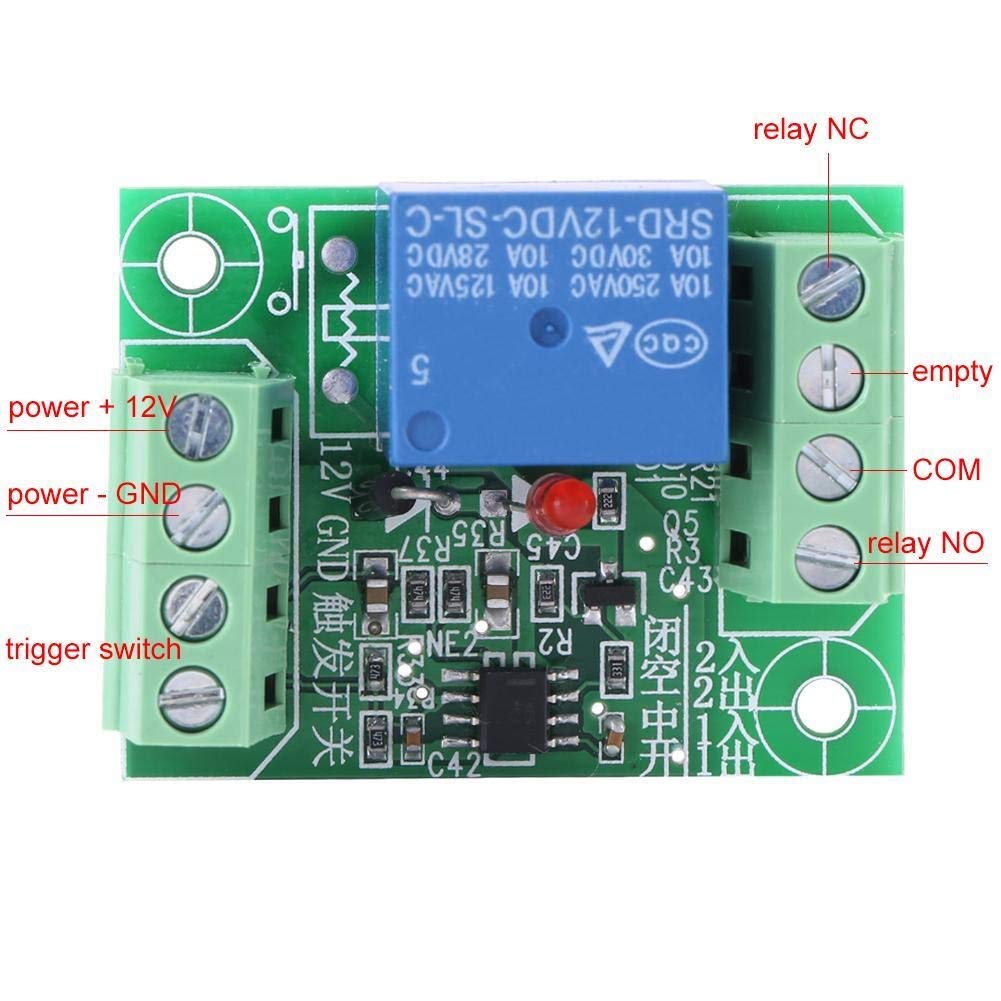

• 🚗【 Function】The interface design is user-friendly. All interfaces can be directly connected through terminal wiring.Trigger switch connect to trigger signal, trigger signal is low lever effective. Strong driving ability and stable performance.
• 🚗【Service】We are responsible for the product and believe in the quality of the product. Professional functions and high reliability give you a different experience and ensure every customer's satisfaction. If you have any questions about our products, we will answer them at any time.

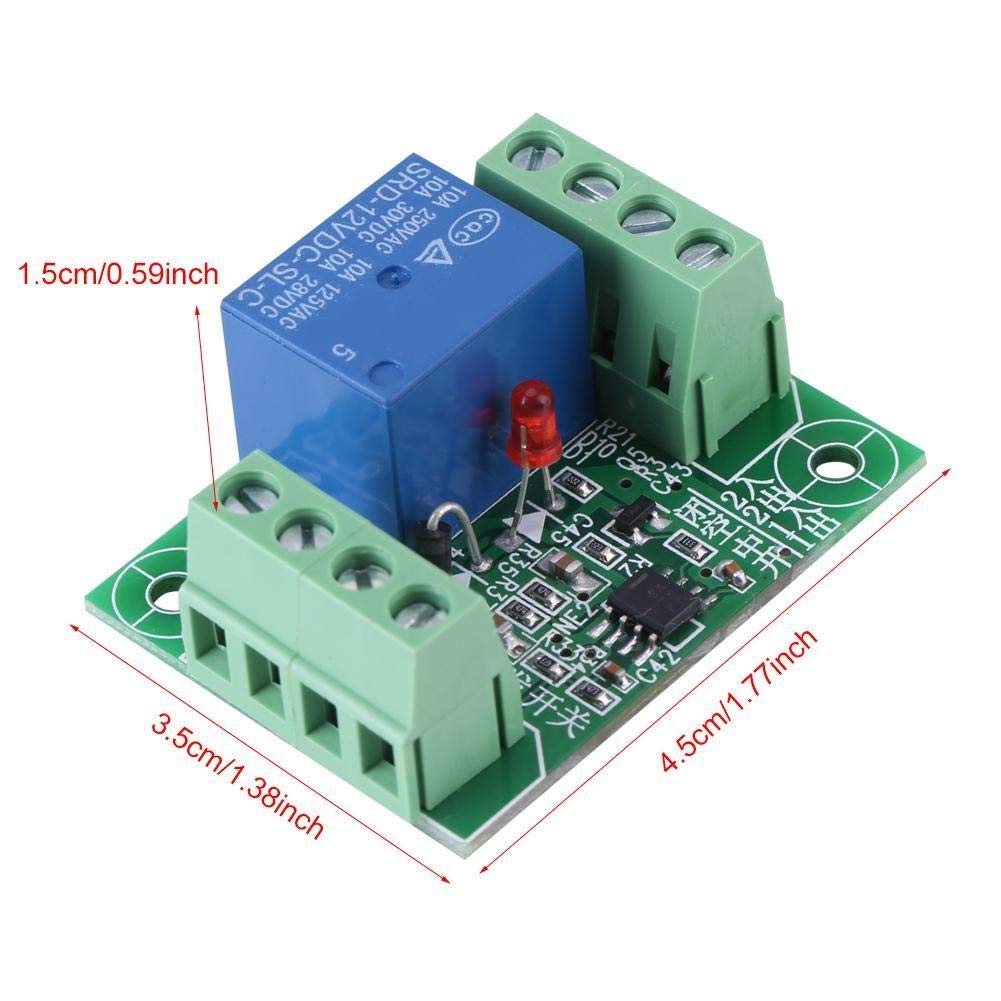

Features: This is a typical bistable circuit board, press trigger switch to energize relay and press again to dis-energize relay. Designed with screw terminals, it is convenient to wire and easy to use. Trigger switch connect to trigger signal, trigger signal is low lever effective. If used for conditions of strong interface, it is suggested to connect a diode to input terminal in series, and connect a 470UF capacitor to GND in parallel. The power supply should be DC12V, but cannot be used for cars because instant voltage of cars may exceed 12V. Specifications: Power Supply: 12V DC Load Capacity: 10A, 250VAC; 10A, 30VDC Size: 1.5*3.5*4.5cm/0.59*1.38*1.77in Package Includes: 1 x Relay Module
