BRIEFCEC BNC Plug CCTV with Brass Centre Pin RG59/RG6 Coaxial Install SDI Adapter for CCTV Surveillance Security Camera DVI Radio Antenna Coaxial Connector Socket (Adapter-1, 10Pcs, Silver)

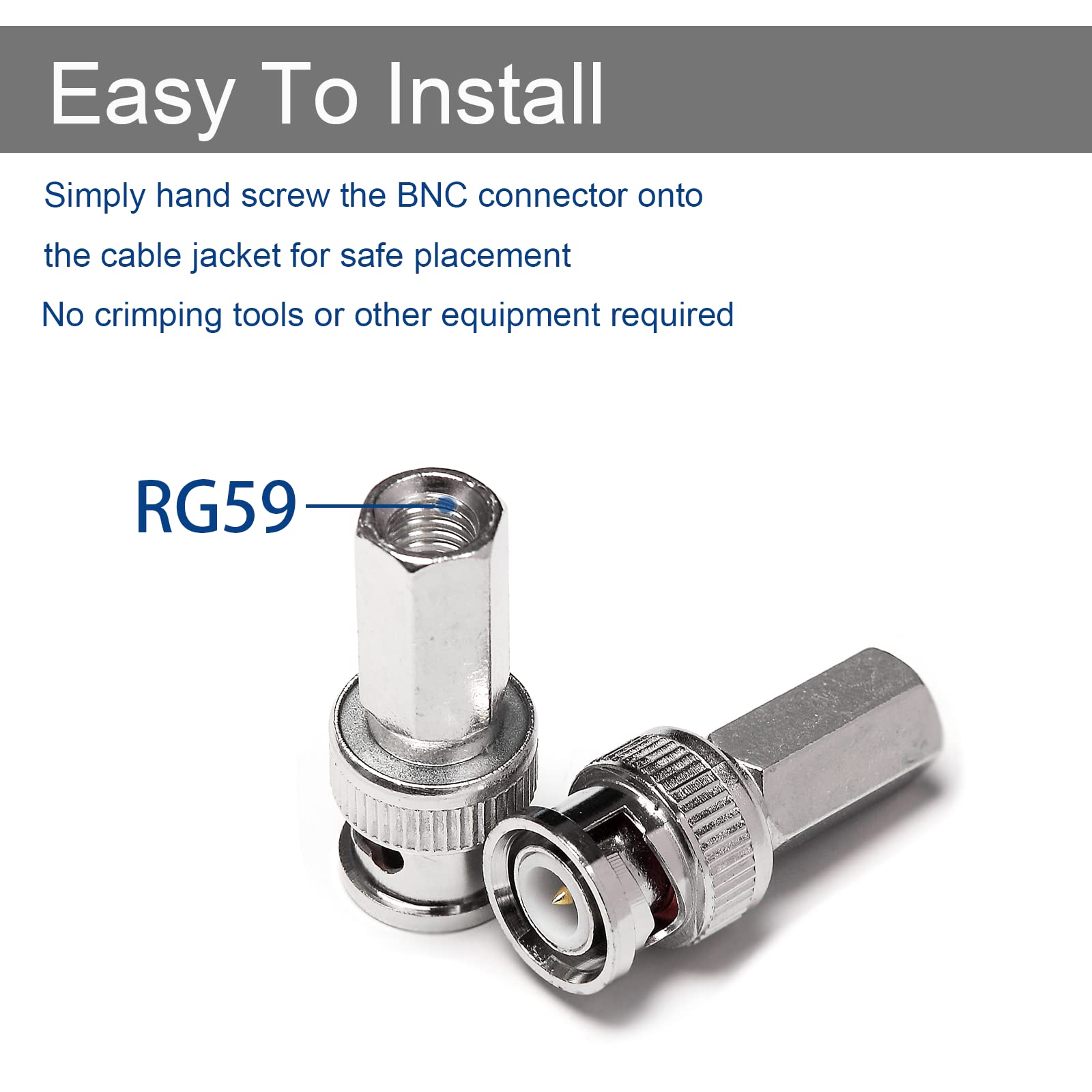

• PRODUCT FUNCTION: The product is BNC connector for engineering. The BNC interface adopts spring bayonet, and the contact between the contacts is stable and reliable. No-welding thread leads into the wire, eliminating the need for screwing, and the wire is in firm contact with the head.
• WIDE APPLICATIONS: Monitoring equipment, audio equipment, mixer, peripheral equipment to connect video signals. Works with BNC coaxial cables, DAB antenna, radio transceivers, CCTV, surveillance cameras and monitors, DVR recorders. is the best product for audio-visual DIY.

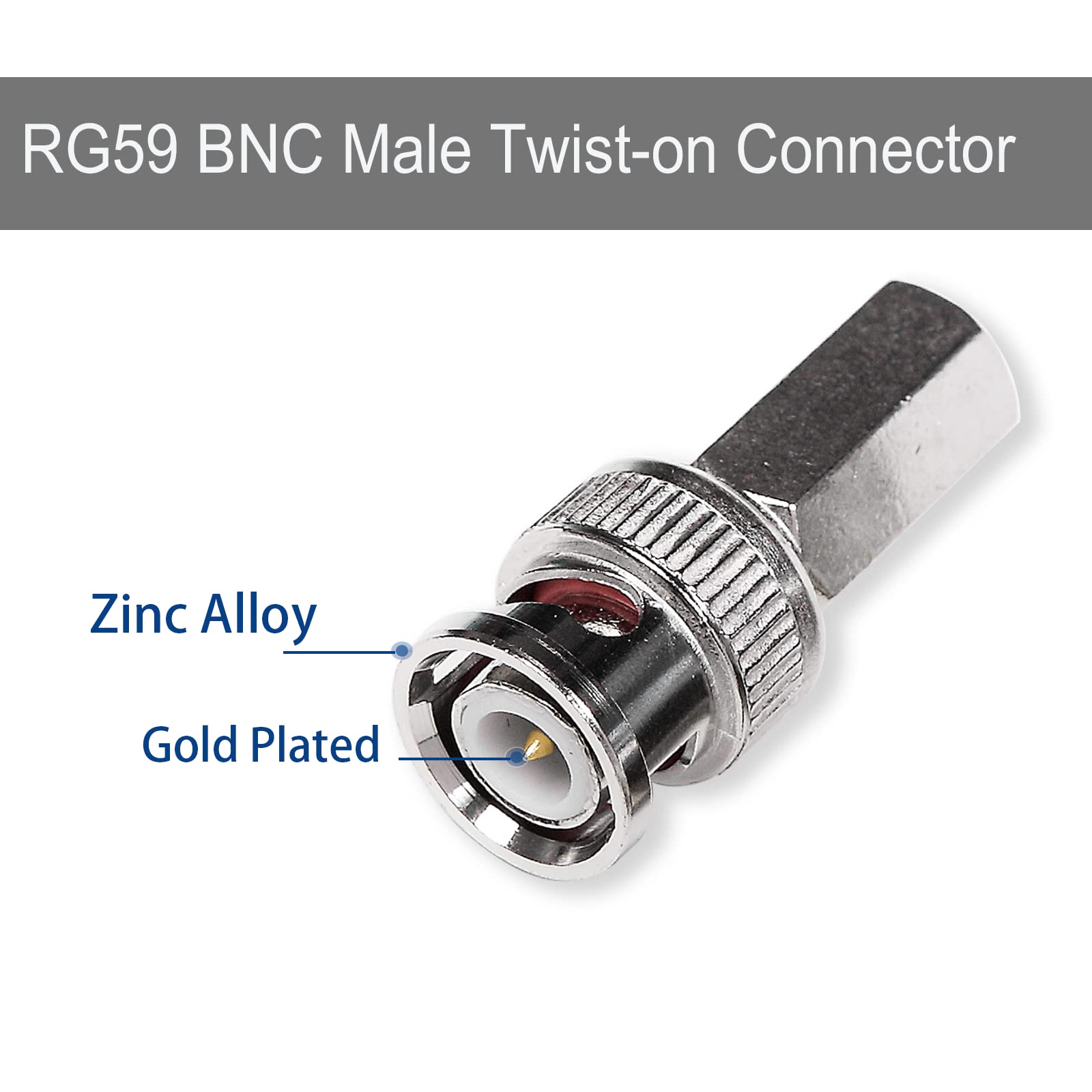

• WELL MADE: Copper core gold-plated, wire clamp copper-plated alloy, insulating glue Teflon, high temperature resistance, to prevent premature oxidation and lead to poor contact, signal flicker.
• PACKAGE LIST: BRIEFCEC Provides 10 x BNC Male Connector.
• AFTER SALES SERVICE: If you are not satisfied with the BNC Male Connector, please contact us by email. BRIEFCEC will provide you with help within its capacity and strive to give you a good shopping experience.

Overviews: The product is BNC connector for engineering. The BNC interface adopts spring bayonet, and the contact between the contacts is stable and reliable. No-welding thread leads into the wire, eliminating the need for screwing, and the wire is in firm contact with the head. Product is Copper core gold-plated, wire clamp copper-plated alloy, insulating glue Teflon, high temperature resistance, to prevent premature oxidation and lead to poor contact, signal flicker. Parameters: Type: BNC Male Connector Temp Range: -65 ~ 165℃(PECable: -40 ~ 85℃) Vibration: MIL-STD-202, Method 213 lmpedance: 50Ω, 75Ω Frequency Range: DC ~ 4GHz Woring Voltage: 12 - 24V max Center Conductor: ≤1.5mΩ Outer Conductor: ≤1mΩ Insulation Resistance: ≥5000MΩ vsWR Straight: ≤1.22 vsWR Right Angle: ≤1.30 Durability(Mating): ≥500(Cycles) Shell: Zinc Alloy Nickel Plated Pin: Zinc Alloy Gold-Plated Insulator: PTFE Package List: 10 x BNC Male Connector
