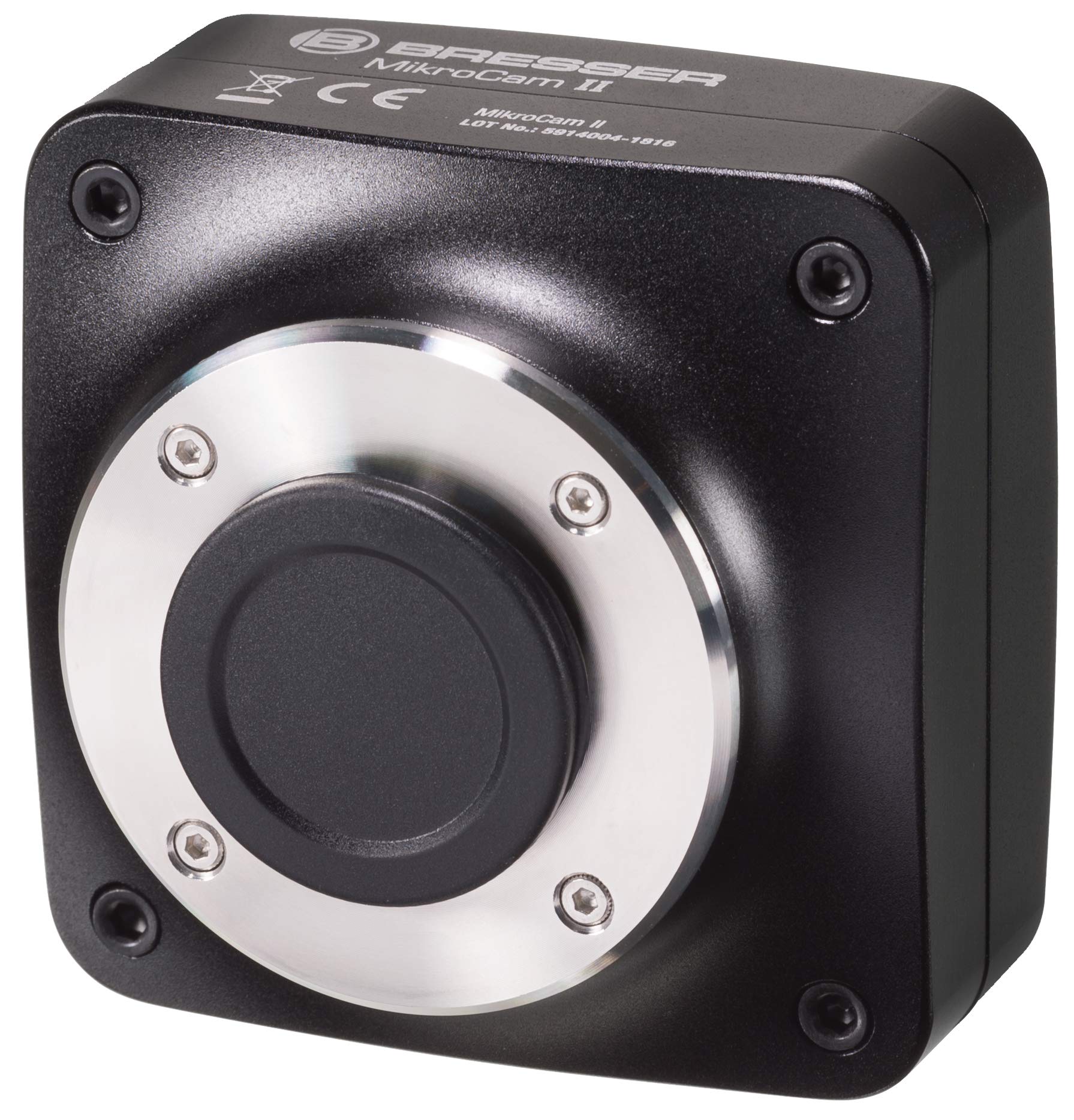

Bresser MikroCam II 20 MP 1 Inch Microscope Camera USB 3.0 Sony IMX183 Sensor

• The high-quality MikroCam II microscope camera with 20 megapixels resolution and high refresh rate allows easy recording and video with a microscope. The maximum resolution is 5440 x 3648 pixels and for mounting the camera is equipped with a C-mount connection thread.
• The Sony CMOS IMX183 sensor allows very high light sensitivity with minimal image noise. The MikroCam is therefore ideal for darkfield or phase contrast recordings. Thanks to the USB 3.0 port, fast data transfer is guaranteed. There are three plug-in adapters for 23.2/30/30.5 mm pull-outs.
• The included image editing software provides countless functions such as live image measurement functions, particle counting and extensive setting options and filters for optimal image results.
• Dimensions: 68 x 68 x 46 mm / Weight: 300 g; Operation is done via the included USB cable.
• Box contents: camera head; USB 3.0 cable; 23.2 mm adapter, 30 mm and 30.5 mm; recording and image editing software (for Windows)

Product Description The Bresser MikroCam II 20 MP 1 inch microscope camera is the professional solution for documentation on the microscope. The Bresser MikroCam II 20 MP 1 inch has the largest sensor in the MikroCam range with an edge length of 13.6 x 8.8 mm. This also allows large image fields to be recorded. Depending on the microscope model, e.g. the eyepiece field of view can be fully documented with this camera (for an eyepiece 10x/22 mm). Other cameras often capture less than 50% of the eyepiece image field. The Sony IMX183 CMOS sensor has extremely low noise at high light sensitivity, so this camera is also ideal for darkfield or phase contrast shooting. The MikroCam Lab II software offers a variety of different functions, such as a live image survey (calibration preparation required), mosaic image creation, focus stacking (for increased depth of field). All automatic functions (exposure time, sensitivity, white balance, etc.) can also be adjusted manually. Due to the large sensor, the camera is not ideal for every microscope. It can be edge shading (vignetting). In most cases, this shadowing is fixed by a single lens (item no. 5914001), which is screwed into the camera. This camera is not designed for the trinocular tube of the ETD-201. With this microscope, only a small part of the image field can be used. Box Contains Box contents: camera head, USB 3.0 cable, 23.2 mm adapter, 30 mm and 30.5 mm, photo editing software (for windows)
