Bourns A500K 500K Potentiometer Logarithmic Audio Push-Pull Split Shaft (4 potentiometer)

• Set of Four (4X) 500K Short Shaft Audio Taper Push/Pull - Double Pole Double Throw
• Compact Case 3/8 inch diameter X 3/8 inch high bushing
• 18-tooth Coarse Knurl Shaft
• Coil Splitting, Coil Taping Phase shifting other wiring mods

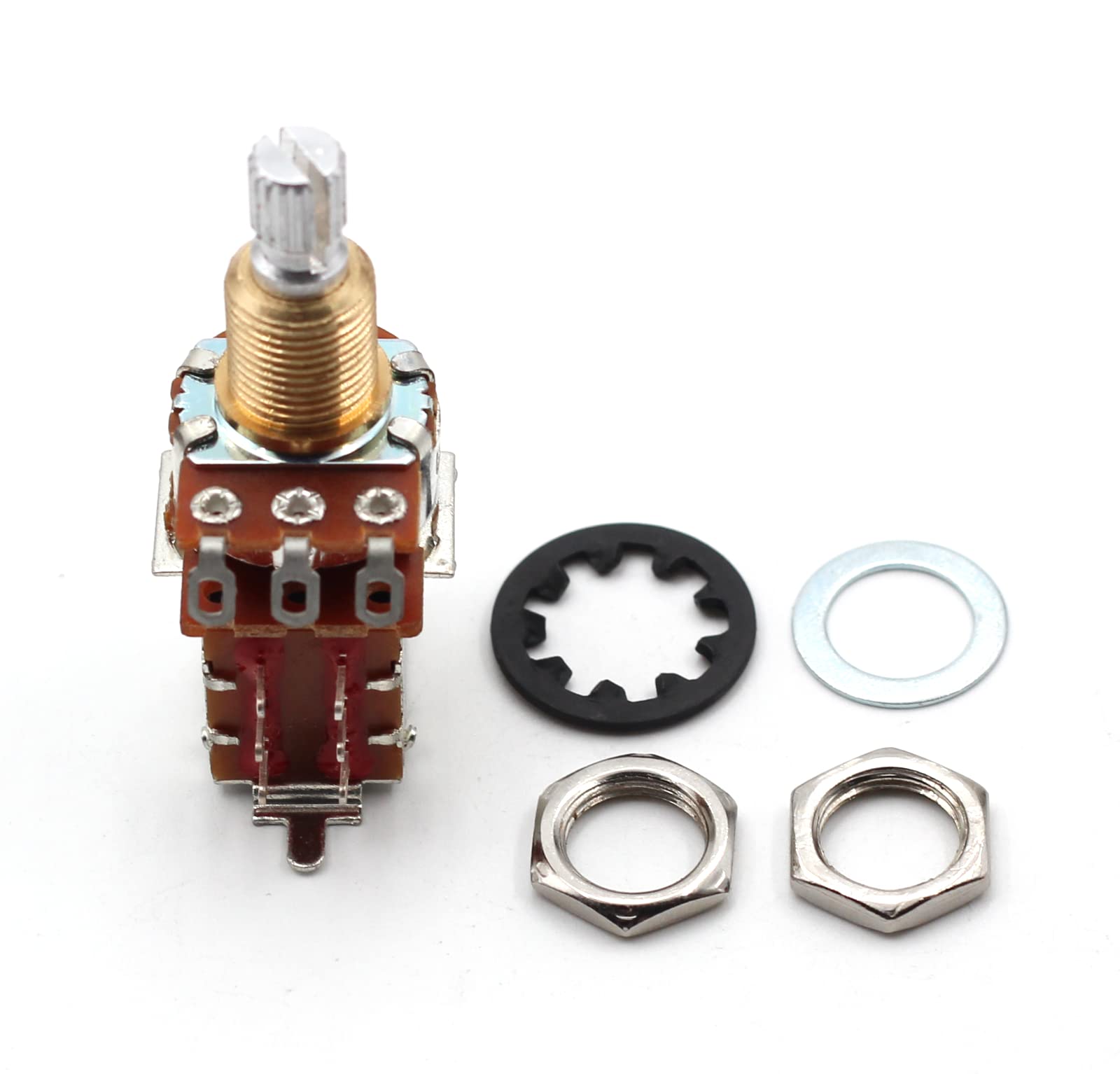

• Each pot comes with hardware - nut and 2 washers

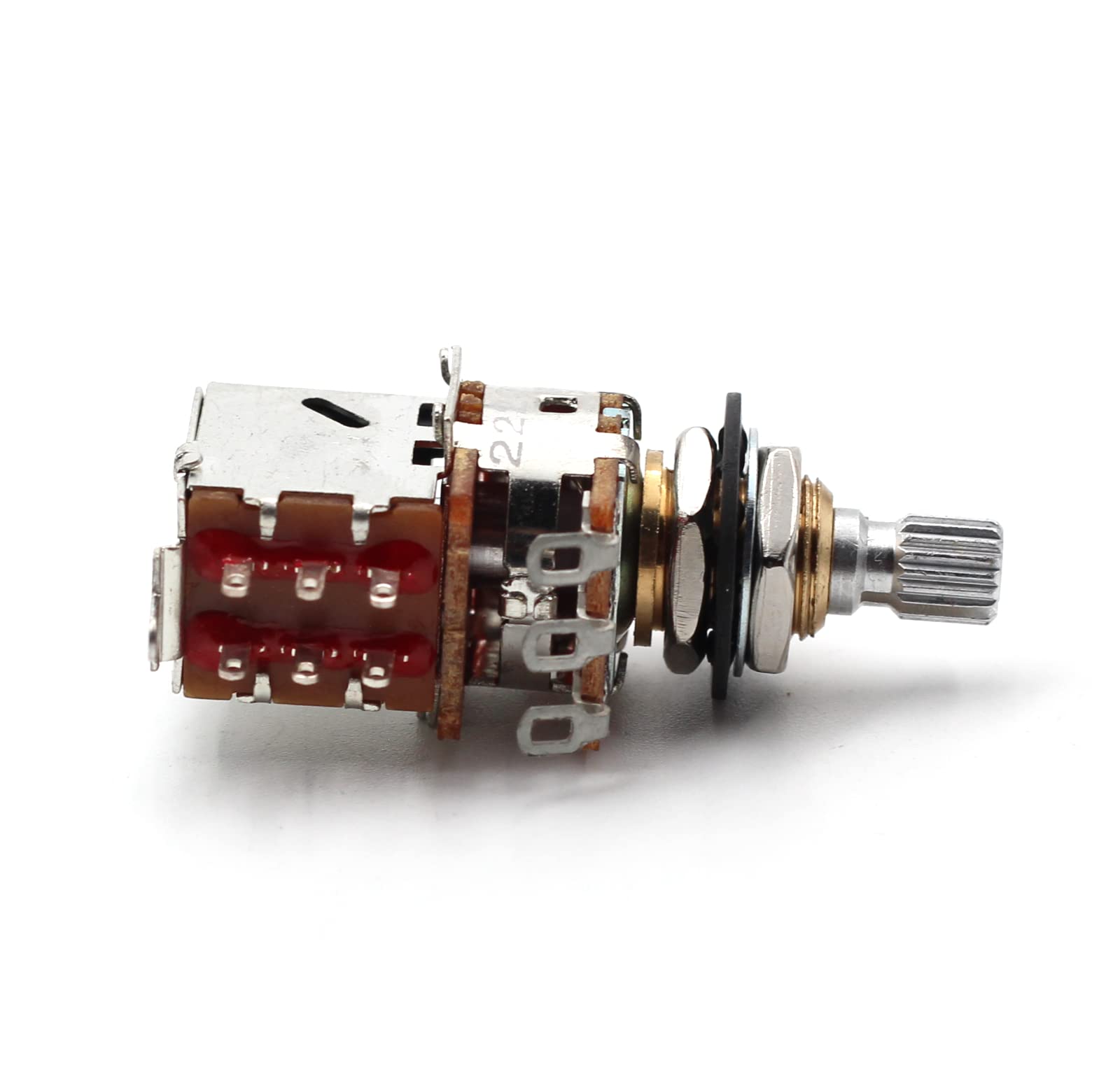

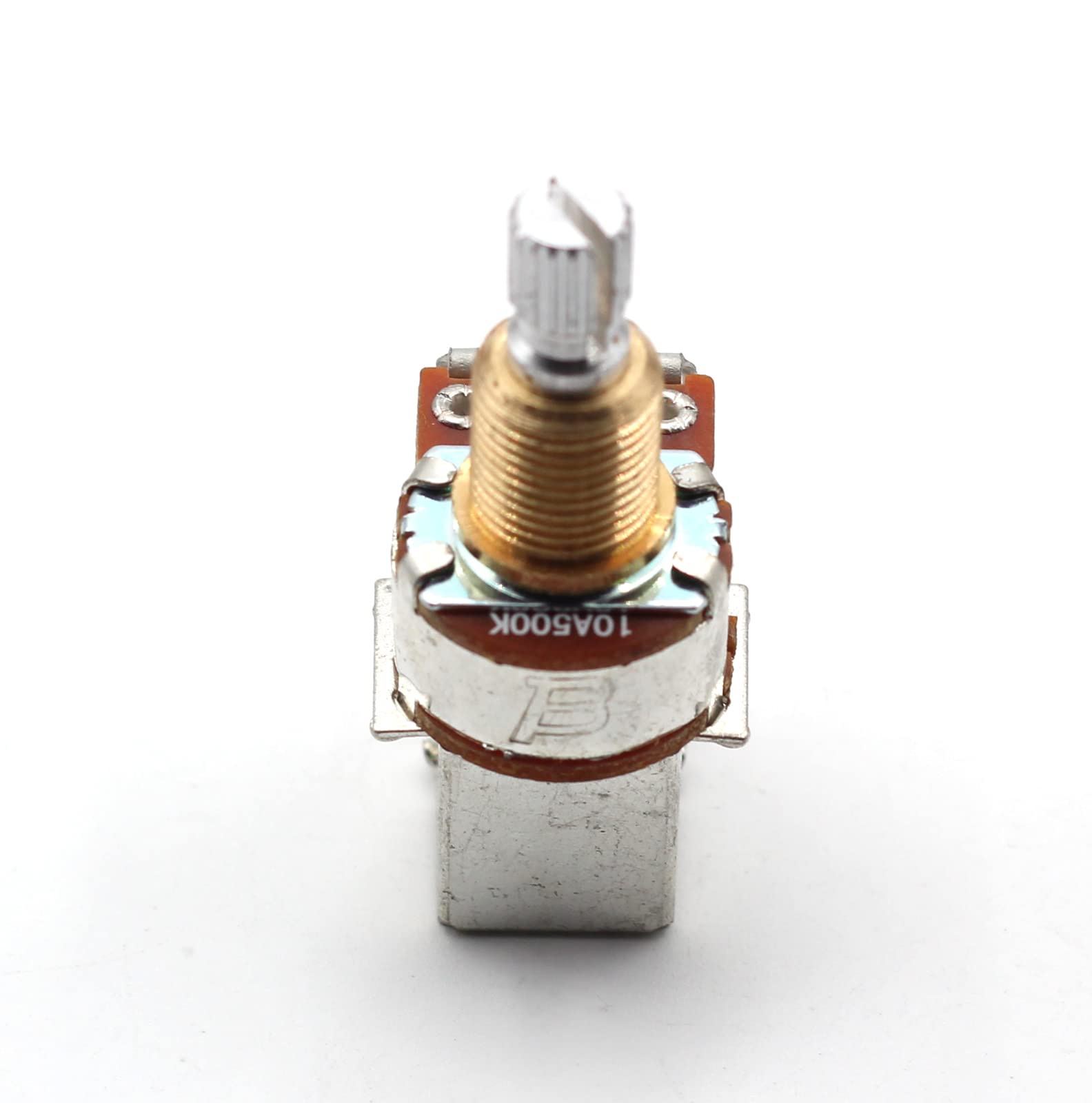

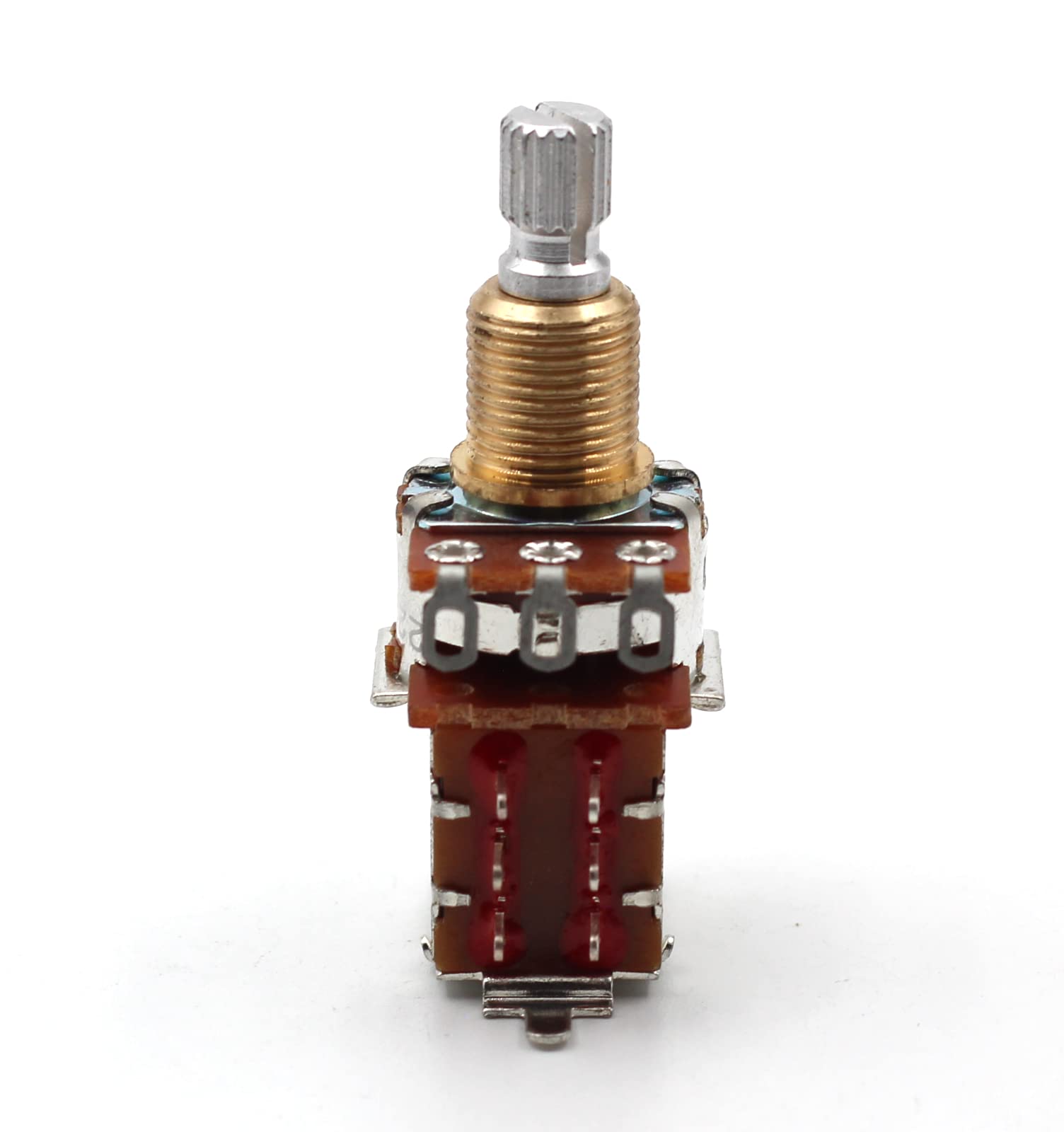

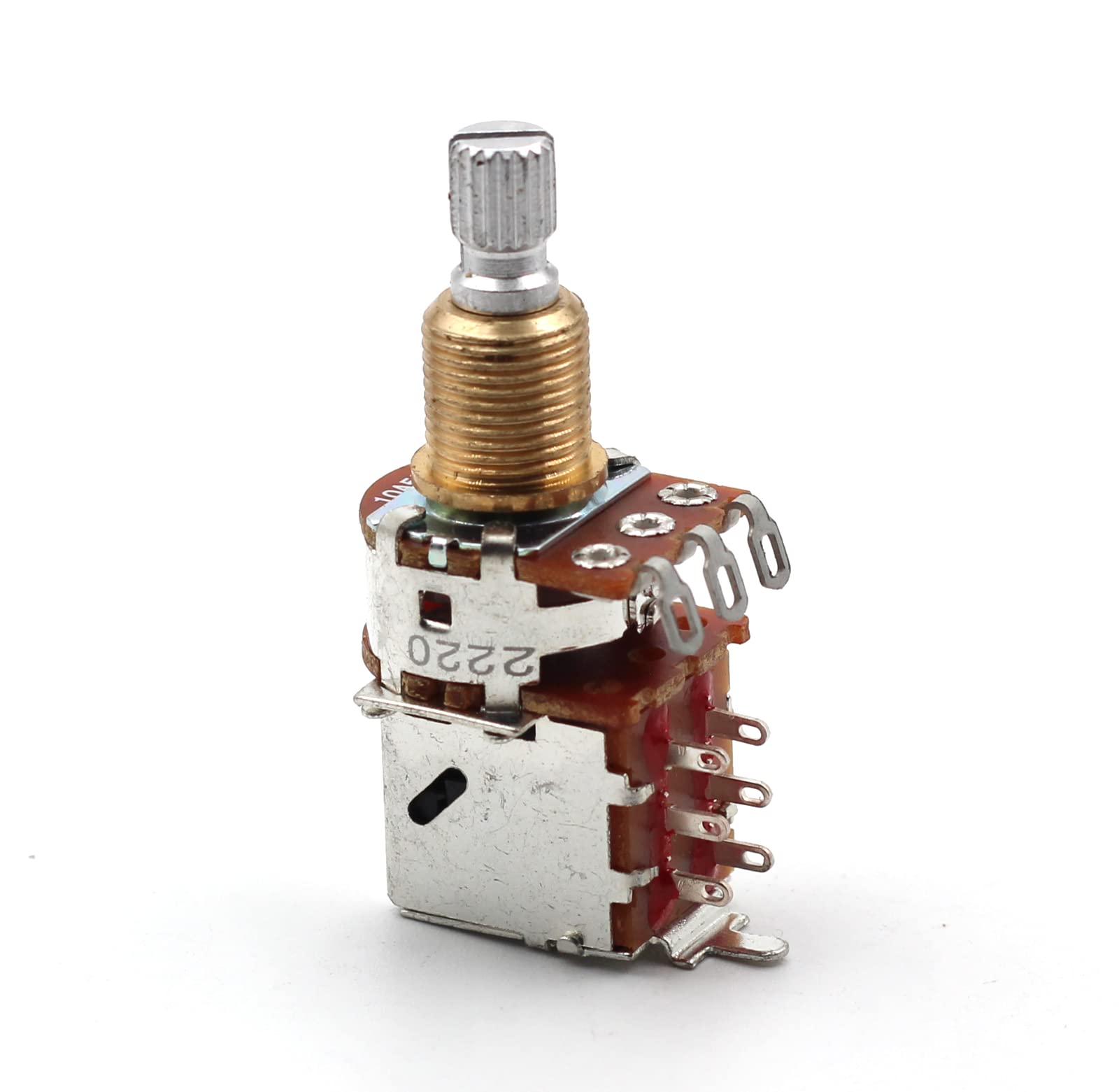

Set of Four (4X) Bourns 500K SHORT Push/Pull split shaft audio taper potentiometers. Double Pull Double Throw Push/Pull Switch allows for Coil Splitting, Coil Tapping, Phase Inversions and other mods. Some of the features of this pot are: 500K Ohms/15% Tolerance Audio Taper Double Pole - Double Throw (DPDT), Push/Pull Switch Solid br 3/8" (short shaft) bushing Split, coarse 18-tooth, knurled, .236" diameter shaft Each pot comes with hardware - nut & dress washer Requires 3/8" diameter mounting hole Note:1. If you are uncertain whether your guitar uses short (3/8") or long (3/4") shaft pots, as a general rule this pot will fit most USA-made Gibson Les Paul's manufactured before 1977 excluding Les Paul Studios, and will fit historic reissues, but please double check before you order.2. Make sure to pinch the tip of the shaft before you try fitting a knob, this will avoid getting knobs stuck before you install the pot. If you've ever had that happen.. 3. Has a coarse spline shaft. This means if you are CTS or other pots using a fine spline shaft, you will need to the knobs as well as the pots. 4. Requires a cavity depth of 1.05".
