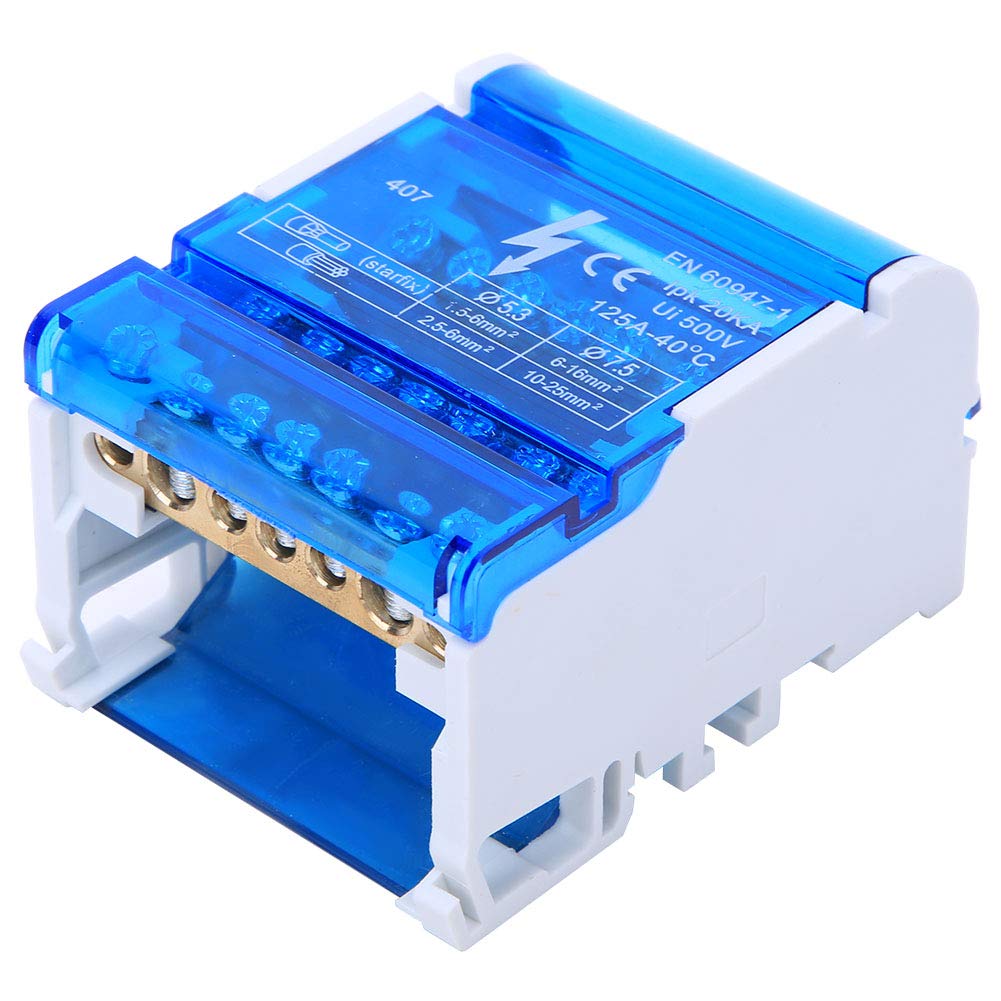

BOROCO 407 Distribution Terminal Block Terminal Distribution Box Din Rail 4-Level Single Phase Junction Case for Electrical Engineering with Transparent Cover

• The terminal box is designed with professional power supply. There is an isolation barrier between the terminals to prevent short circuit caused by touching. Durable, corrosion-resistant, and safer when testing and connecting.
• Cable junction box mounting feet are designed to be manufactured as standard. It can be directly installed on the guide rail or directly on the bottom plate, which is quick and convenient to install. Long-term use does not deform.
• The power distribution terminal block has a compact body, multiple splits, and is installed on a DIN rail to save wiring space to the greatest extent. The use can make the connection more convenient, saving time and effort.

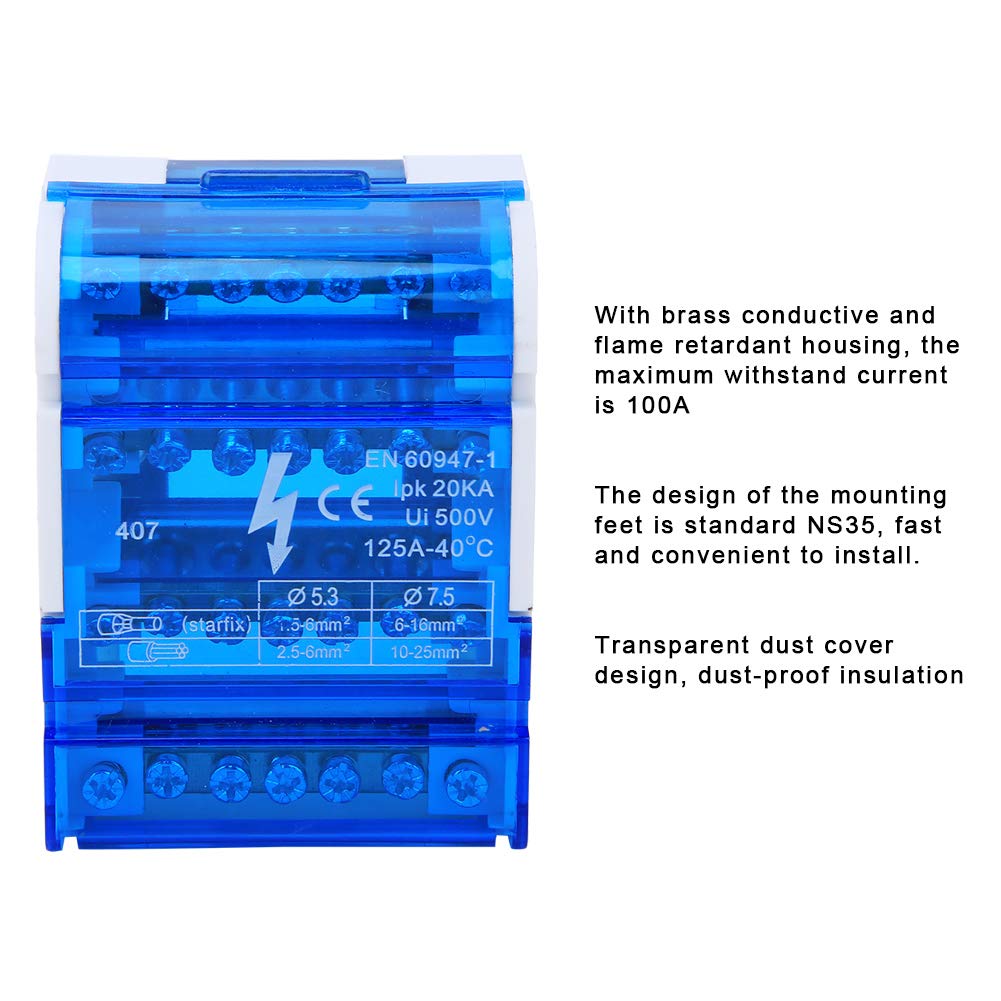

• The 4-level single-phase terminal junction box is designed with a transparent dust cover, which is dust-proof and insulated, and the internal wiring status can be known without opening the cover. It is more convenient and labor-saving when working and operating.
• The power distribution terminal junction box adopts a brass conductive flame retardant shell. According to high-quality manufacturing requirements, the craftsmanship is exquisite and the quality is guaranteed. The maximum withstand current is 100A, which is safer to use.

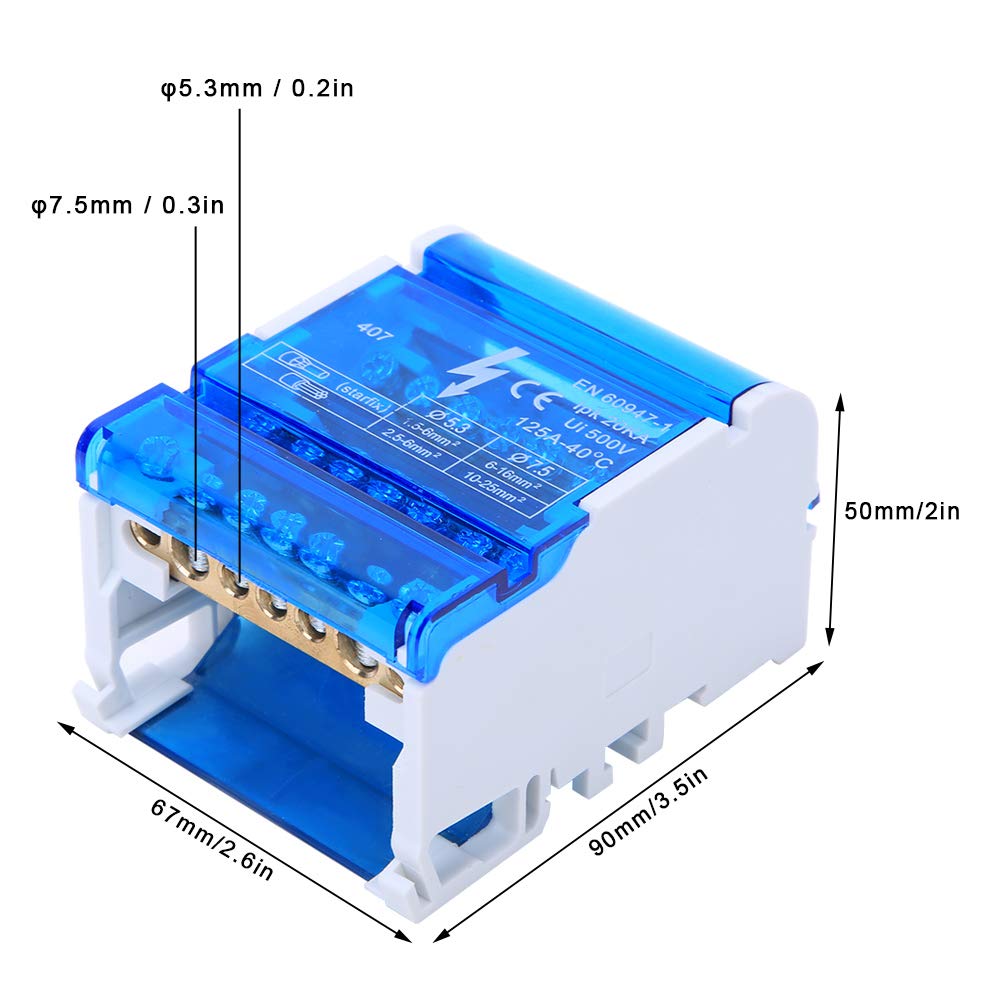

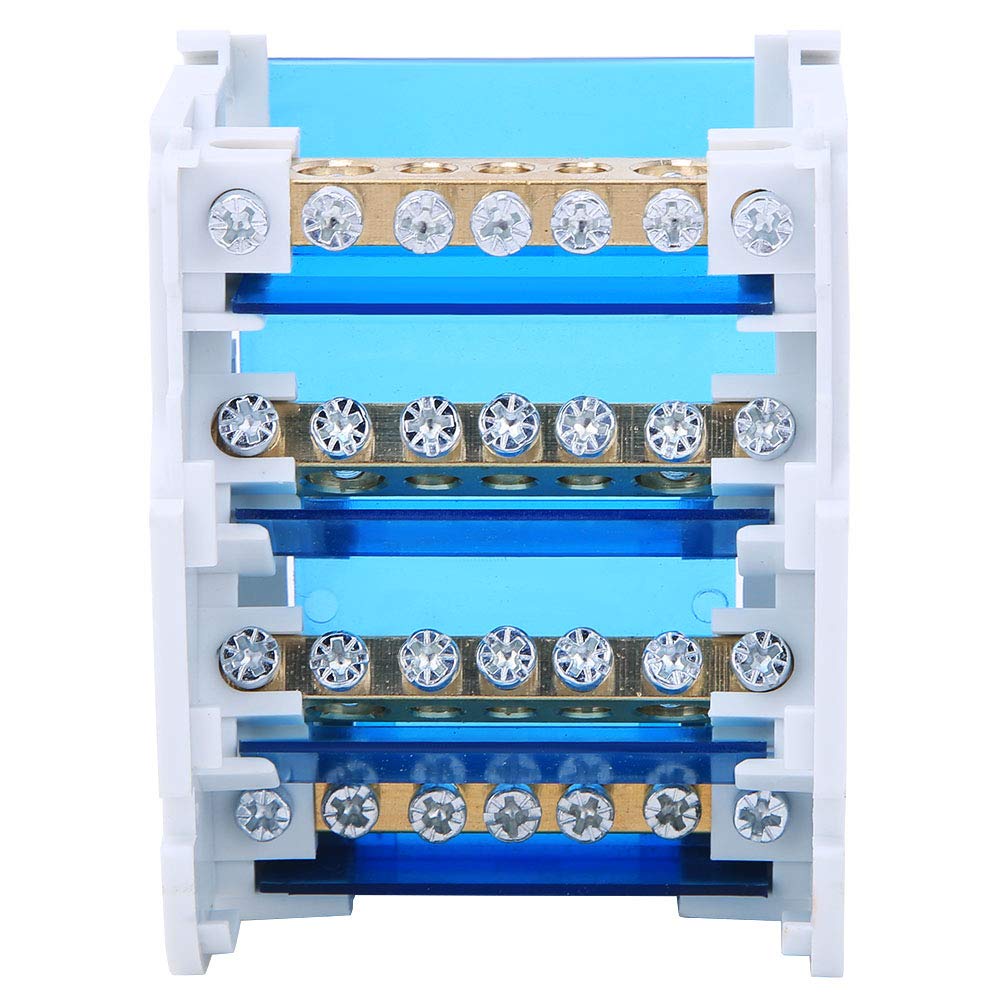

Specification:The power distribution terminal junction box adopts a brass conductive flame retardant shell. According to high-quality manufacturing requirements, the craftsmanship is exquisite and the quality is guaranteed. The maximum withstand current is 100A, which is safer to use. The terminal box is designed with professional power supply. There is an isolation barrier between the terminals to prevent short circuit caused by touching. Durable, corrosion-resistant, and safer when testing and connecting. Cable junction box mounting feet are designed to be manufactured as standard. It can be directly installed on the guide rail or directly on the bottom plate, which is quick and convenient to install. Long-term use does not deform. Item Type: Terminal Distribution BoxModel: 4-level junction box 407 Rated Current: 125A Rated Voltage: 500V Type: Terminal block / Wiring block (strip) Product Outlet: 4 input 24 output Number of Holes: 4x7 Brass Rod: 6.5 x 12mm Metal Material: Brass, primary color Shell Material: High quality PA nylon material Installation: Din Rail Application: Cabinet Application Area: Electrical engineering Fire Rating: 94V-2 flame retardant, solvent resistance, good impact resistance Working Temperature: -30℃ ~ 110℃ Applicable Power Range: 250-450V Size: Approx. 67 x 90 x 50mm / 2.6 x 3.5 x 2in Package List:1 x Terminal Distribution Box
