DIN Rail Terminal Blocks Kit Terminal+Ground Blocks+Aluminum Rail+End Brackets+End Covers+ Kits

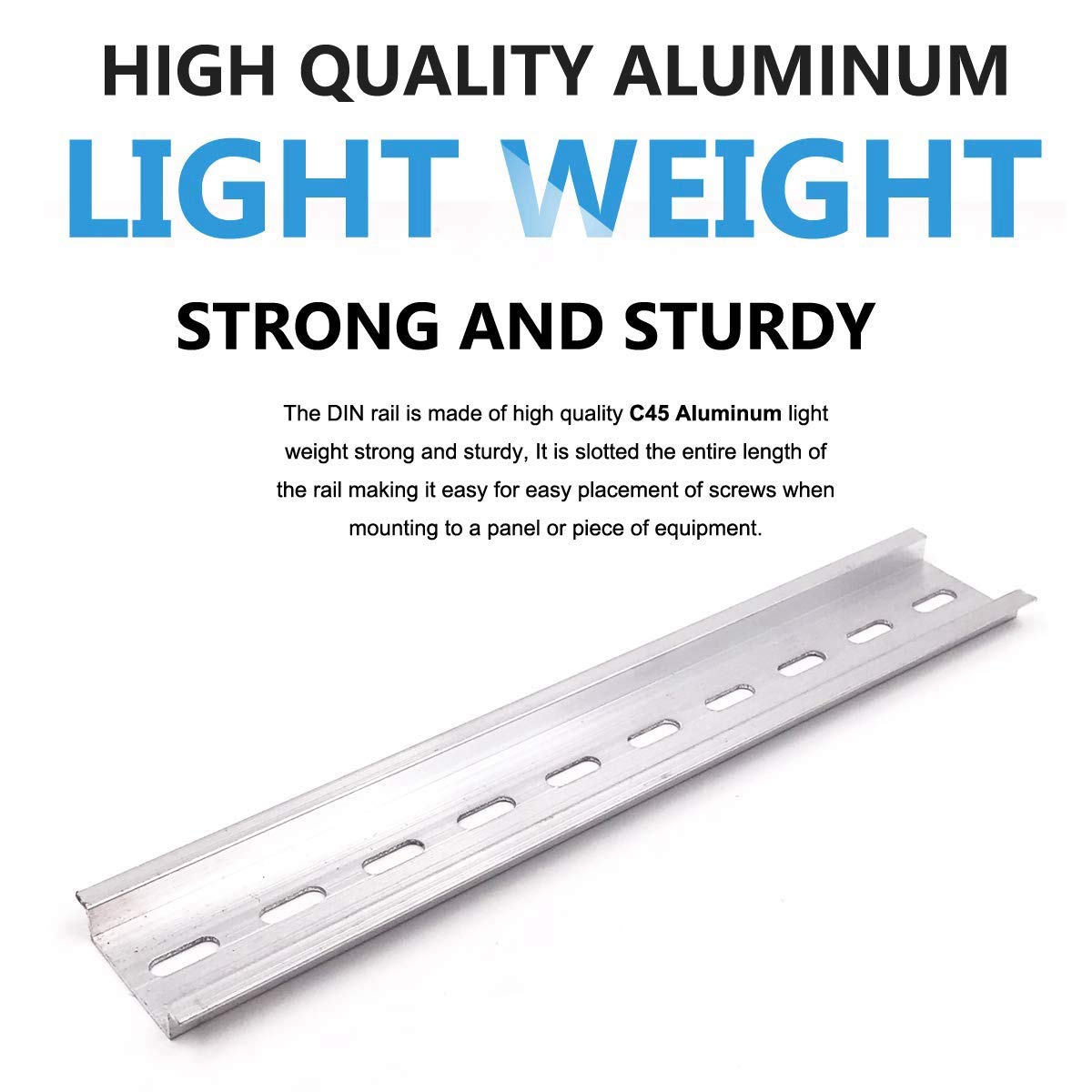

• 35MM DIN Rail Mounting rails and brackets to enhance configuration and installation. Guide rails can be used to install , contactors, surge protectors, modular jacks, motor soft , PLC, relays, terminals and other electrical appliances.
• Terminal Blocks UK2.5B The UK2.5B universal screw DIN rail terminal block series has the typical features which are for practical applications.It can connect two conductors with ease, even conductor sections are not a problem. Can be used on DIN Rail 35mm, steel or aluminum.

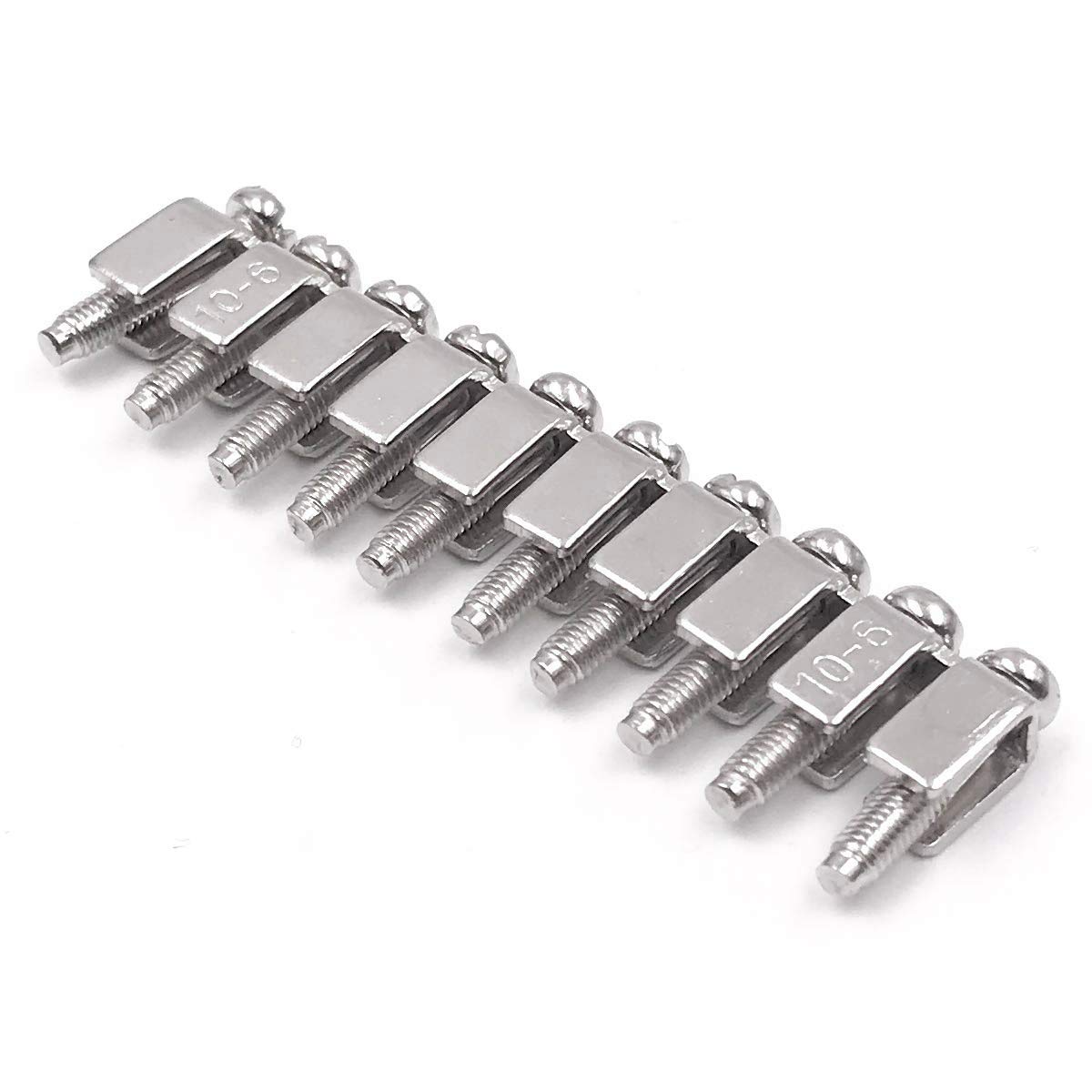

• Terminal Insertion Bridge, End Stopper Bracket, End Cover The insertion bridge can be insert at the top clamp space of UK terminal blocks, potential distribution can be contact quickly using those bridges. UK series End Stopper are fastened using screws or simply snapped onto the DIN rail. End Cover Usage: Connection by screw tighten
• Ground Terminal Blocks Connectors The grounding terminal blocks an easy-to-identify, convenient, organized grounding bus that is mounted on the DIN rail.The protective terminal blocks has strong to tight fixation on DIN rails to achieve the PE function.

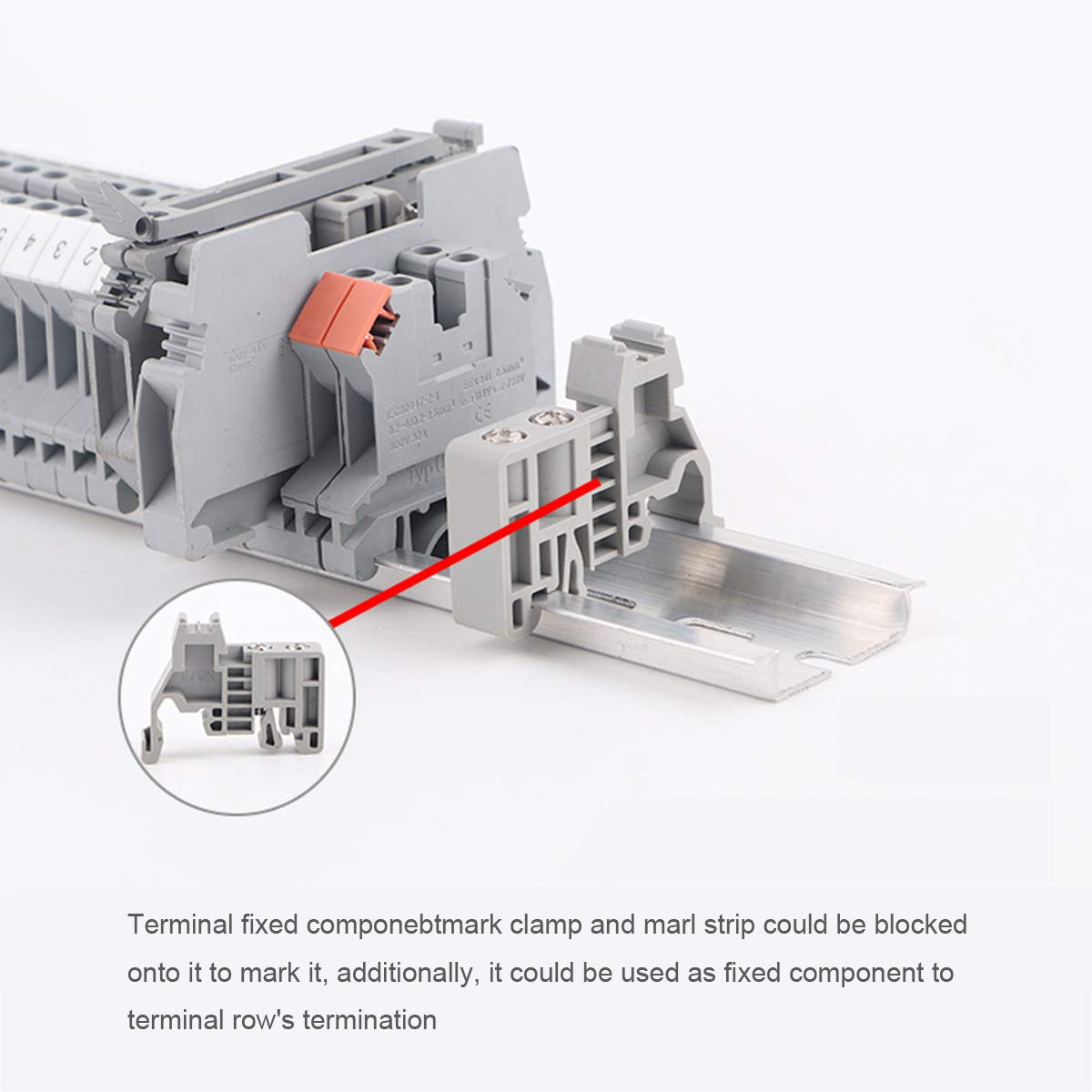

• End Stopper Bracket:Terminal fixed clamp and marl strip could be blocked onto it to it, additionally, it could be used as fixed to terminal row's termination.External Bridge Copper :Cut down to customize electrical ganging of blocks!End Cover:Usage: Connection by screw tighten, for a clean look!

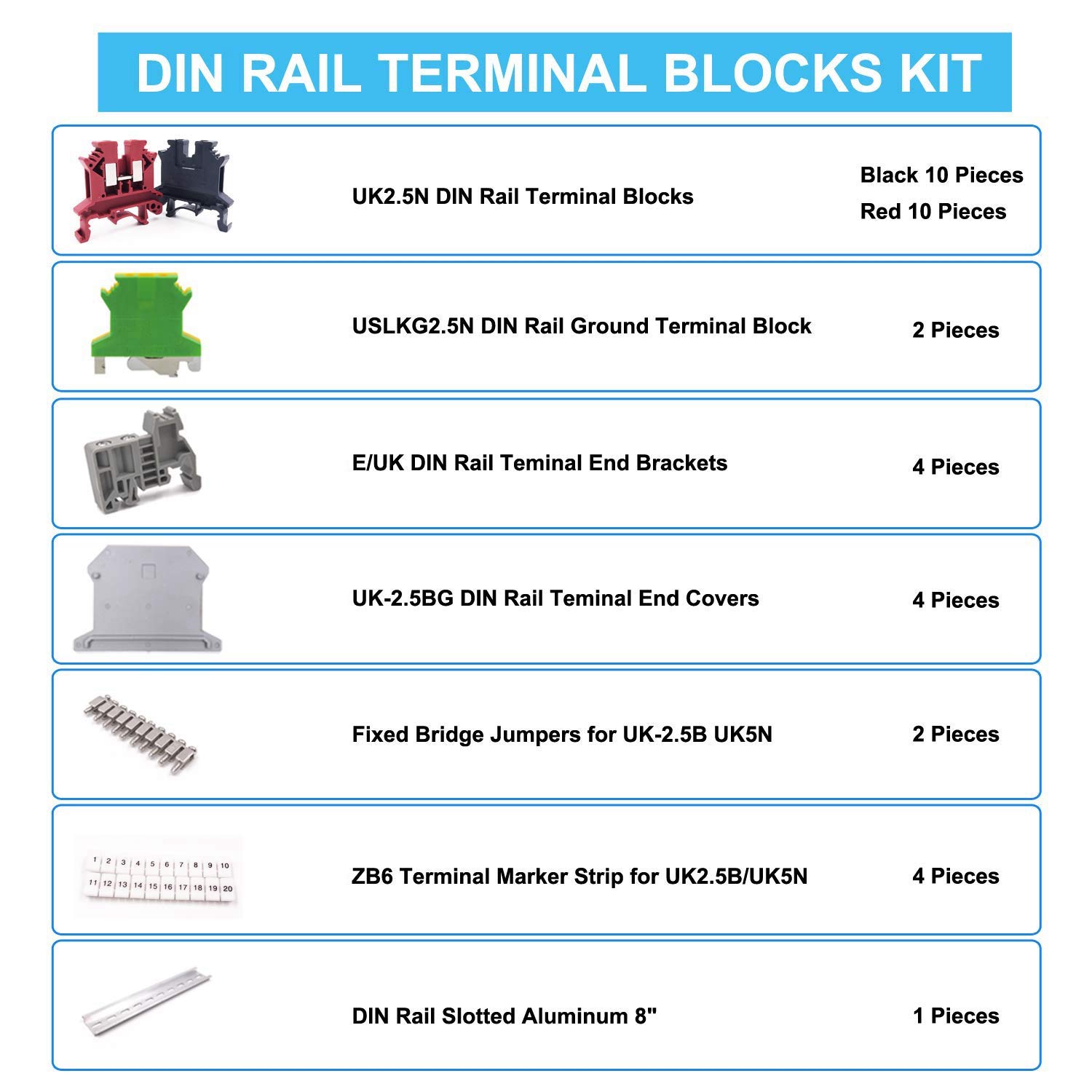

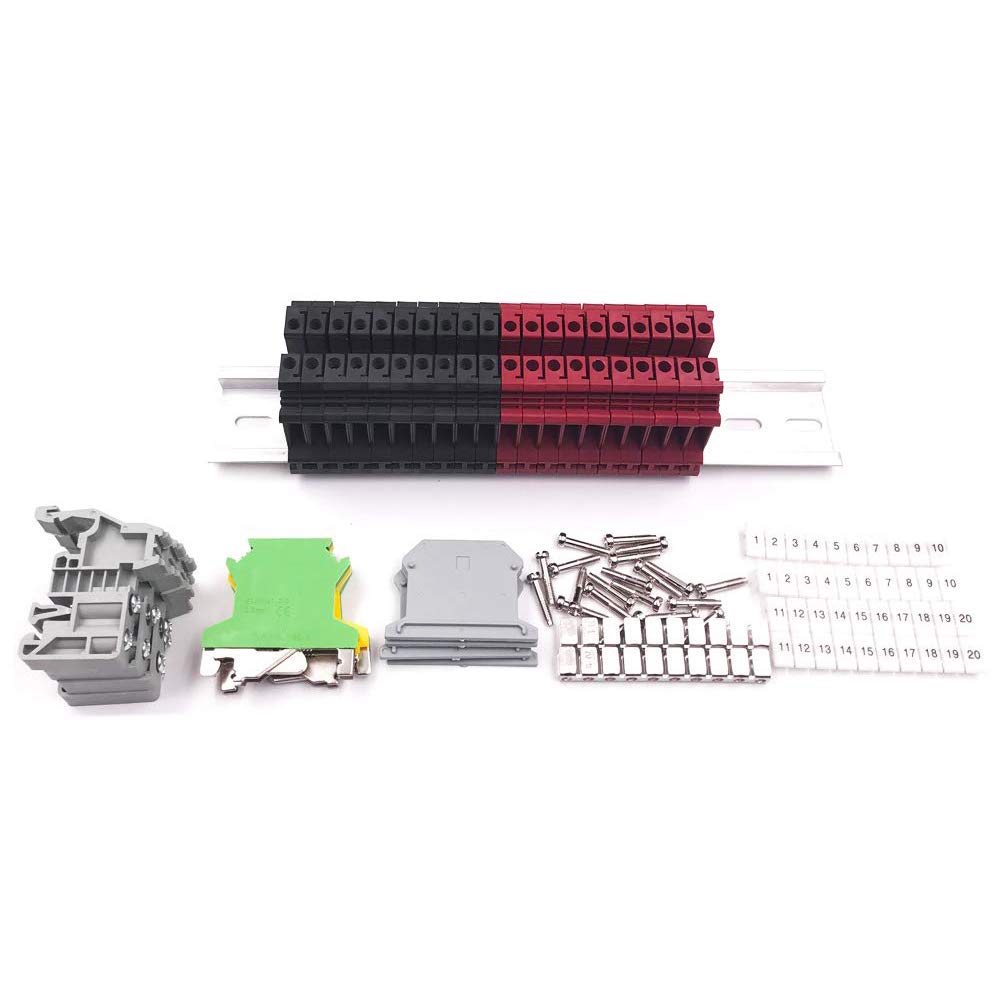

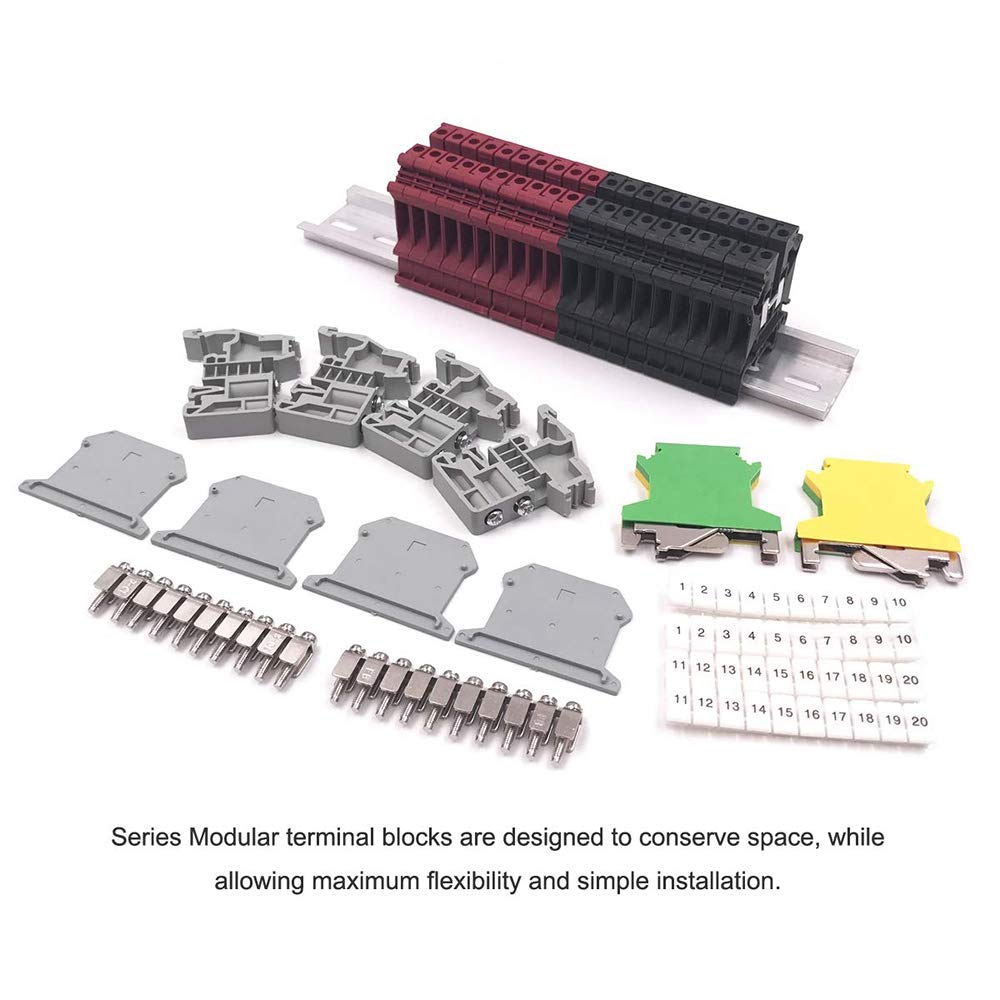

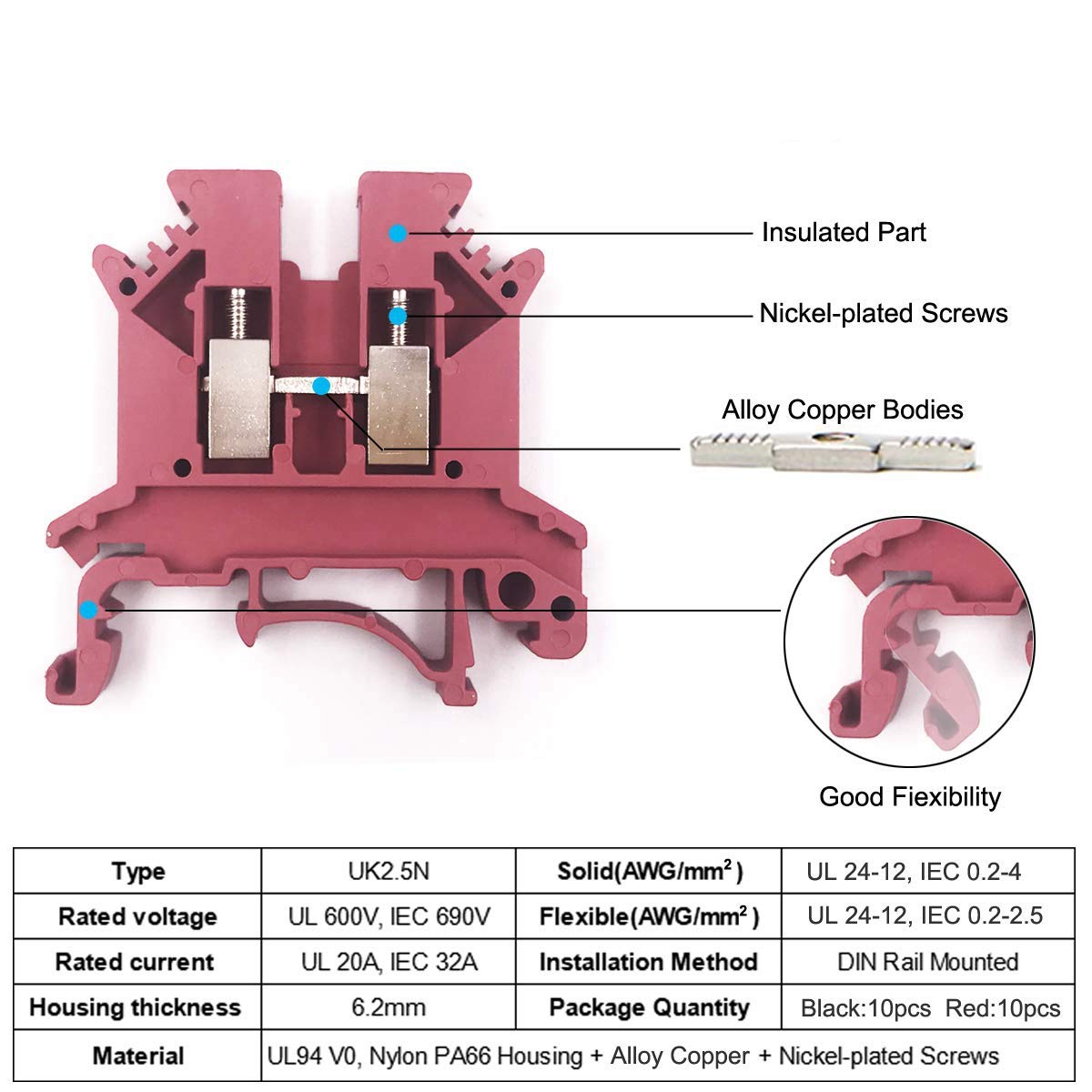

Terminal Blocks UK2.5B: It can connect two conductors with ease, even conductor sections are not a problem. Can be used on DIN Rail 35mm, steel or aluminum. Rated voltage: 600V, IEC 690V. Rated current: 20A, IEC 32A. Conductor -section, solid (AWG): 24-12 conductor -section, flexible (AWG): 24-12. Ground Terminal Blocks Connectors: Type: USLKG2.5 Ground Earth Screw Type Terminal Blocks Application:Conduct Electricity, Transmission of Electrical Signals Rated voltage: 600V, IEC 690V; Rated current: 20A, IEC 34A. wire funnel entry, Solid Wire (AWG/mm2): 24-12, IEC 0.2-4, flexible(AWG/mm2): 24-12, IEC 0.2-2.5 DIN Rail: Can be installed in all types of terminal boxes, distribution boxes, control cabinets, switchgear, complete sets of equipment, machinery and equipment. colour:Black + gray + red :Plastic + metal size:Thickness : 1.2mm/ 0.047 inch Height : 7.5mm/ 0.29 inch Length : 200mm/ 7.87 inch Width : 35mm/ 1.38 inch Package Contents: 20 * terminal blocks 2 * ground blocks 2 * 4 * E/UK end brackets 4 * UK-2.5BG end covers 1 * 8 inch aluminum RoHS Rail 4 * marker strip Only the above package content, other products are not included. Note: Light and different displays may cause the color of the item in the a little different from the real thing. The measurement allowed error is +/- 1-3cm.
