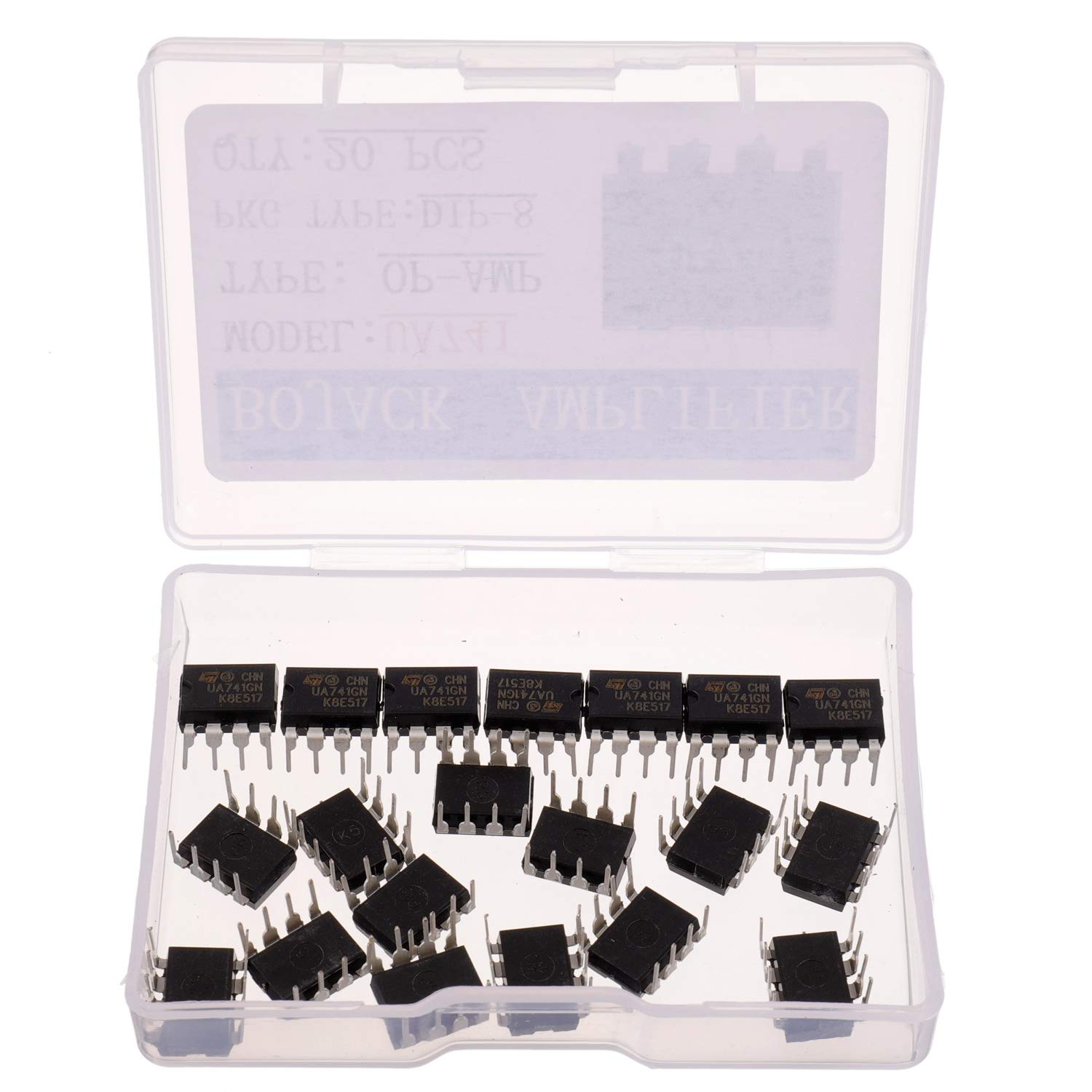

BOJACK UA741General Purpose High Gain Operational Amplifier UA741CN Single Op Amp DIP-8 (Pack of 20 pcs)

• Operating Voltage(Min/Max): 5V/40V
• Operating Current: 1.7 mA
• Operating Current(Max):2.8 mA
• Power Dissipation:500 mW
• Operating temperature range: 0 ° C ~ 70 ° C

The UA741CN (single op amp) is a high gain op amp for military, industrial and commercial applications. This monolithic silicon integrated circuit device provides output short circuit protection and latching free operation. The high common-mode input voltage range and the absence of latch-up make the amplifier ideal for voltage-follower applications. The device is short-circuit protected and the internal frequency compensation ensures stability without external components. These types also have a wide range of common modes, differential mode signal range and low offset voltage zeroing capability with the use of appropriate potentials.
