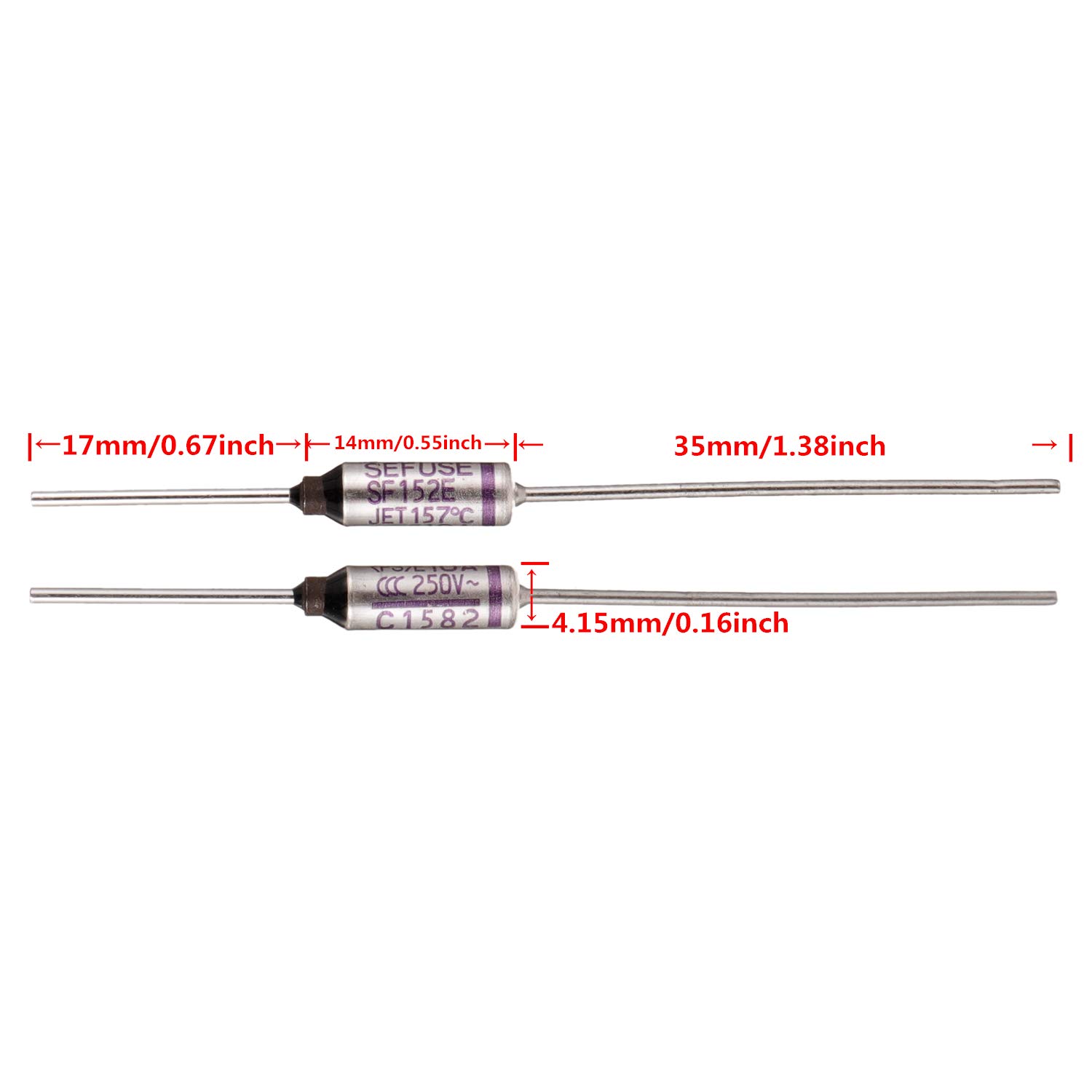

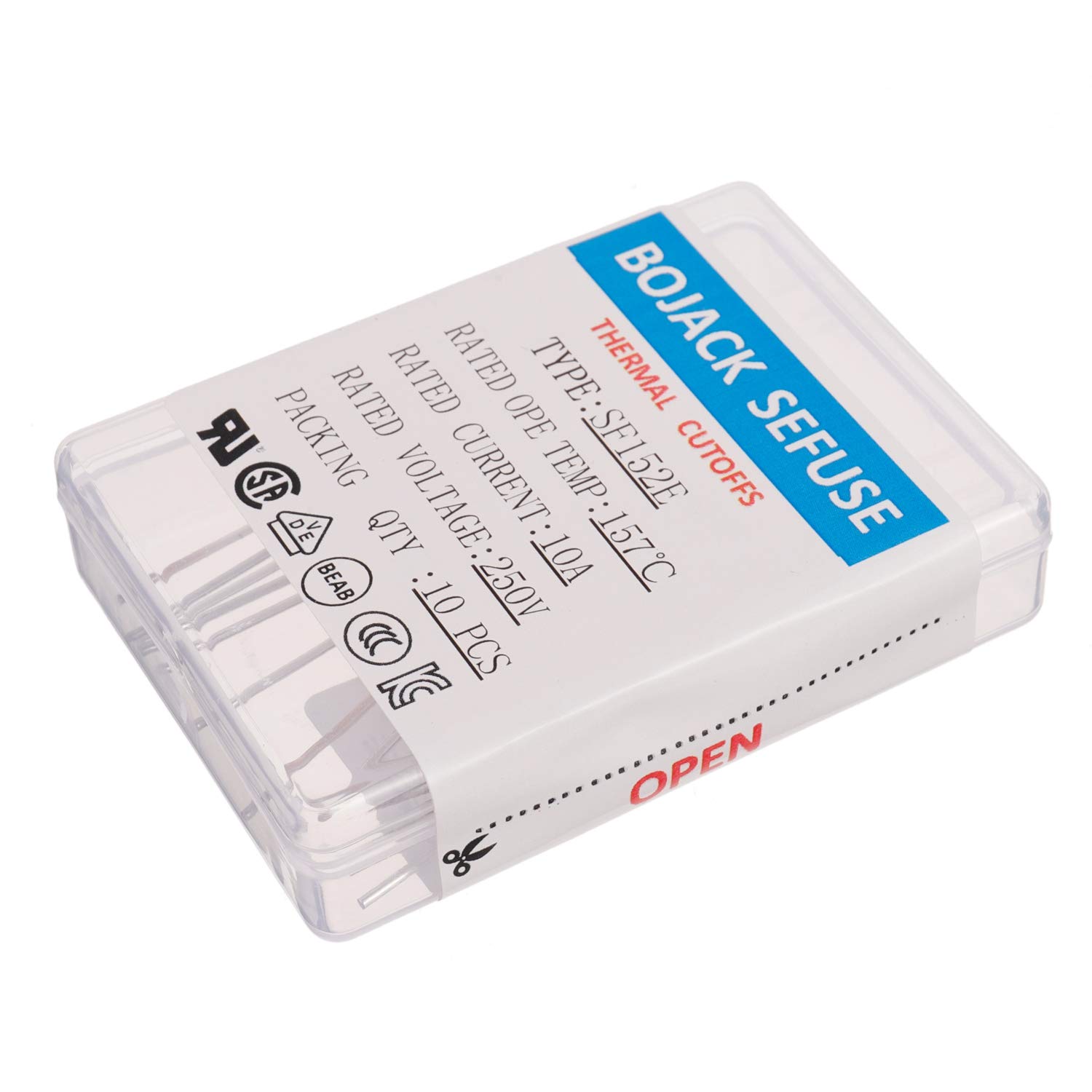

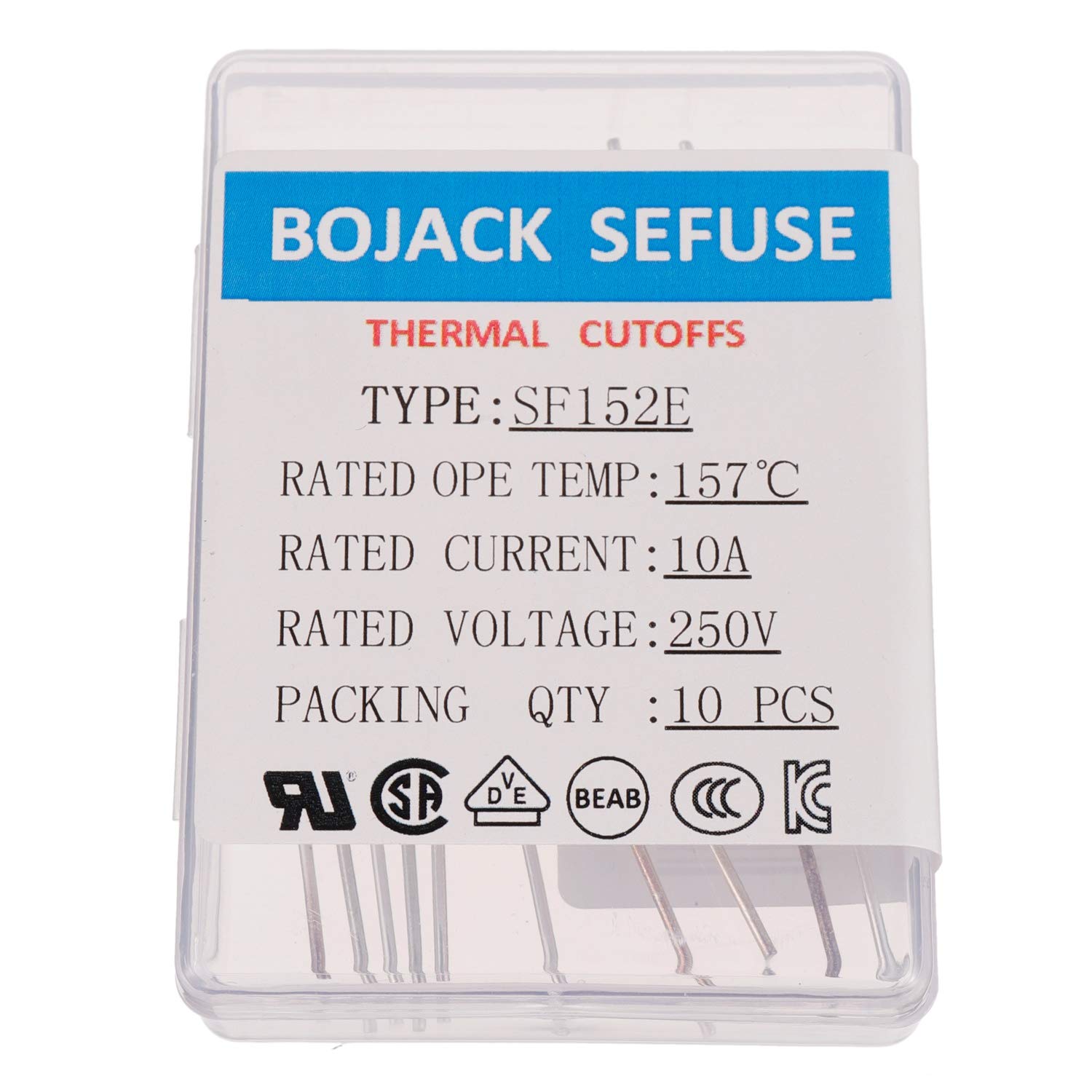

BOJACK SF152E SEFUSE 10A 250V Thermal Fuses 157 Degrees Celsius Thermal Cutoffs (Pack of 10 pcs)

• BOJACK High-Quality Organic Type Thermal Fuses
• Model : SF152E
• Rated Operating Temperature: 157 ℃
• Rated Current: 10A
• Rated Voltage: 250V / AC

BOJACK High-Quality Organic Type Thermal Fuses Thermal Fuse Characteristics: It consists of a sliding contact, a spring, and an electrically nonconductive thermal pellet. Before the thermal fuse is activated, current flows from the left lead to the sliding contact and through the metal housing to the right lead. When the external temperature reaches a predetermined temperature, the organic matter meltsand the compression spring becomes loose. That is, the spring expands and the sliding contact is separated from the left lead. The circuit is opened and the current between the sliding contact and the left lead is cut off. Widely used in:Transformers, Electric motors, Electric fans, Hair dryers, Electric irons, Rice cookers, Copiers, Electric stoves, Chargers, power taps, Water dispensers, Coffee makers etc.
