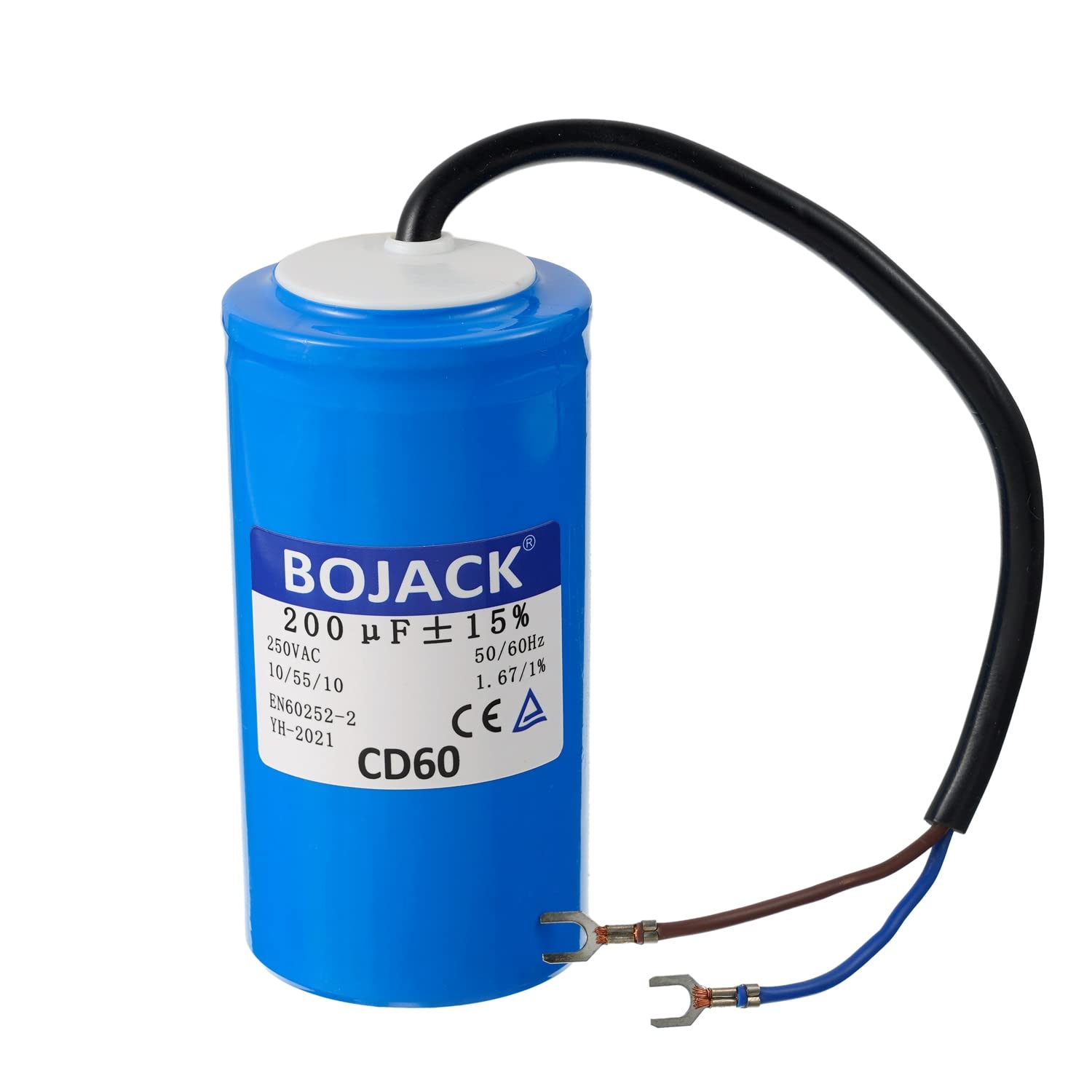

BOJACK 200 uF 250 V AC 200 MFD CD60 Start Capacitor Wire Lead Cylinder Motor Run Capacitor

• Rated Capacitance: 200 uF; Tolerance: 15 %
• Rated Voltage: 250V AC
• Rated frequency: 50/60 Hz
• Operating Temperature: -10℃ to +55℃/ +14℉ to +131℉
• Application: Motor capacitor is used in start-up of single-phase AC motors with frequency of 50Hz/60Hz, such as water pumps, compressors, motors, ceiling fans, air conditioners, washing machines and electric appliances.

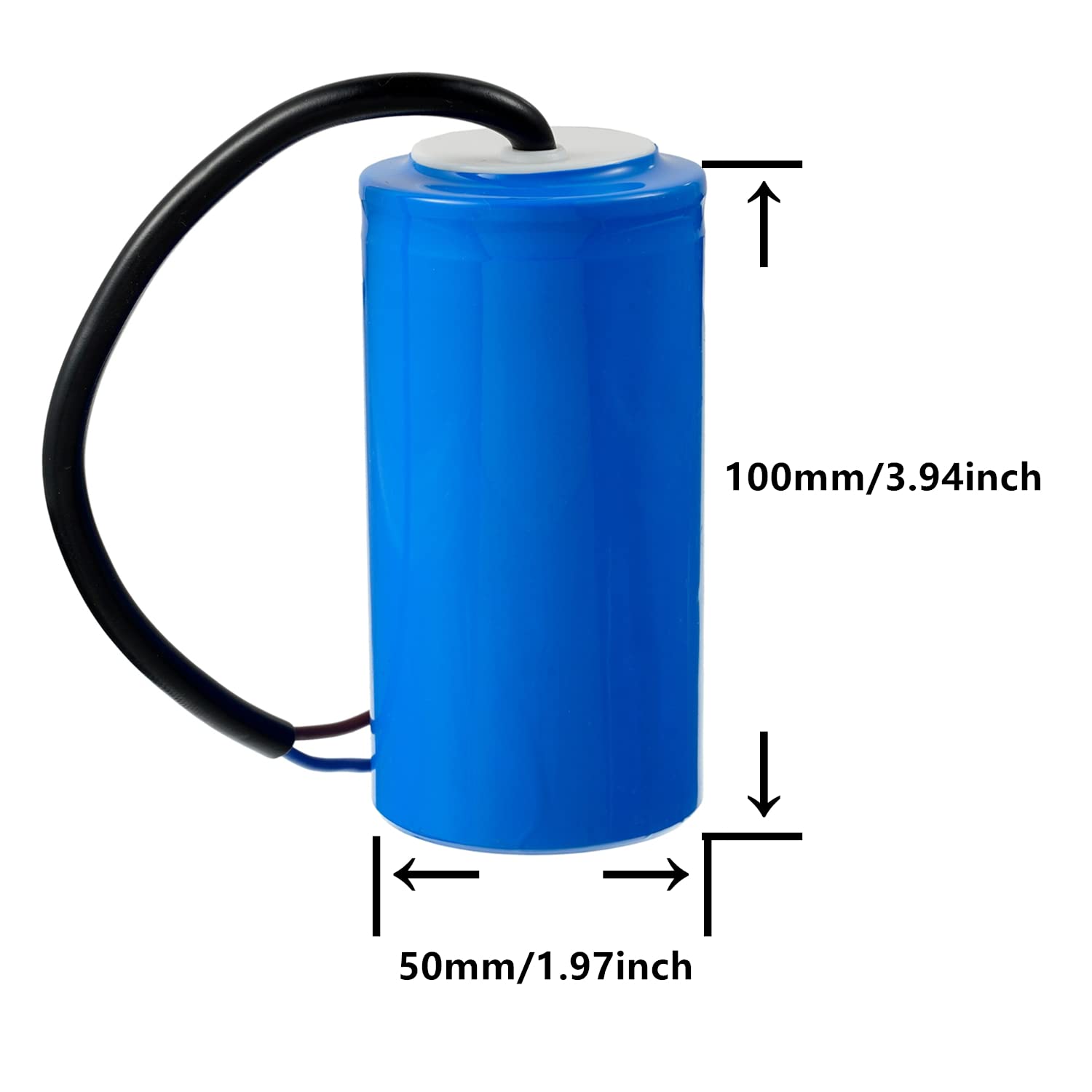

BOJACK 200 uF 250 V AC 200 MFD CD60 Start Capacitor Housing Material: plastic Dielectric Material: metallized polypropylene film Ambient Temperature: 10/55/10 Body Size: Length: 3.975 inch (100.97mm) Diameter: 1.981 inch (50.33mm) Package List: 1 pcs Motor Start Capacitor Feature: U-shaped head, aluminum shell paper core. Run capacitor has features of good self-healing properties, fully sealed with epoxy resin, safety explosion-proof device, good electrical properties, strong overload capacity, high insulation resistance, heat resisting, low leakage, low dissipation, low impedance and high stability.
