BOJACK 12 Values 60 pcs 100 to 500K ohm 3296W Multiturn Trimmer Potentiometer Assortment Kit

• BOJACK High Quality 3296W Multiturn Trimmer Potentiometer Assortment Kit
• Rated power: 0.5 W
• Max Operating Voltage: 300 V

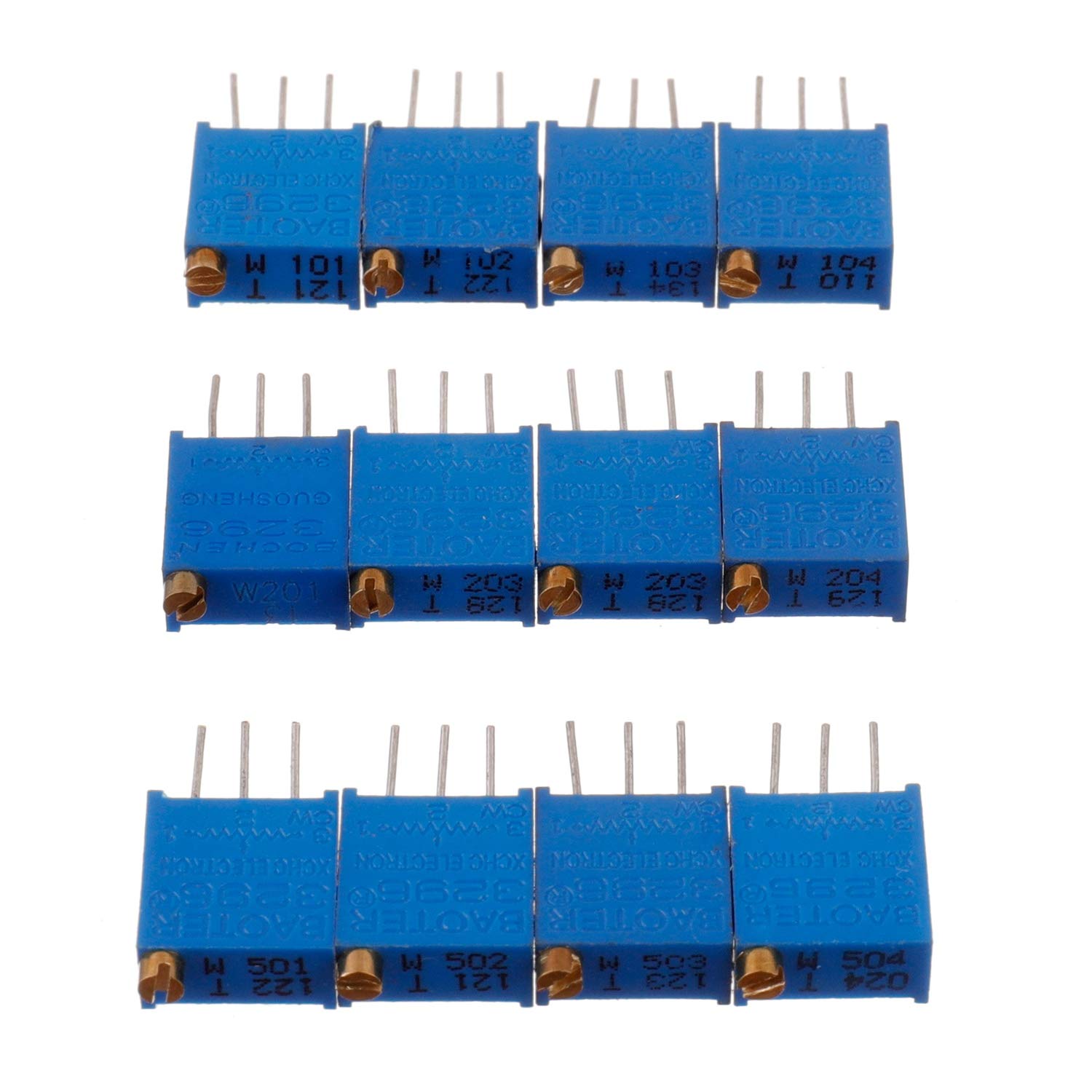

• Potentiometer Model:12 Type-100Ω (101), 1KΩ (102), 10KΩ (103), 100KΩ (104), 200Ω (201), 2KΩ (202), 20KΩ (203), 200KΩ (204), 500Ω (501), 5KΩ (502), 50KΩ (503), 500KΩ (504)

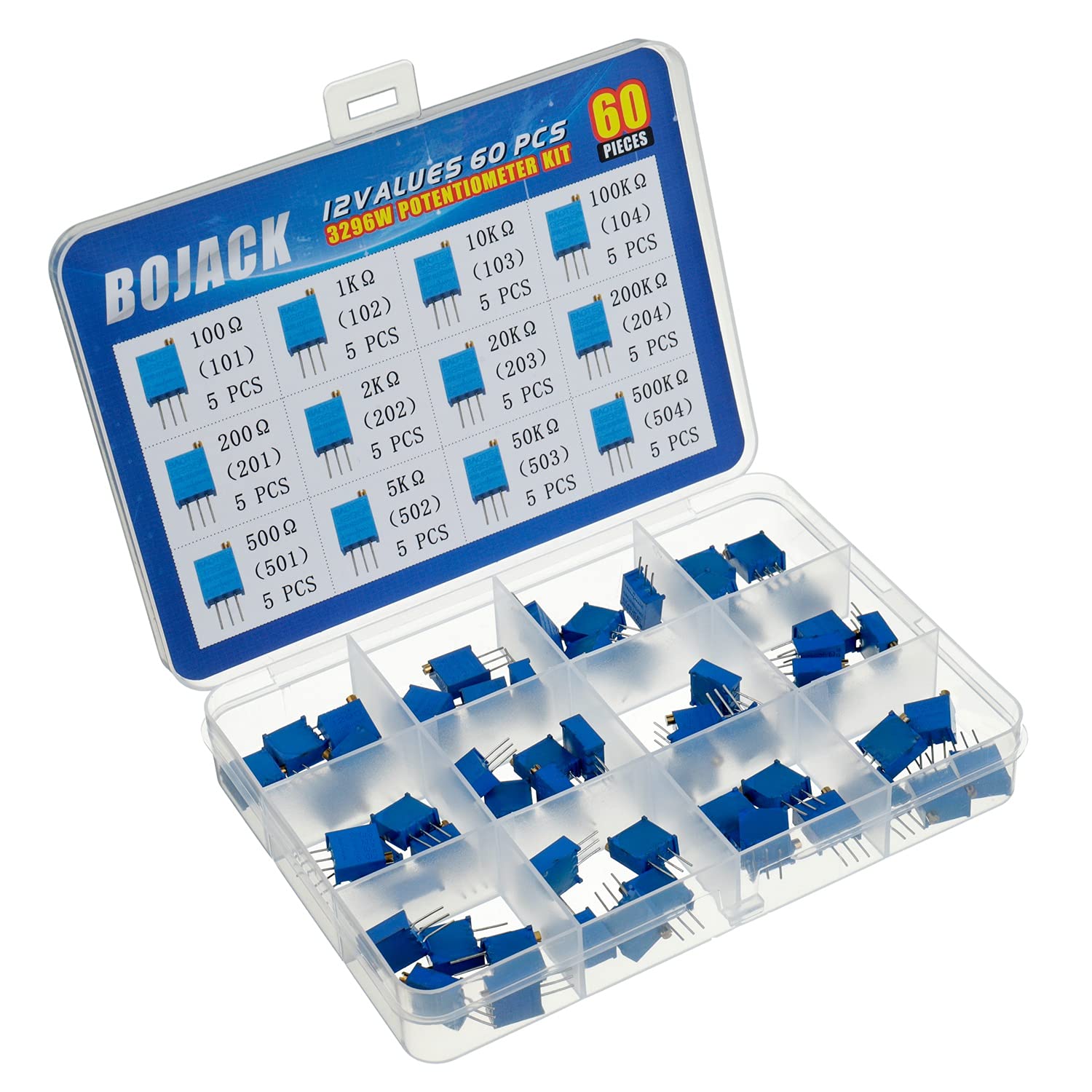

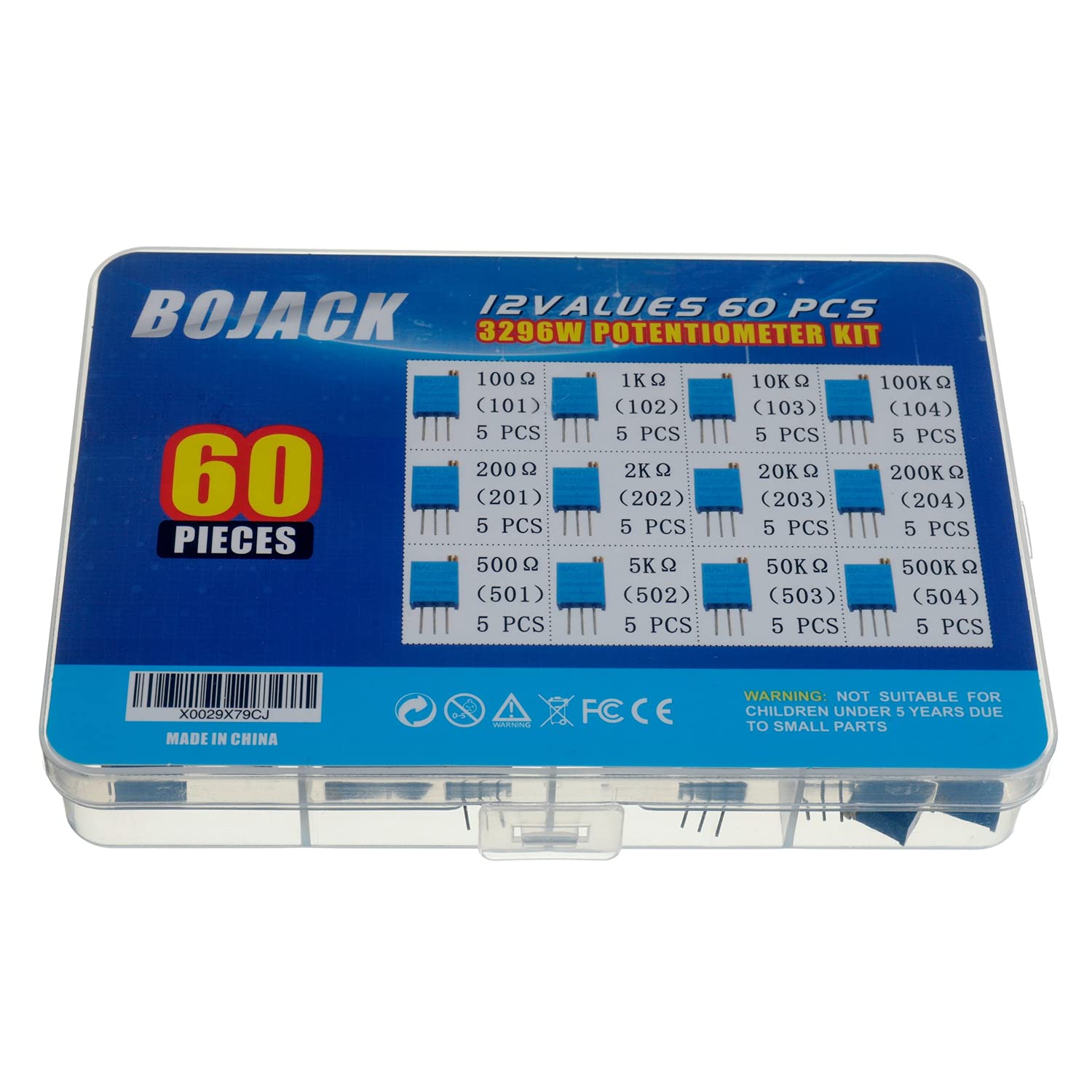

• Package Quantity: 60 pcs (Each model 5 pcs), Packed in A plastic storage case

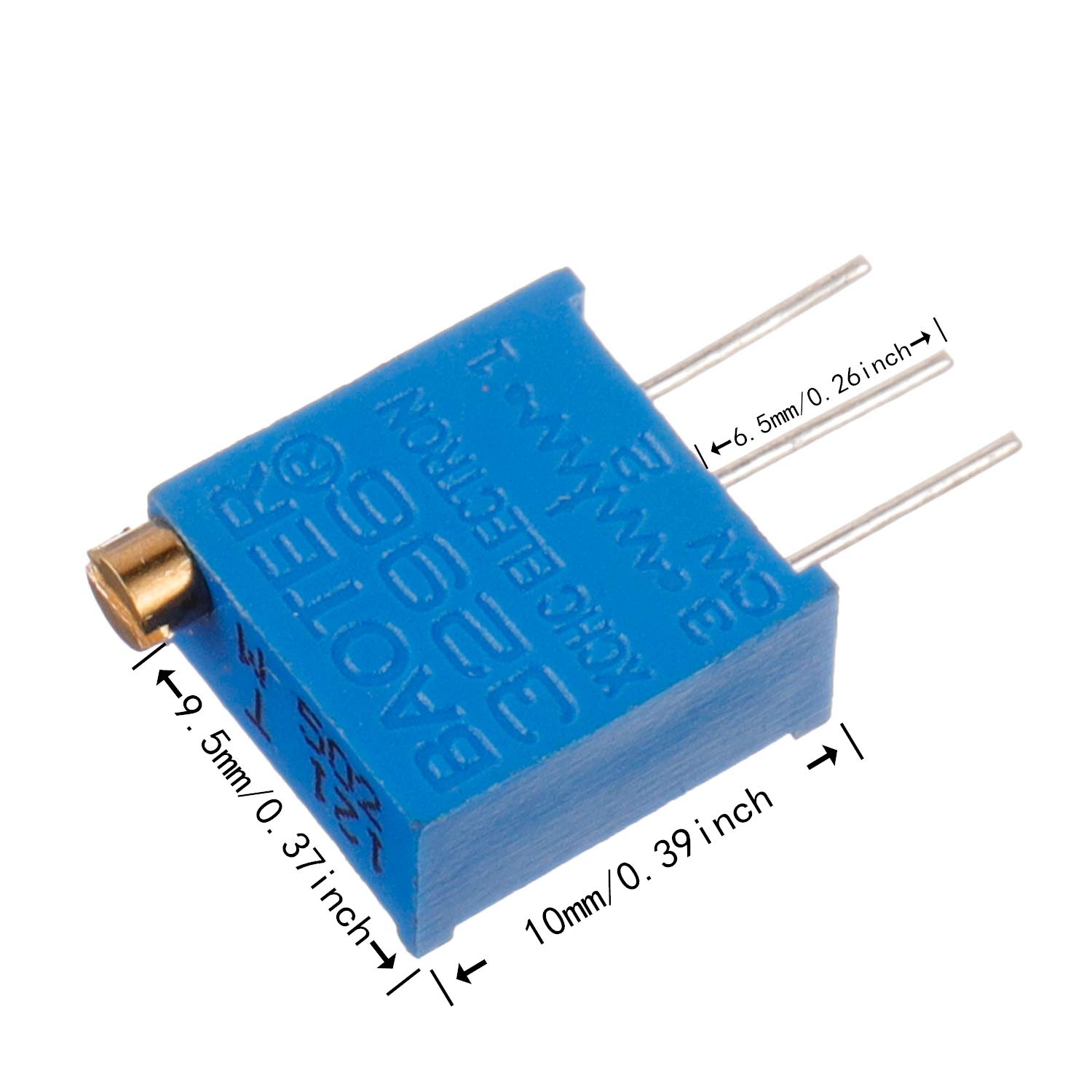

BOJACK 60 pcs High Quality 3296W Multiturn Trimmer Potentiometer Assortment Kit 3296W potentiometer physical characteristics: Total mechanical properties: 28± 2turns Starting torque: ≤36mNm Stop torque: ≥36 mNm Potentiometer performance: Resistance range (Ohms): 100~500K Operating temperature range: -55°C ~+125°C Temperature coefficient: ±200ppm/°C Resistance deviation: ±10% Resistance change characteristics: B Terminating resistor: ≤1%R or 2Ω Contact resistance change: ≤3%R or 3Ω Insulation resistance: R1≥1GΩ Withstand voltage: 101.3Kpa 600V, 8.5Kpa 250V Effective electric stroke: 25± 2turns Product Description: 101--------100Ω----5 pcs 102--------1KΩ -----5 pcs 103--------10KΩ----5 pcs 104--------100KΩ--5 pcs 201--------200Ω----5 pcs 202--------2KΩ------5 pcs 203--------20KΩ----5 pcs 204--------200KΩ--5 pcs 501--------500Ω-----5 pcs 502--------5KΩ-------5 pcs 503--------50KΩ-----5 pcs 504--------500KΩ---5 pcs
