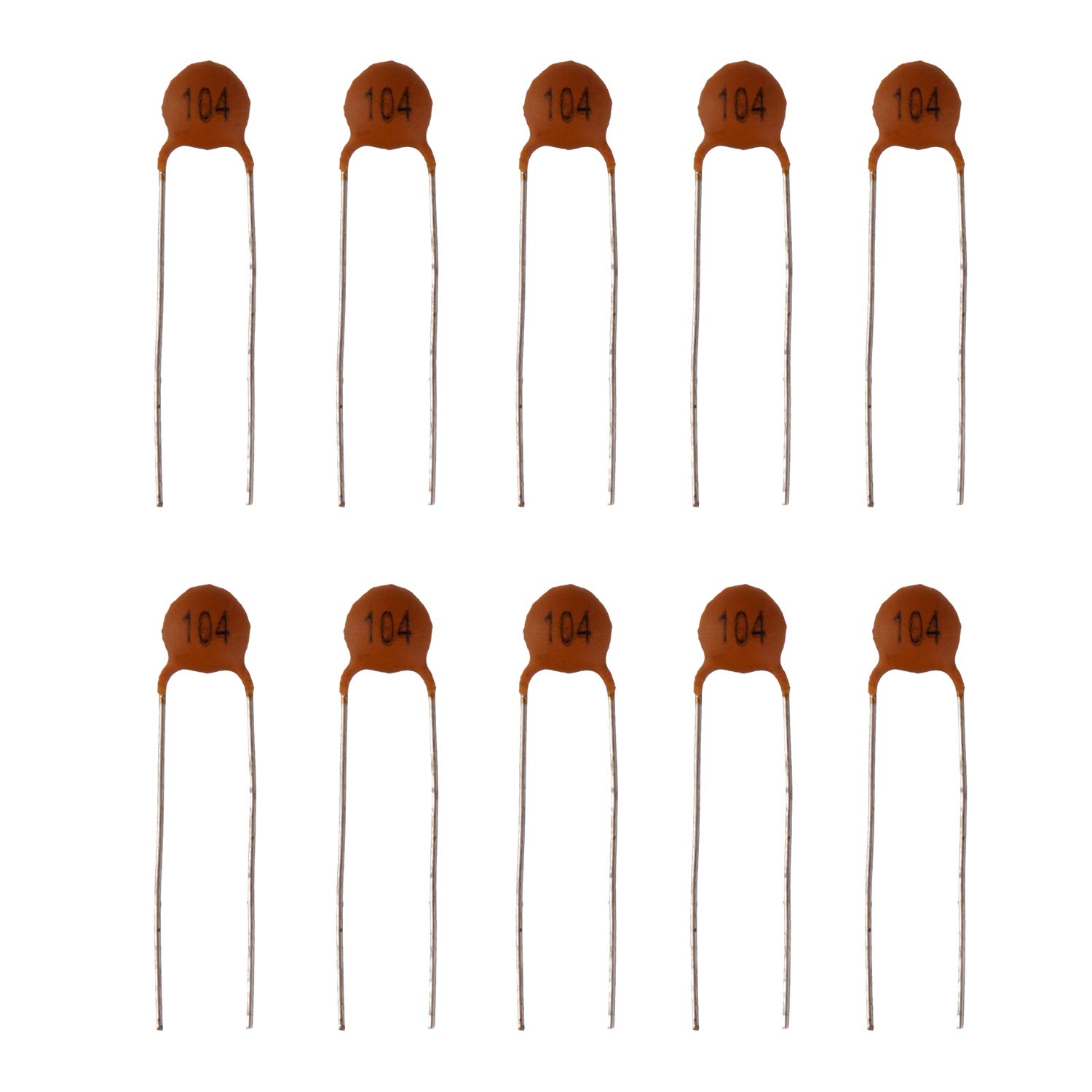

BOJACK 0.1uF 50V Ceramic Disc Capacitors 100nF Low-voltage high dielectric constant ceramic capacitor(Pack of 50 Pcs)

• Nominal capacity: 100nF (0.1uF)
• Capacity value code: 104
• Rated voltage: 50V
• Withstand voltage: 75V
• Body diameter code: 5 (diameter 4.6~5.5mm)

BOJACK 0.1uF 50V Ceramic Disc Capacitors Ceramic Capacitors Features : Category: Low-voltage high dielectric constant ceramic capacitor Nominal capacity: 100nF (0.1uF) Capacity value code: 104 Rated voltage: 50V Withstand voltage: 75V Body diameter code: 5 (diameter 4.6~5.5mm) Operating temperature range: -30 ° C ~ +85 ° C Temperature coefficient code and temperature coefficient value: Y5P (±10%) Pin Spacing: 2.5mm ± 0.5mm Encapsulation form: phenolic encapsulation Insulation resistance: Ri>4000 M ohm Lead-free This type of capacitor is a non-polar capacitor that acts as a coupling and bypass in the circuit. 1.DC blocking: The function is to prevent DC from passing and let the AC pass. 2.Bypass (decoupling): Provides a low impedance path for some of the parallel components in the AC circuit. In the electronic circuit, the decoupling capacitor and the bypass capacitor both play an anti-interference function. The position of the capacitor is different, and the calling is different. 3.For the same circuit, the bypass capacitor uses the high-frequency noise in the input signal as the filtering object to filter the high-frequency noise carried by the pre-stage, and the decoupling capacitor is also called decoupling. Capacitance is to filter the interference of the output signal.
