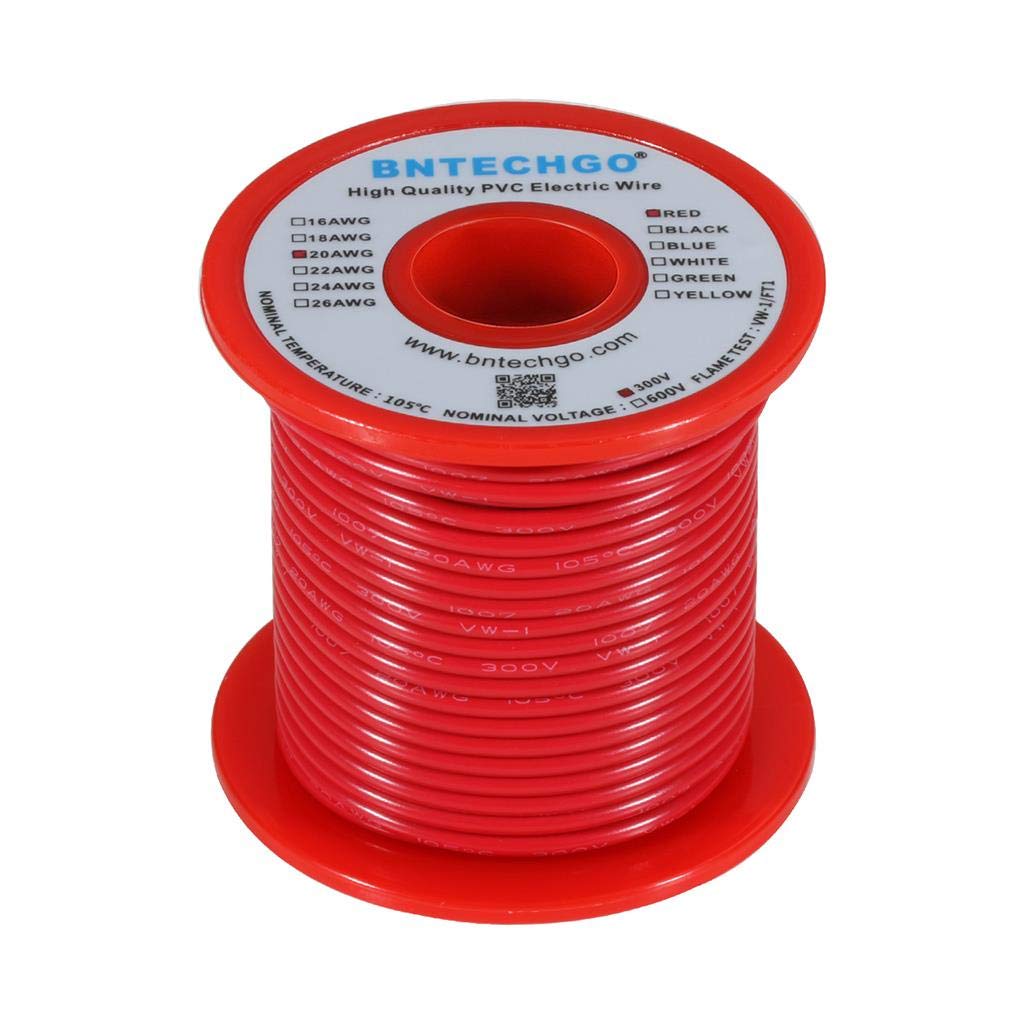

BNTECHGO 20 AWG 1007 Electric wire 20 Gauge PVC 1007 Wire Stranded Wire Hook Up Wire 300V Stranded Tinned Copper Wire Red 100 ft Per Reel For DIY

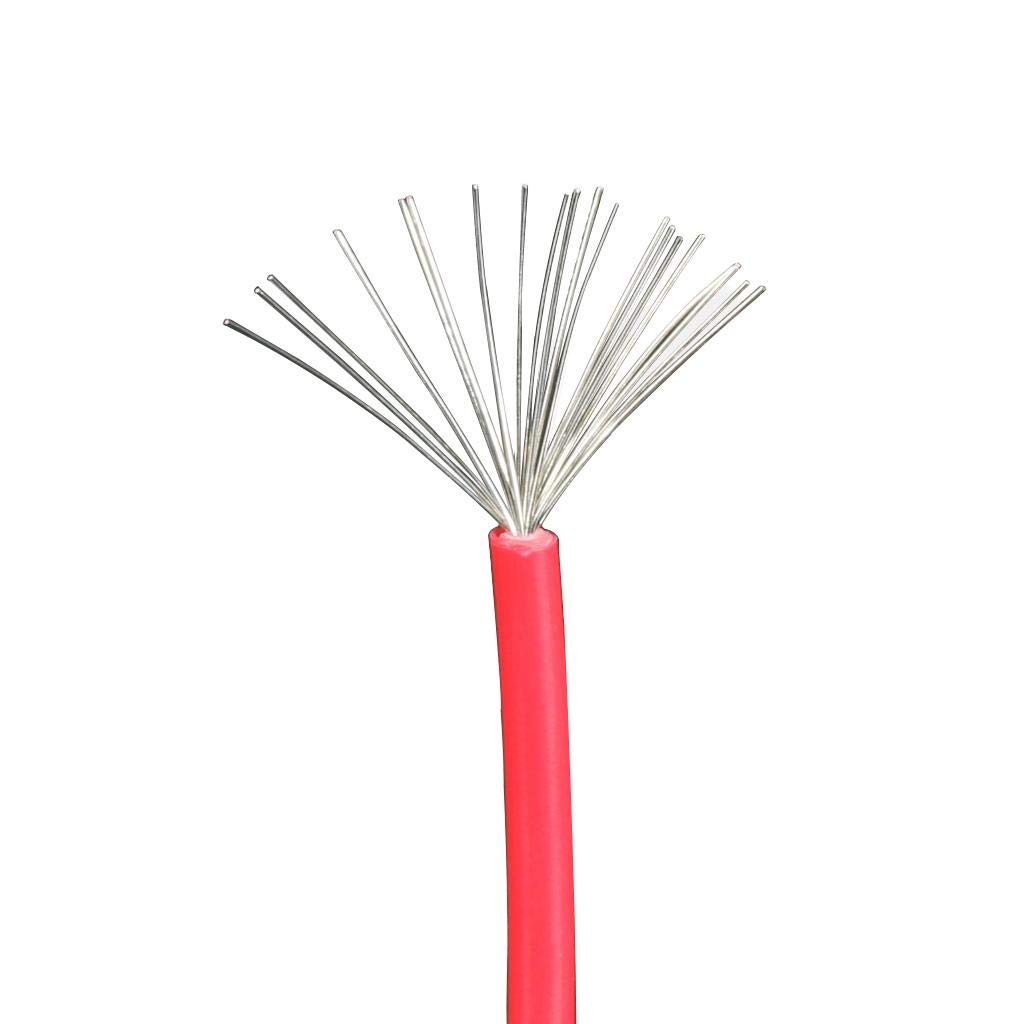

• Flexible 1007 20 AWG Hook-Up Wire: Stranded tinned copper conductor with a PVC sheath.
• Good abrasion resistance and resistance to substances such as oil,solvents and chemicals: PVC Insulation that can withstand heats of up to +105°C.
• Easy handling,stripping,and termination: Low-fray design.
• Flame retardant: VW-1.
• This hook-up wire is recommended for internal wiring of electrical or electronic equipment.

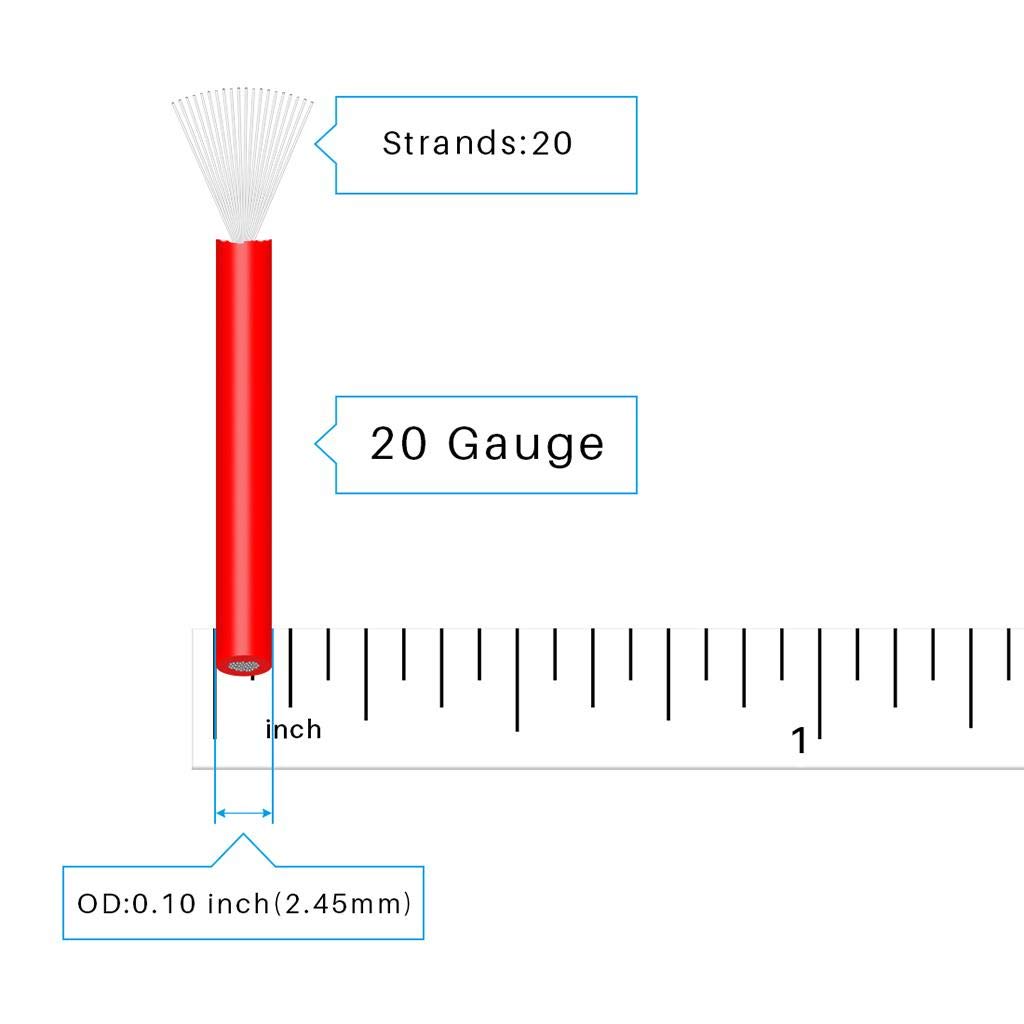

Features Flexible 1007 20 AWG Hook-Up Wire: Stranded tinned copper conductor with a PVC sheath. Good abrasion resistance and resistance to substances such as oil,solvents and chemicals: PVC Insulation that can withstand heats of up to +105°C. Easy handling,stripping,and termination: Low-fray design. Flame retardant: VW-1. This hook-up wire is recommended for internal wiring of electrical or electronic equipment. Specifications Conductor AWG: 20 Conductor Material: Tinned Copper Conductor Construction: Stranded 20×0.18±0.008mm² Conductor OD: 0.93±0.08mm Insulation: PVC(Polyvinylchloride) Over Dia.: 2.45±0.1mm Jacket Colour: Red Rated Temperature: 105°C Rated Voltage: 300V FLAME TEST: VW-1 Packaging: Red 100ft per reel
