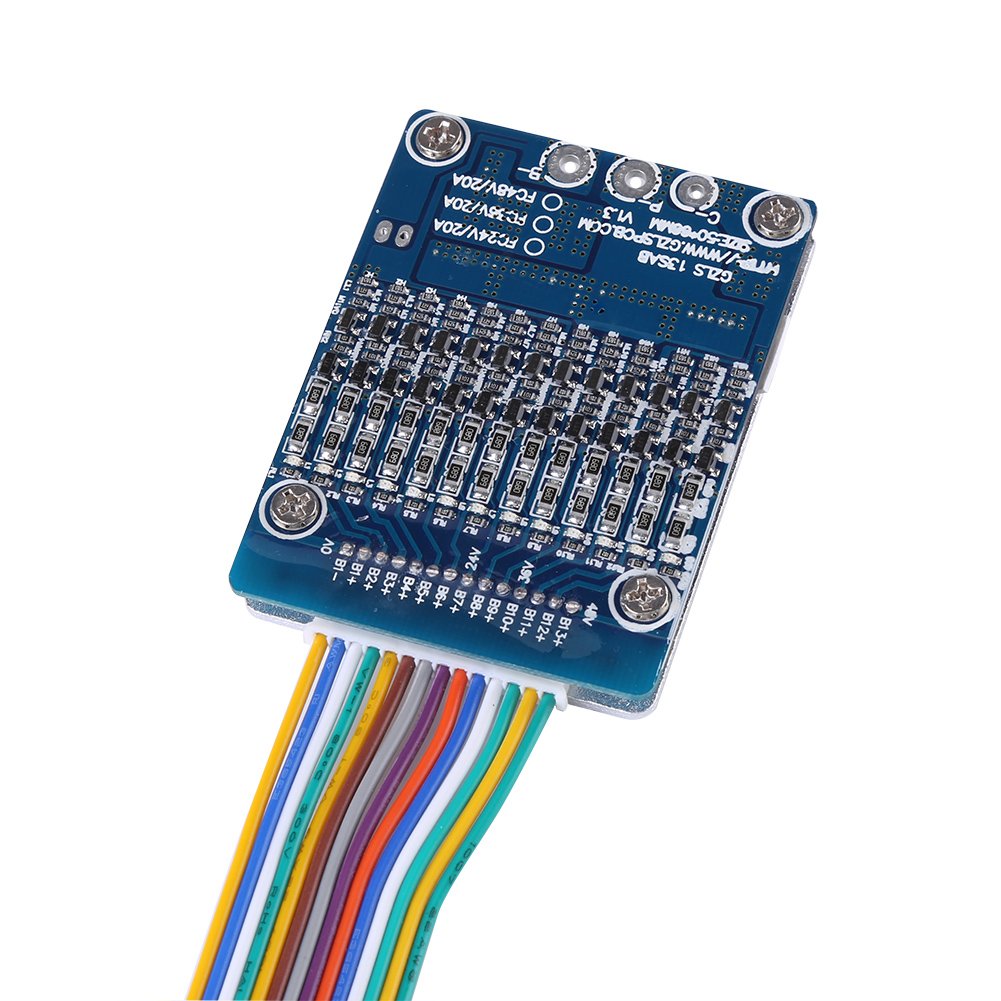

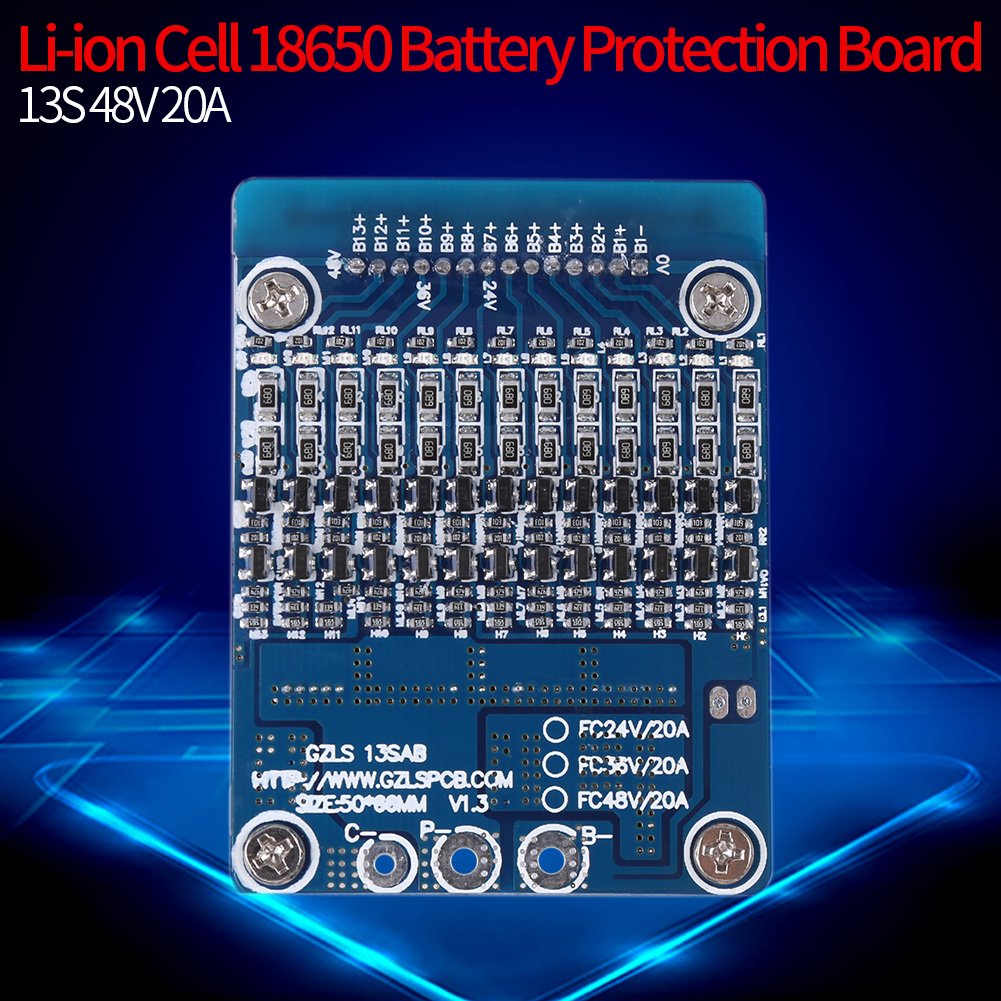

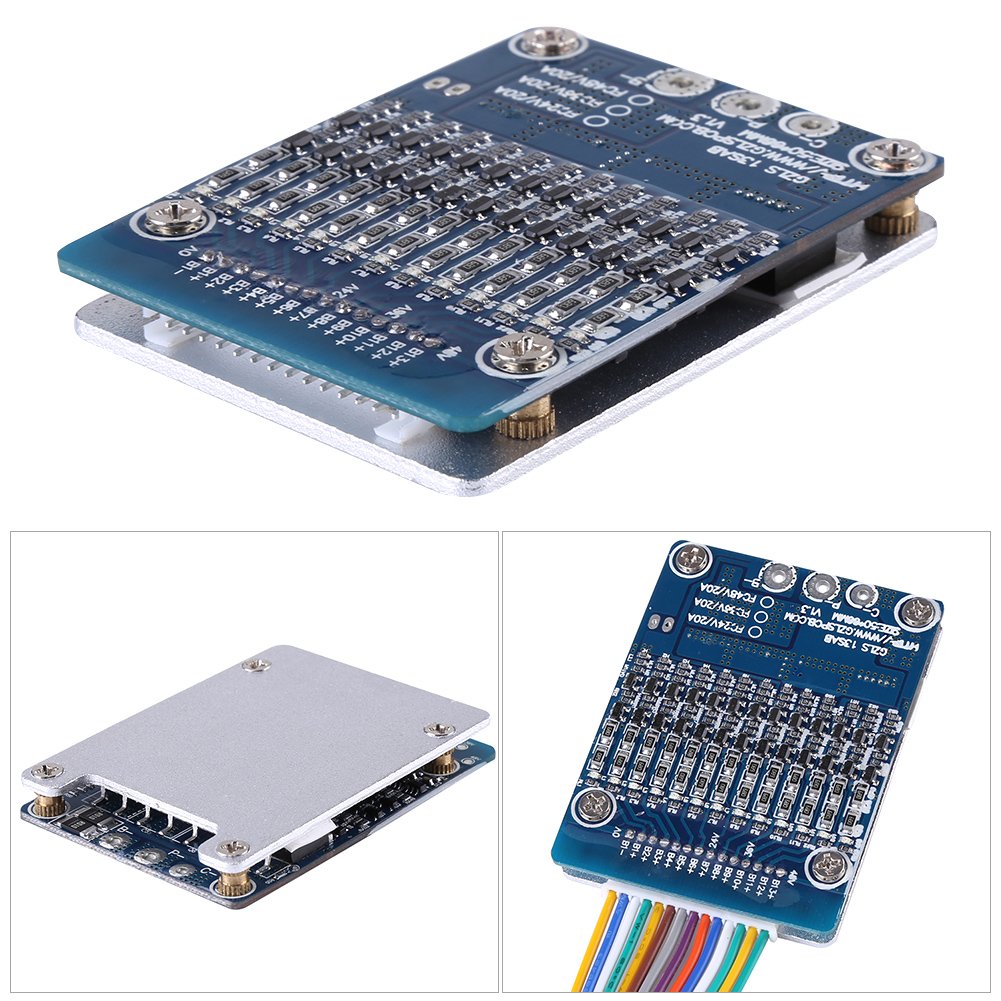

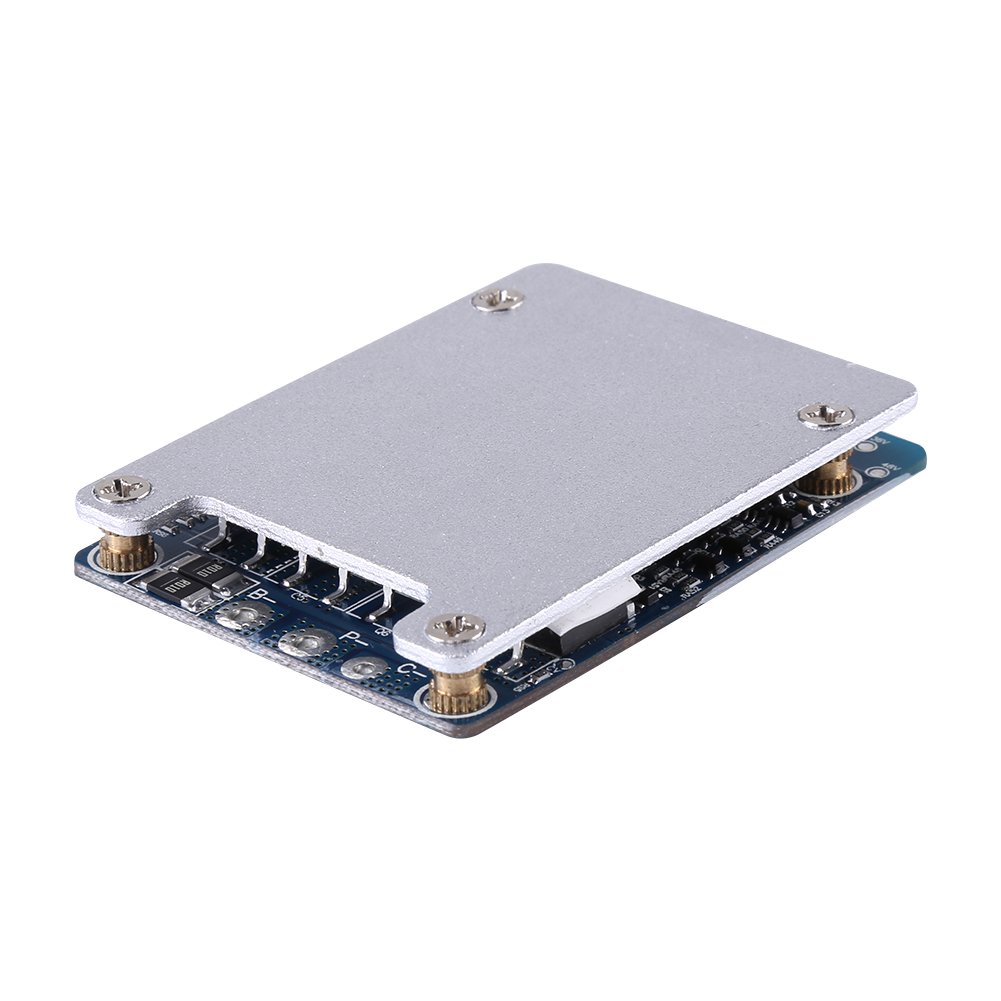

PCB, Li-ion Cell Battery Board 13S 48V 20A PCB Board Overcharge 18650 Lithium Battery Board

• ➣➣➣ Stable ： It has balance function which would ensure each battery cell being fully charged at the same time
• ➣➣➣ Current ： Charging connector and discharging connector are separated, continuous discharging current is 20A, Short Circuit Current is 60A
• ➣➣➣ Multiple ： Support overcharge protection, over-discharge and short circuit protection, ensure safety charging process, enhance use time
• ➣➣➣ Good Performance ： Stable various charging and discharging protective functions are great for 13S battery
• ➣➣➣ Wide Application ： The board is for 13 series cell Li-ion batteries, it can be used for ternary batteries, manganese acid batteries and cobalt acid batteries

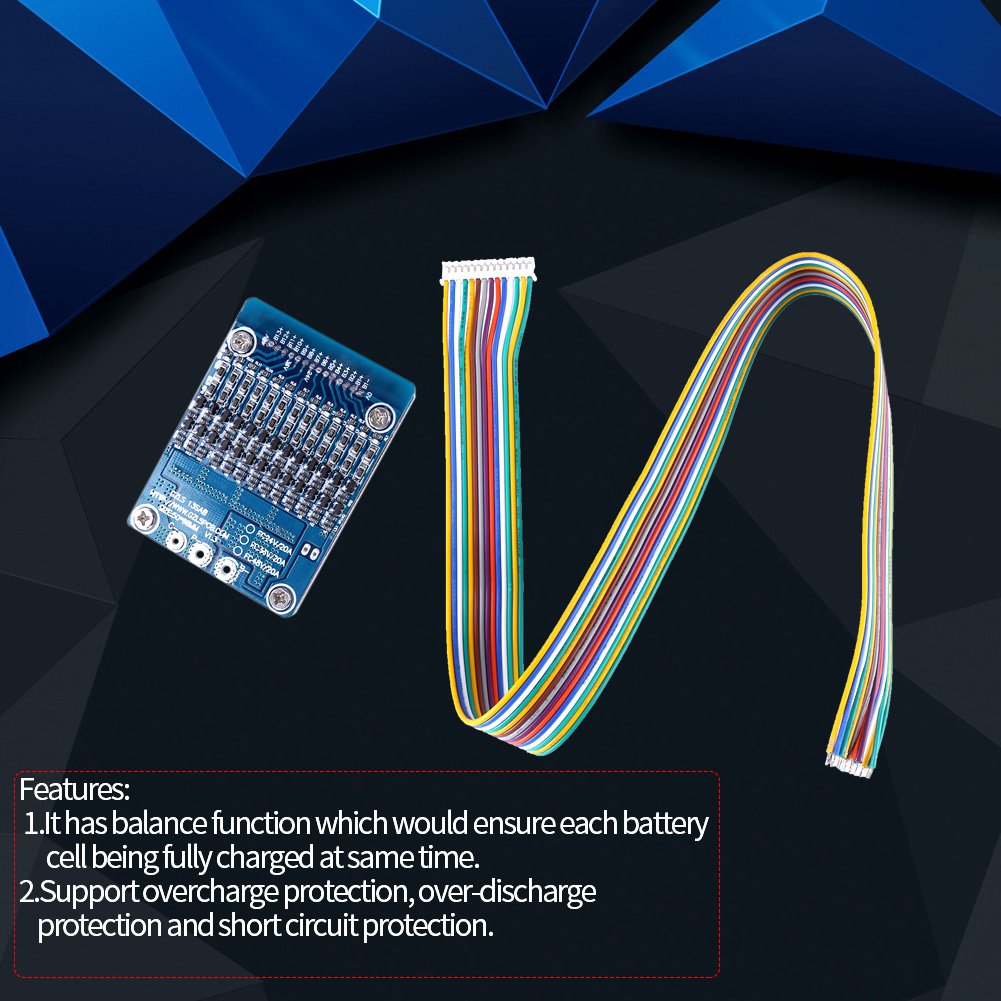

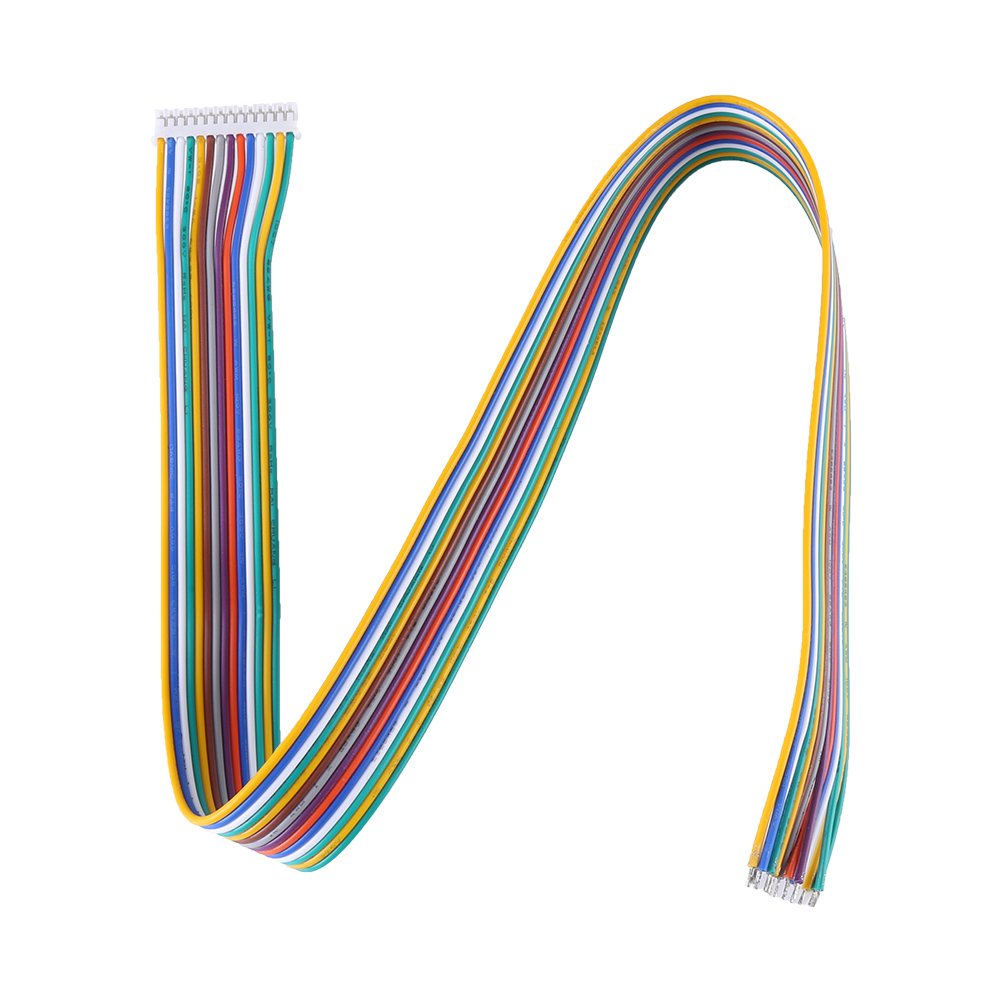

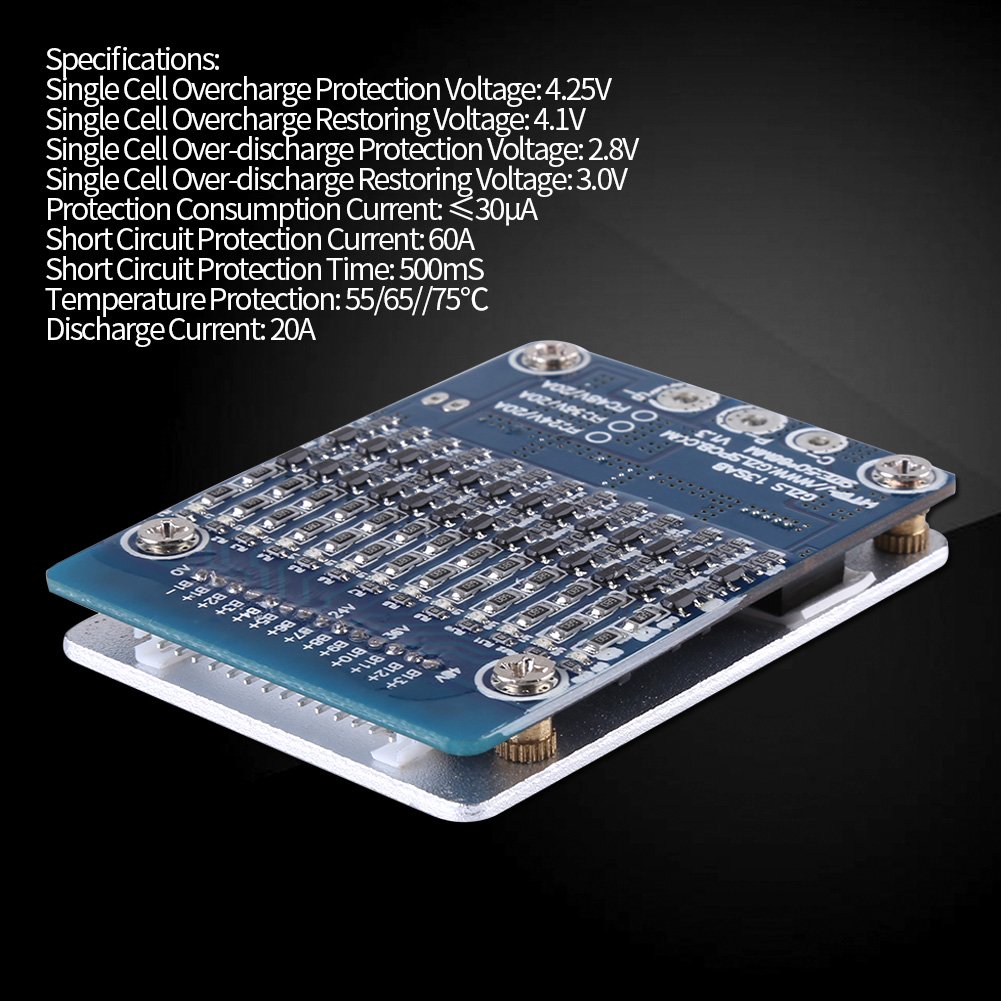

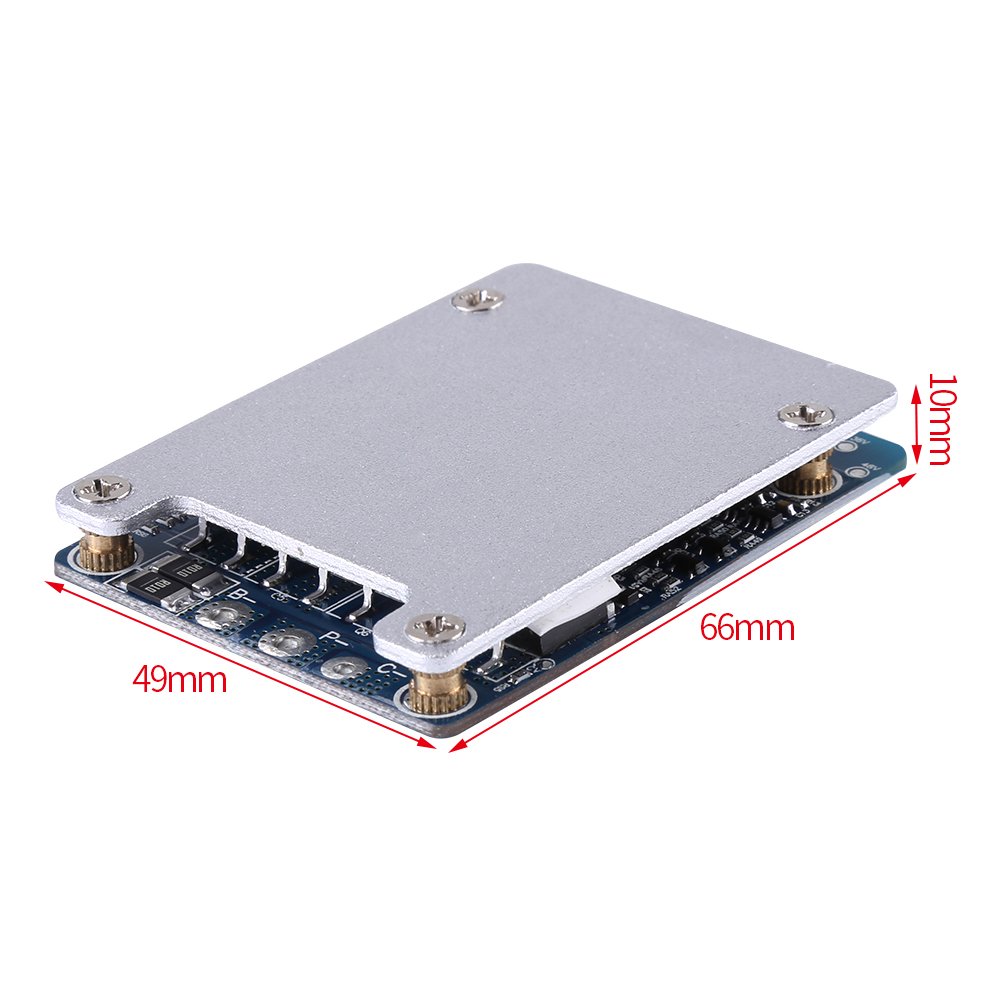

Features: The board is for 13 series cell Li-ion batteries, it can be used for ternary batteries, manganese acid batteries and cobalt acid batteries. Charging connector and discharging connector are separated, continuous discharging current is 20A. It has balance function which would ensure each battery cell being fully charged at same time. Support overcharge protection, over-discharge and short circuit Stable various charging and discharging protective functions are great for 13S battery Specifications: Size: 66*49*10mm/2.59*1.93*0.39" Single Cell Overcharge Voltage: 4.25V Single Cell Overcharge Restoring Voltage: 4.1V Single Cell Over-discharge Voltage: 2.8V Single Cell Over-discharge Restoring Voltage: 3.0V Consumption Current: 30μA Short Circuit Current: 60A Short Circuit Time: 500mS Temperature 55/65//75 Discharge Current: 20A Single Cell Equilibrium Voltage: 4.18V Single Cell Equilibrium Current: 30mA Package Includes: 1 x Board 1 x Cable
