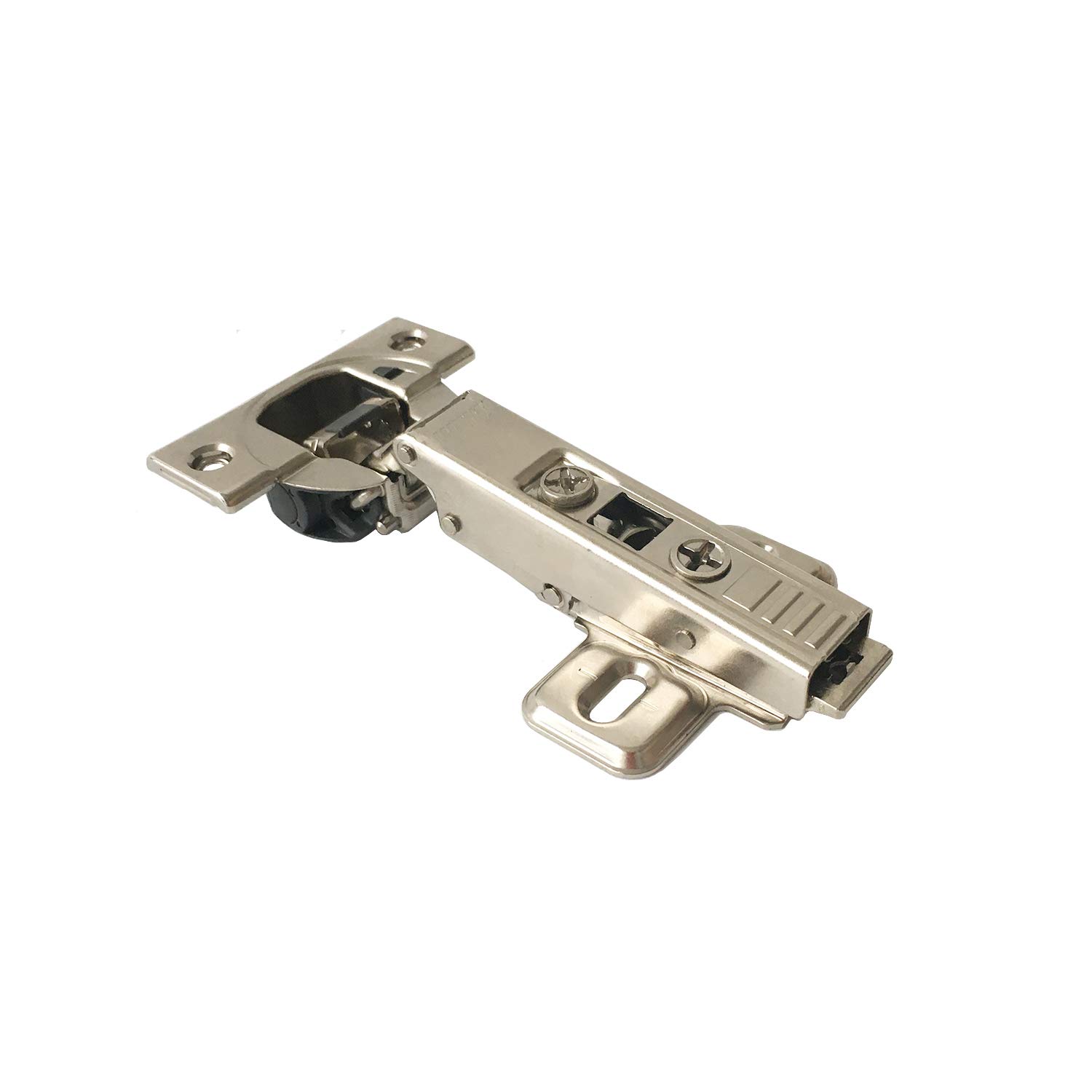

Blum Clip Top BLUMOTION 110 Degree Standard Hinges Kitchen Cabinet Cupboard Door Hinge 71MB3550 Self Slow Close Mechanism Hinge Made in Austria Full Overlay, Pack of 2

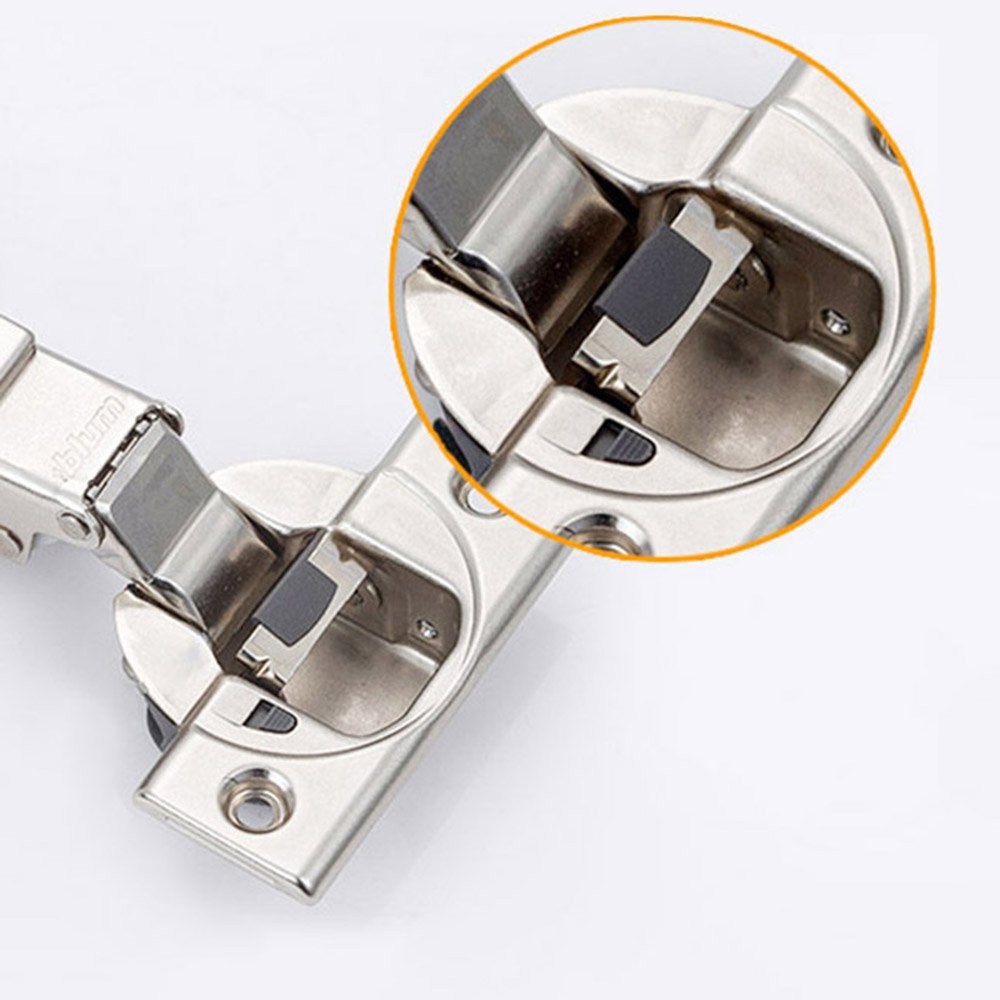

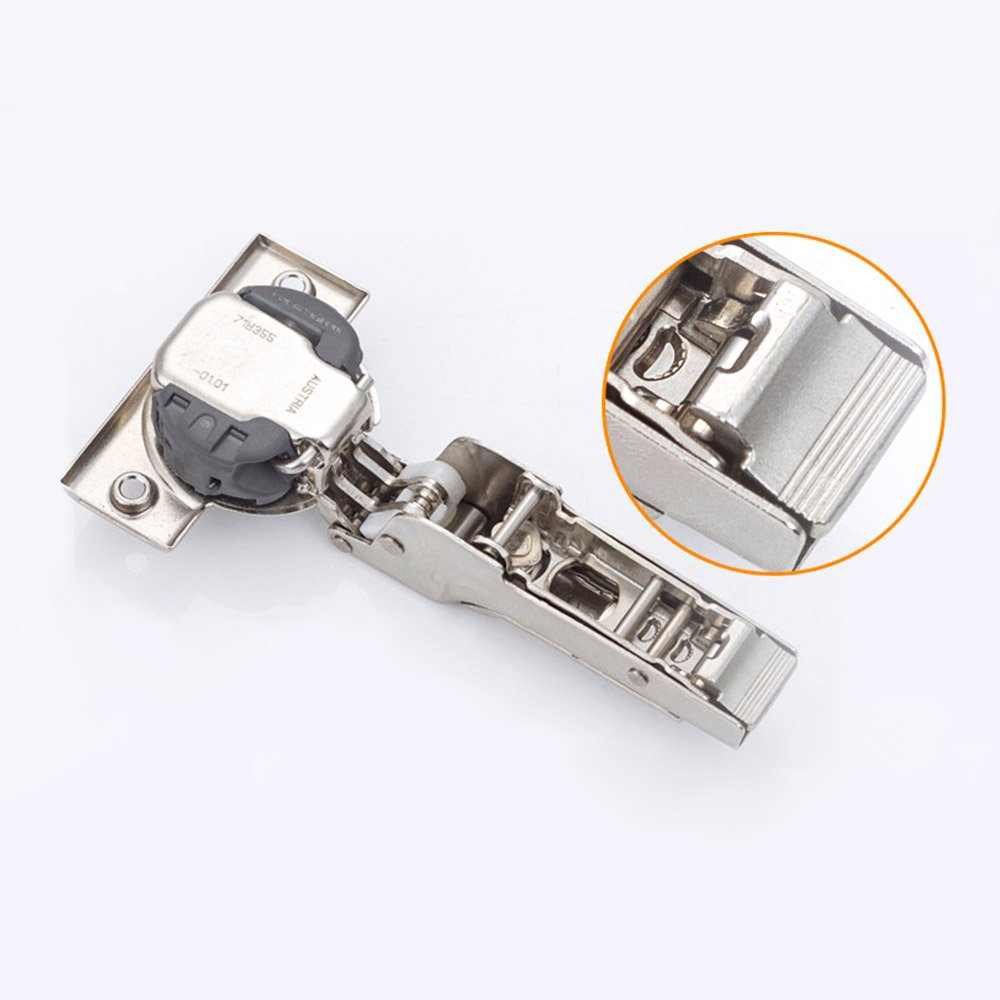

• CLIP top BLUMOTION with integrated BLUMOTION (With Deactivation option)

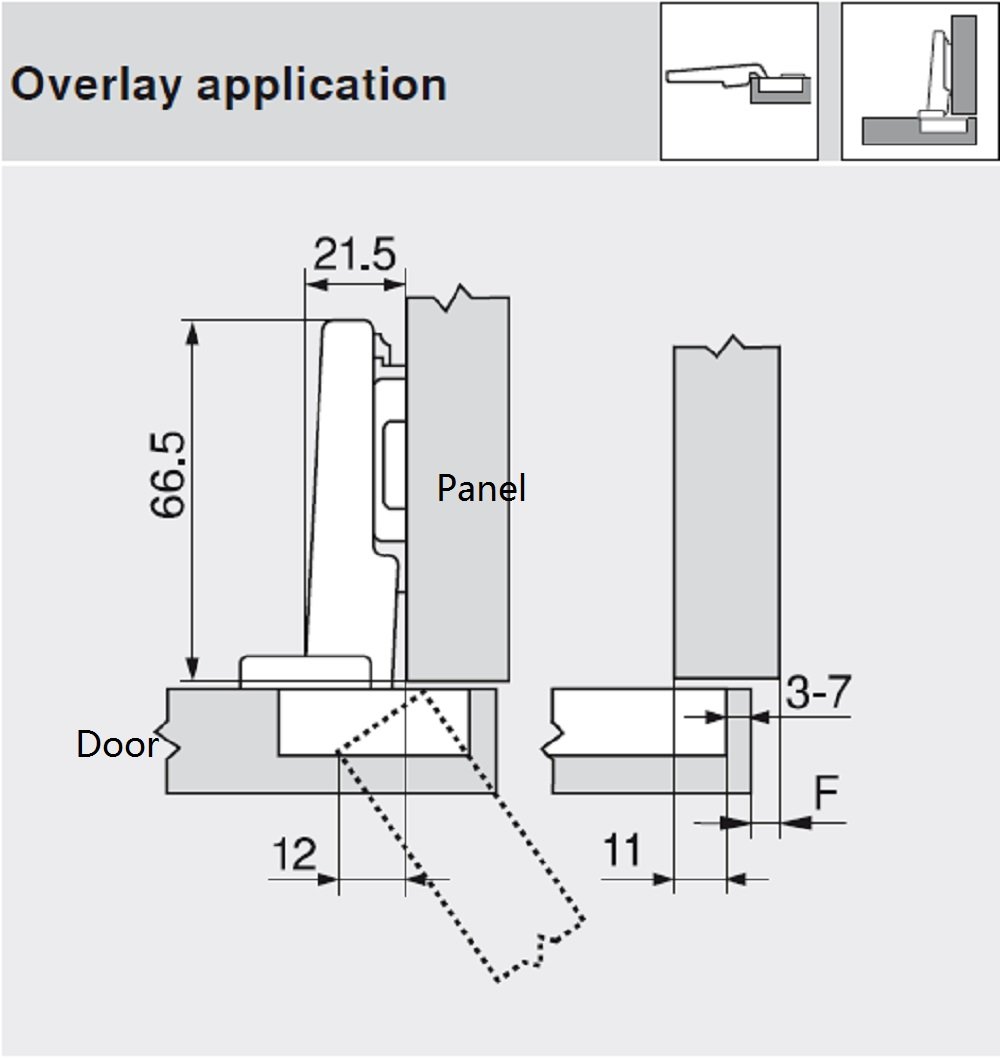

• For full overlay application
• All Steel hinges, nickel plated; 110° opening angle
• Infinitely variable 3-dimensional front adjustment; Convenient spiral-tech depth adjustment
• Tool-free door to cabinet replacement assembly and removal; With INSERTA tool-free hinge to door assembly

Please figure out the type of your hinge application (FULL OVERLAY, HALF OVERLAY, INSET) first before you purchase, which are very important. Product Dimension -Order no.: 71MB3550 -Material: steel -Opening angle (°): 110 Degree -Cup diameter: 35mm -Cup Depth: 13mm -DISTANCE between the two screw holes (next to the cup): 45mm -Mounting option: for screwing on -Door mounting option: full overlay application -For door thickness: 15mm (min) – 24mm (max) -Integrated overlay adjustment: +2 mm / -2 mm -Integrated depth adjustment: +3 mm/ -2 mm -Height adjustment at mounting plate -Hinge cup/arm finish: Steel nickel-plated -Cover cap for carcass: NO -Fast installation: Yes -Stay closed function: Yes Advantages -BLUMOTION integrated into the hinge boss – deactivation possible -Inspiring ease of motion for every door -The ultimate in design elegance -Compatible with existing mounting plates -CLIP top BLUMOTION 110° hinge pivoting point for thicker doors up to approx. 24 mm Standard Package -Cabinet Hinges: 2 Pieces -Coming with fixing screws -No Mounting Instruction and Processing Information (See Pictures Above) Note -These hinges are an essential when you are constructing cabinets or repairing the ones you have. They are quite easy to install and hold the doors as securely as necessary
