Blum Clip Top BLUMOTION 110 Degree Standard Hinge Kitchen Cabinet Cupboard Door Hinges 71MB3650, Self-Close Mechanism Hinges, Half Overlay/Dual Fast Assembly Buffering Hinge Made in Austria Pack of 2

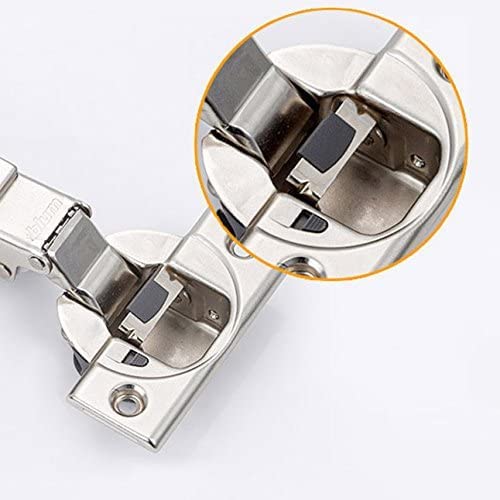

• CLIP top BLUMOTION with integrated BLUMOTION (with deactivation option)

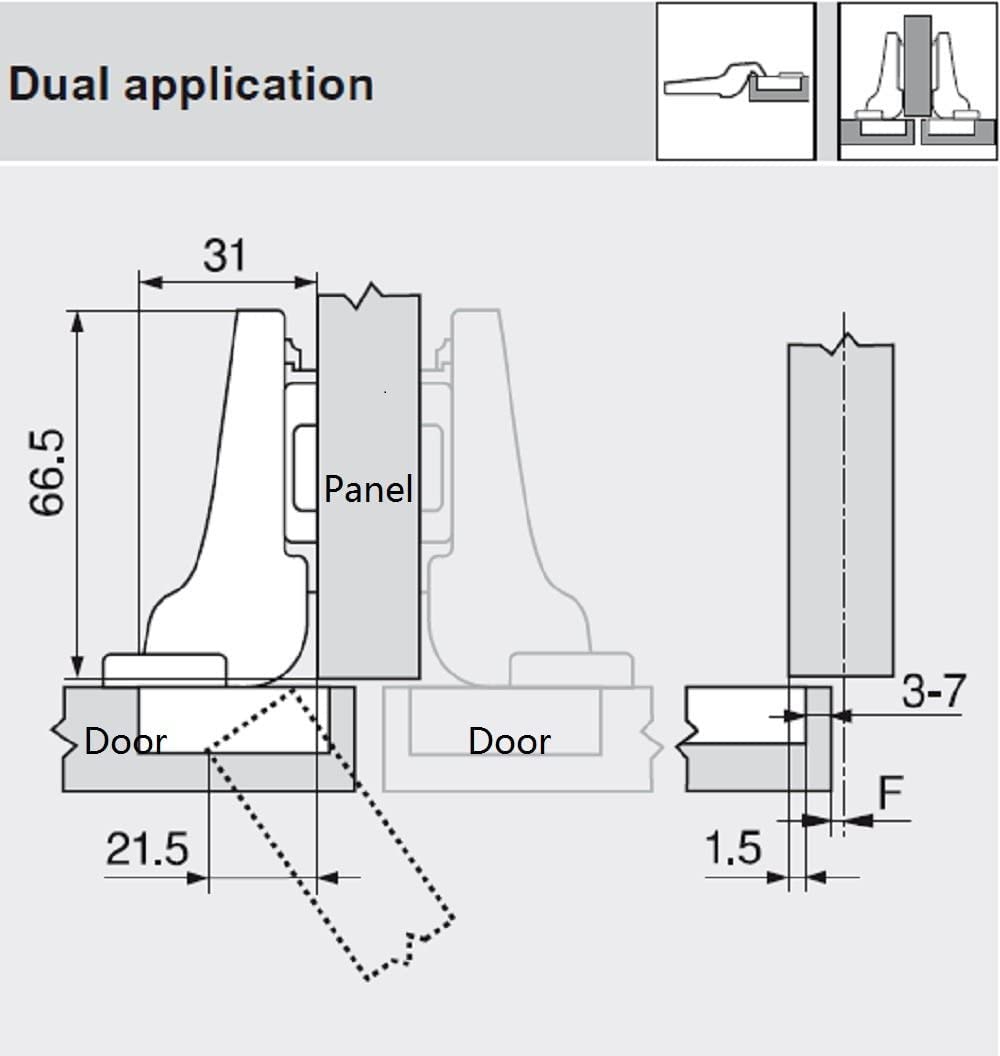

• For half overlay / dual application
• All metal hinge, nickel plated; 110° opening angle
• Infinitely variable 3-dimensional front adjustment; convenient spiral-tech depth adjustment
• Tool-free door to cabinet assembly and removal; With INSERTA tool-free hinge to door assembly

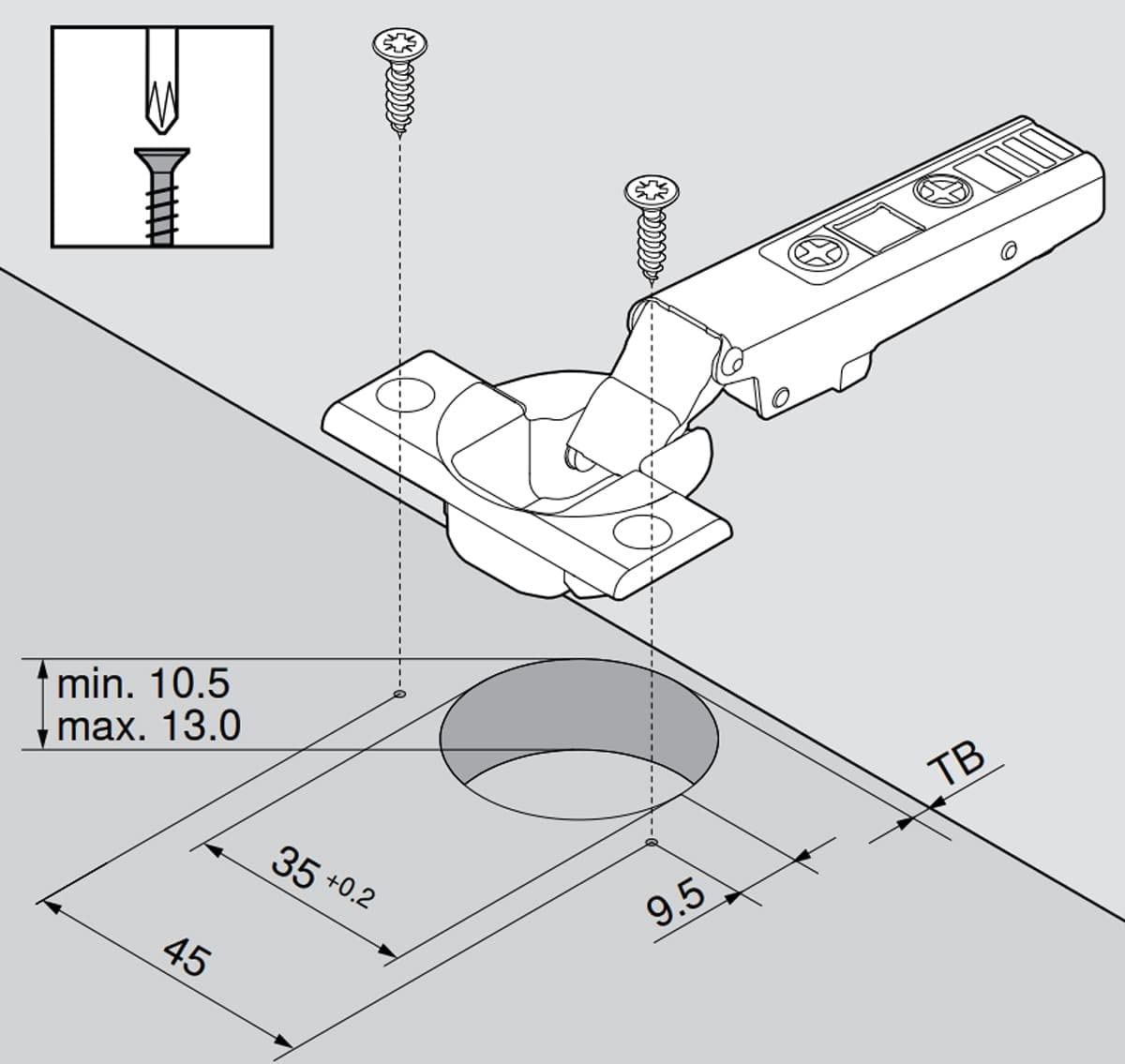

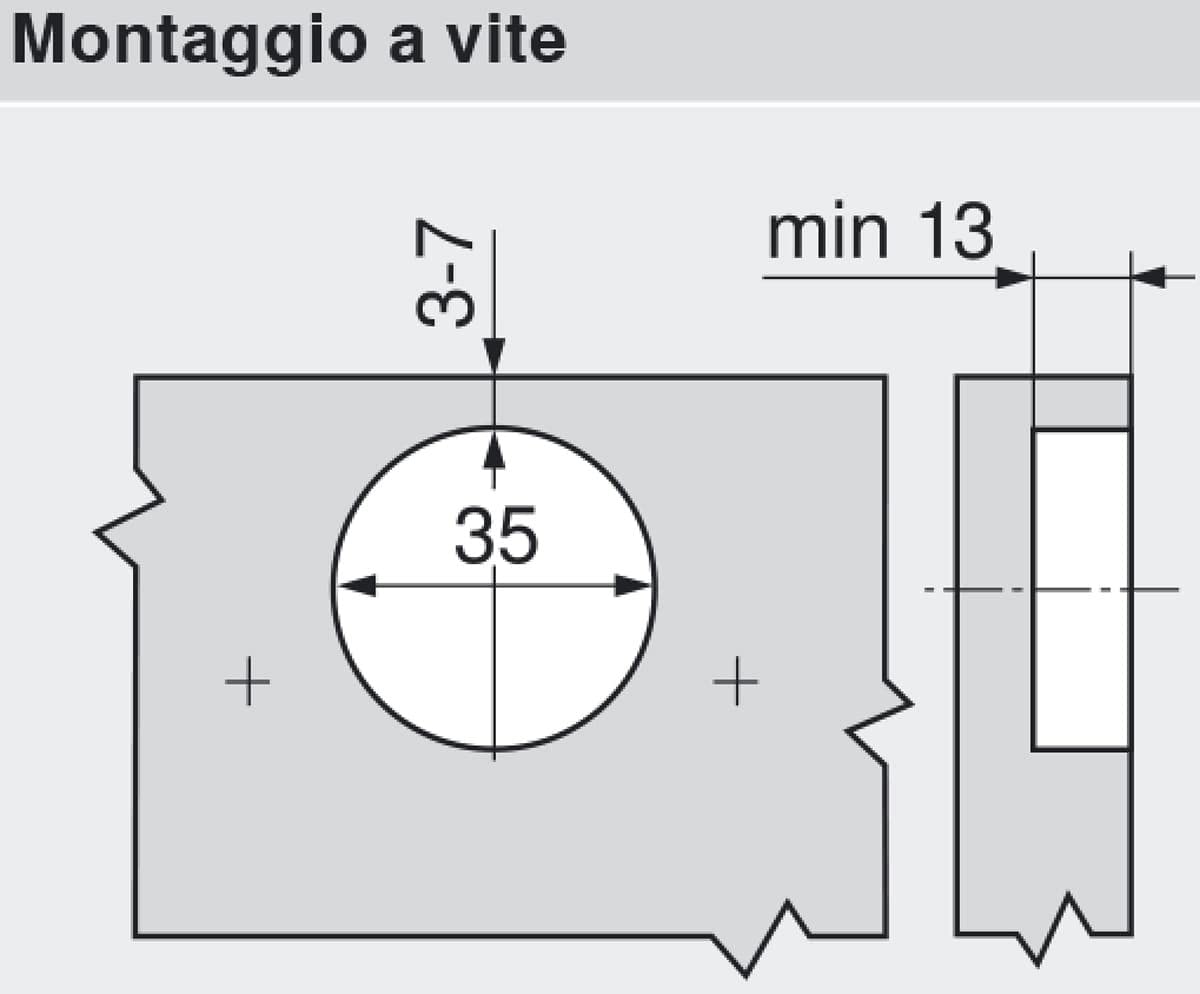

Please figure out the type of your hinge application (Full Overlay, Half Overlay, Inset) before you purchase, which are very important. CLIP top BLUMOTION: innovative technology integrated into the hinge boss Having won international awards for design excellence, CLIP top BLUMOTION brings together innovative technology and ease of motion within the smallest space due to the fact that BLUMOTION has been integrated into the hinge boss. Product Details -Order no.: 71MB3650 -Material: steel -Opening angle (°): 110° -Cup diameter: 35mm -Cup Depth: 13mm -Distance between the two screw holes (next to the cup): 45mm -Mounting option: for screwing on -Door mounting option: Half overlay/Dual application -For door thickness: 15mm (min) – 24mm (max) -Integrated overlay adjustment: +2 mm / -2 mm -Integrated depth adjustment: +3 mm/ -2 mm -Height adjustment at mounting plate -Hinge cup/arm finish: Steel nickel-plated -Cover cap for carcass: NO -Fast installation: Yes Advantages -BLUMOTION integrated into the hinge boss – deactivation possible -Inspiring ease of motion for every door -The ultimate in design elegance -Compatible with existing mounting plates -CLIP top BLUMOTION 110° hinge pivoting point for thicker doors up to approx. 24 mm Standard Package -Cabinet Hinges: 2 Pieces -Coming with fixing screws -No Mounting Instruction & Processing Information (See Pictures Above) Please Note -These hinges are an essential when you are constructing cabinets or repairing the ones you have. They are quite easy to install and hold the doors as securely as necessary
