Blum Clip Top 100 Degree Standard Hinges Kitchen Cabinet Cupboard Door Hinge Without BLUMOTION Damper 71M2550 Made in Austria Full Overlay, Pack of 2

• CLIP with or without self-closing mechanism (spring) – OPTION; For full overlay application
• All steel hinges, nickel plated; Profile door hinges for thicker door depths
• 100 degree opening angle, 3-dimensional front adjustment
• Tool-free door to cabinet replacement assemble and removal
• With INSERTA tool-free hinge to door assembly

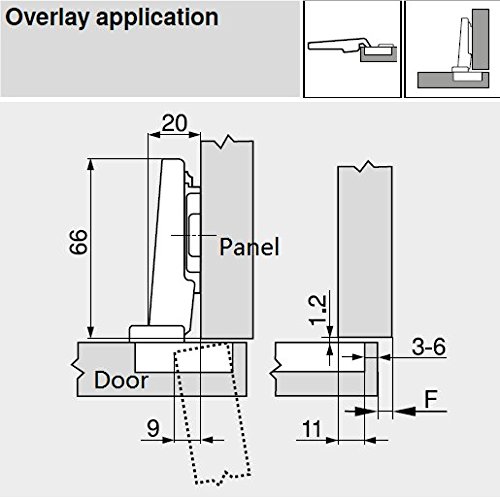

Please figure out the type of your hinge application (FULL OVERLAY, HALF OVERLAY, INSET) first before you purchase, which are very important. Product Details -Order no.: 71M2550 -Material: steel -Opening angle (°): 100 Degree -Cup diameter: 35mm -Cup Depth: 10.5mm -DISTANCE between the two screw holes (next to the cup): 45mm -Mounting option: for screwing on -Door mounting option: full overlay application -For door thickness: 15mm (min) – 24mm (max) -Integrated overlay adjustment: +2 mm / -2 mm -Integrated depth adjustment: +3 mm/ -1 mm -Height adjustment at mounting plate -Hinge cup/arm finish: Steel nickel-plated -Cover cap for carcass: NO -Fast installation: Yes Advantages -Tool-free assembly and removal -3-dimensional door adjustment is simple and precise -Can be combined with BLUMOTION(self-closing mechanism) or TIP-ON Standard Package -Cabinet hinge: 2 Pieces -Coming with fixing screws -No Mounting Instruction and Processing Information (See Pictures Above) Note -These hinges are an essential when you are constructing cabinets or repairing the ones you have. They are quite easy to install and hold the doors as securely as necessary -These hinges are great suitable for cabinet cupboard door. If you still need cushioning mechanism for these hinges, please search for Likerainy Blum BLUMOTION 973A0500 Damper
