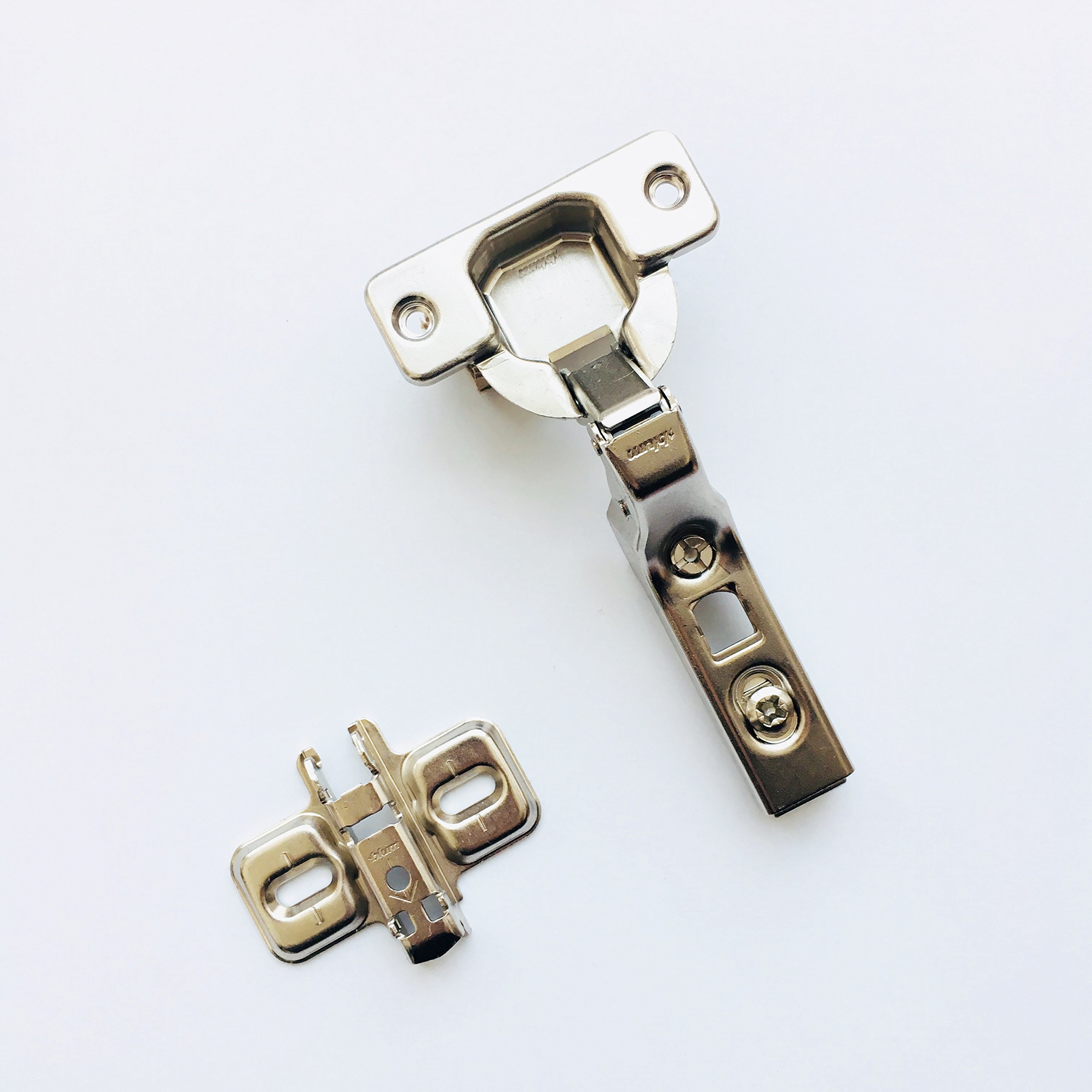

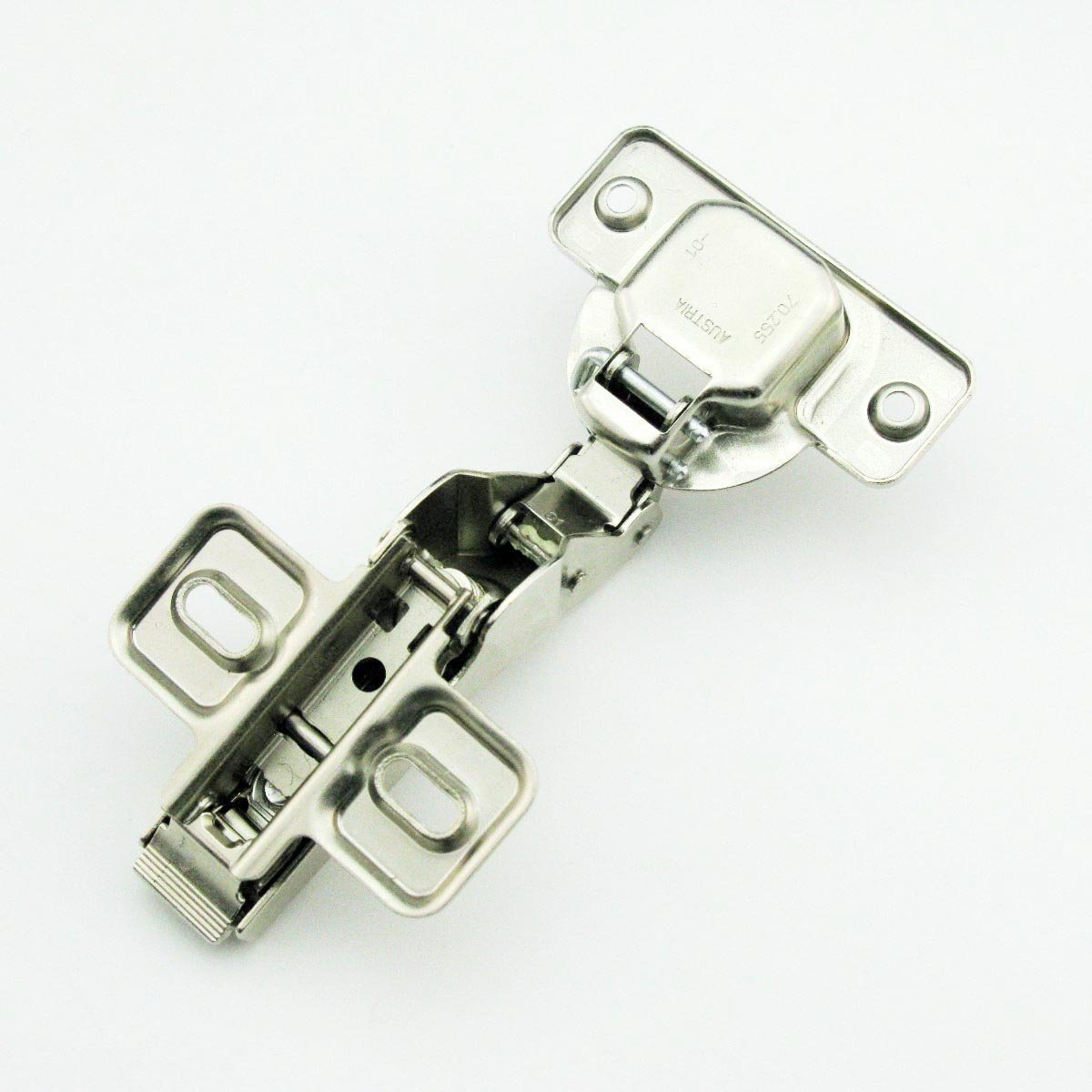

Blum Clip Top 100 Degree Standard Hinge Kitchen Cabinet Cupboard Door Hinges Without BLUMOTION 71M2750, Inset Hinge, Fast Assembly, Made in Austria Pack of 2

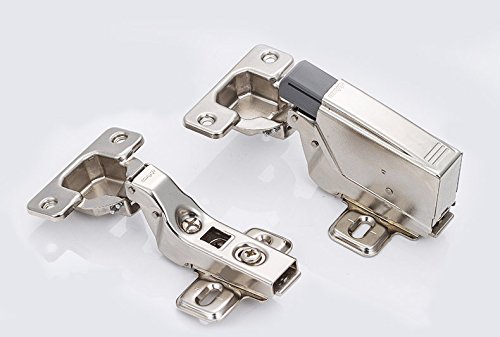

• CLIP with or without self-closing mechanism (spring) – OPTION; For inset application
• All metal hinge, nickel plated; Profile door hinges for thicker door depths
• 100° opening angle, 3-dimensional front adjustment
• Tool-free door to cabinet assemble and removal
• With INSERTA tool-free hinge to door assembly

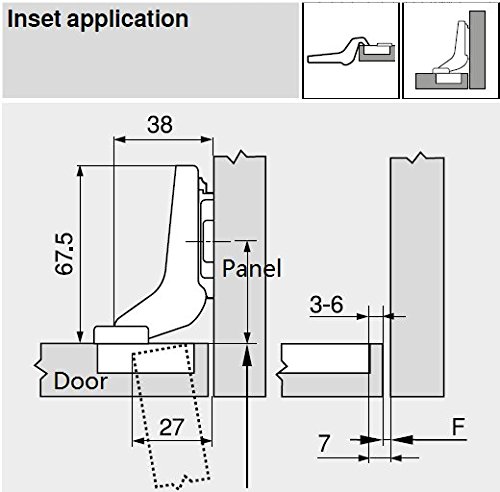

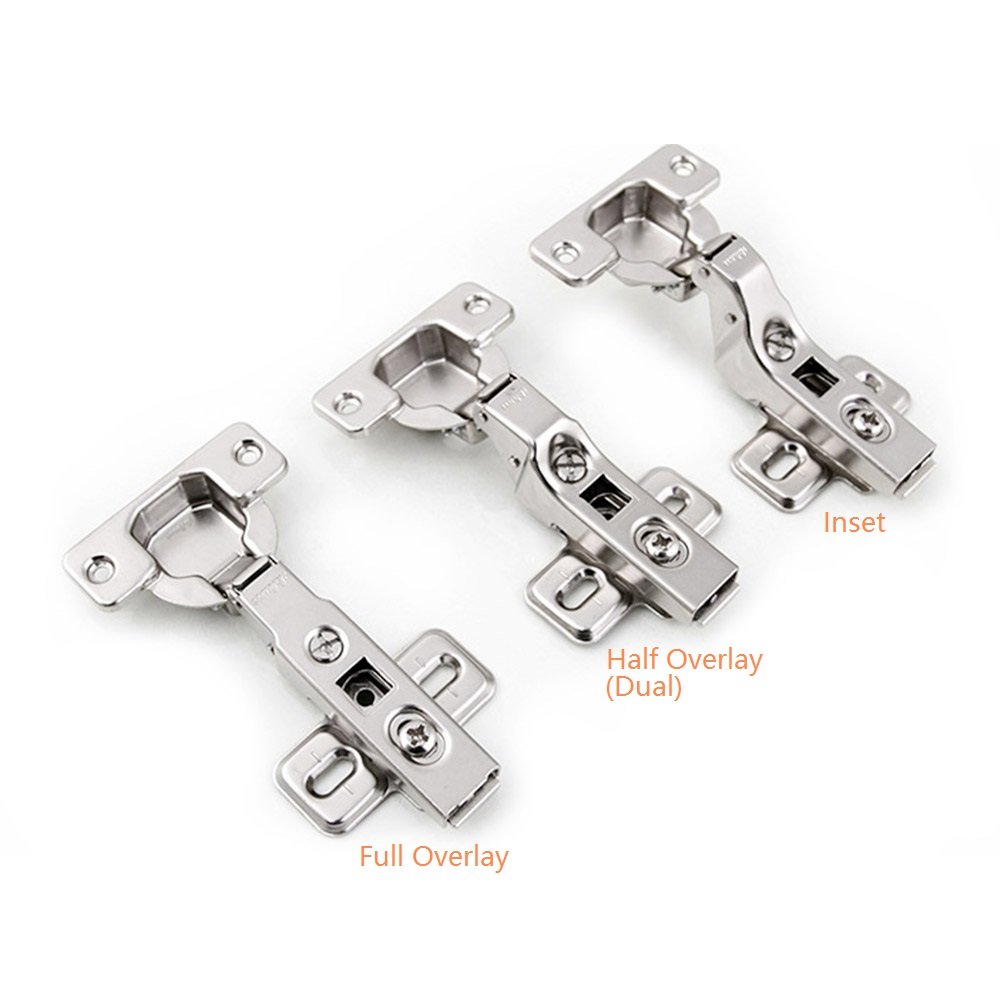

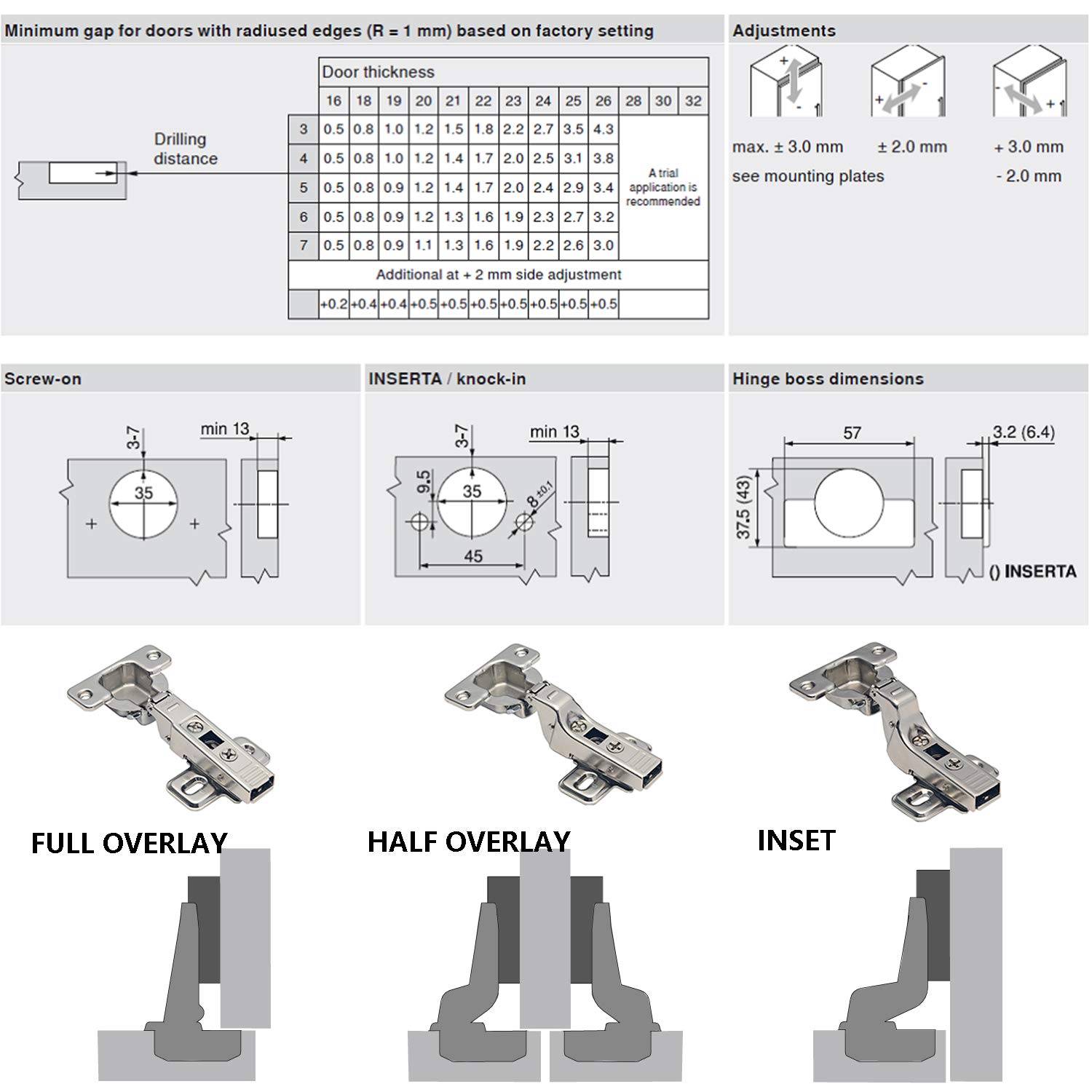

Please figure out the type of your hinge application (Full Overlay, Half Overlay, Inset) before you purchase, which are very important. CLIP top - For proven function and perfect design Open the door for the tried and tested CLIP top hinge! CLIP top stands for utmost adjustment and assembly ease, reliable function and attractive design. Every door equipped with CLIP top opens and closes with reliable ease. And for customers who prefer to slam doors shut, simply combine CLIP top with soft-close BLUMOTION. You can also add TIP-ON, the functional opening system for handle-less furniture. Product Details -Order no.: 71M2750 -Material: steel -Opening angle (°): 100° -Cup diameter: 35mm -Cup Depth: 10.5mm -Mounting option: for screwing on -Distance between the two screw holes (next to the cup): 45mm -Door mounting option: Inset Application -For door thickness: 15mm (min) – 24mm (max) -Integrated overlay adjustment: +2 mm / -2 mm -Integrated depth adjustment: +3 mm/ -1 mm -Height adjustment at mounting plate -Hinge cup/arm finish: Steel nickel-plated -Cover cap for carcass: NO -Fast installation: Yes Advantages -Tool-free assembly and removal -3-dimensional door adjustment is simple and precise -Can be combined with BLUMOTION(self-closing mechanism) or TIP-ON Standard Package -Cabinet hinges: 2 Pieces -Coming with fixing screws -No Mounting Instruction & Processing Information (See Pictures Above) Please Note -These hinges are an essential when you are constructing cabinets or repairing the ones you have. They are quite easy to install and hold the doors as securely as necessary
