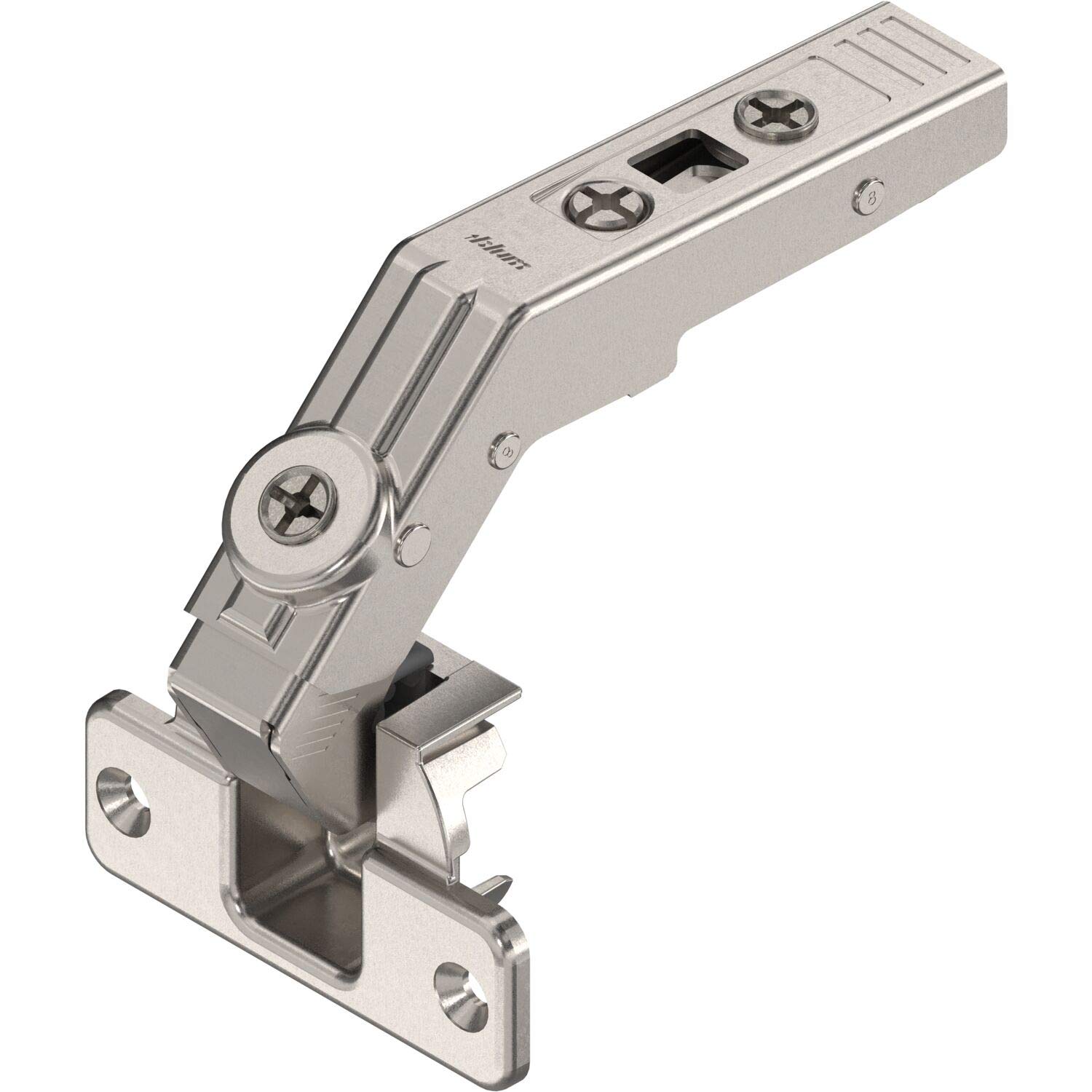

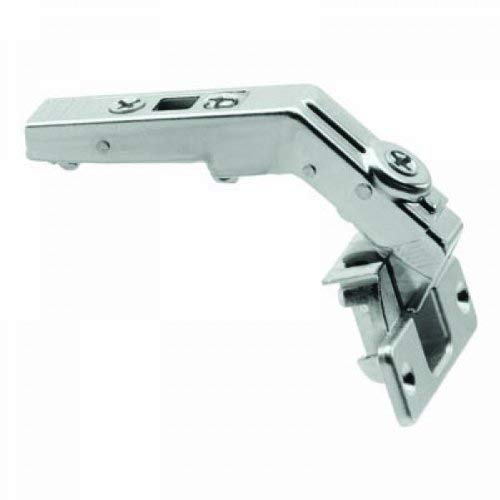

BLUM 118 500 661 Clip Top 60° Corner Cabinet Folding Door Hinge, with Spring, Pot: Screws

• Locking mechanism: with spring
• Pot material: zinc
• Pot attachment: screws
• Opening angle: 60°.

Blumotion 971A mounting type: for screwing, hinge side mounting plate: straight height: 25 mm Type of attachment: Spax screws (3, 5 or 4 mm) Distance of body front edge to first fixing position: 20 mm Distance between the mounting positions: 32 mm (see picture 2) Material: zinc, nickel-plated Height 25: For all hinges with straight band arm and a mounting plate that is 0 mm high. Exception: profile door hinge 95°. For an optimal Blumotion effect, Blumotion 971A should be attached in the middle between the hinges. For high and heavy doors, we recommend an additional Blumotion 971A between a further pair of hinges. The adjustment to the door gap is done with a comfortable depth adjustment via threaded screw (+ 3 to 7 mm) - see picture 4 closes gently and quietly thanks to Blumotion.
