Blue LED Push Button with Fixing Ring, Bulb Holder for Arcade Jamma Video Game Games Console, Pack of 1

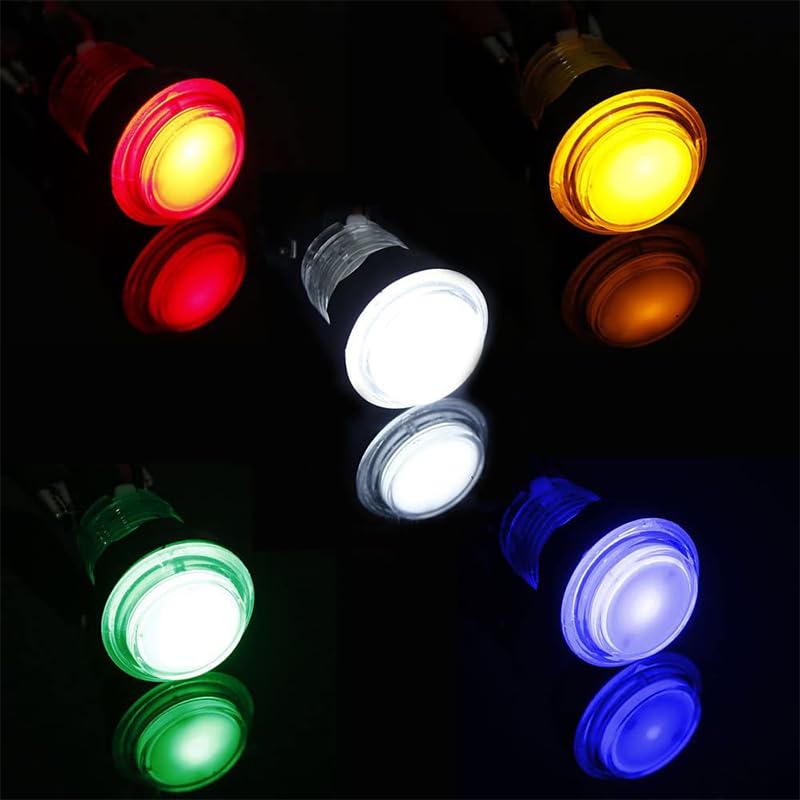

• Give your arcade project the wow factor with this translucent, illuminated arcade button. Each button comes complete with a fixing ring, bulb holder, spacer, microswitch and 5V LED. If you decide to illuminate the LED supplied with this arcade button, you will need a 12V power supply.
• This can be taken from a spare molex connector (yellow wire) on a PC power supply or a Jamma PSU. This button will mount in a 33mm hole.
• Mounting Hole:33mm Overall diameter of button across plunger: 32mm
• Maximum depth of button from top of plunger to bottom of microswitch: 65mm

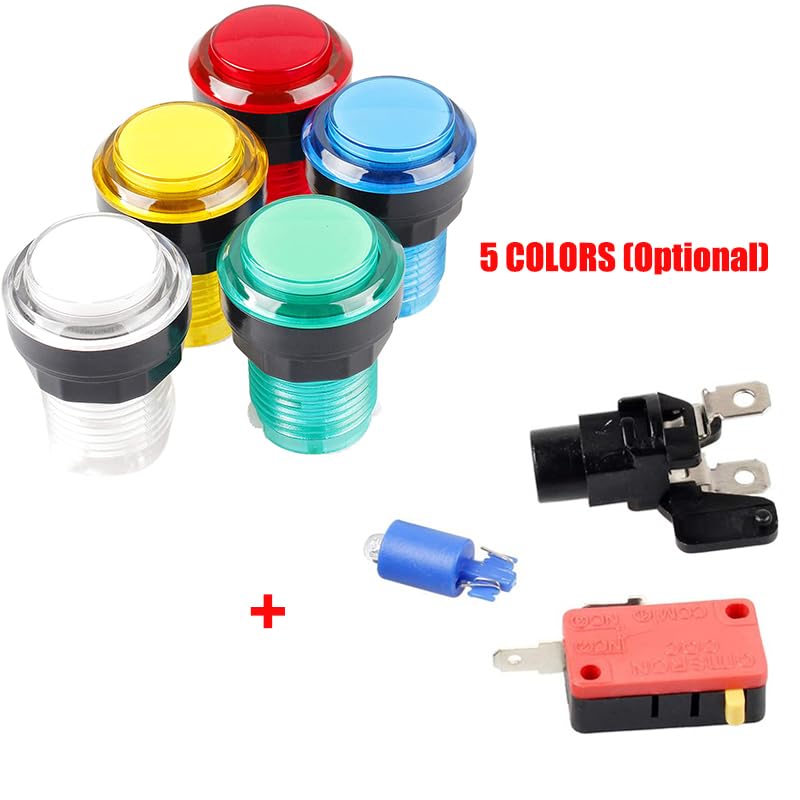

• Package Included: 1x LED Illuminated Push Button, 1x Fixing ring, 1x 12V LED Lamp, 1x Bulb holder and 1x Microswitch

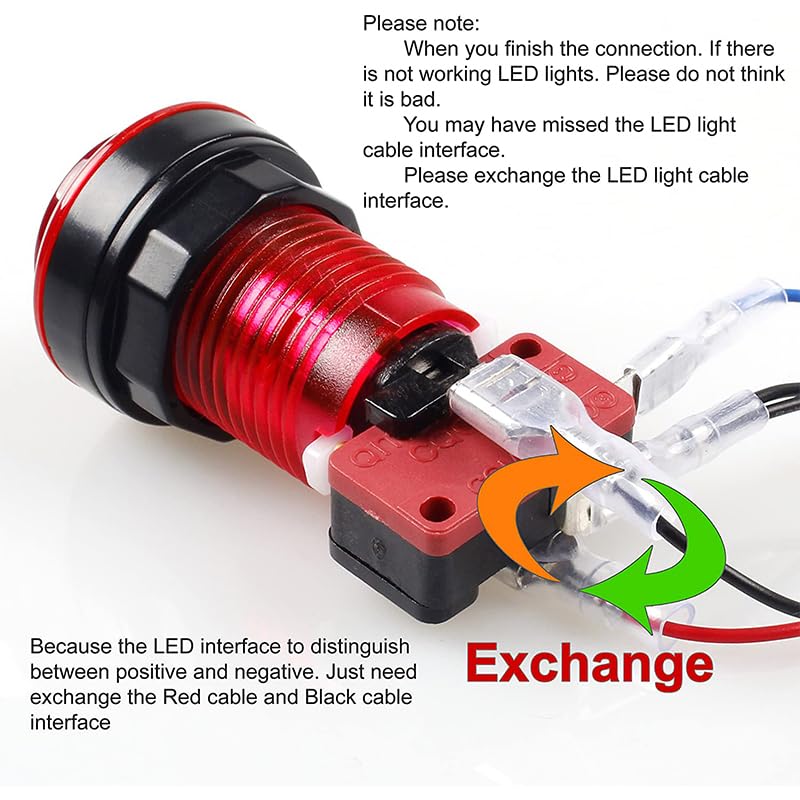

Features: Give your arcade project the wow factor with this translucent, illuminated arcade button. Each button comes complete with a fixing ring, bulb holder, spacer, microswitch and 5V LED. If you decide to illuminate the LED supplied with this arcade button, you will need a 12V power supply. This can be taken from a spare molex connector (yellow wire) on a PC power supply or a Jamma PSU. This button will mount in a 33mm hole. Specifications: Mounting Hole:33mm Overall diameter of button across plunger: 32mm Maximum depth of button from top of plunger to bottom of microswitch: 65mm Wiring Information: These buttons require 4.8mm crimped wires for connection. 1 wire for ground connection (CO) and 1 wire for signal connection (NO). These buttons require 6.3mm crimped wires for illuminating. 1 wire for the positive connection and 1 wire for the negative connection (if the LED does not work. Please exchange LED lights interface. ) Package Included 1x LED Illuminated Push Button 1x Fixing ring 1x 12V LED Lamp 1x Bulb holder 1x Microswitch
