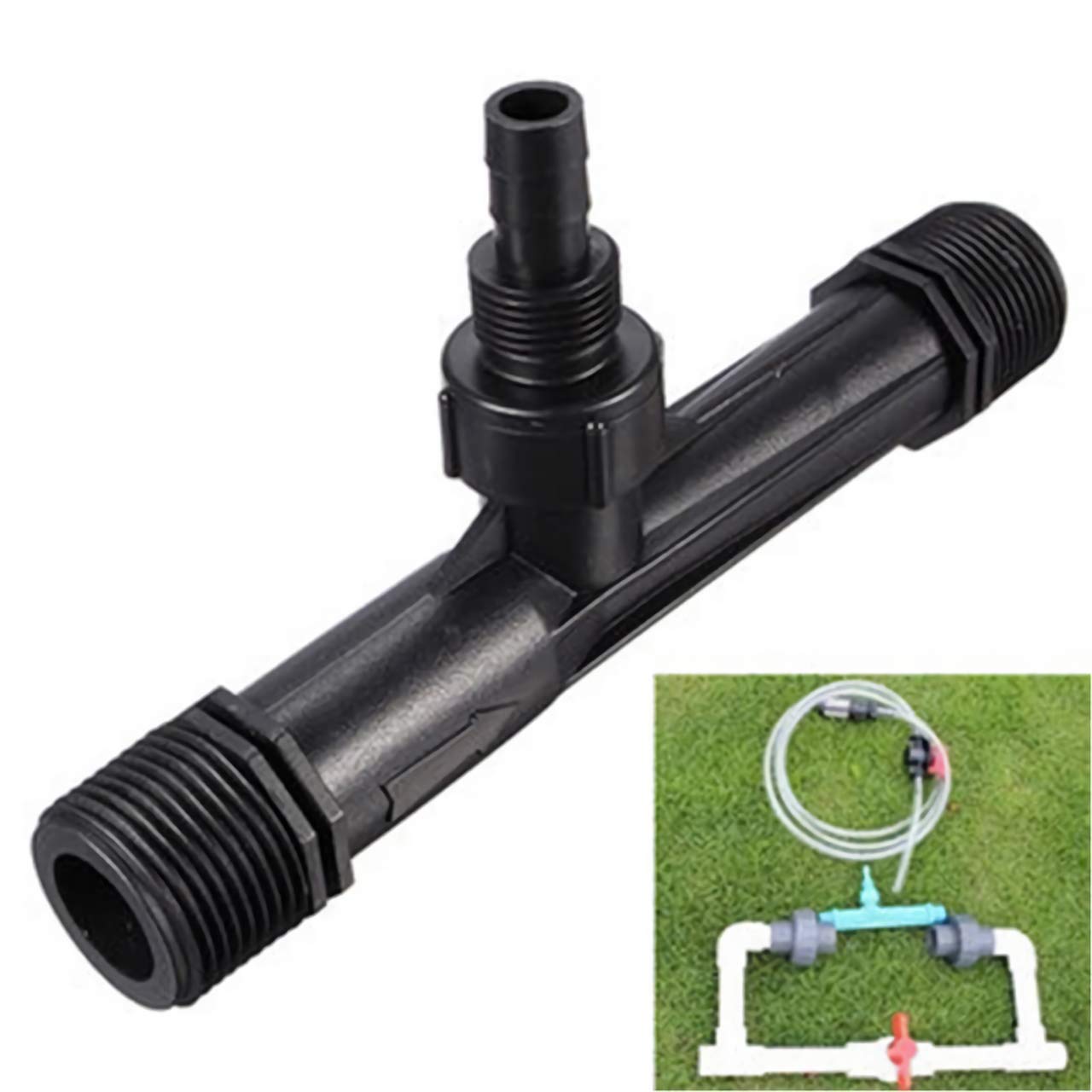

Bingpong 1/2"/3/4"/1"/1.5" Thread Venturi Fertilizer Mixer Injectors Irrigation Drip Device Pipe Automatic Fertilization System Agriculture Tools (3/4inch)

• Made of engineering plastic, excellent chemical resistance to most of the chemicals. Economical and low cost option.
• A venturi is a device which creates a vacuum when fluid flows through it. The fluid which creates the vacuum is know as the motive fluid. Fertilizer and chemical injection through drip and sprinkler irrigation systems.
• How to work: Our Venturi are water driven, ie they are driven by the pressure of the main irrigation pipeline. The energy to run these devices reduces the irrigation water pressure of the water line.
• Highly efficient and compact differential pressure injection device. Available in 3/4",1/2'', 1", 1.5" BSP inlet/outlet connection.
• Package content: 1pcs Venturi Fertilizer Mixer Injectors

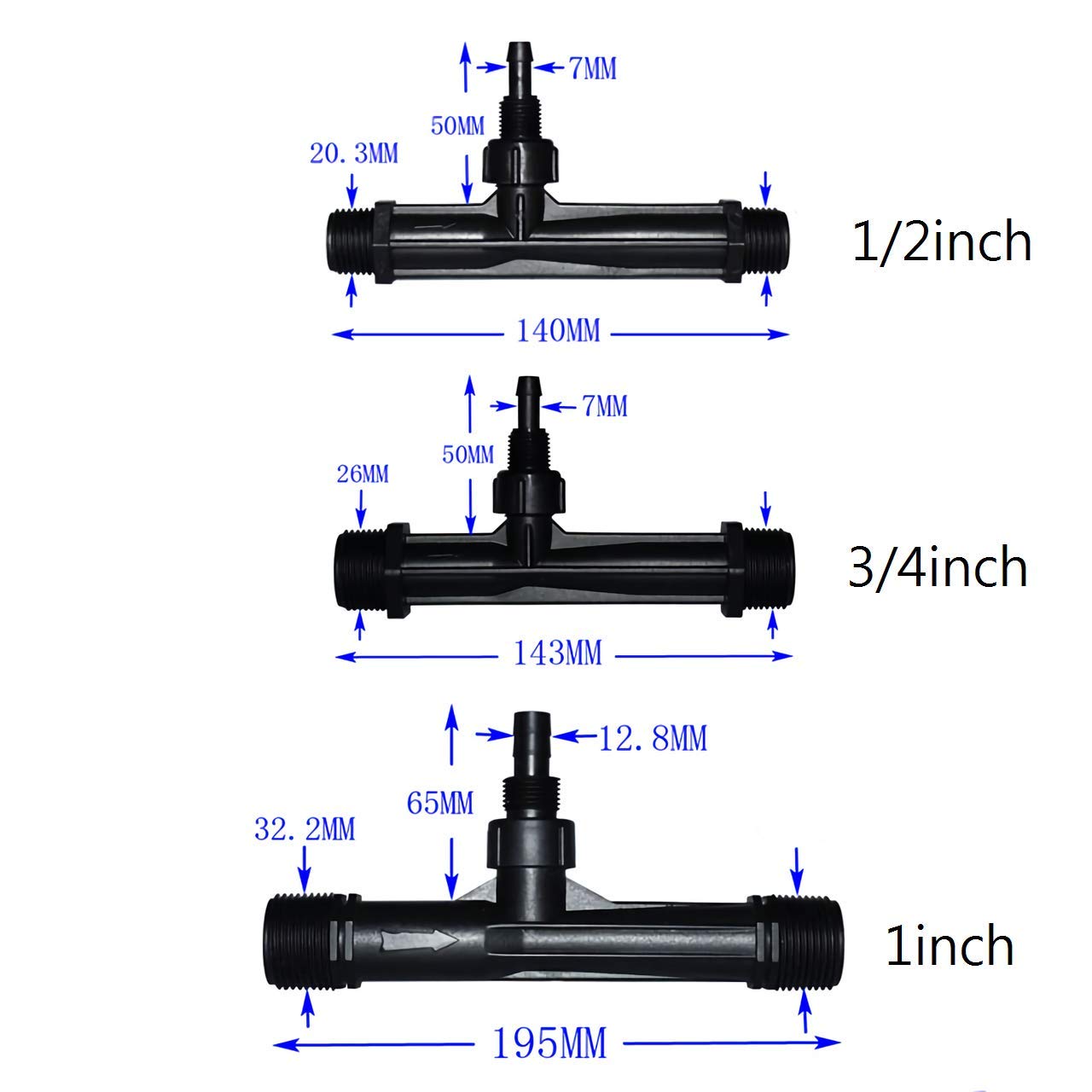

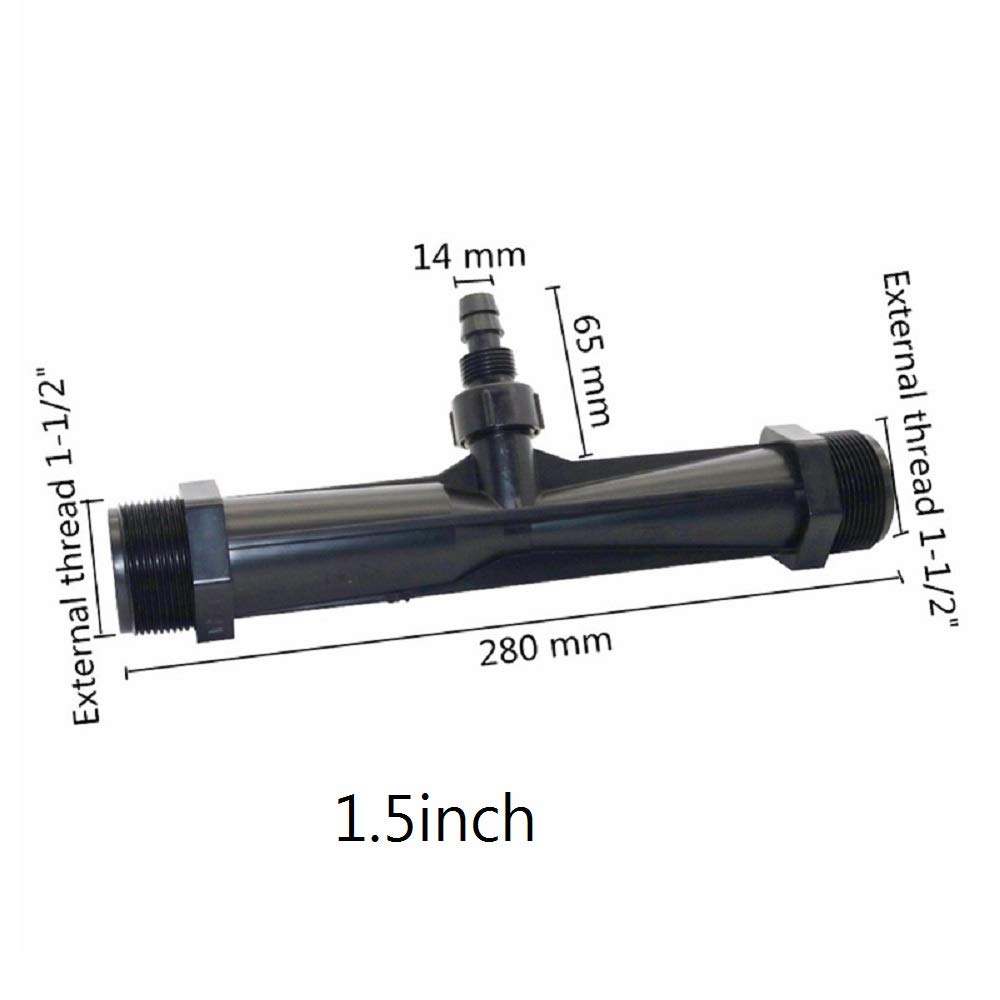

working principle: 1. Venturi-type fertilizer and irrigation system irrigation at the entrance of the water supply control valve installed in parallel, the use of control valve will be small, the formation of the control valve before and after the pressure difference, you can dissolve in the water inhalation into the Venturi And then into the water supply pipe. 2. the use of water through the Venturi tube produced by the vacuum suction, the fertilizer solution from the exposed fertilizer bucket evenly inhaled piping system for fertilization. Make your operation more convenient and simple. 3. if the fertilization concentration is stable, no additional power, more savings your time and resources! 4. the scope of application: greenhouse and other small area of fertilization. Specifications: Inlet/outlet thread : 1.5'' Material: POM Size:See photos Flow range:4.21-10.89 m3/h Working pressure:1-7 bar Self-priming capability:330-1152L/h Inlet/outlet thread : 1'' Material: POM Size:See photos Flow range:1.82-6.34 m3/h Work pressure: 0.7-9.5bar Self-priming capability: 34-279L/h Inlet/outlet thread : 3/4'' Material: POM Size:See photos Flow range:0.65-2.42 m3/h Work pressure: 0.7-9.5bar Self-priming capability: 9-92L/h Inlet/outlet thread : 1/2'' Material: POM Size:See photos Flow range:0.29-0.81 m3/h Work pressure: 0.7-9.5bar Self-priming capability: 3-37L/h Please note: The size is measured by hands, please allow minor error of measurement. Photo color might be a little different from the actual product due to color display of different monitors.
