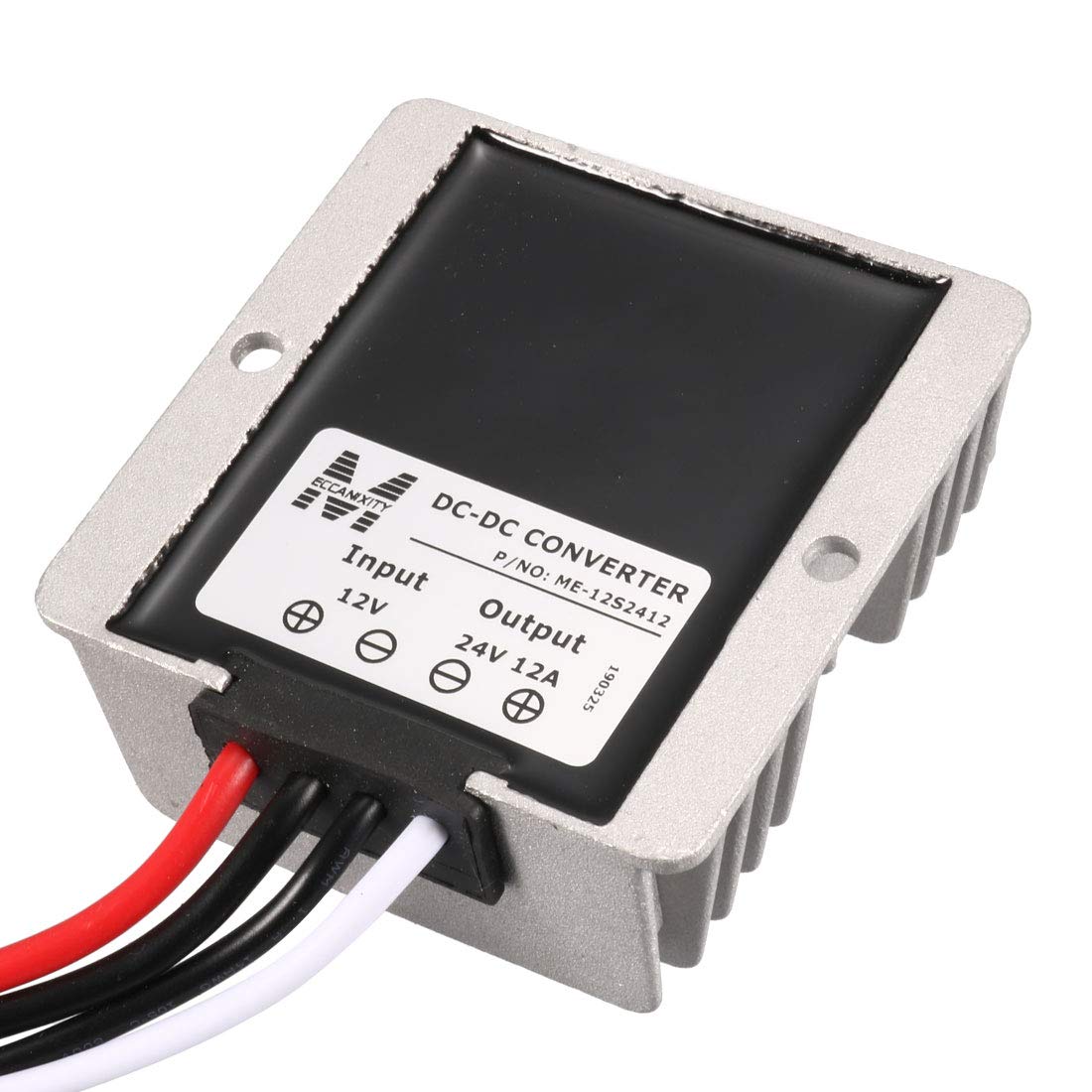

sourcing map Voltage Buck Converter Regulator DC 12V Step-up to DC 24V 12A 288W Waterproof Power Transformer

• Waterproof IP68 Voltage Converter Regulator DC 12V to DC 24V 12A 288W.
• Protections: Over-load, Over-current, Over-temperature, Short-circuit, Over-voltage.
• Auto-recovery when device is back to normal operating; high transfer efficiency of 96.5% max..

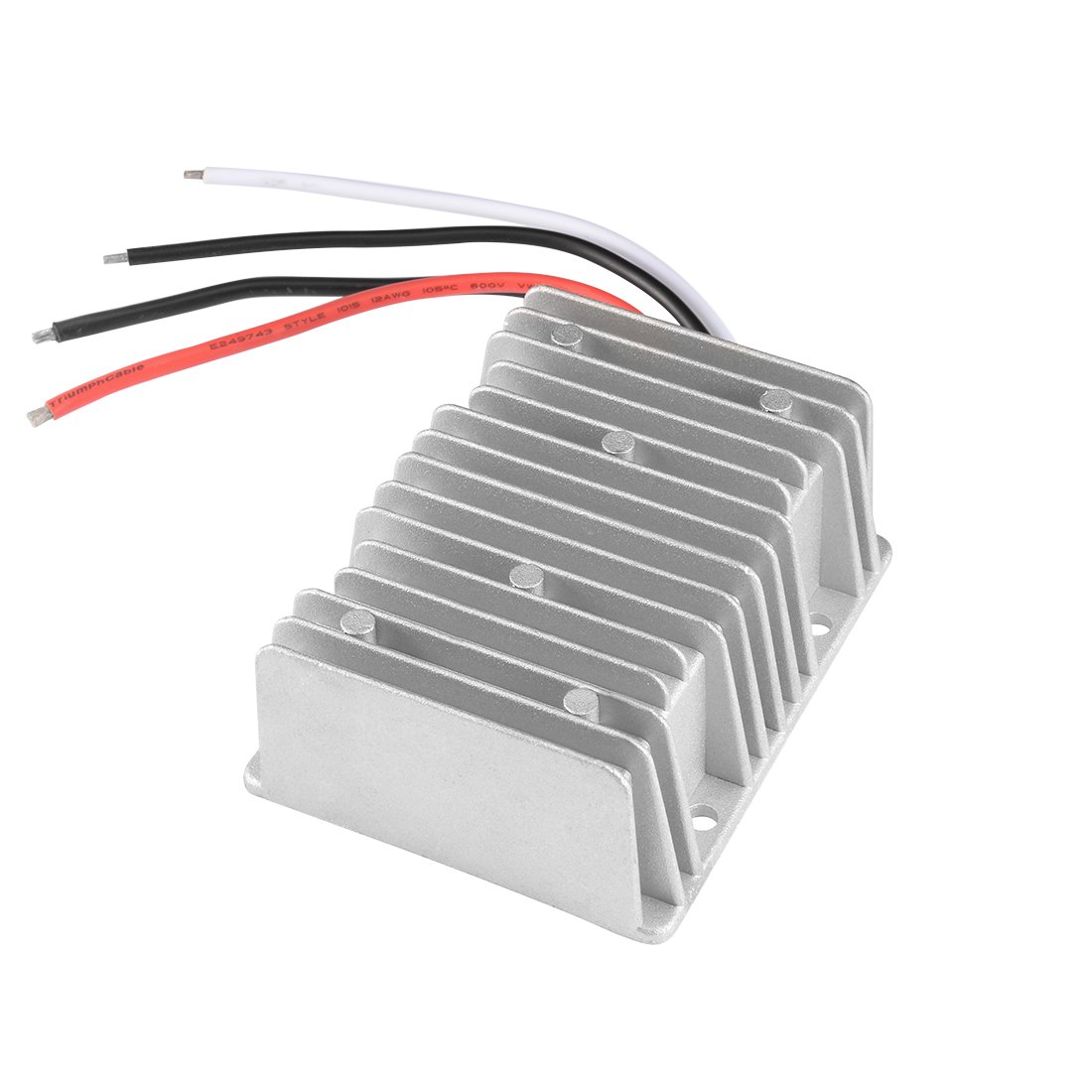

• Die-cast aluminum shell, anti-shock, and moisture-proof and has stronger durability.New and Old label is being changed, but the products are same.
• Note: It is recommended to use stable DC power for the input power supply If you use the pulsed DC power provided by the generator, please filter it with capacitor before connecting it to the converter. If you use solar panel to supply directly, please note that the open circuit voltage of the solar panel cannot exceed the maximum withstand voltage of the converter. The supply voltage should be within the rated voltage and always leave a certain margin.

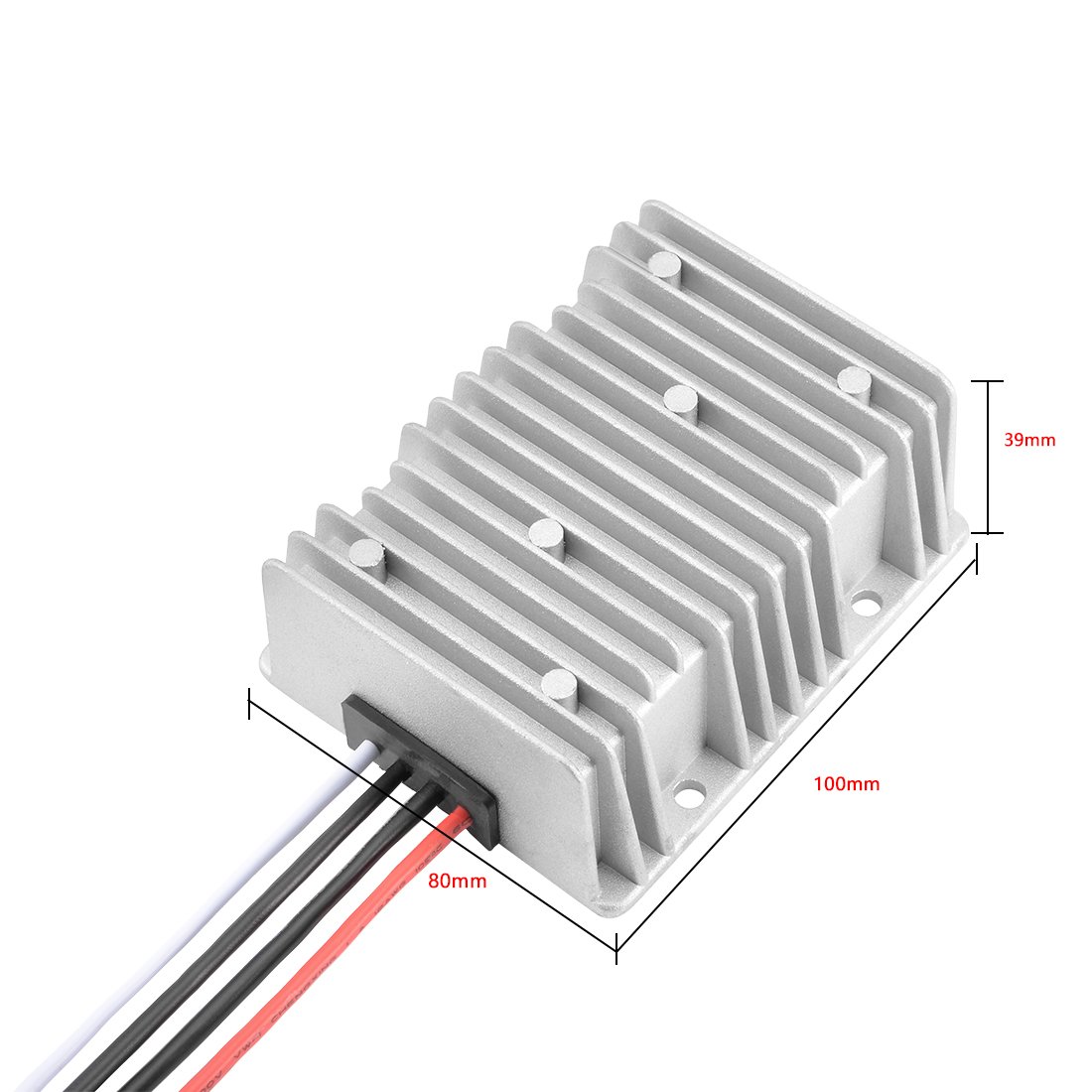

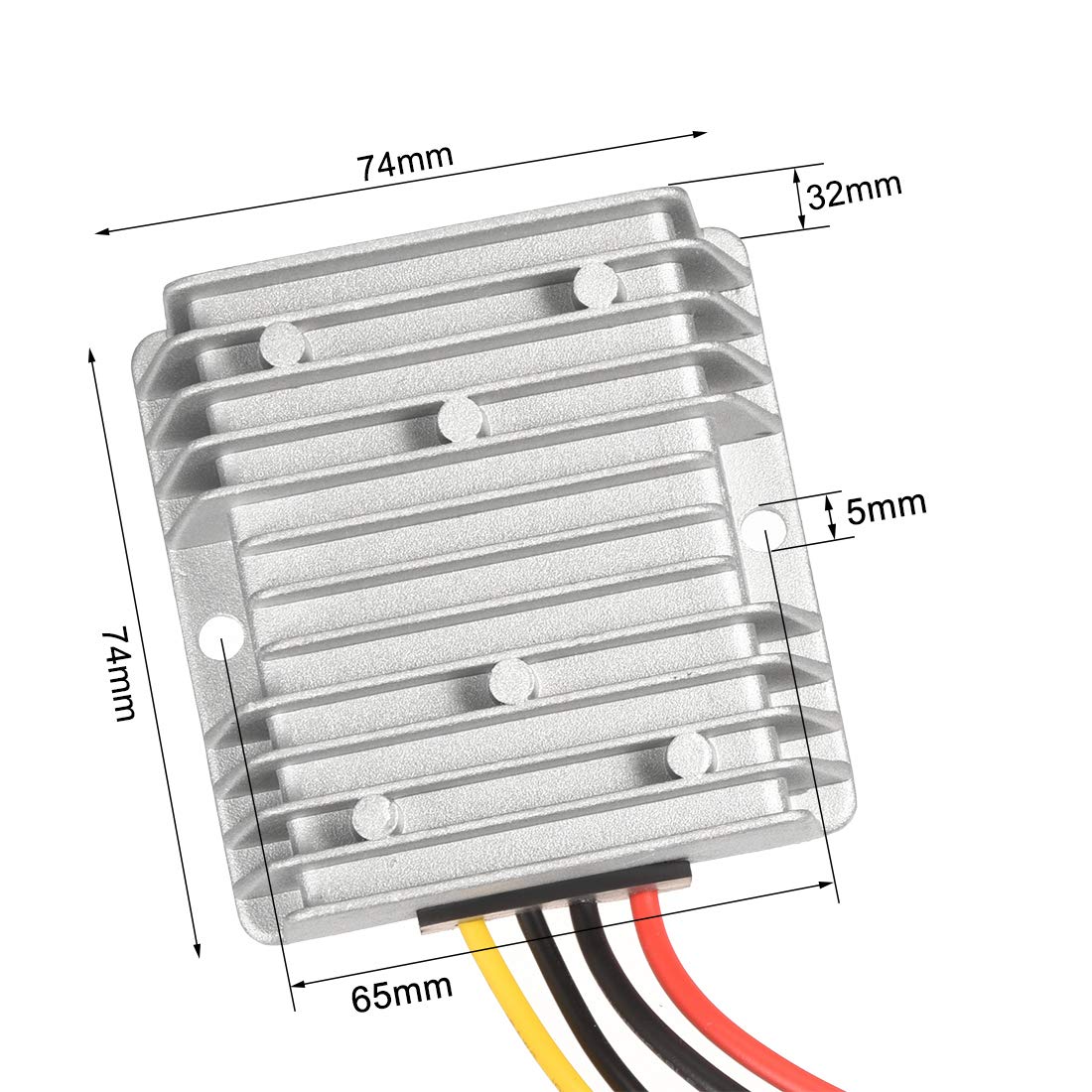

Features: 1. 100% full power and stable current output, non-isolated module. 2. Waterproof level IP68 and anti-shock protection, Ultra-compact size, lightweight. 3. Industry grade DC12V to DC 24V step-up converter, efficiency up to 96.5%. 4. Die-cast aluminum shell, epoxy potting, cooling by free air convection. 5. Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circuit, auto-recovery when the device is back to normal operating. Applications: - Trucks - Golf Carts - Forklifts - Buses - Loaders - Logging Vehicles - Wind Power System - Solar Power System - Electromotor - Telecommunications - Boat and Yacht - and so on.. Specifications: * Input Rated Voltage: DC 12V * Input Voltage Range: 10-16V DC * Output voltage: DC24V 12A * Output Rated Power: 288W * Efficiency: 96.5% (half load); 95% (full load) * Output Peak Power: 450W * Voltage Regulation: Less Than 1% * Load Regulation: Less Than 2% * Ripple(full load test): Less Than 150mV * No Load Current: 50mA-60mA * Total Size: 74*74*32mm(L*W*H) * Fixing Hole Diameter: 6mm(0.23 inch) * Weight: 504g Package included: 1 x DC 12V to DC 24V 12A Voltage Converter Regulator Safety Instructional Manual: 1. Can not use a long time Under the MAX. LISTED LOAD POWER. 2. Please connect the converter and your device as the wiring diagram provided in the above picture.
