BGTXINGI 400W DC-DC High Power Boost Converter Adjustable Constant Voltage Constant Current Power Supply Module LED Drive Notebook Battery Charging with Short Circuit Protection

• Super material: It is made of electronic accessories, nickel plating on surface(anti-oxidatioan), inner conductor: pure copper.it is long lasting and durable for you to use.

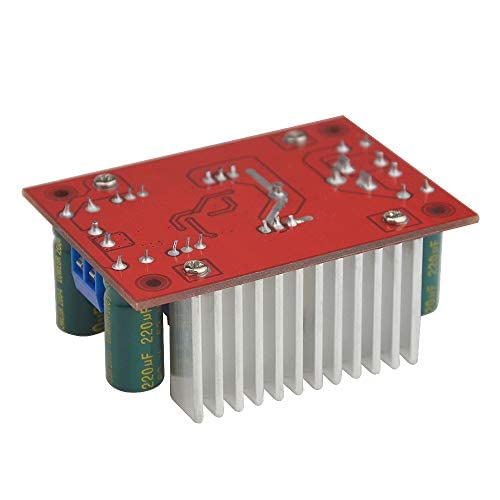

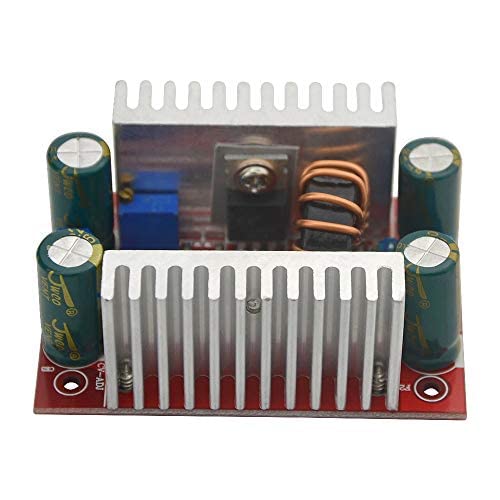

• Package including: 1 Pack of Constant Current Voltage Step-up Module. Moreove. The buck module has 2 heat sinks that could enhance heat dissipation. When there is a big difference between input and output voltage, please decrease power and current. With LED indicator, more stable and reliable to use.
• Input and output: Input voltage: DC8.5V-50V. Input current: 15A (MAX) over 8A, please strengthen heat dissipation. Static working current: 10mA. Output voltage: 10-60V continuously adjustable. Output current: 12A MAX, more than 7A, please strengthen heat dissipation. Constant current range: 0.2-12A. Output power: = input voltage*10A, such as: input 12V*5A=60W, input 24V*5A=120W, Input 36V*5A=180W, input 48V*5A=240W. Working temperature: -40~+85 degrees.
• High Power High Efficiency: High conversion efficiency up to 96%. High efficiency and low ripple with power indicator. In addition to the current limiting and voltage regulation step-down function. High reliability, strong vibration resistance, good electromechanical performance.
• A wide range of applications: Widely uses in power transformer, DIY adjustable power supply, LED car display, mobile power, industrial equipment appliances, LED driver, monitor, solar energy, fan, battery conversions, micro-controllers, and electronic projects. so on. Maintain stable output voltage and limit the output current over a range of input voltages.

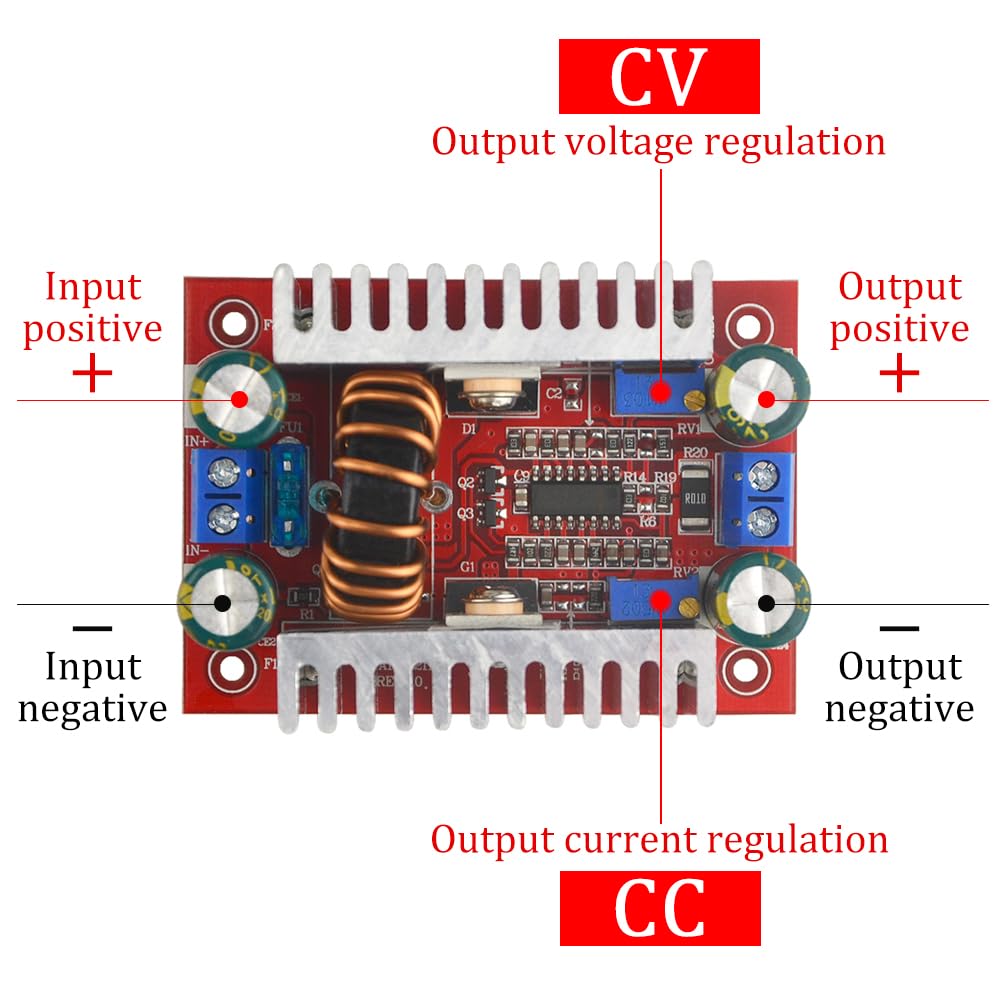

Module parameters: Module name: 400W boost constant current module Module nature: Non-isolated boost module (BOOST) Input voltage: DC8.5V-50V Input current: 15A (MAX) over 8A, please strengthen heat dissipation Static working current: 10mA (when 12V rises to 20V, the higher the output voltage, the static current will increase) Output voltage: 10-60V continuously adjustable, 12-80V fixed output Output current: 12A MAX, more than 7A, please strengthen heat dissipation (related to the input and output pressure difference, the greater the pressure difference, the smaller the output current) Constant current range: 0.2-12A Output power: = input voltage*10A, such as: input 12V*5A=60W, input 24V*5A=120W, Input 36V*5A=180W, input 48V*5A=240W Working temperature: -40~+85 degrees (please strengthen heat dissipation when the ambient temperature is too high) Working frequency: 150KHz Conversion efficiency: up to 96% (efficiency is related to input, output voltage, current, and pressure difference) Overcurrent protection: Yes (when the input exceeds 15A, the output voltage is automatically reduced, and there is a certain range of error.) Input reverse connection protection: None, (if you need more reverse connection current, please connect a diode in series with the input) Installation method: 4pcs 2.5mm screw holes Wiring mode: Wiring output Module size: length 67mm width 48mm height 28mm Module Weight: 60 grams Package Included: 1PCS * High-power Boost Converter
