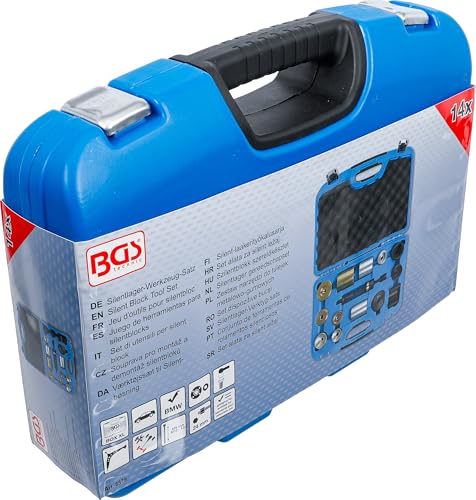

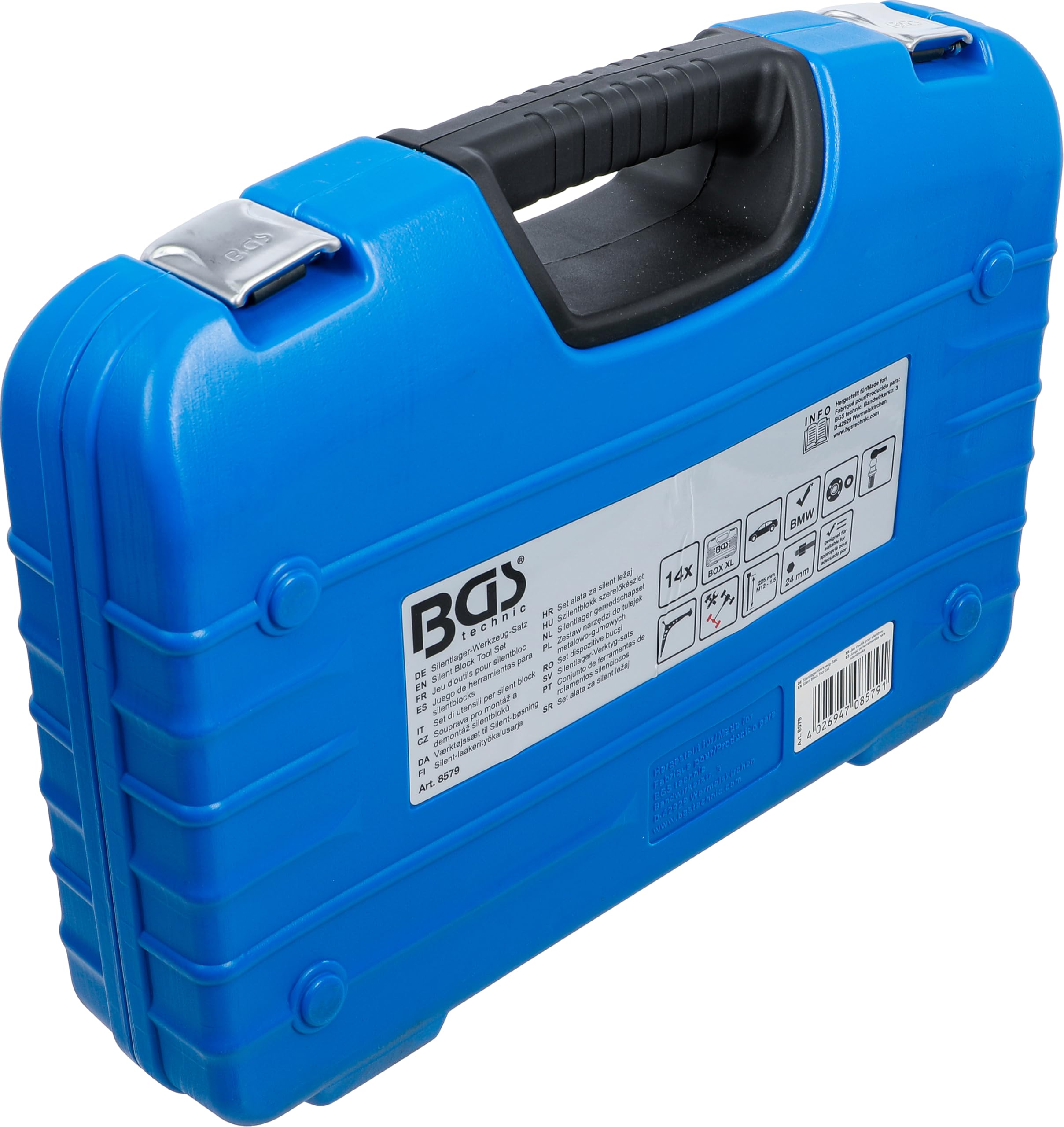

BGS 8579 | Silent Block Tool Set | for BMW

• disassembly / assembly of the ball joints in rear wheel carrier, suitable for the following BMW models: 5-series E39 / E60 / E61 / E70 | 6-series E63 / E64 | 7-series E38 / E65 / E66 / E67 | 8-series E52
• disassembly / assembly of the ball joints and rubber bearings in the trailing arm, suitable for the following BMW models: 3-series E36 / E46 / E83 | 5-series E39 / E60 / E61 / E70 | 6-series E63 / E64 | 7-series E38 / E65 / E66 / E67 | 8-series E31 / E52 | Z4-models E85 / E86
• disassembly / assembly of the rubber bush in rear axle carrier (bottom), rear transmission screw, suitable for the following BMW models: 3-series E36 / E46 / E83 | 8-series E31 | Z4-models E85 / E86
• disassembly / assembly of the rubber bearings in the rear transmission suspension front and rear, suitable for the following BMW models: 1-series E81 / E87 | 3-series E36 / E46 / E83 / E90 / E91 / E92 / E93 | 5-series E60 / E61 | 6-series E63 / E64 | 7-series E38 / E65 / E66 / E67 | 8-series E31 | Z4-models E85 / E86 | MINI Cooper S R53

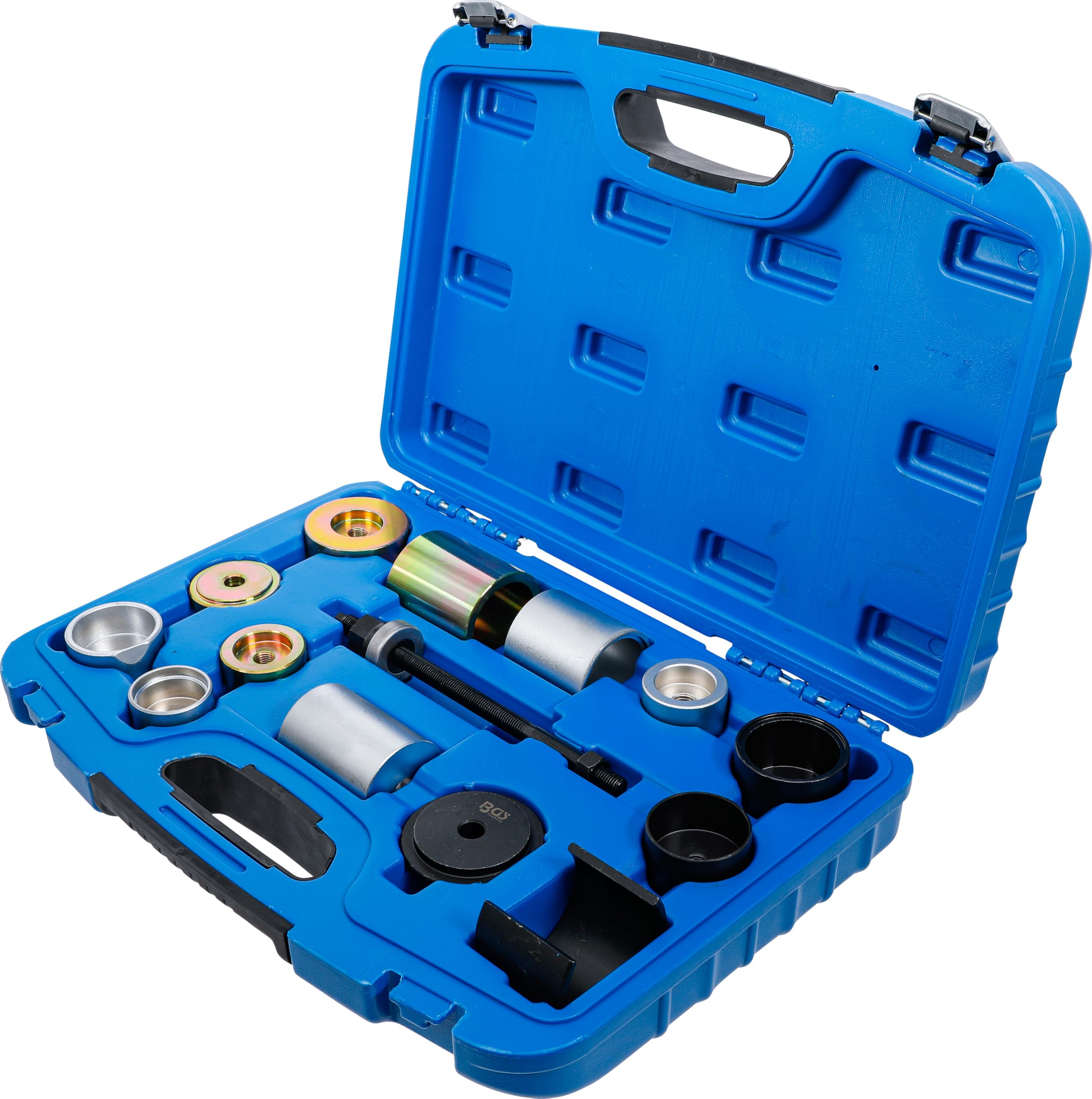

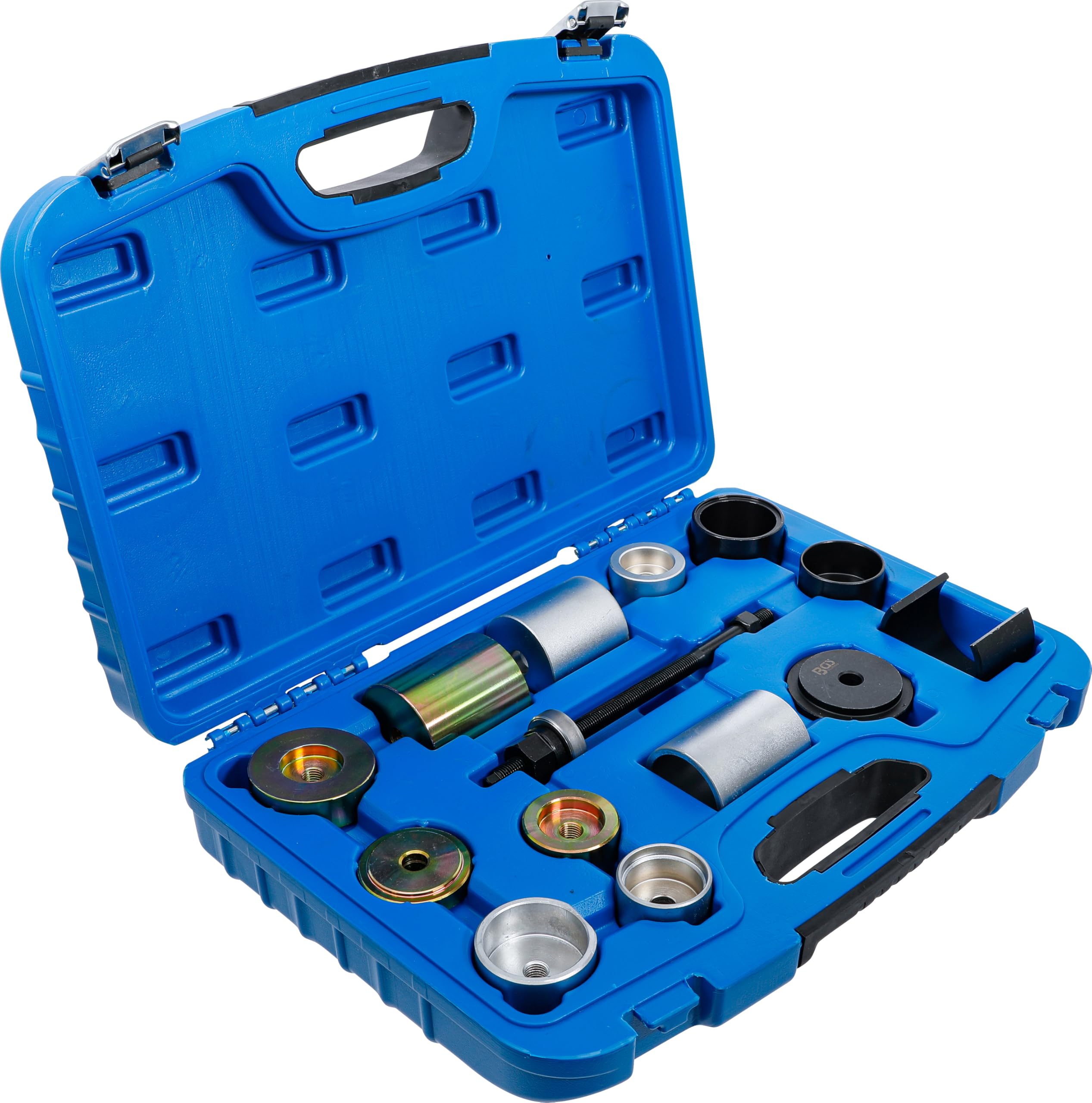

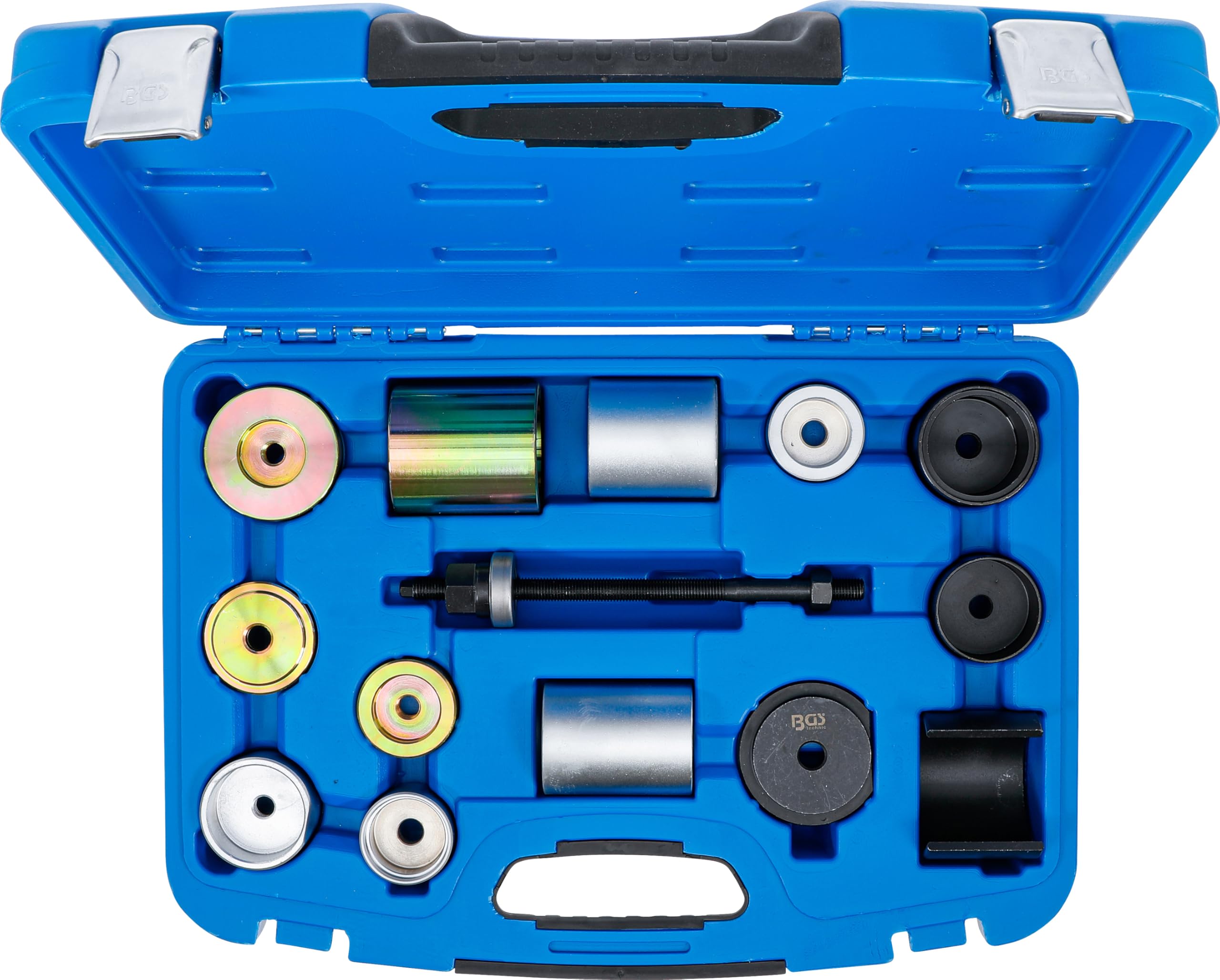

• scope of delivery: spindle M12 x 1.5 with bearing nut, length: 225 mm | 24 mm hexagon drive socket | disc, 48, 55, 65 mm
• bell, inner Ø: 47 mm, outer Ø: 55 mm, length: 72 mm | bell, inner Ø: 50 mm, outer Ø: 64 mm, length: 70 mm
• bell, stepped, inner Ø: 36, 40 mm, outer Ø: 45 mm, length: 30 mm | bell, stepped, inner Ø: 47, 53 mm, outer Ø: 58 mm, length: 43 mm | bell, stepped, inner Ø: 47, 53 mm, outer Ø: 58 mm, length: 61 mm
• bell, inner Ø: 32 mm, outer Ø: 46 mm, length: 26 mm | bell, inner Ø: 46 mm, outer Ø: 55 mm, length: 32 mm | bell, inner Ø: 47 mm, outer Ø: 51 mm, length: 35 mm
• disc, stepped, flattened, inner Ø: 57 mm, outer Ø: 70 mm, thickness: 13 mm
• sleeve, 1/3 open, inner Ø: 59 mm, outer Ø: 70 mm, length: 55 mm

disassembly / assembly of the ball joints in rear wheel carrier, suitable for the following BMW models: 5-series E39 / E60 / E61 / E70 6-series E63 / E64 7-series E38 / E65 / E66 / E67 8-series E52 disassembly / assembly of the ball joints and rubber bearings in the trailing arm, suitable for the following BMW models: 3-series E36 / E46 / E83 5-series E39 / E60 / E61 / E70 6-series E63 / E64 7-series E38 / E65 / E66 / E67 8-series E31 / E52 Z4-models E85 / E86 disassembly / assembly of the rubber bush in rear axle carrier (bottom), rear transmission screw, suitable for the following BMW models: 3-series E36 / E46 / E83 8-series E31 Z4-models E85 / E86 disassembly / assembly of the rubber bearings in the rear transmission suspension front and rear, suitable for the following BMW models: 1-series E81 / E87 3-series E36 / E46 / E83 / E90 / E91 / E92 / E93 5-series E60 / E61 6-series E63 / E64 7-series E38 / E65 / E66 / E67 8-series E31 Z4-models E85 / E86 MINI Cooper S R53 spindle M12 x 1.5 with bearing nut, length: 225 mm 24 mm hexagon drive socket disc, 48, 55, 65 mm bell, inner Ø: 47 mm, outer Ø: 55 mm, length: 72 mm bell, inner Ø: 50 mm, outer Ø: 64 mm, length: 70 mm bell, stepped, inner Ø: 36, 40 mm, outer Ø: 45 mm, length: 30 mm bell, stepped, inner Ø: 47, 53 mm, outer Ø: 58 mm, length: 43 mm bell, stepped, inner Ø: 47, 53 mm, outer Ø: 58 mm, length: 61 mm bell, inner Ø: 32 mm, outer Ø: 46 mm, length: 26 mm bell, inner Ø: 46 mm, outer Ø: 55 mm, length: 32 mm bell, inner Ø: 47 mm, outer Ø: 51 mm, length: 35 mm bell, flattened, inner Ø: 47 mm, outer Ø: 55 mm, length: 32 mm disc, stepped, flattened, inner Ø: 57 mm, outer Ø: 70 mm, thickness: 13 mm sleeve, 1/3 open, inner Ø: 59 mm, outer Ø: 70 mm, length: 55 mm
