BGS 63401 | Digital Car Multimeter with USB Interface

• ideal automotive measuring tool|suitable for 2 and 4-stroke engines
• illuminated 3 5/6 digit display|USB port for connection to PC|auto-range, automatically selects the range size
• relative mode, enables differential measurement|data hold function, freezes the measured value|overload indication|low battery indicator
• measuring ranges: DC voltage: 6 V - 60 V - 600 V - 1000 V | AC voltage: 6 V - 60 V - 600 V - 750 V | DC current: 60 mA - 600 mA - 6 A - 20 A | AC current: 60 mA - 600 mA - 6 A - 20 A | resistance: 600 Ohm - 6 KOhm - 600 KOhm - 6 MOhm - 60 MOhm | continuity: buzzer sounds under 20 Ohm | diode: test current approx. 0.8 mA | capacity: 40 nF to 4000 uF | temperature: -20 to 400 °C | frequency: 10 Hz to 10 MHz | duty cycle: 0.5 % to 99.9 % | drive speed: 120 to 20,000 rpm | dwell: 0° - 90° / 0° - 72° / 0° - 60° / 0° - 45° | pulse width: 0.5 ms to 20 ms

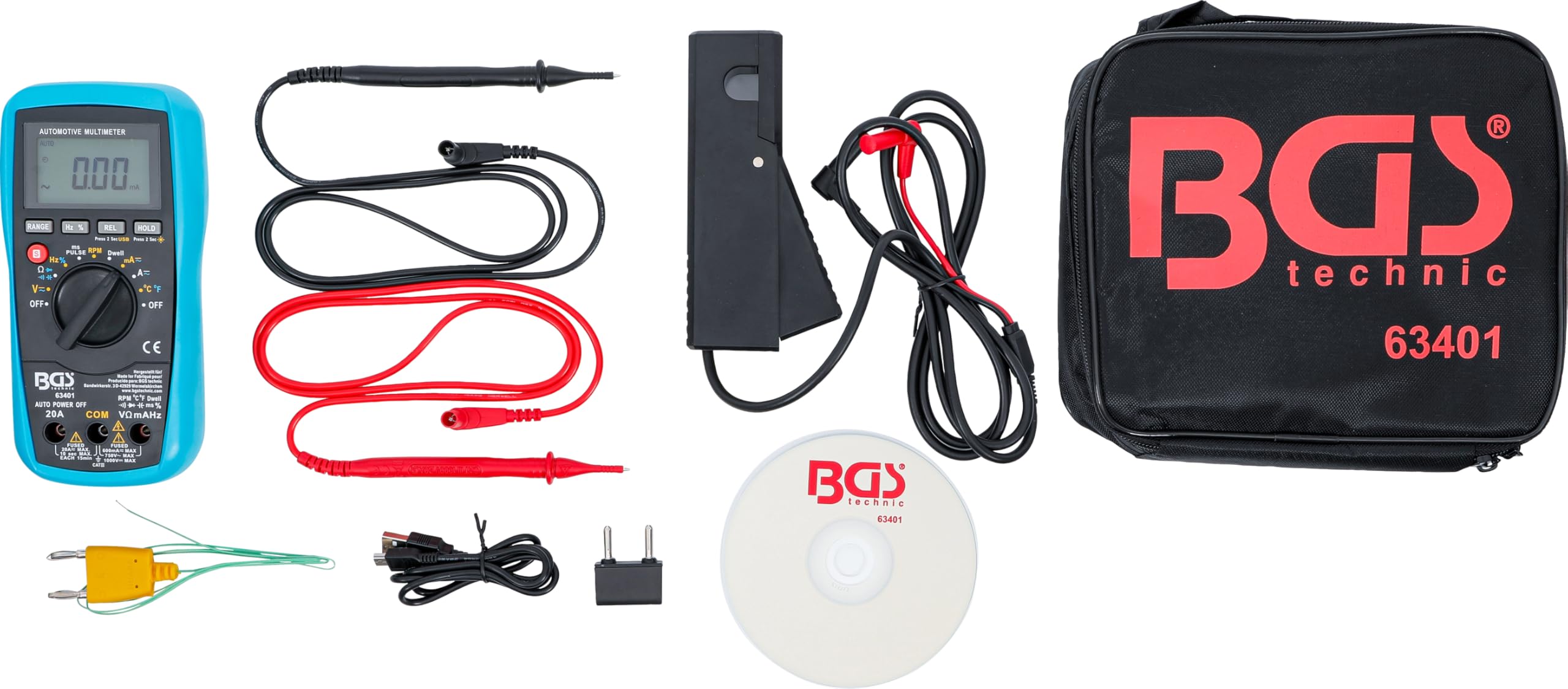

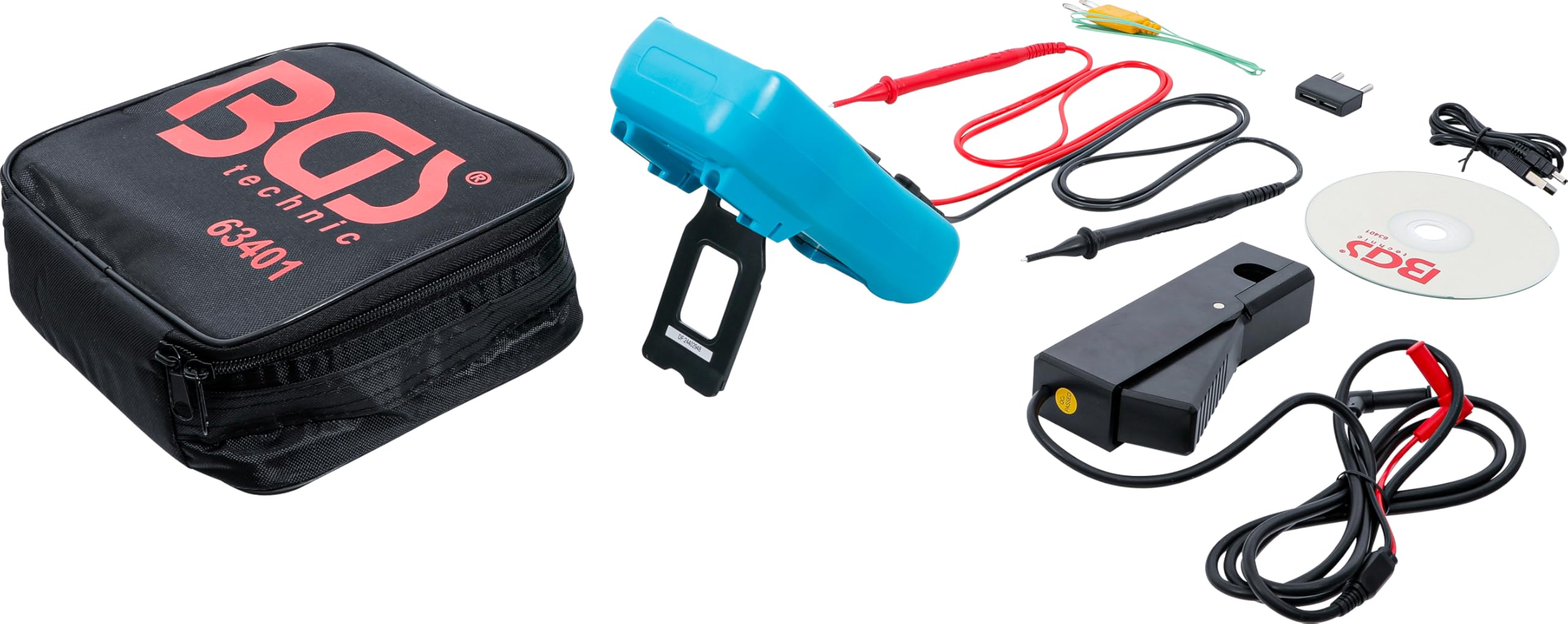

• scope of delivery: temperature probe | condenser adaptor | inductive pick up | 2 measuring cables | USB cable | CD with driver/software | pouch and 9-V battery

ideal automotive measuring tool suitable for 2 and 4-stroke engines illuminated 3 5/6 digit display USB port for connection to PC auto-range, automatically selects the range size relative mode, enables differential measurement data hold function, freezes the measured value overload indication low battery indicator measuring ranges: DC voltage: 6 V - 60 V - 600 V - 1000 V AC voltage: 6 V - 60 V - 600 V - 750 V DC current: 60 mA - 600 mA - 6 A - 20 A AC current: 60 mA - 600 mA - 6 A - 20 A resistance: 600 Ohm - 6 KOhm - 600 KOhm - 6 MOhm - 60 MOhm continuity: buzzer sounds under 20 Ohm diode: test current approx. 0.8 mA capacity: 40 nF to 4000 uF temperature: -20 to 400 °C frequency: 10 Hz to 10 MHz duty cycle: 0.5% to 99.9% drive speed: 120 to 20,000 rpm dwell: 0° - 90° / 0° - 72° / 0° - 60° / 0° - 45° pulse width: 0.5 ms to 20 ms temperature probe condenser adaptor inductive pick up 2 measuring cables USB cable CD with driver/software pouch and 9-V battery
