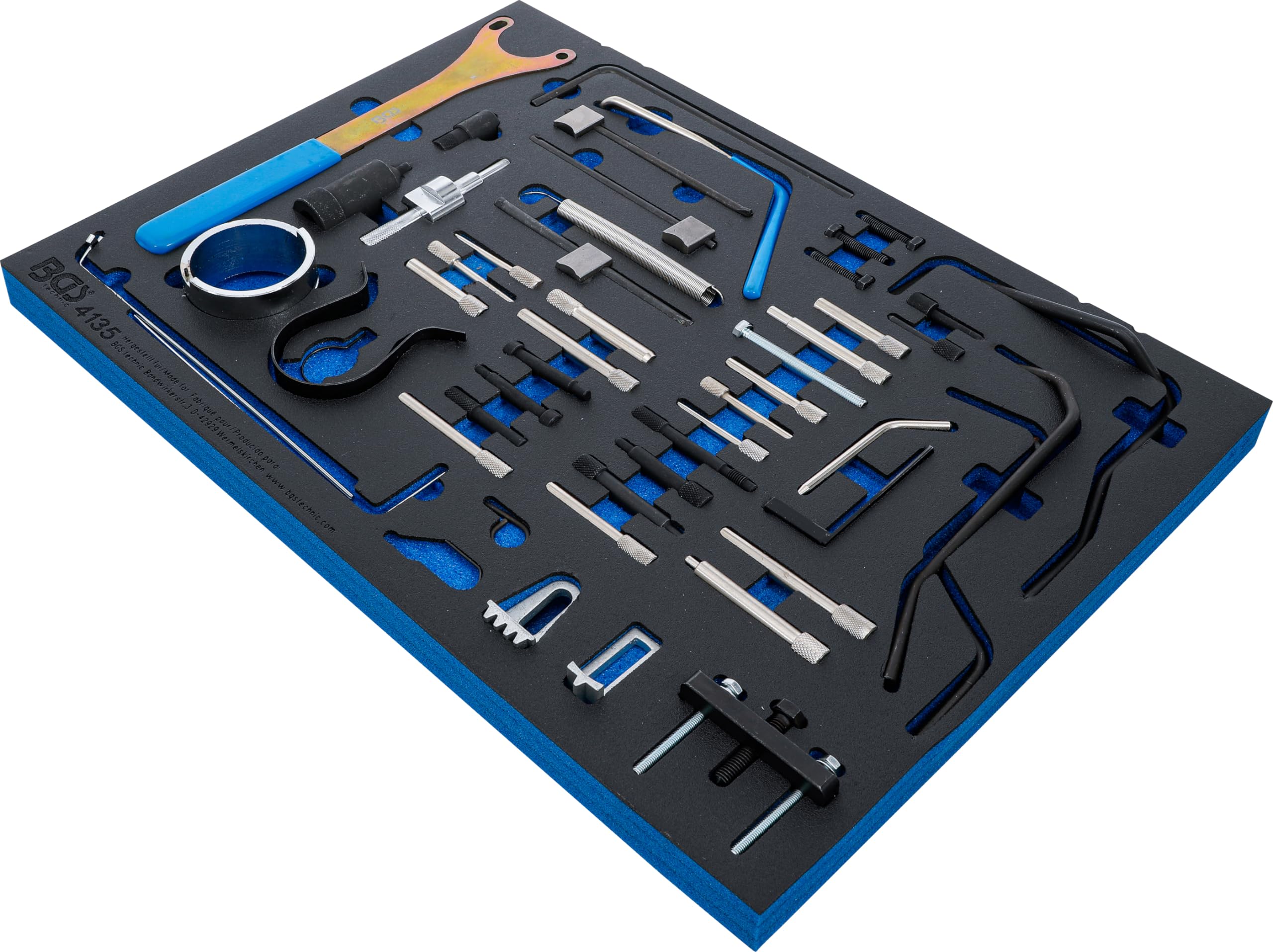

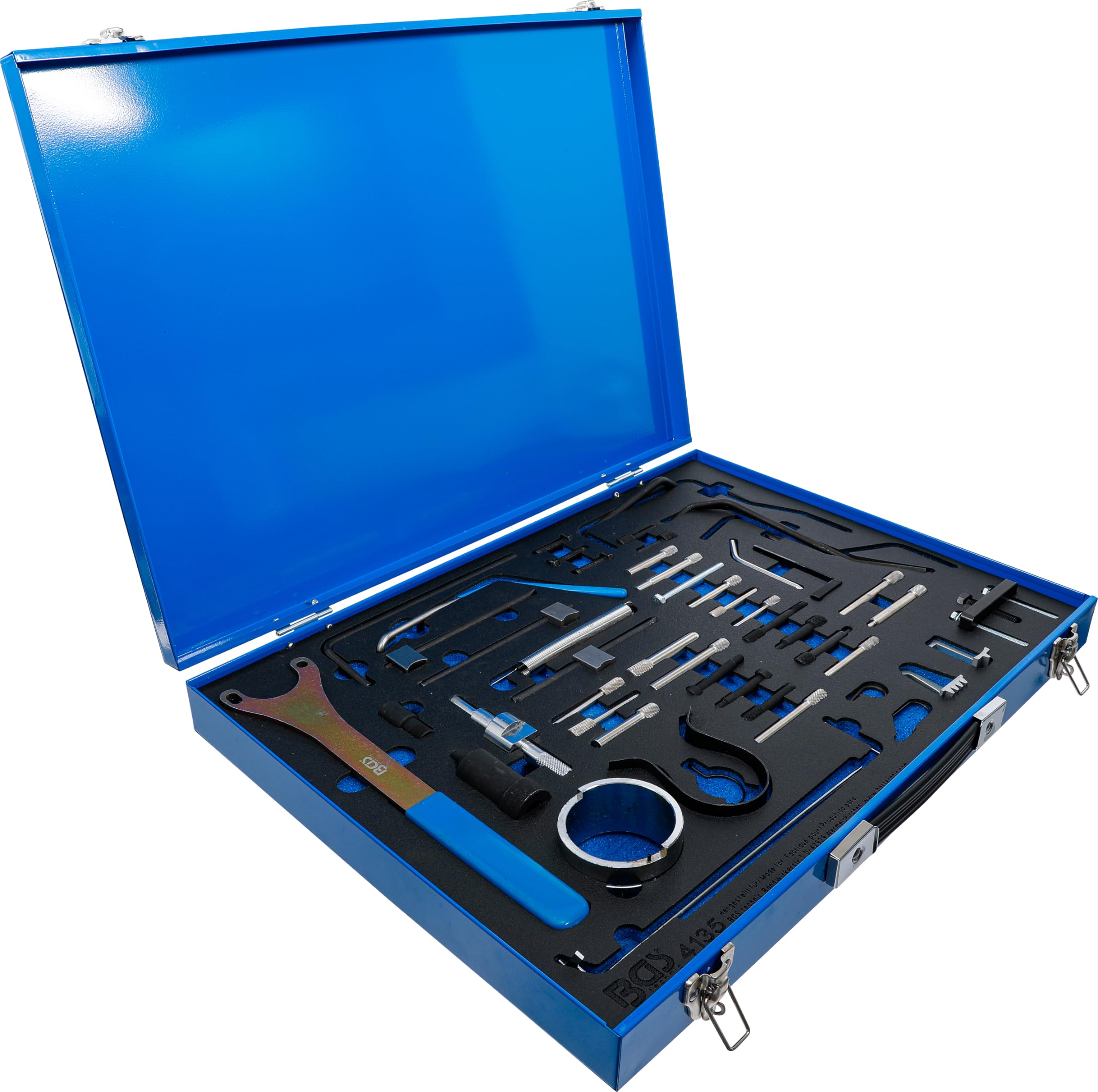

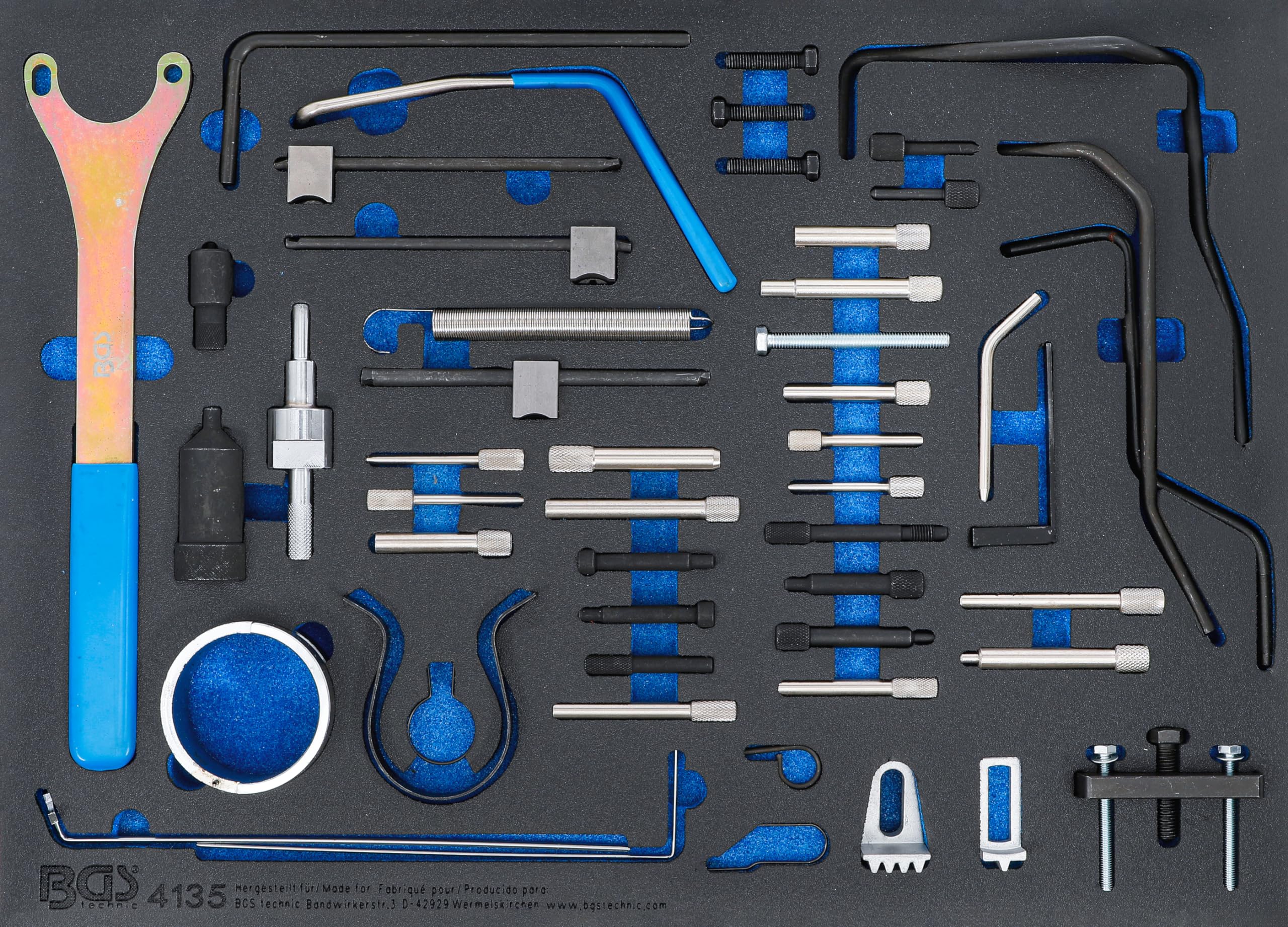

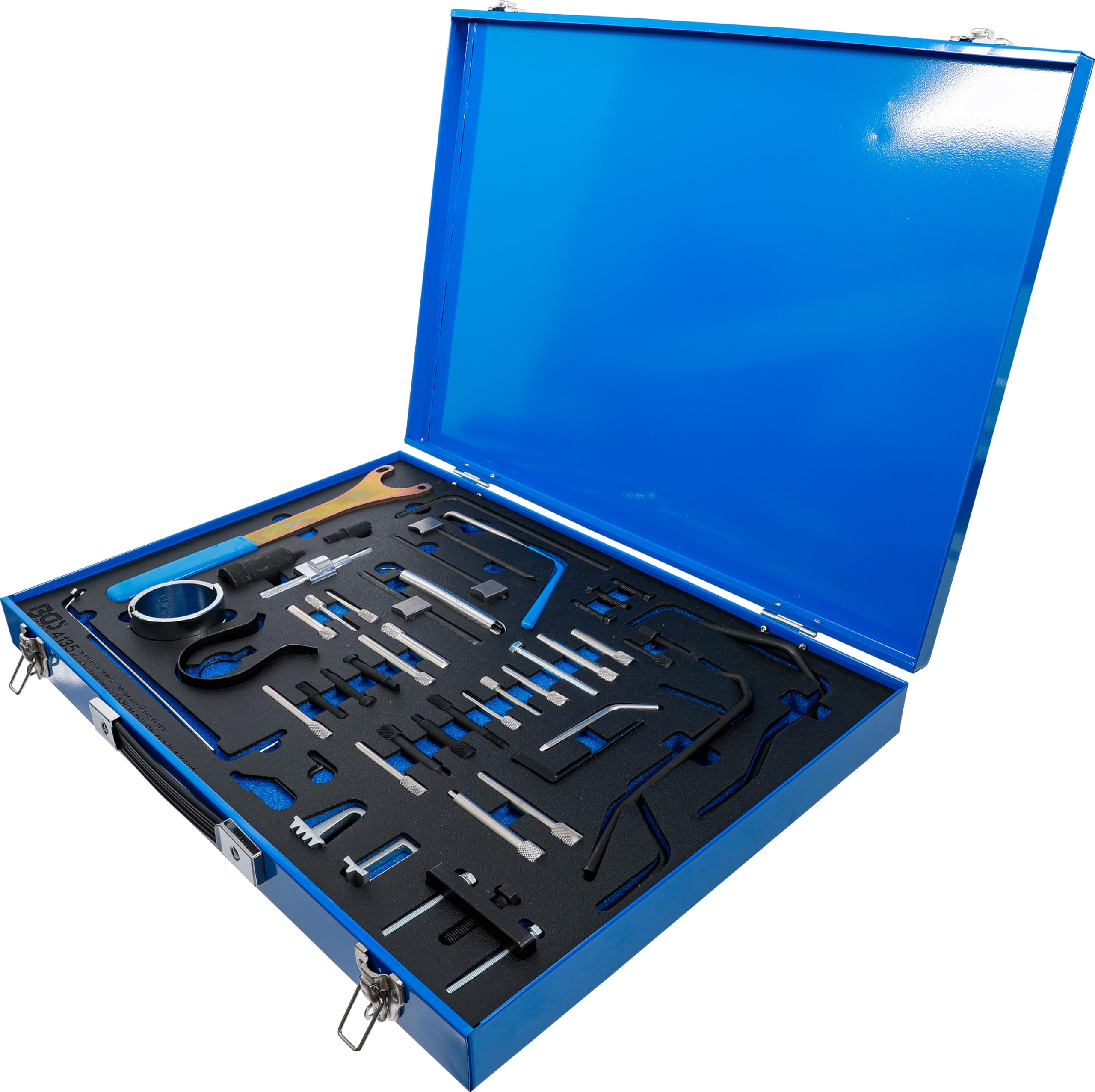

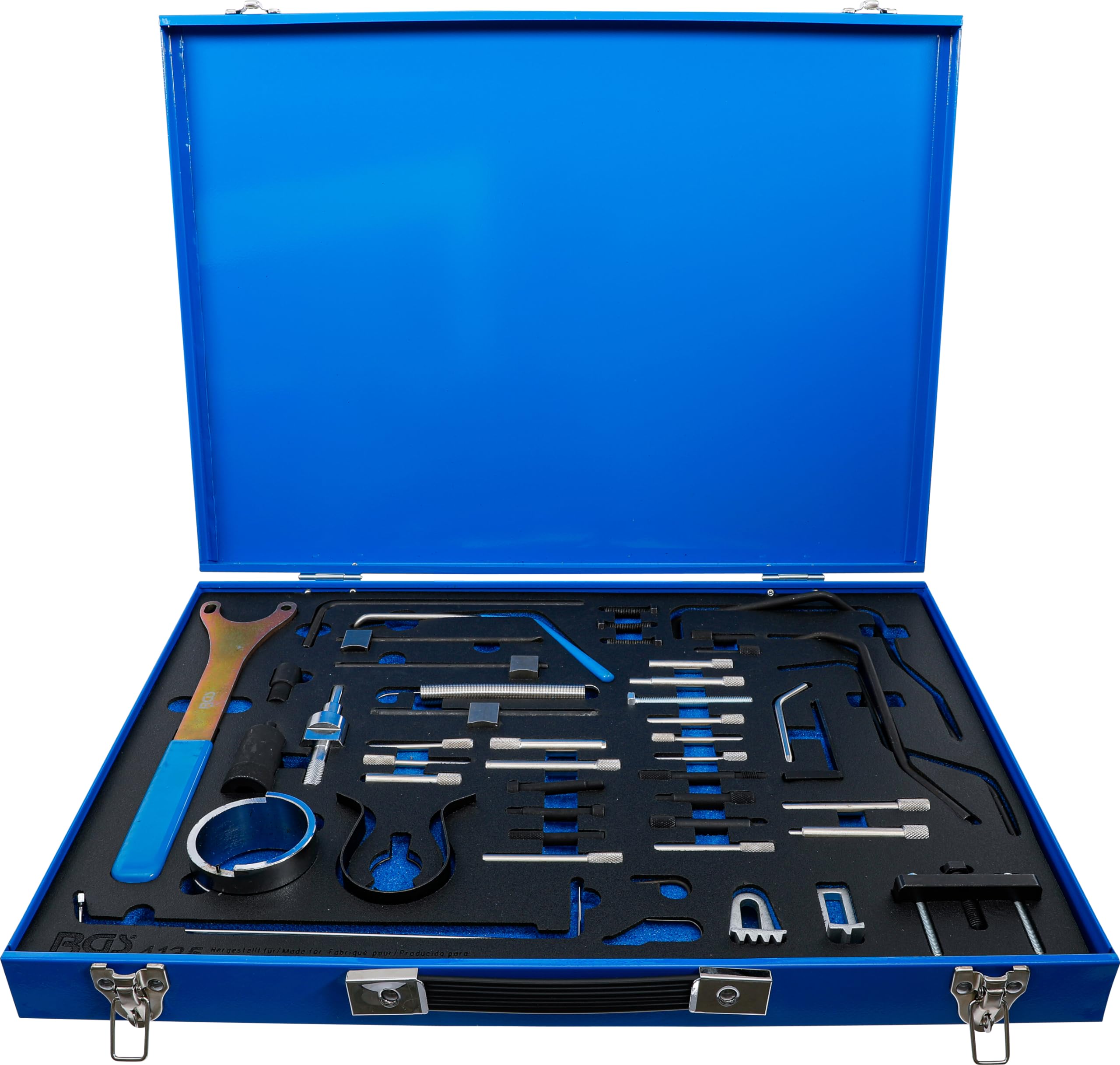

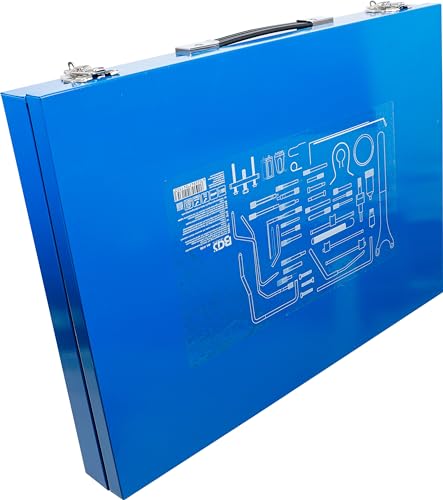

BGS 4135 | Tool Tray 3/3: Engine Timing Tool Set | for Fiat, Ford, Citroën, Peugeot

• for adjusting the engine timing when renewing the tooth belt, replacing the cylinder head gasket, etc.
• suitable for the following models: Fiat Ulysse, Scudo, Ducato | Lancia Zeta, Phedra | Ford Fiesta, Fusion, Focus, Focus C-Max | Citroen C15, C1, C2, C3 Pluriel, C4, C4 Picasso, C5, C6, C8, DS3, DS4, DS5, Xantia, Xsara, Xsara Picasso, Evasion, Berlingo, Jumpy, Jumper, Saxo, ZX, XM, Evasion, AX | Peugeot 107, 1007, 206 cc, 207, 208, 306, 307 cc, 308, 406, 407, 508, 607, 806, 807, Partner, Expert, Boxer, 206, 106, 605, 205, 405 | Lancia / Fiat 2.0 and 2.2 JTD
• suitable for engines: DW12TED4 (4HW), DW10ATED (RHT/RHV/RHW/RHX/RHZ) | Ford 1.4 / 1.6 Duratorq TDCI, Motorcodes: F6JA, F6JB, F6JC, G8DA, G8DB, HHDA, HHDB, HHJA, HHJB | Citroen / Peugeot 1.0 / 1.1 / 1.4 / 1.6 / 1.6 16V, 1.4 / 1.6HDI / 1.8 / 1.8 16V / 2.0 / 2.0 Turbo, 1.9D / 2.0HDI / 2.2HDI / 1.8 16V / 2.0 16V
• engince codes: TU9 (CDY/CDZ), TU1 (HDY/HDZ/HFX/HFY/HFZ), TU3 (KDX/KDY/KDZ/KFX/KFZ), TU5JP4 (NFU/NFX), TU5 (BDY/BFZ/NFT/NFV/NFW/NFY/NFZ), XU7 (LFW/LFX/LFZ), EW7J4 (RLZ), XU7JP4 (LGY), XU10 (RFL/RFU/RFW/RFX/RGX/RGY), XU10JP4(RGX/RGY), EW10A (RFJ), EW10J4S (RFK), EW10D (RLZ), EW12J4 (3FZ), ET3JE (KFU), TU3A/JP (KFV/KFW), DV4TD (8HW/8HX/8HZ), DV4TED4 (8HV/8HY), DV6ATED4 (9HX/9HY/9HZ), EW10-CVI (RLZ), EW12 (3FZ), DW8 (WJZ/WJY), DW10 (RHY/RHV/RHZ/RHS/RHM/RHW/RHT/RHR/RHX), DW12 (4HX/4HZ/4HW/4HY), EW7J4 (6FZ), EW10J4 (RFR), EW10J4D (RLZ)
• scope of delivery: flywheel puller, to be used as OEM 0188-P2, 0188-P, 174, 7015-T | tensioner pulley locking levers, to be used as OEM 0188-J1, 0188-J2 | tensioner pulley locking pins, to be used as OEM 0188-Q2, 0188-AH, 0189-S2 | timing belt retaining clip, to be used as OEM 0132-AK, 0188-AK, 0189-K, 0153-AK, 4533-TAD, MOT 1436
• flywheel locking pins, to be used as OEM 0153-N, 0188-Y, 7014-TJ, 7099-TM, 9797-34, 0188-D, 7017-TM, 0132-P, 4507-TL, 7017-TR, 0153-M, 0178-C, 0178-D, 7014-TM, 9767-94, 0189-B, 21-163, 0132-AJ1, 0153-G, 0188-M, 0189-J, 4533-TAC1, 5711-TA, 0189-L, 0189-C, 0189-R, 0153-U, 7019-T, 0132-Q, 0132-QZ, 4507-TA, 9767-27, 0132-X, 0188-Q1, 4507-TJ, 9767-89
• tensioner pulley locking pins, to be used as OEM 4200-TH, 0117-AR | tensioning tool, to be used as OEM 0178-E | flywheel locking tool, to be used as OEM 0153-A, 6012-T, 9765-54, 0134-AF, 0134-Q, 0188-F, 9004-T
• pulley locking lever, to be used as OEM 0606-A1-A2 | tensioner pulley adjusting tool, to be used as OEM 0189-S1

for adjusting the engine timing when renewing the tooth belt, replacing the cylinder head gasket, etc. suitable for the following models: Fiat Ulysse, Scudo, Ducato Lancia Zeta, Phedra Ford Fiesta, Fusion, Focus, Focus C-Max Citroen C15, C1, C2, C3 Pluriel, C4, C4 Picasso, C5, C6, C8, DS3, DS4, DS5, Xantia, Xsara, Xsara Picasso, Evasion, Berlingo, Jumpy, Jumper, Saxo, ZX, XM, Evasion, AX Peugeot 107, 1007, 206 cc, 207, 208, 306, 307 cc, 308, 406, 407, 508, 607, 806, 807, Partner, Expert, Boxer, 206, 106, 605, 205, 405 Lancia / Fiat 2.0 & 2.2 JTD suitable for engines: DW12TED4 (4HW), DW10ATED (RHT/RHV/RHW/RHX/RHZ) Ford 1.4 / 1.6 Duratorq TDCI Motorcodes: F6JA, F6JB, F6JC, G8DA, G8DB, HHDA, HHDB, HHJA, HHJB Citroen / Peugeot 1.0 / 1.1 / 1.4 / 1.6 / 1.6 16V, 1.4 / 1.6HDI / 1.8 / 1.8 16V / 2.0 / 2.0 Turbo, 1.9D / 2.0HDI / 2.2HDI / 1.8 16V / 2.0 16V flywheel puller, to be used as OEM 0188-P2, 0188-P, 174, 7015-T tensioner pulley locking levers, to be used as OEM 0188-J1, 0188-J2 tensioner pulley locking pins, to be used as OEM 0188-Q2, 0188-AH, 0189-S2 timing belt retaining clip, to be used as OEM 0132-AK, 0188-AK, 0189-K, 0153-AK, 4533-TAD, MOT 1436 flywheel locking pins, to be used as OEM 0153-N, 0188-Y, 7014-TJ, 7099-TM, 9797-34, 0188-D, 7017-TM, 0132-P, 4507-TL, 7017-TR, 0153-M, 0178-C, 0178-D, 7014-TM, 9767-94, 0189-B, 21-163, 0132-AJ1, 0153-G, 0188-M, 0189-J, 4533-TAC1, 5711-TA, 0189-L, 0189-C, 0189-R, 0153-U, 7019-T, 0132-Q, 0132-QZ, 4507-TA, 9767-27, 0132-X, 0188-Q1, 4507-TJ, 9767-89 tensioner pulley locking pins, to be used as OEM 4200-TH, 0117-AR tensioning tool, to be used as OEM 0178-E flywheel locking tool, to be used as OEM 0153-A, 6012-T, 9765-54, 0134-AF, 0134-Q, 0188-F, 9004-T pulley locking lever, to be used as OEM 0606-A1-A2 tensioner pulley adjusting tool, to be used as OEM 0189-S1
