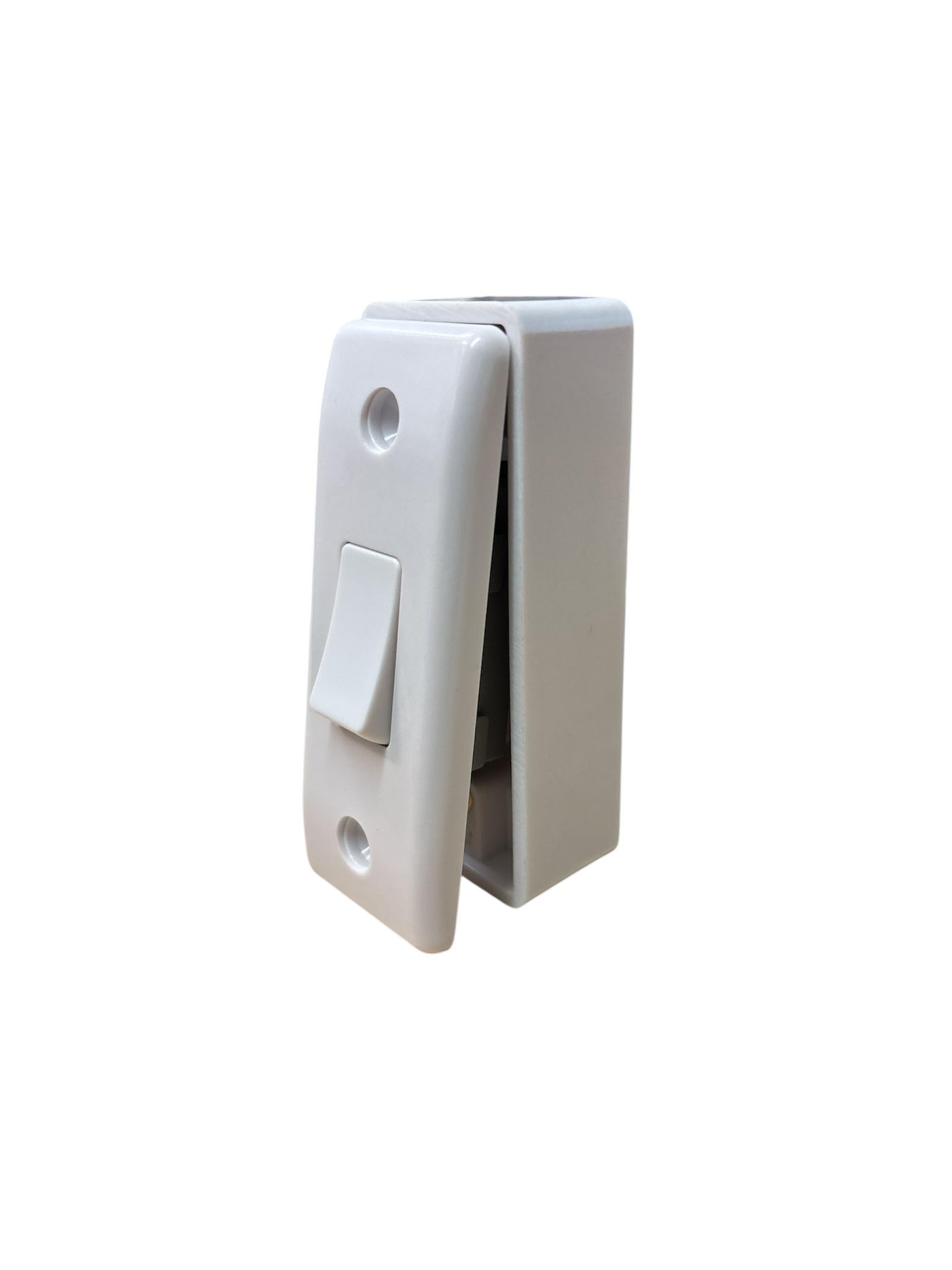

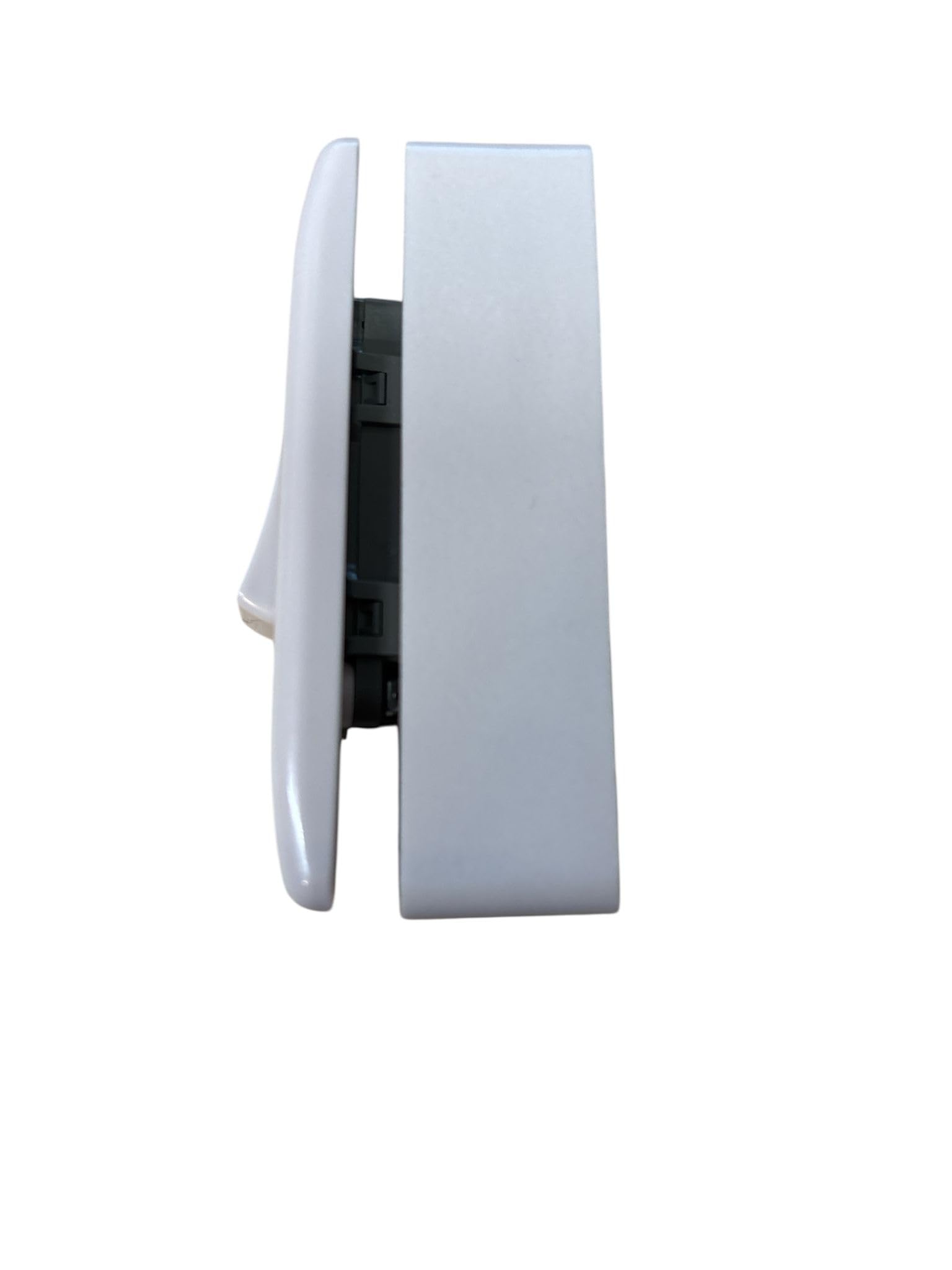

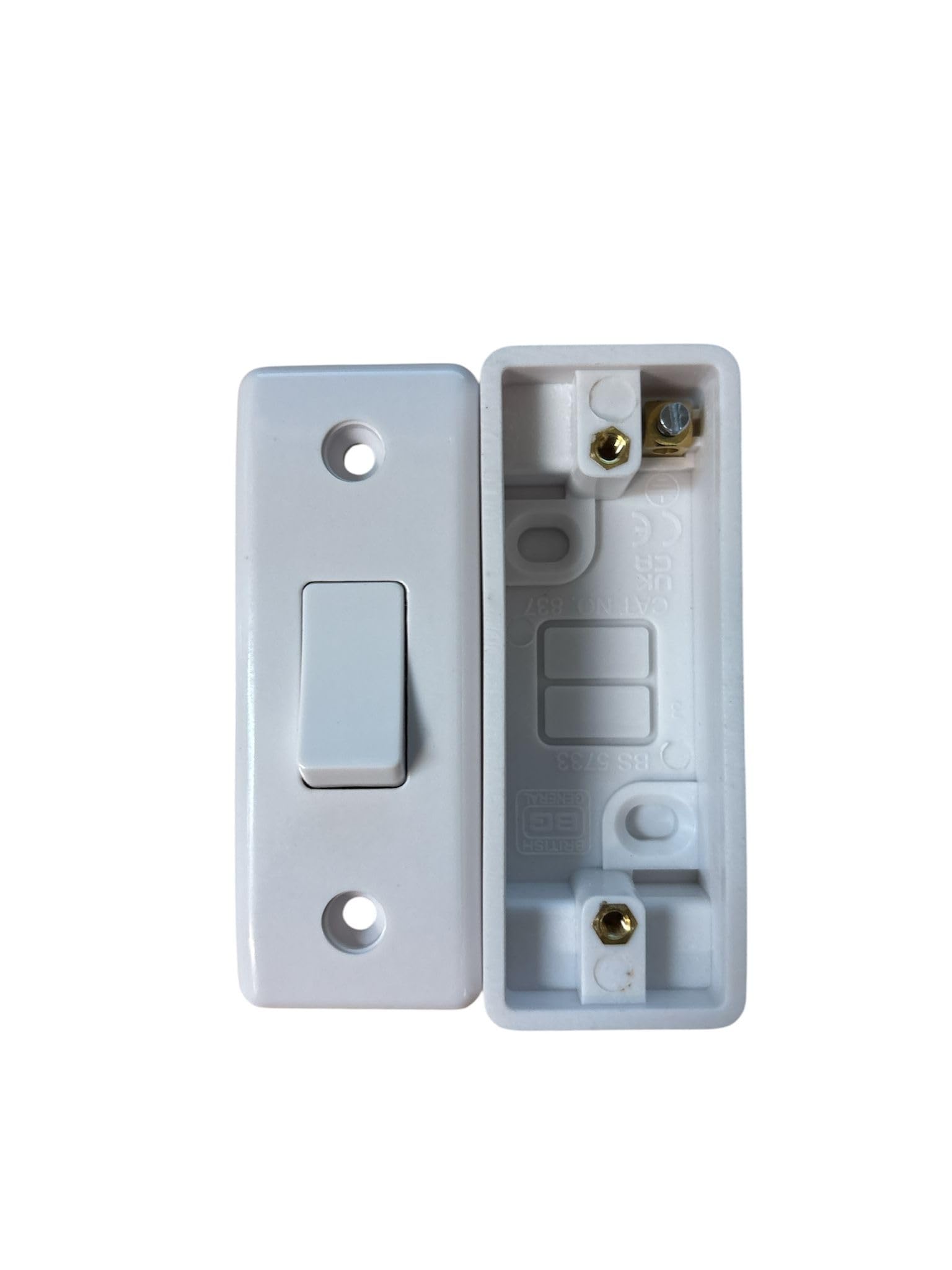

BG 847 Moulded Round Edge | White | 1 Gang 10A 2 Way Architrave Switch and Surface Mounted Back Box, Pattress Box for Switches, 19mm, Round Edge, Nexus 800 Series, White Moulded - 837

• 20A 16AX Rated
• Easy to install, supplied with fixing screws and installation instructions
• 2 way switching allows for a second switch position in a circuit
• Captive screws prevent screw loss
• Screw covers for sleek appearance
• Minimum mounting box depth 16mm

The White Moulded range from Nexus with its subtle design will blend in with any decor. It's sleek and slim with soft rounded corners and gentle curved rockers and is suitable for domestic or commercial installations. This single architrave switch plate can be used as a direct replacement for an existing double architrave switch on the skirting or architrave ensuring that all connection on the existing double architrave switch matches with the one that it is being replaced with. Can also be used as a light switch where you a limited for space on the wall or can be used a part of a new installation. Key Features Colour coded terminals Stylish modern profile Backed out captive screws for easy installation Technical Standards : BS EN 60669-1 Rating : 250V / 10 Amp (10AX) Contact gap : 3.0mm minimum Terminal capacity : L & N - 4 x 1.0mm² / 4 x 1.5mm² / 2 x 2.5mm² / 1 x 4.0mm² Minimum mounting box depth : 16mm MODERN ROUND EDGED WHITE MOULDED SINGLE 19MM SURFACE MOUNTED PATTRESS BOX: Compatible with British General 800 Series Architrave switches PART OF THE BG NEXUS 800 SERIES WHITE MOULDED RANGE: With high resistance to fading, discolouration and scratches, it gives a clean and non-obtrusive style, allowing it to complement any décor SUITABLE FOR SURFACE WALL-MOUNTING: ideal for installing architrave switches on walls in tight spaces where installation within the wall is not possible or desired EASY TO INSTALL: Multiple knockouts for rear or conduit entry and an earth terminal in the base for a safe installation
