OBO Bettermann Bettermann Cable Junction Box T 160, IP66, 190 x 150 x 77 mm, Light Grey (RAL 7035)

• Ideal Product
• Easy to use
• Durable product

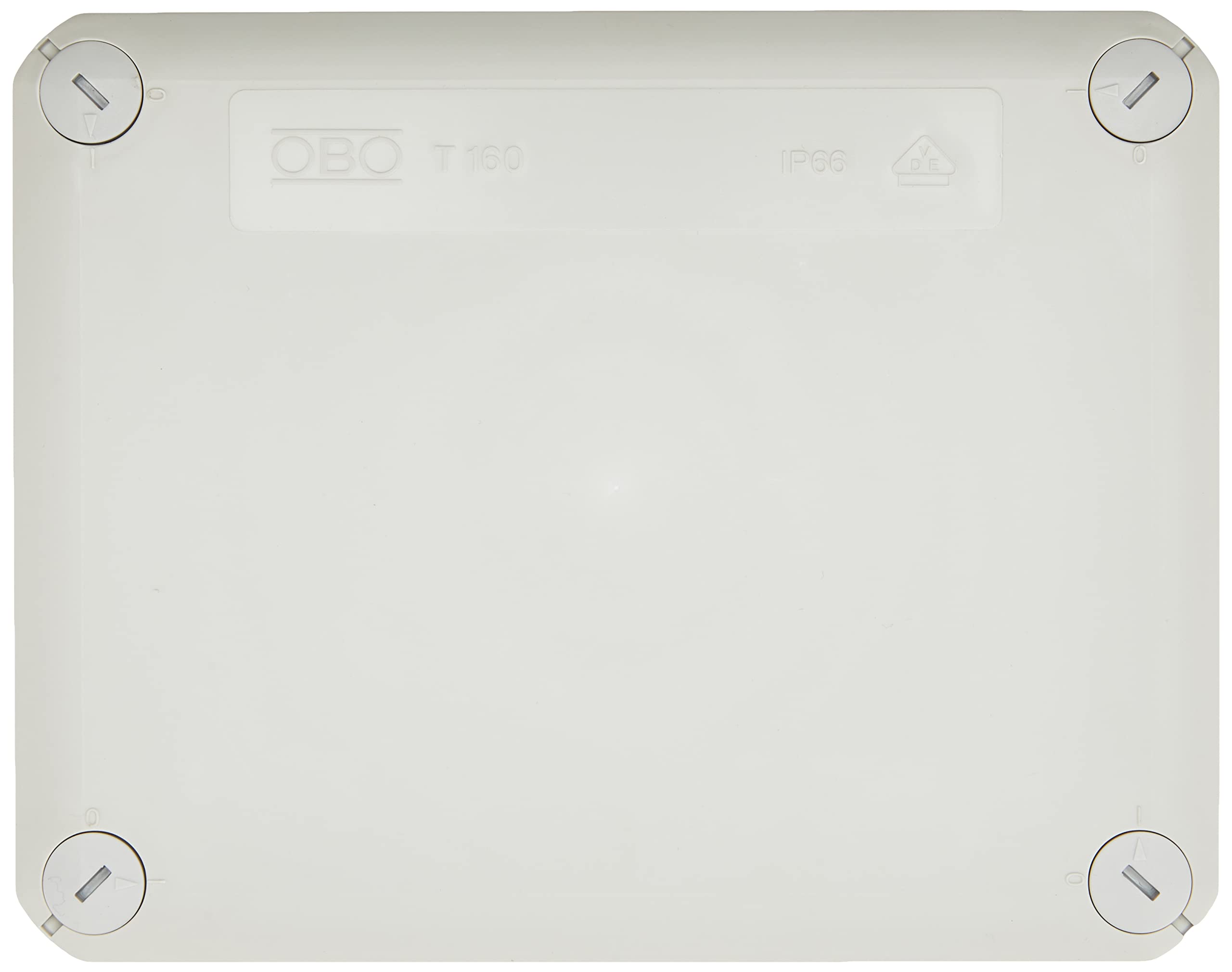

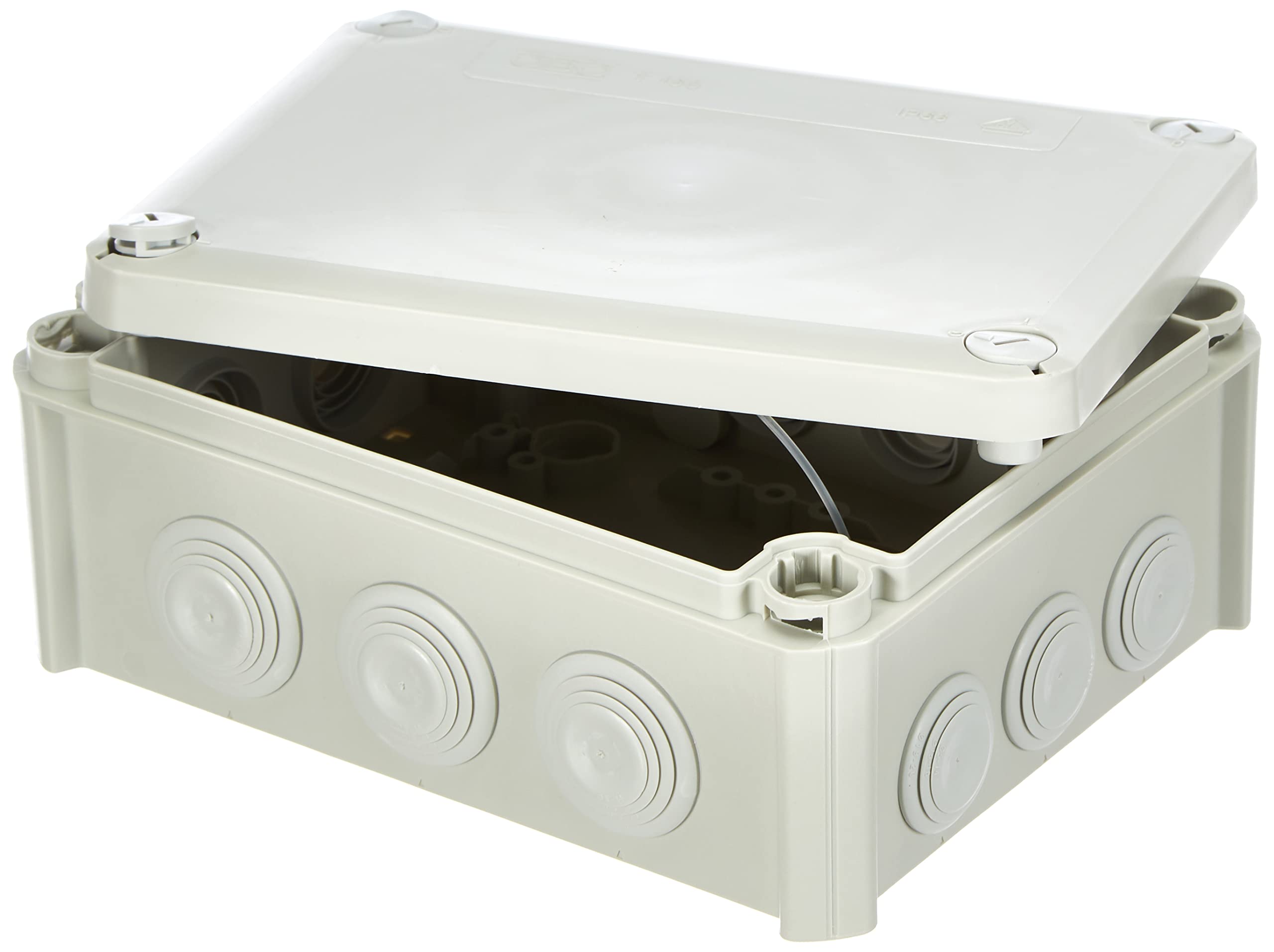

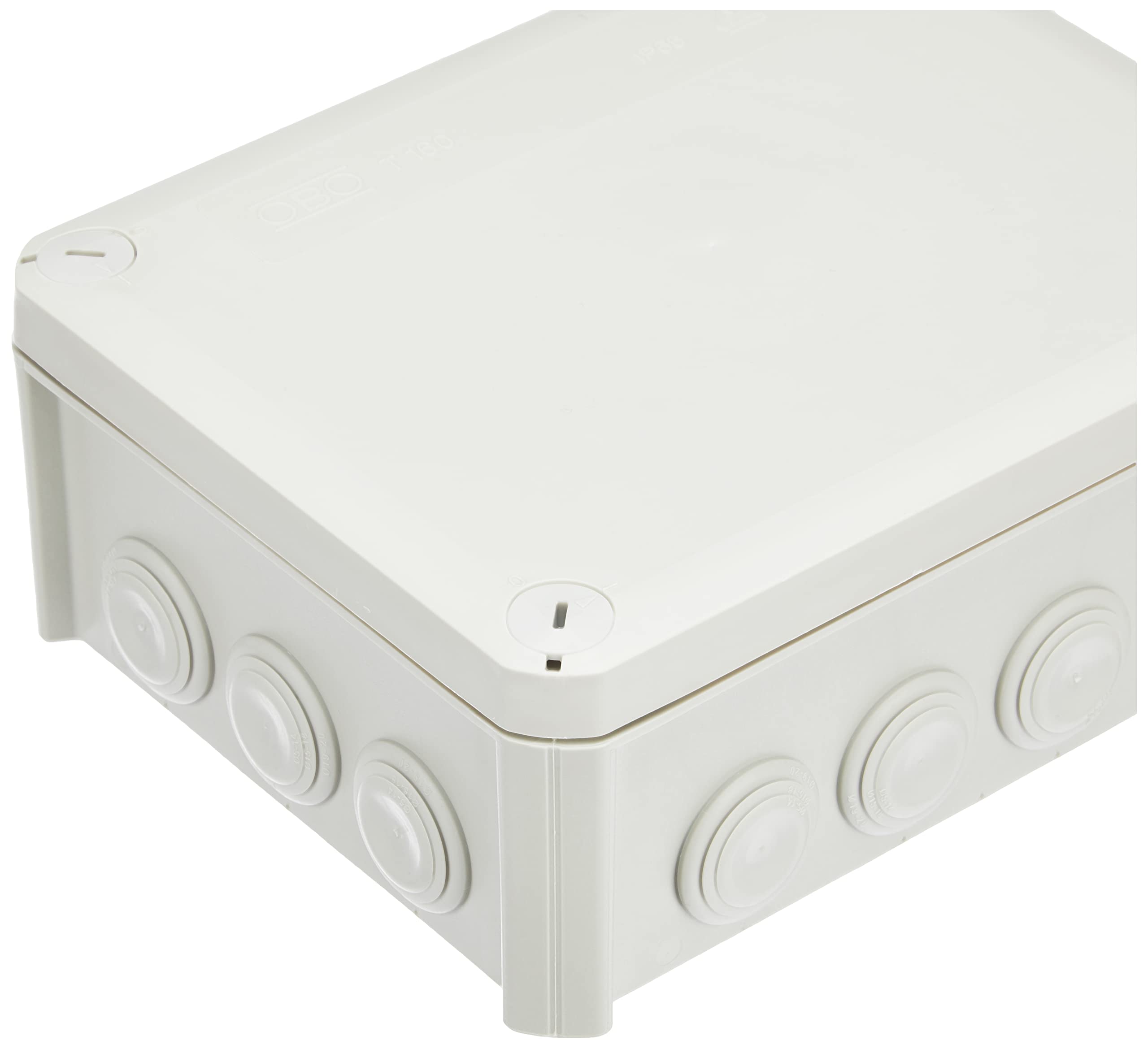

Junction box T160 190 x 150 x 77 mm light grey IP66 halogen-free without clamps. The cable junction boxes of the T-series are all UV-resistant. They are made from a thermoplastic polypropylene with insert seals made of ethylene vinyl acetate EVA. Thus, cables can be installed through the 7 x M25 + 5 x M32 seals or the seals are cut with a knife in the intended places to create an insertion opening for pipes or pipes. Alternatively, cable glands can be inserted through the openings instead of the seals and countered from the inside with a locknut. The cable junction boxes can be mounted on mounting plates with self-tapping screws 3.5 x 9.5 in openings on the floor. Clear internal dimensions: 176 x 135 x 67 mm. Lid with labelling field and sealable. Technical data: design (general): without clamps. Continuous temperature resistance: 650 °C. Colour: light grey (RAL 7035). Wet room junction features: with labelling field, sealable, UV-resistant, halogen-free, without clamping block. Contents: 1 piece. Material: plastic. Product type: junction box. Product dimensions, width: 1. 50mm ·Product dimensions, height: 77 mm · Product dimensions, length: 190 mm · Protection class: IP66 · Further technical data: conductor cross section: up to 16 mm²
