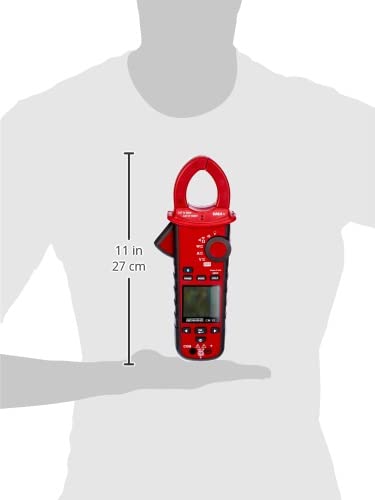

Benning CM 12 TRUE RMS Digital Power Clamp Multimeter 044680

• Precise thanks to real RMS AC, AC + DC True RMS. Inrush current measurement of engines, lamps etc.
• Recording of load profiles on single-phase and three-phase consumers in AC/DC networks. Simultaneous detection of current (A) and voltage (V) for active power (W) and power factor measurement.
• Continuity (30 Ω - 100 Ω), diode (0.8 V) and two-pole rotary field testing. Low-pass filter (HFR) for measurements on clocked motor drives.
• Upper wave measurement (THD) for assessing the network quality. Optional: AC current measurement up to 3000 A via flexible AC transformer BENNIING CFlex 1 (044068).
• Data logger function LOG (10,000 readings, sampling rate: 1 s - 10 minutes). iOS and Android app for data connection to smartphone / tablet.

TRUE RMS Digital Power Clamp Multimeter with Logging Function and Bluetooth® Interface. For all demanding measuring tasks in industry and trade. Monitor, save and share the readings for further evaluation via the free app "BENNING MM-CM Link" within your organisation.
